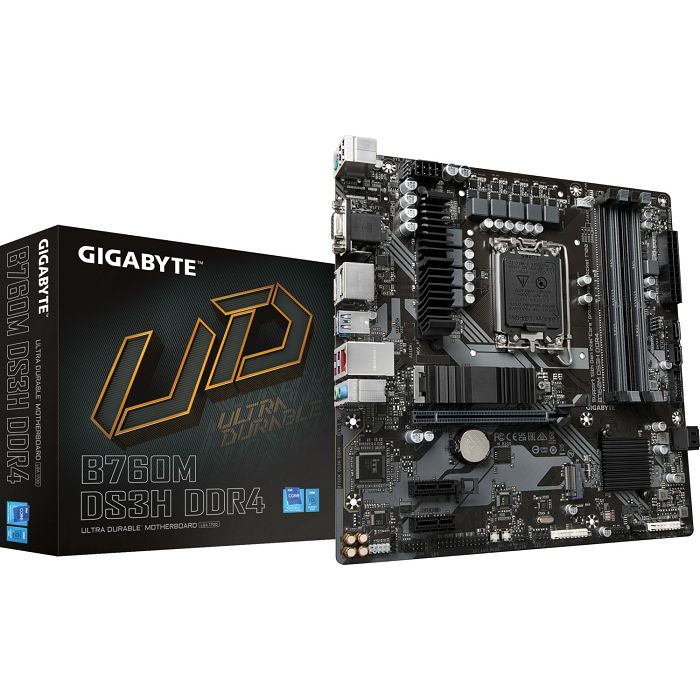

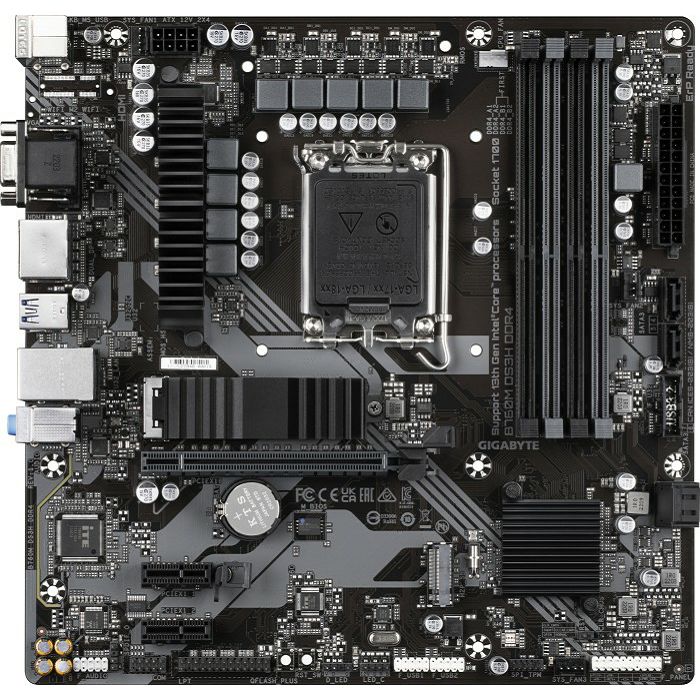

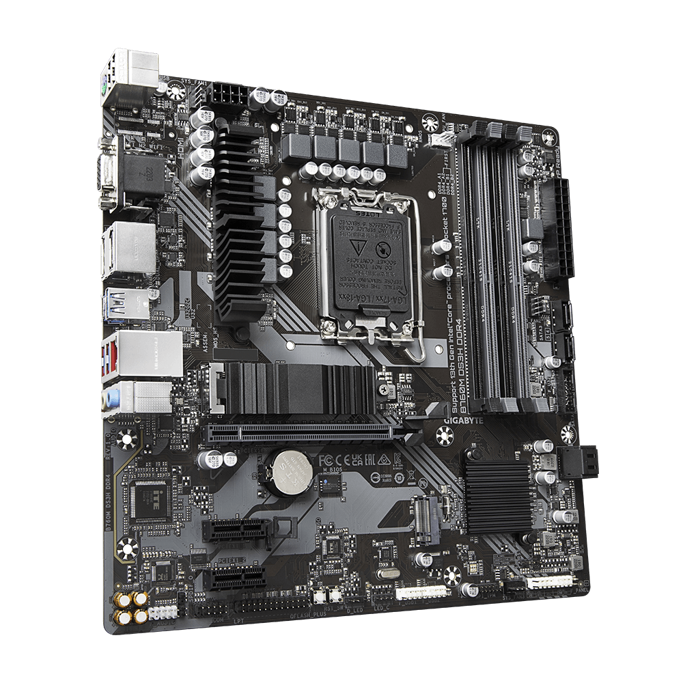

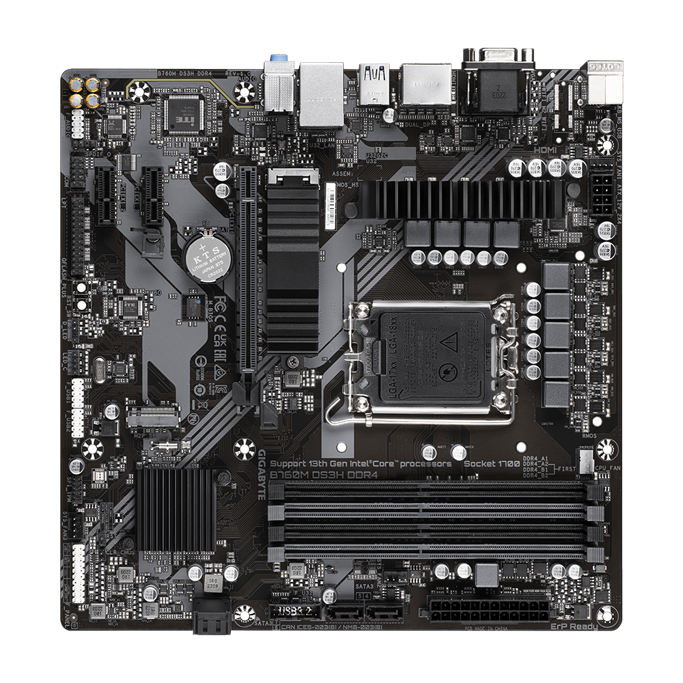

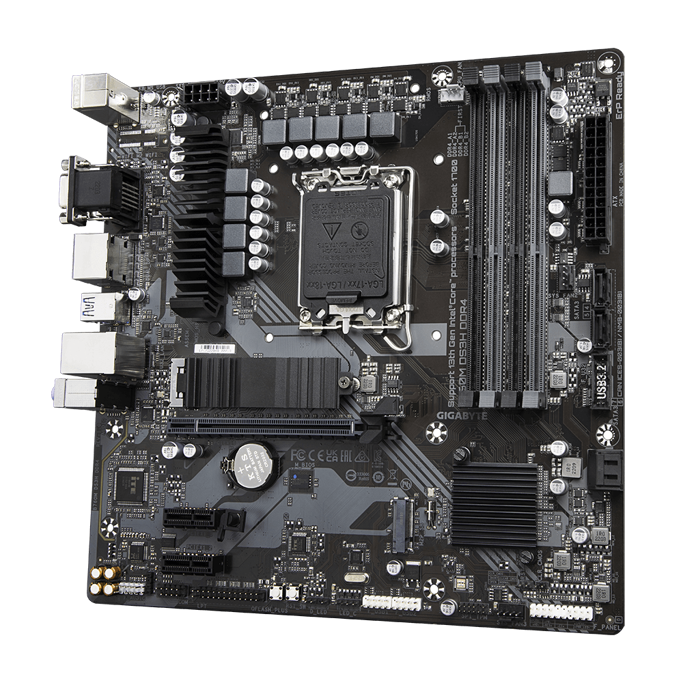

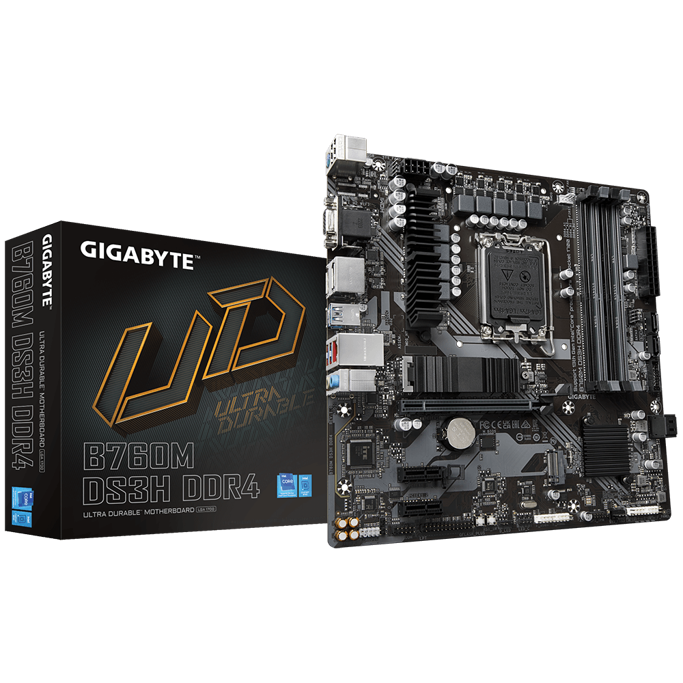

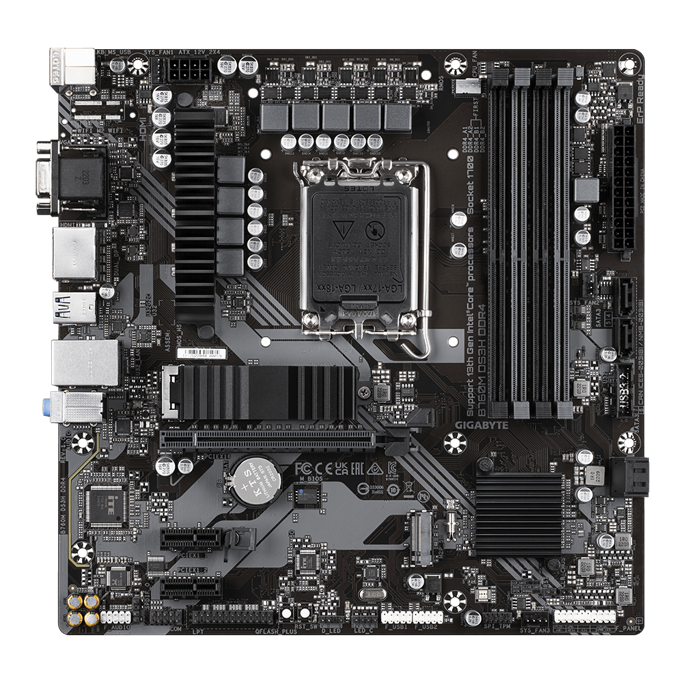

Gigabyte B760M DS3H, DDR4, Intel B760, s.1700

Form factor µATX
Plinth Intel 1700
Chipset Intel B760
CPU Compatibility Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM 4x DDR4 DIMM, dual PC4-42666U/DDR4-5333 (OC), max 128GB (UDIMM)
Expansion slots 1x PCIe 4.0 x16, 2x PCIe 3.0 x1, 2x M.2/M-Key (PCIe 4.0 x4, 2280)

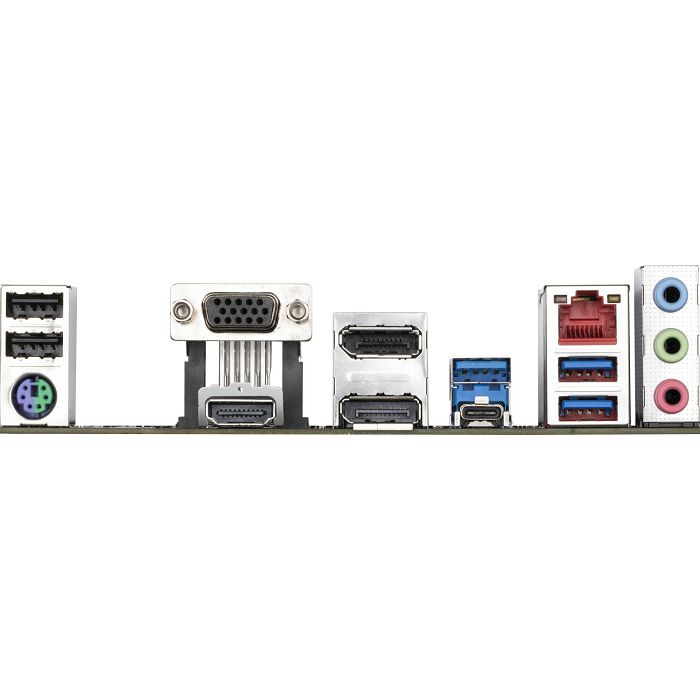

External connections 1x VGA (iGPU), 1x HDMI 2.0 (iGPU), 2x DisplayPort 1.2 (iGPU), 1x USB-C 3.1 (10Gb/s), 3x USB-A 3.0 (5Gb/s), 2x USB-A 2.0 (480Mb/s), 1x 2.5GBase-T (Realtek RTL8125BG), 3x jack, 1x PS/2-combo
Internal connections 1x USB 3.0 header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (B760), 1x serial, 1x parallel, 1x TPM header, 1x S/PDIF header
Header Cooling 1x CPU fan 4-pin, 3x fan 4-pin
Header Lighting 1x 4-pin RGB (+12V/G/R/B, max. 2A), 1x 3-pin ARGB (+5V/DATA/GND, max. 5A)
Buttons/Switches Reset-Button (internal), USB BIOS Flashback/Q-Flash Plus (internal)
Audio 7.1 (Realtek ALC897)
Graphic iGPU
Wireless N/A
RAID Levels 0/1/5/10 (B760)
Multi-GPU N/A
Electrical connections 1x 24-pin ATX, 1x 8-pin EPS12V
VRM 8 virtual phases (6+2), 8 real phases (6+2), PWM controller: NCP81530 (max. 10 phases)
MOSFETs CPU 6x 46A 4C10N/12x 4C06N
MOSFETs SoC 2x 46A 4C10N/4C06N
Lighting N/A
BIOS 1x 16MB (128Mb)
Particularities Audio+solid capacitors, 1x M.2 passive cooler, onboard TPM 2.0 support (Intel PTT)
