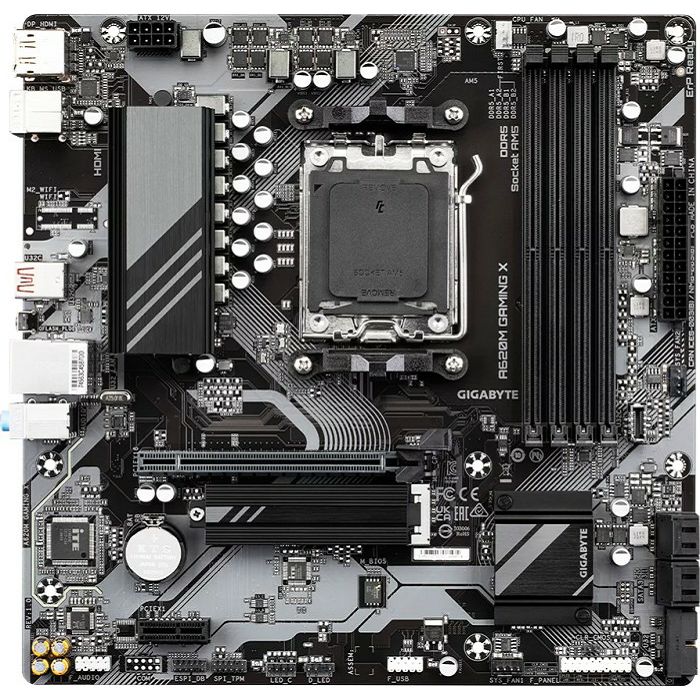

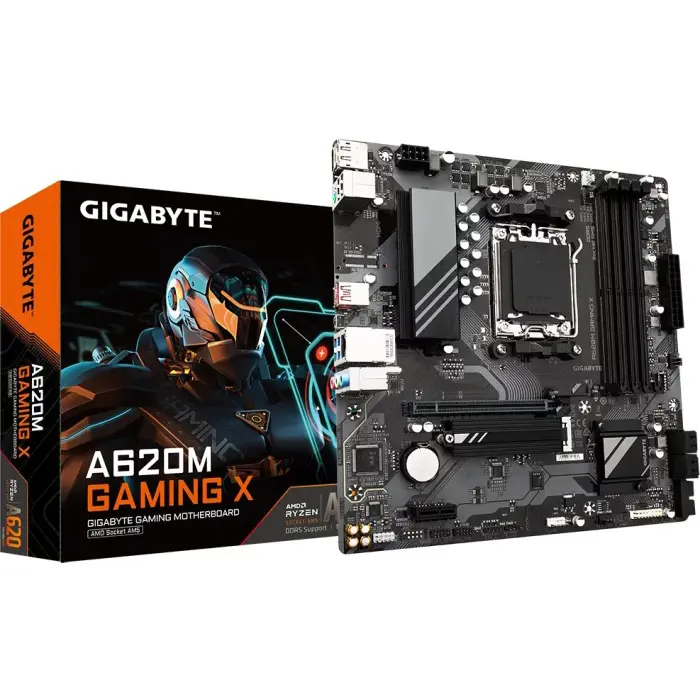

Gigabyte A620M GAMING X, AMD A620, All TDP, AM5, DDR5

Form factor µATX
Plinth AMD AM5
Chipset AMD A620
CPU Compatibility Ryzen 7000, without TDP restriction (manufacturer list)
RAM 4x DDR5 DIMM, dual PC5-51200U/DDR5-6400 (OC), max. 192GB (UDIMM)
Expansion slots 1x PCIe 4.0 x16, 1x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 4.0 x4, 2280)

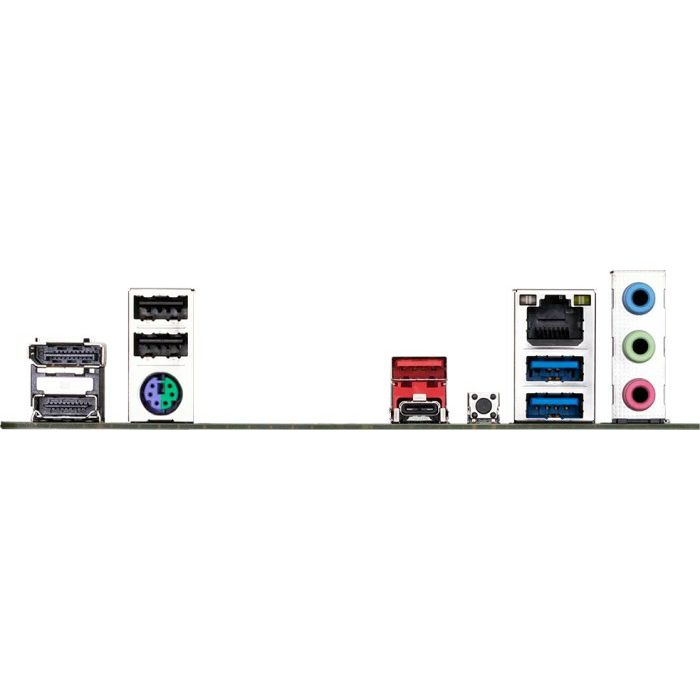

External connections 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.0 (5Gb/s), 1x USB-A 3.1 (10Gb/s), 2x USB-A 3.0 (5Gb/s), 2x USB-A 2.0 (480Mb/s), 1x Gb LAN (Realtek), 3x jack, 1x PS/2 combo
Internal connections1x USB-C 3.0 Key-A header (5Gb/s), 1x USB 3.0 header (5Gb/s, 2x USB 3.0), 1x USB 2.0 header (480Mb/s, 2x USB 2.0), 4x SATA 6Gb/s (A620), 1x TPM header, 1x speaker header
Header Cooling 1x CPU fan 4-pin, 2x fan 4-pin
Header Lighting 1x 3-pin ARGB (+5V/DATA/GND, max. 5A), 1x 4-pin RGB (+12V/G/R/B, max. 2A)
Buttons/SwitchesUSB BIOS Flashback/Q-Flash Plus (external)
Audio7.1 (Realtek ALC897)
Graphic iGPU
Wireless N/A
RAID Level 0/1/10 (A620)
Electricity connections 1x 24-pin ATX, 1x 8-pin EPS12V
VRM 10 virtual phases (8+2)
Lighting N/A
BIOS 1x 32MB (256Mb)
Particularities Audio+solid capacitors, 1x M.2 passive cooler, onboard TPM 2.0 support (AMD fTPM)
