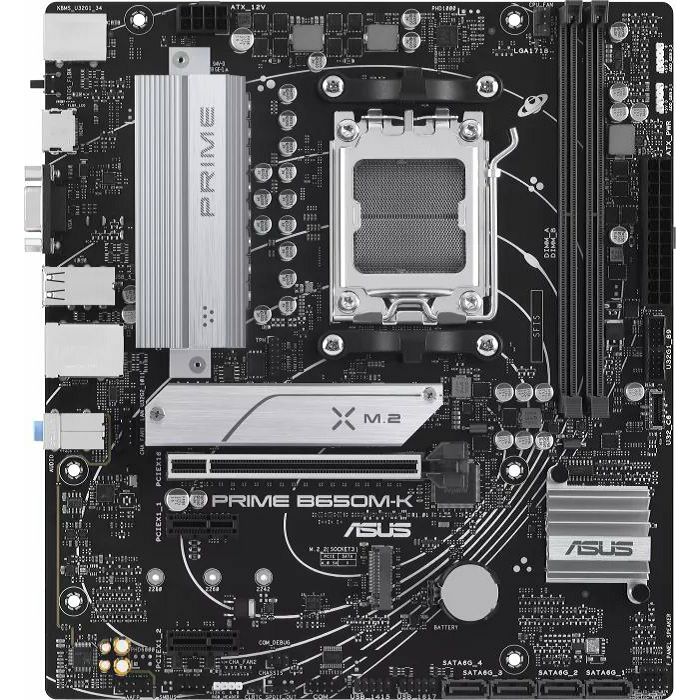

ASUS Prime B650M-K, AM5, AMD B650, DDR5, 90MB1F60-M0EAY0

Form factor µATX
Plinth AMD AM5
Chipset AMD B650
CPU Compatibility Ryzen 7000, without TDP limitation (list of manufacturers))
RAM 2x DDR5 DIMM, dual PC5-51200U/DDR5-6400 (OC), max. 96GB (UDIMM)
Expansion Slots 1x PCIe 4.0 x16, 2x PCIe 4.0 x1, 1x M.2/M-Key (PCIe 5.0 x4, 2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4, 2280/2260/2242)

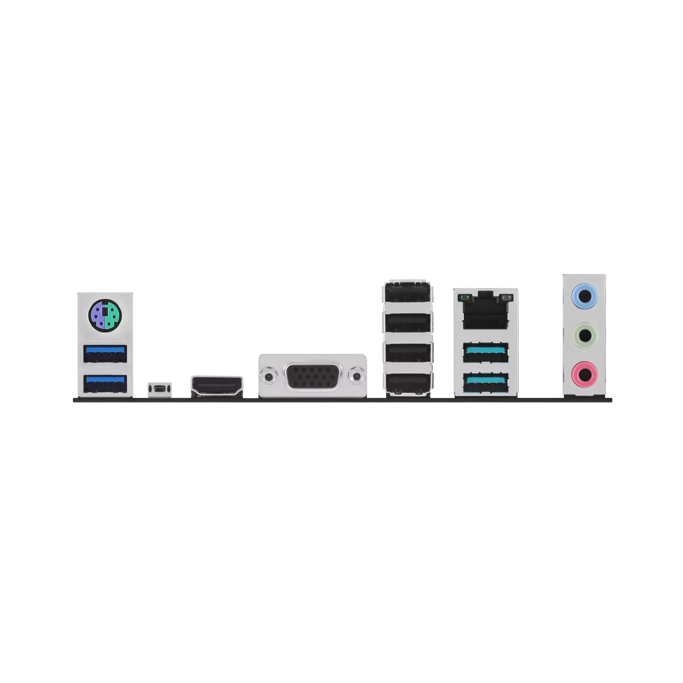

External connections 1x VGA (iGPU), 1x HDMI 2.1 (iGPU), 2x USB-A 3.1 (10Gb/s), 2x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 1x 2.5GBase-T (Realtek), 1x PS/2 Combo, 3x Jack
Internal connections 1x USB-C 3.0 Key-A header (5Gb/s), 1x USB 3.0 header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (B650), 1x serial, 1x TPM header, 1x COM debug header, 1x S/PDIF header, 1x speaker header
Header Cooling 2x CPU fan 4-pin, 3x fan 4-pin
Header Lighting 1x 4-Pin RGB (+12V/G/R/B, max. 3A), 2x 3-Pin ARGB (+5V/DATA/GND, max. 3A, ASUS Gen2)
Buttons/Switches USB BIOS Flashback (external)
Audio 7.1 (Realtek ALC897)
Graphic iGPU
Wireless N/A
RAID Level 0/1/10 (B650)
Power connections 1x 24-pin ATX, 1x 8-pin EPS12V
VRM 10 virtual phases (8+2), 6 real phases (4+2), PWM controller: ASP2208
MOSFETs CPU (VCORE) 8x 58A SiRA14DP/SiRA12DP
MOSFETs SoC (VCCGT) 2x 58A SiRA14DP/4x SiRA12DP
Lighting N/A
BIOS 1x 32MB (256Mb)
Particularities Audio+solid capacitors, Onboard TPM 2.0 support (AMD fTPM), ECC support, White Build compatible (PCB primary black)
