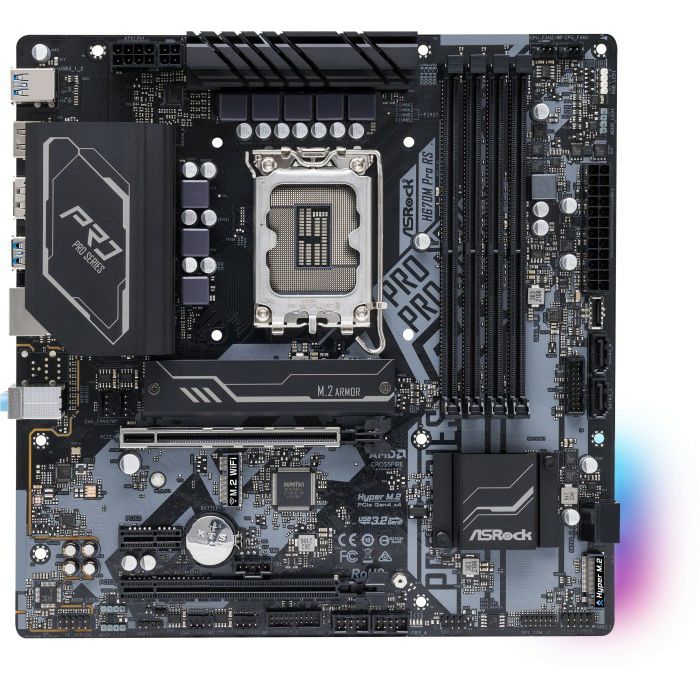

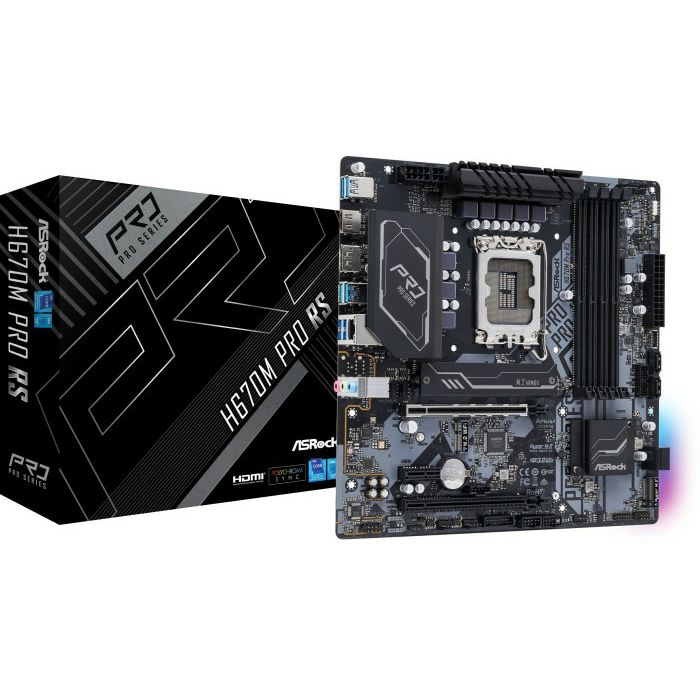

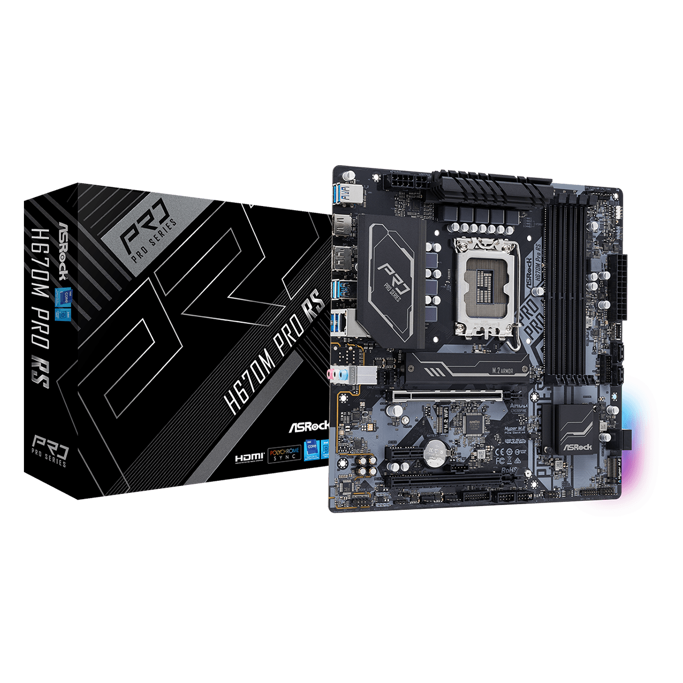

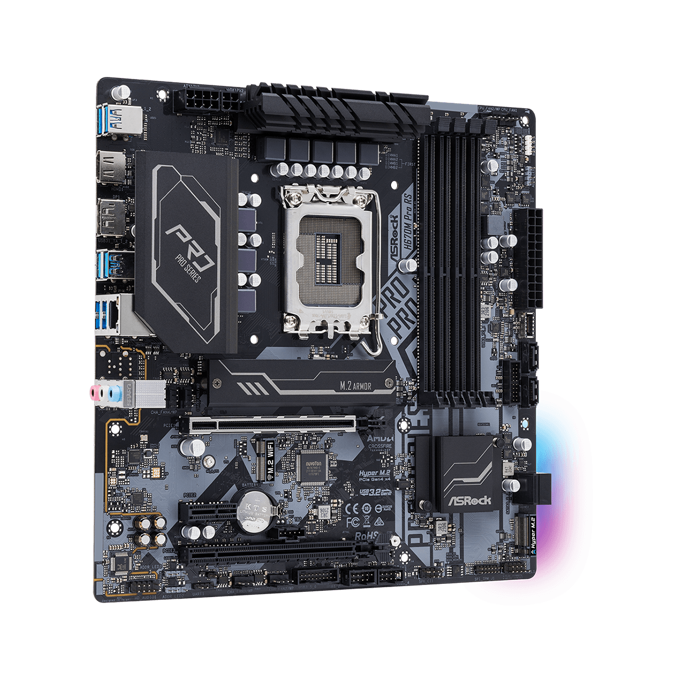

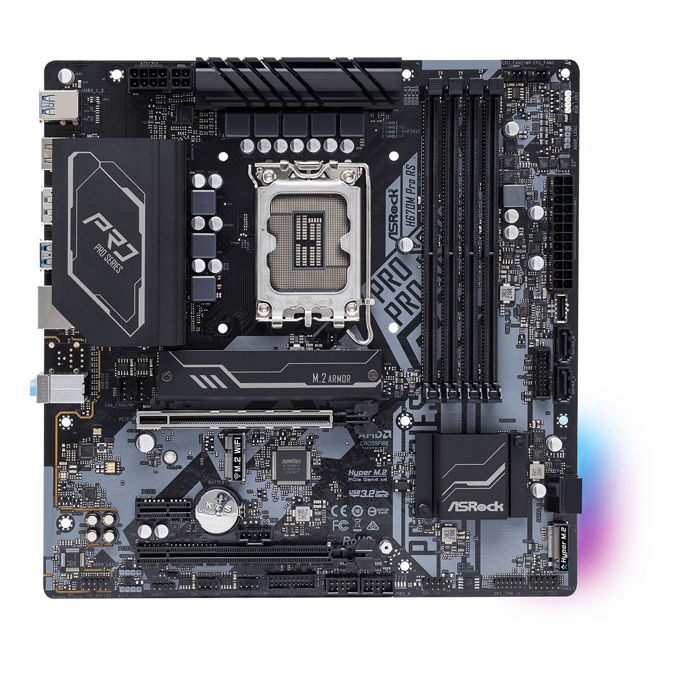

Asrock H670M Pro RS, DDR4, s.1700, 90-MXBHK0-A0UAYZ

Form factor
µATX
Plinth
Intel 1700
Chipset
Intel H670
CPU Compatibility
Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM
4x DDR4 DIMM, dual PC4-38400U/DDR4-4800 (OC), max. 128GB (UDIMM)
Expansion slots
1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4), 1x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 4.0 x4, 2280/2242), 1x M.2/M-Key (PCIe 4.0 x4/SATA, 2280), 1x M.2/E-Key (PCIe/Intel CNVi, 2230)
External connections

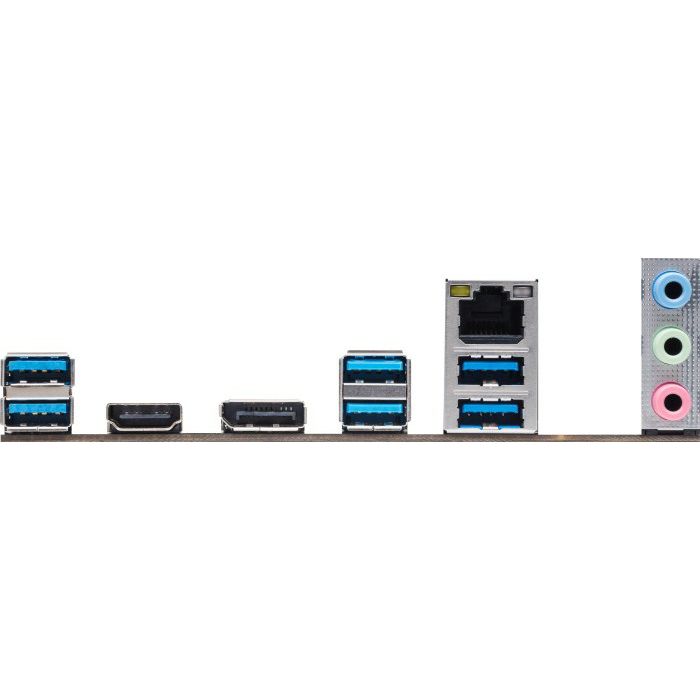

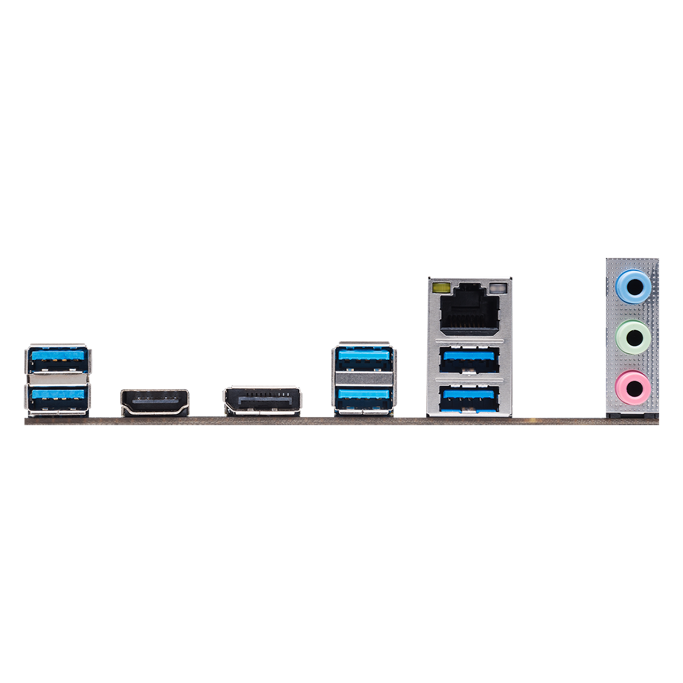

1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 2x USB-A 3.1 (10Gb/s, H670), 4x USB-A 3.0 (5Gb/s, H670 via Hub ASM1074), 1x Gb LAN (Intel i219-V), 3x jack
Internal connections
1x USB-C 3.0 Key-A header (5Gb/s, H670), 2x USB 3.0 header (5Gb/s, 4x USB 3.0, H670), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (H670), 1x TPM header, 1x Thunderbolt header 5-pin, 1x speaker header, 1x chassis intrusion header
Header Cooling
1x CPU fan 4-pin, 1x CPU fan/pump 4-pin, 4x fan/pump 4-pin
Header Lighting
1x 4-pin RGB (+12V/G/R/B, max. 3A), 3x 3-pin ARGB (+5V/DATA/GND, max. 3A)
Buttons/Switches
N/A
Audio
7.1 (Realtek ALC897)
Graphic
iGPU
Wireless
N/A
RAID Levels
0/1/5/10 (H670)
Multi-GPU
AMD 2-Way CrossFireX (x16/x4)
Electrical connections
1x 24-pin ATX, 1x 8-pin EPS12V, 1x 4-pin ATX12V
VRM
8 virtual phases (7+1), 8 real phases (7+1), PWM controller: RT3628AE (max. 9 phases)
MOSFETs CPU
14x 48A SM4508/SM4373
MOSFETs SoC
2x 48A SM4508/SM4373
Lighting
RGB, 1 zone (right side)
BIOS
1x 16MB (128Mb)
Particularities
Audio+solid capacitors, Diagnostic LED (LED indicators), 1x M.2 passive cooler, Onboard TPM 2.0 support (Intel PTT)
