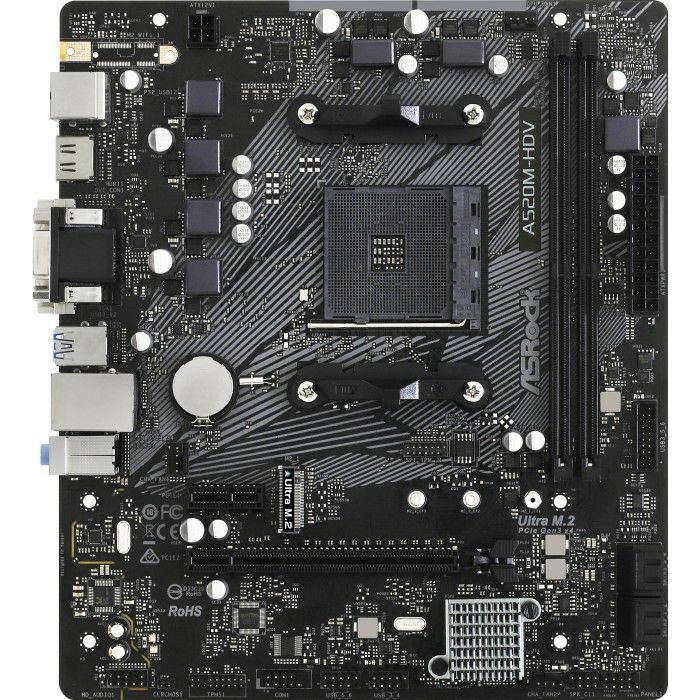

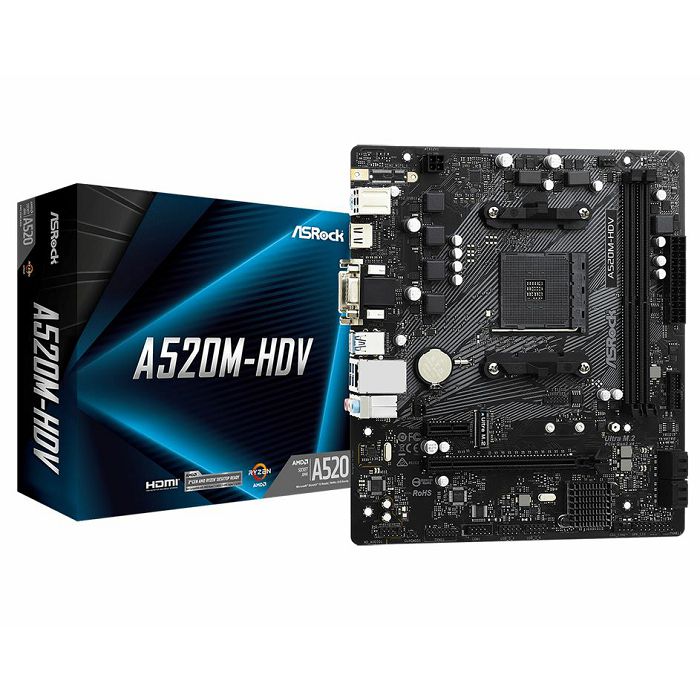

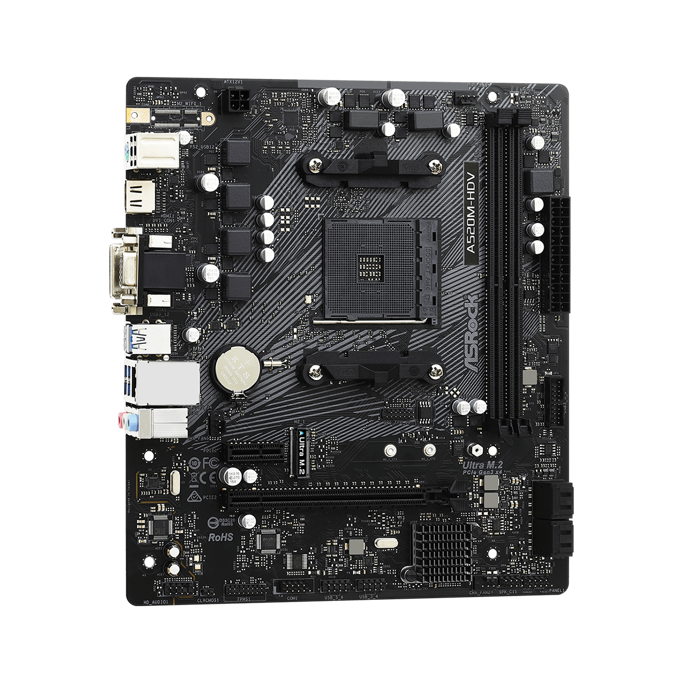

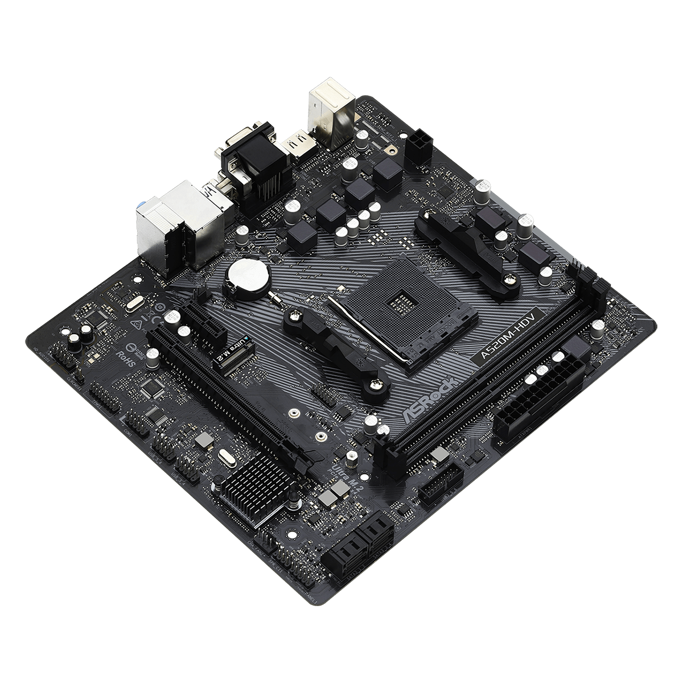

Asrock A520M-HDV, AMD A520, AM4, 90-MXBE50-A0UAYZ

Shape factor µATX
chipset AMD A520
CPU-Compatibility Ryzen 5000, Ryzen 4000G, Ryzen 3000, without TDP limitation (Manufacturer-list)
RAM 2x DDR4 DIMM, dual PC4-37866U/DDR4-4733 (OC), max. 64GB (UDIMM)
Extension slots 1x PCIe 3.0 x16, 1x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 3.0 x4/SATA, 2280/2260/2242)

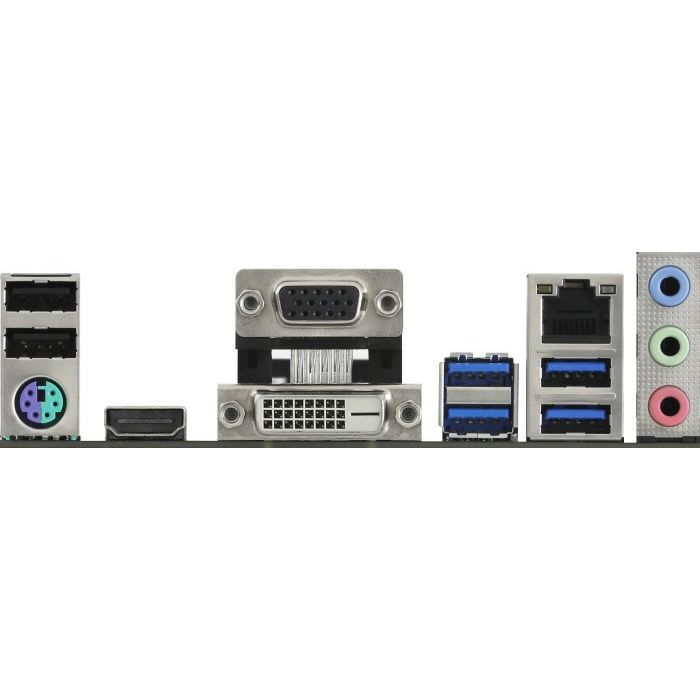

external connectors 1x VGA (iGPU), 1x DVI-D (iGPU), 1x HDMI 2.1 (iGPU), 4x USB-A 3.0, 2x USB-A 2.0, 1x Gb LAN (Realtek RTL8111H), 3x jack, 1x PS/2 Combo
Internal connectors 1x USB 3.0 Header (2x USB 3.0), 2x USB 2.0 header (4x USB 2.0), 4x SATA 6Gb/s (A520), 1x serial, 1x TPM-Header, 1x Speaker-Header, 1x Chassis Intrusion-Header
Header Cooling 1x CPU fan 4-Pin, 2x fan 4-Pin
Header Lighting not available
buttons/Switches not available
Audio 7.1 (Realtek ALC887)
onboard-Graphics iGPU
Wireless not available
RAID level 0/1/10 (A520)
Multi-GPU not available
Power connections 1x 24-Pin ATX, 1x 4-Pin ATX12V
Lighting not available
BIOS 1x 16MB (128Mb)
Special features audio+solid capacitors, ECC-support
Warranty three years
