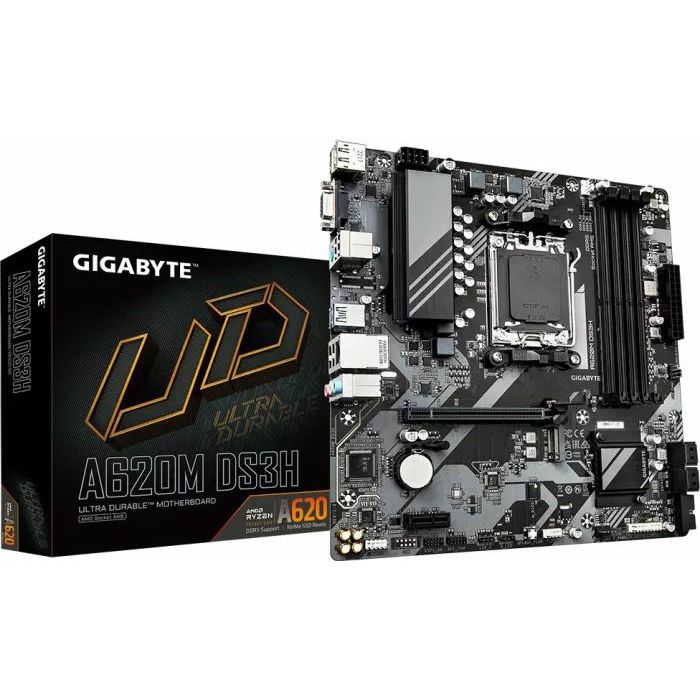

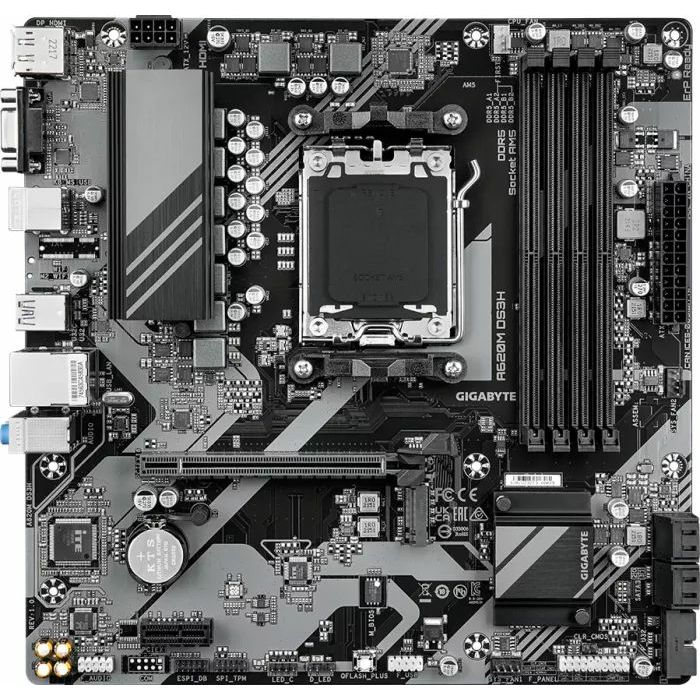

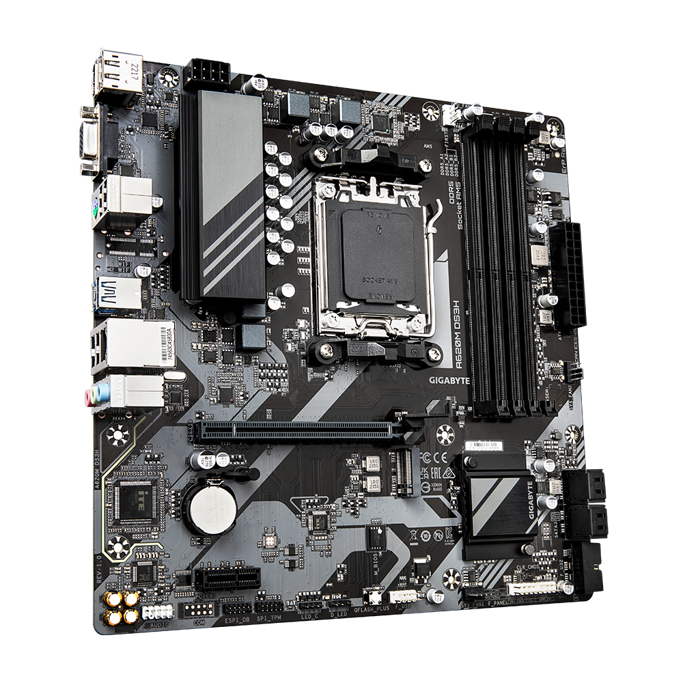

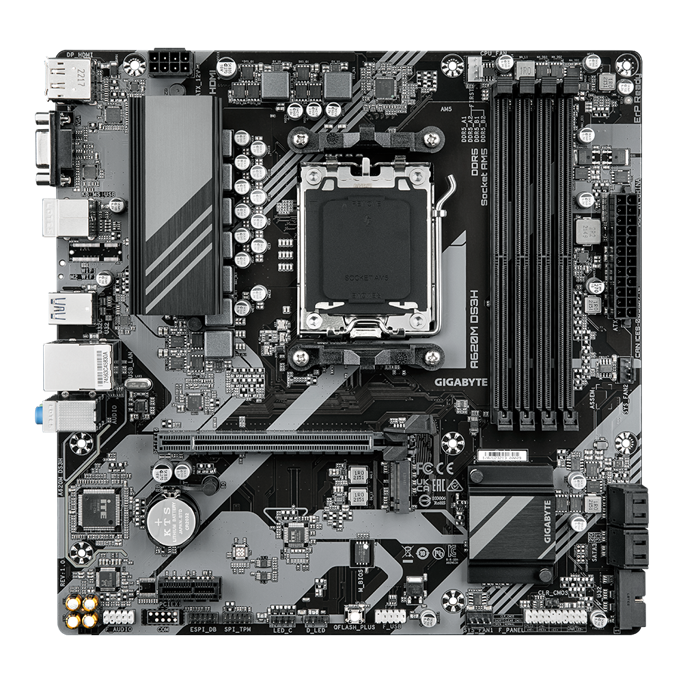

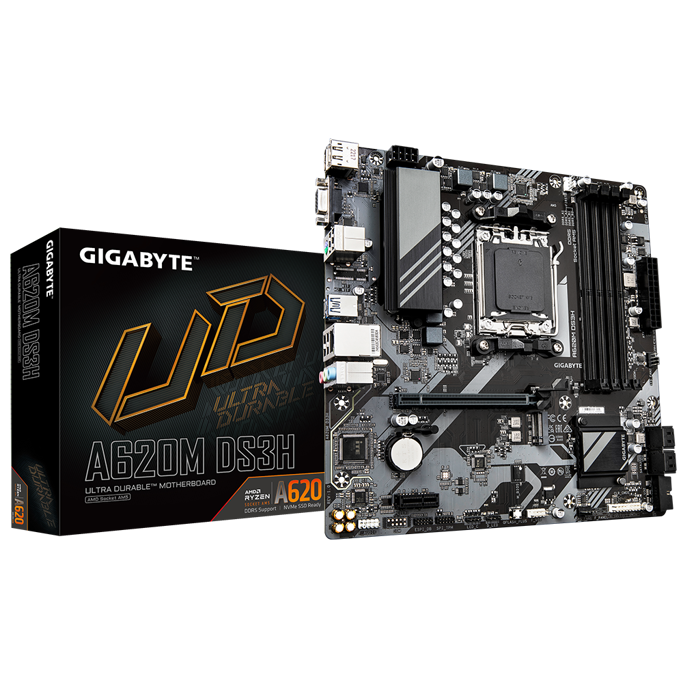

Gigabyte A620M DS3H, AMD A620, All TDP, AM5, M.2, DDR5

Form factor µATX
Plinth AMD AM5
Chipset AMD A620
CPU Compatibility Ryzen 7000, without TDP limitation (list of manufacturers))
RAM 4x DDR5 DIMM, dual PC5-51200U/DDR5-6400 (OC), max. 192GB (UDIMM)
Expansion Slots 1x PCIe 4.0 x16, 1x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 4.0 x4, 2580)
External connections 1x VGA (iGPU), 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.0 (5Gb/s), 1x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 1x Gb LAN (Realtek), 3x Jack, 1x PS/2 Combo
Internal connections 1x USB 3.0 header (5Gb/s, 2x USB 3.0), 1x USB 2.0 header (480Mb/s, 2x USB 2.0), 4x SATA 6Gb/s (A620), 1x TPM header
Header Cooling 1x CPU fan 4-pin, 2x fan 4-pin
Header Lighting 1x 3-Pin ARGB (+5V/DATA/GND, max. 5A), 1x 4-Pin RGB (+12V/G/R/B, max. 2A)
Buttons/Switches USB BIOS Flashback/Q-Flash Plus (internal)
Audio 7.1 (Realtek ALC897)
Graphic iGPU
Wireless N/A
RAID Level 0/1/10 (A620)
Power connections 1x 24-pin ATX, 1x 8-pin EPS12V
VRM 7 virtual phases (5+2)
Lighting N/A
BIOS 1x 32MB (256Mb)
Particularities Audio+solid capacitors, onboard TPM 2.0 support (AMD fTPM)
