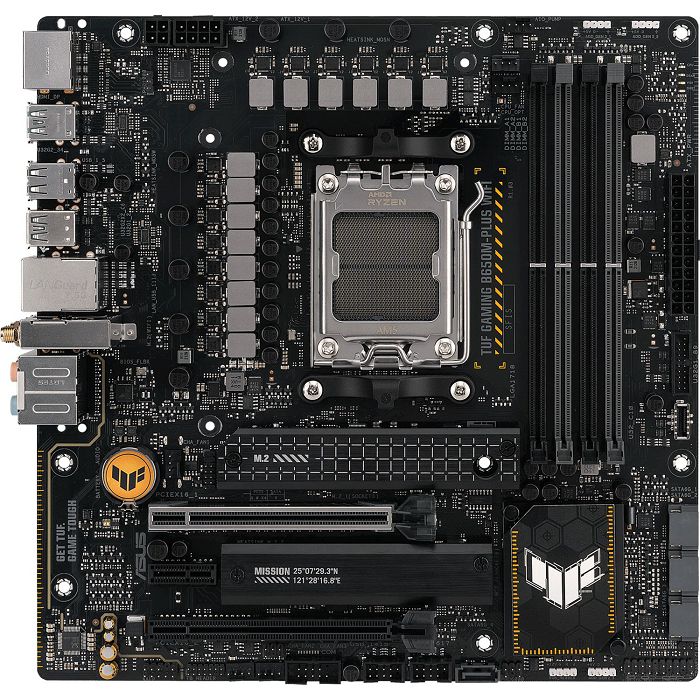

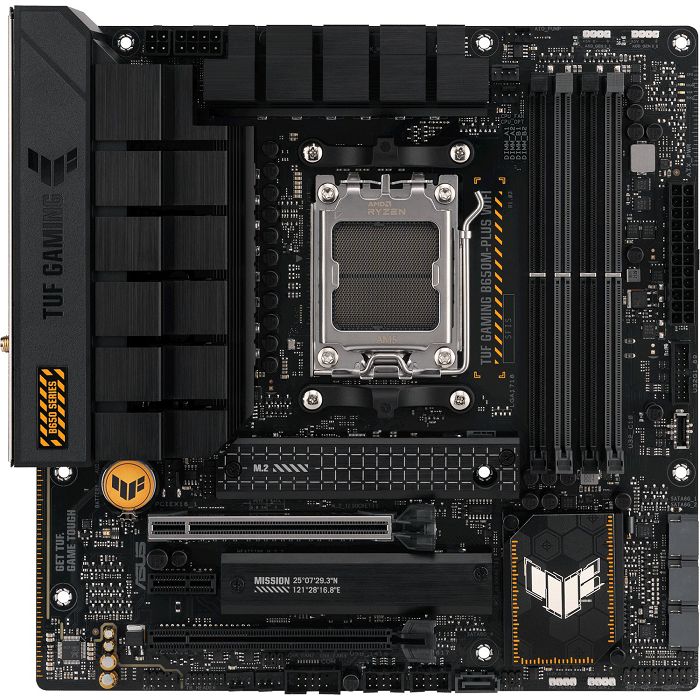

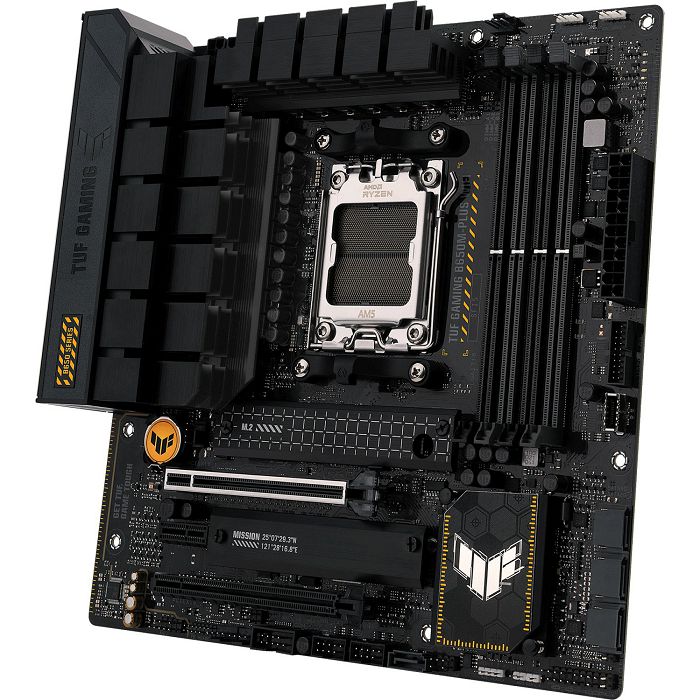

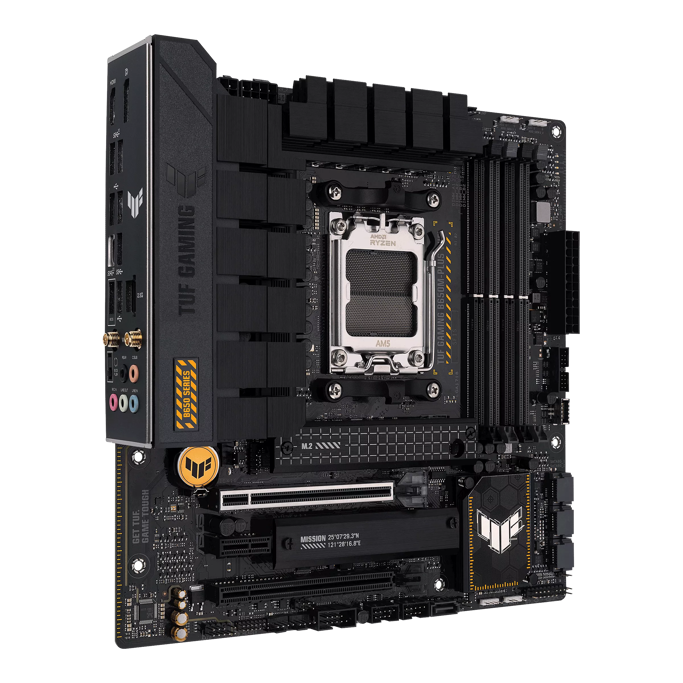

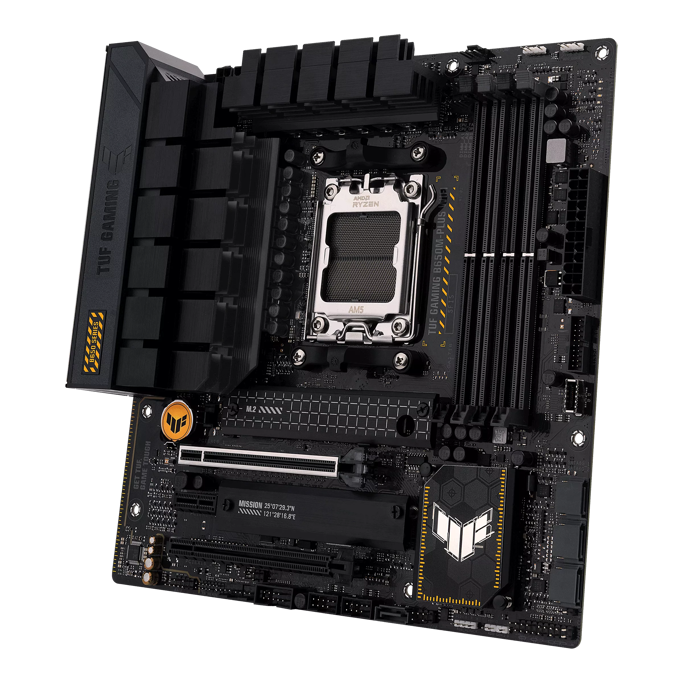

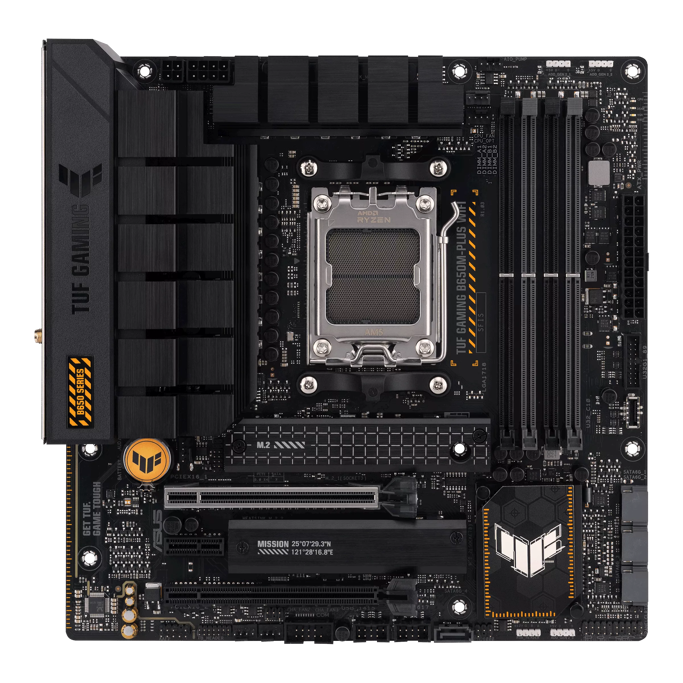

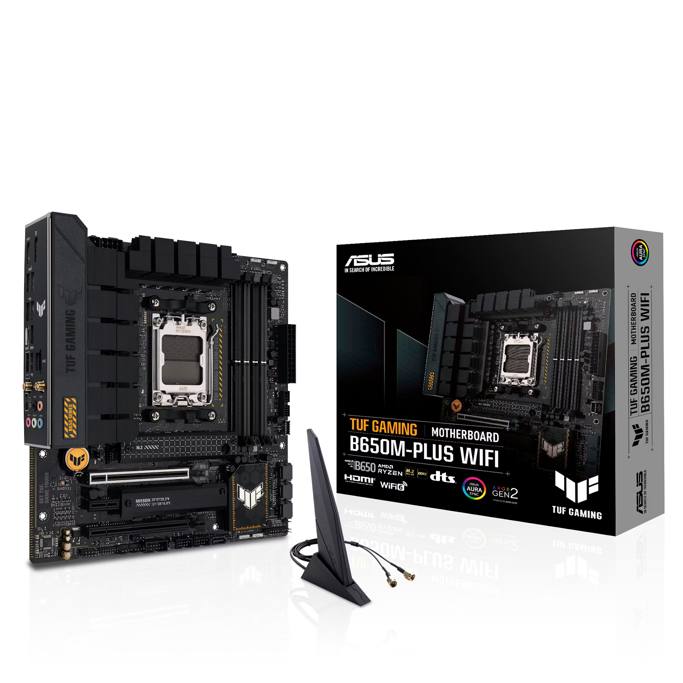

ASUS TUF Gaming B650M-Plus WIFI, AM5, AMD B650, 90MB1BF0-M0EAY0

shape factor
µATX
Socket
AMD AM5
chipset
AMD B650
CPU-Compatibility
Ryzen 7000
RAM
4x DDR5 DIMM, dual PC5-51200U/DDR5-6400 (OC), max. 128GB (UDIMM)
Extension slots
2x PCIe 4.0 x16 (1x x16, 1x x4), 1x PCIe 4.0 x1, 1x M.2/M-Key (PCIe 5.0 x4, 2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4, 2280/2260/2242), 1x M.2/E-Key (PCIe, 2230, occupied with WiFi+BT module)

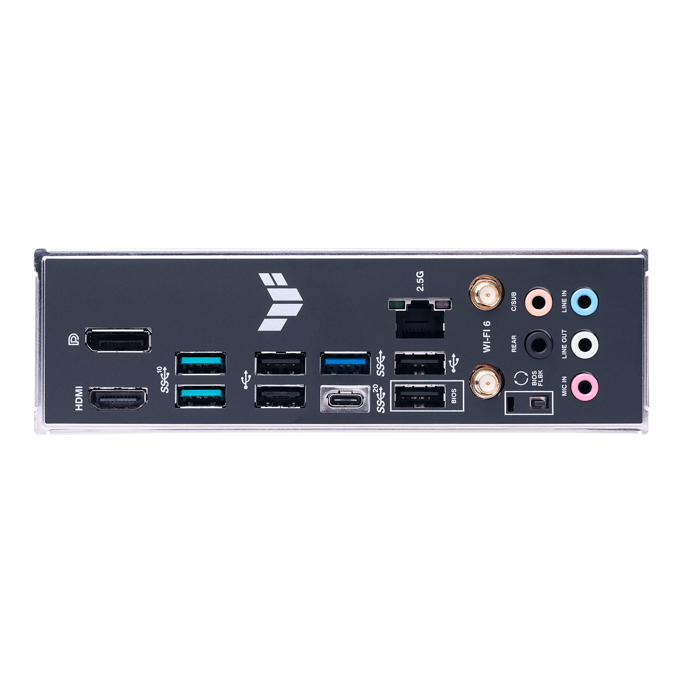

external connectors
1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.2 (20Gb/s), 2x USB-A 3.1 (10Gb/s), 1x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 1x 2.5GBase-T (Realtek), 5x jack, 2x antenna connector (RP-SMA)
Internal connectors
1x USB-C 3.0 Key-A Header (5Gb/s), 1x USB 3.0 Header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (B650), 1x serial, 1x TPM-Header, 1x Chassis Intrusion-Header, 1x Thunderbolt-Header 13-Pin (14-1)
Header Cooling
2x CPU fan 4-Pin, 3x fan 4-Pin, 1x AIO-pump 4-Pin
Header Lighting
1x 4-Pin RGB (+12V/G/R/B, max. 3A), 3x 3-Pin ARGB (+5V/DATA/GND, max. 3A, ASUS Gen2)
buttons/Switches
USB BIOS Flashback (external)
Audio
7.1 (Realtek ALC897)
Graphics
iGPU
Wireless
Wi-Fi 6 (WLAN 802.11a/b/g/n/ac/ax, 2x2), Bluetooth 5.2
RAID level
0/1/10 (B650)
Power connections
1x 24-Pin ATX, 1x 8-Pin EPS12V, 1x 4-Pin ATX12V
Lighting
not available
BIOS
1x 32MB (256Mb)
Special features
audio+solid capacitors, Diagnostic LED (LED indicators), 2x M.2-passive cooler, I/O-shield integrated, onboard TPM 2.0 support (AMD fTPM), ECC-support
