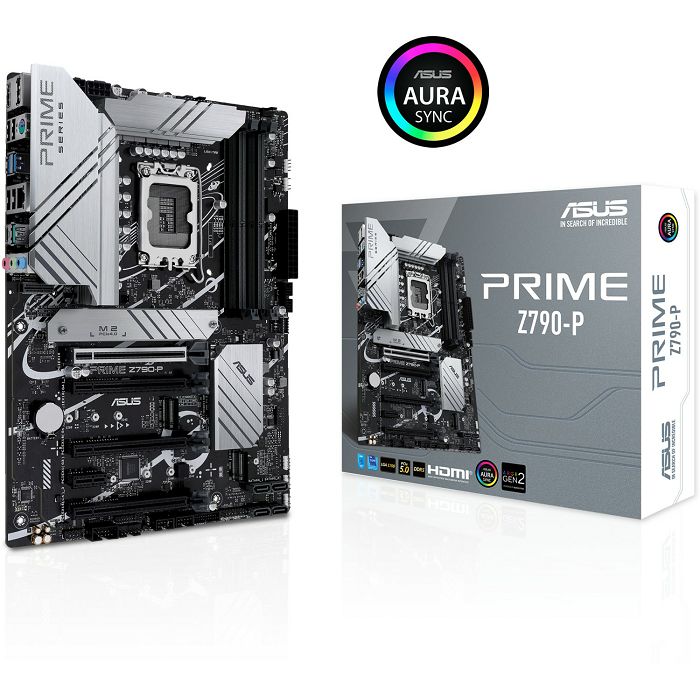

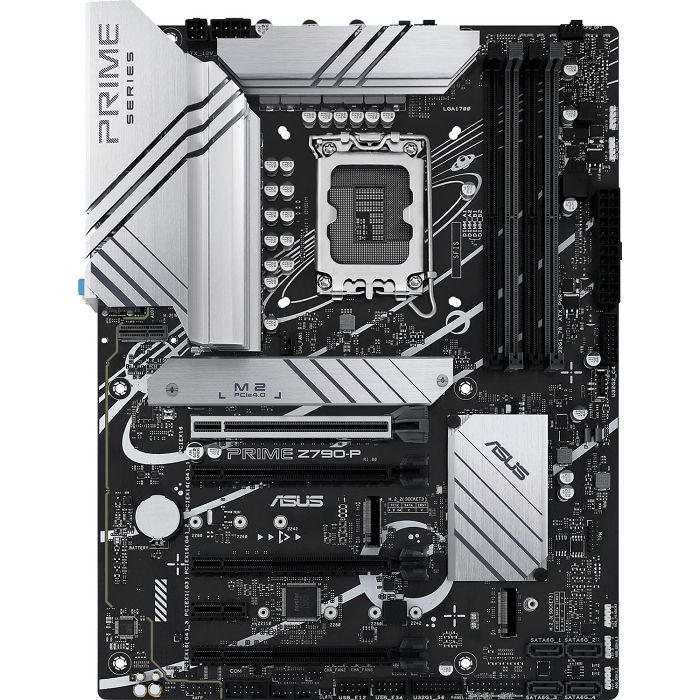

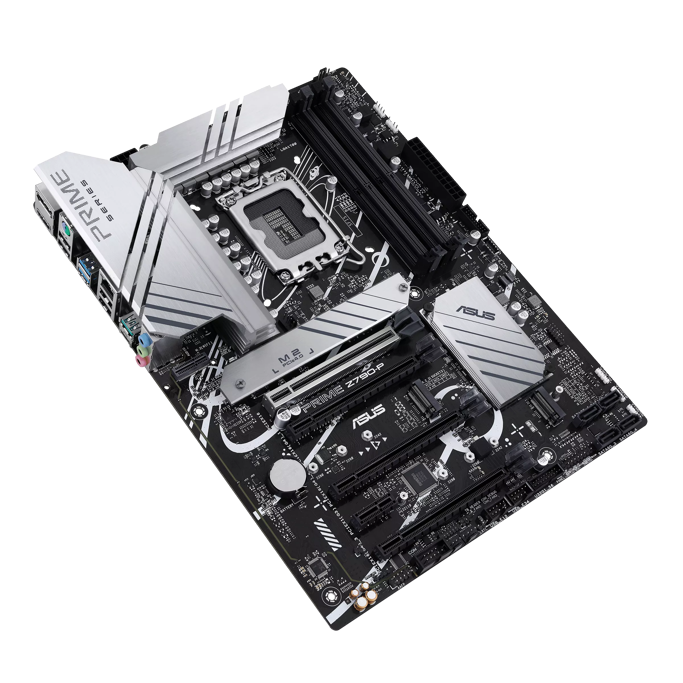

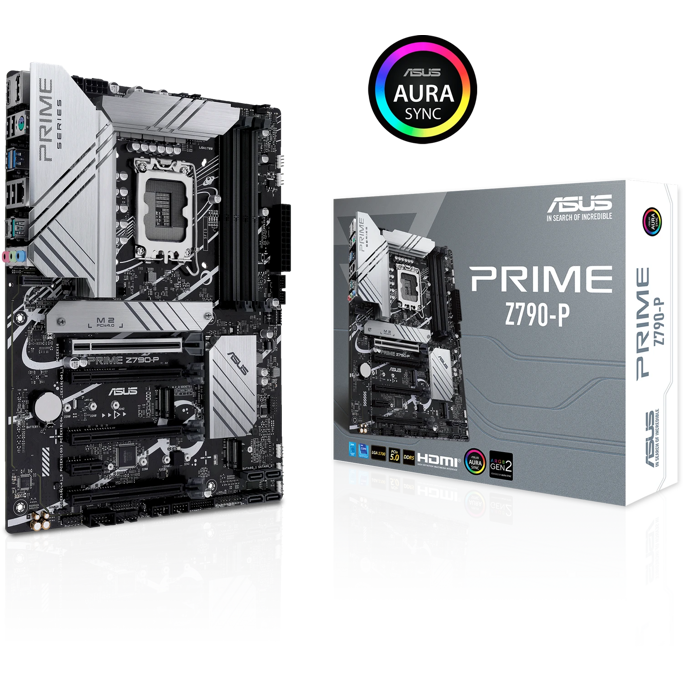

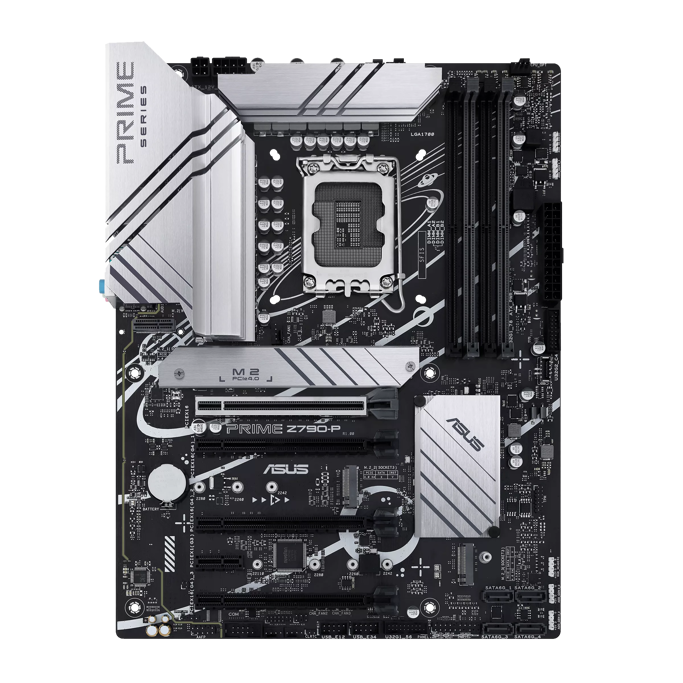

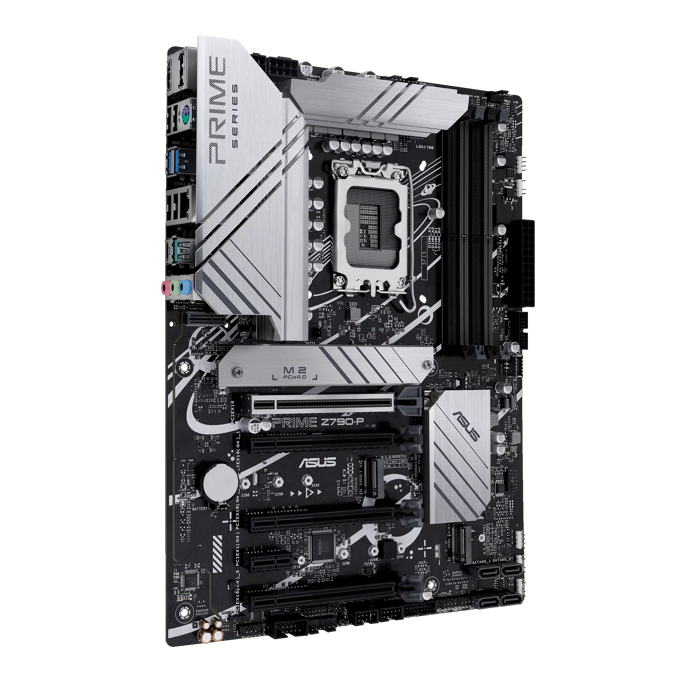

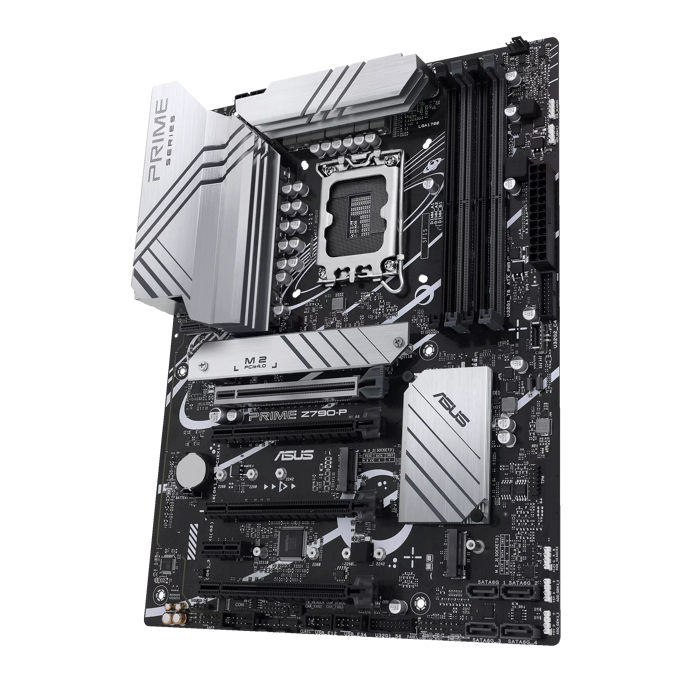

ASUS Z790 Prime Z790-P DDR5, s1700, 90MB1CK0-M0EAY0

Shape factor ATX
Socket Intel 1700
chipset Intel Z790
CPU-Compatibility Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM 4x DDR5 DIMM, dual PC5-56000U/DDR5-7000 (OC), max. 128GB (UDIMM)
Extension slots 1x PCIe 5.0 x16, 3x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 4.0 x4, 22110/2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4, 2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4/SATA, 22110/2280/2260/2242), 1x M.2/E-Key (PCIe/Intel CNVi, 2230)

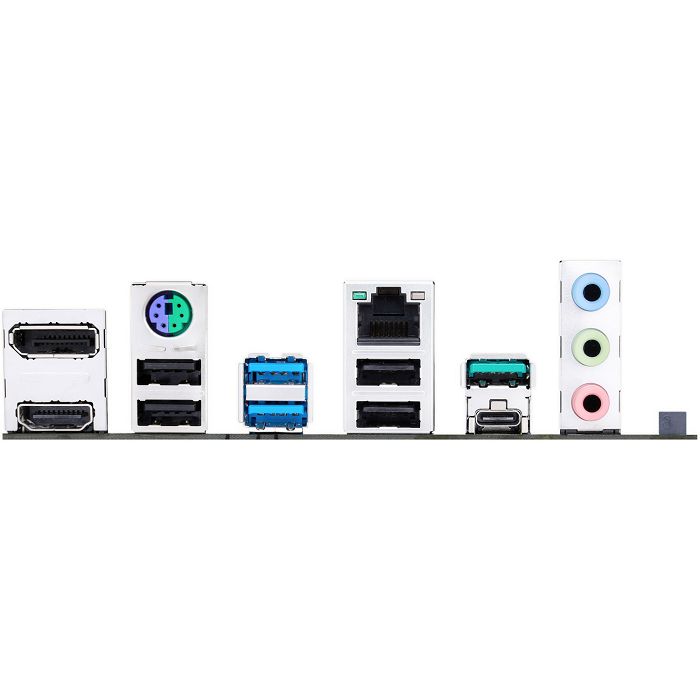

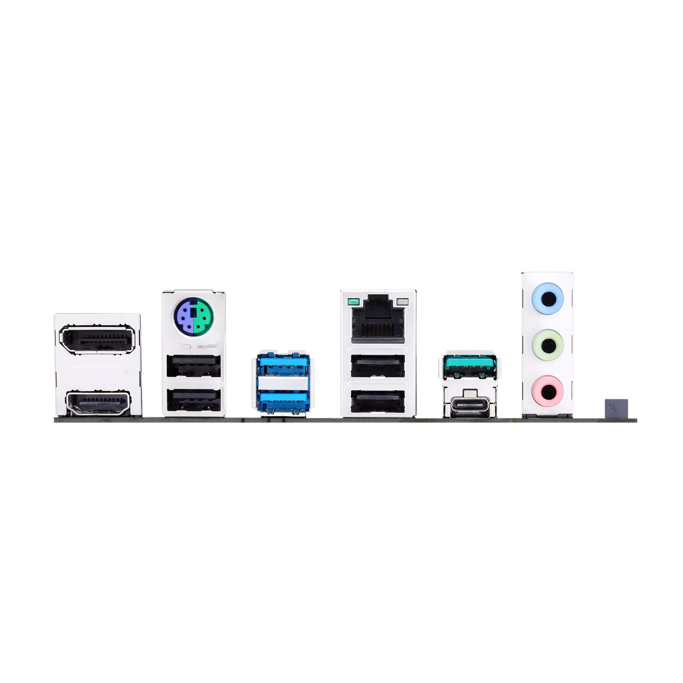

external connectors 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.2 (20Gb/s), 1x USB-A 3.1 (10Gb/s), 2x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 1x 2.5GBase-T (Realtek), 3x jack, 1x PS/2 Combo
Internal connectors 1x USB-C 3.1 Key-A Header (10Gb/s), 2x USB 3.0 Header (5Gb/s, 4x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (Z790), 1x serial, 1x TPM-Header, 1x Thunderbolt-Header 13-Pin (14-1), 1x S/PDIF-Header
Header Cooling 2x CPU fan 4-Pin, 3x fan 4-Pin, 1x AIO-pump 4-Pin
Header Lighting 2x 4-Pin RGB (+12V/G/R/B, max. 3A), 3x 3-Pin ARGB (+5V/DATA/GND, max. 3A, ASUS Gen2)
buttons/Switches not available
Audio 7.1 (Realtek)
Graphics iGPU
Wireless not available
RAID level 0/1/5/10 (Z790)
Multi-GPU not available
Power connections 1x 24-Pin ATX, 1x 8-Pin EPS12V, 1x 4-Pin ATX12V
VRM 15 virtual phases (14+1)
Lighting not available
BIOS 1x 24MB (192Mb)
Special features audio+solid capacitors, 1x M.2-passive cooler, onboard TPM 2.0 support (Intel PTT)
