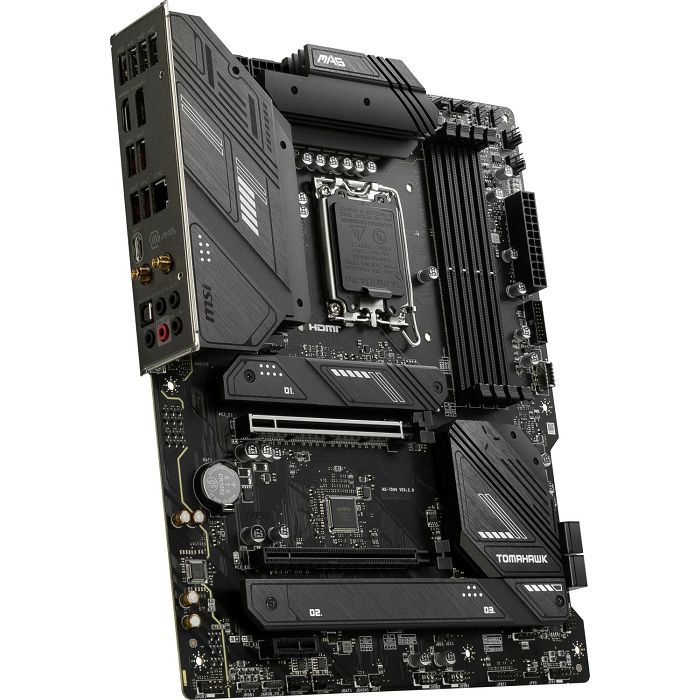

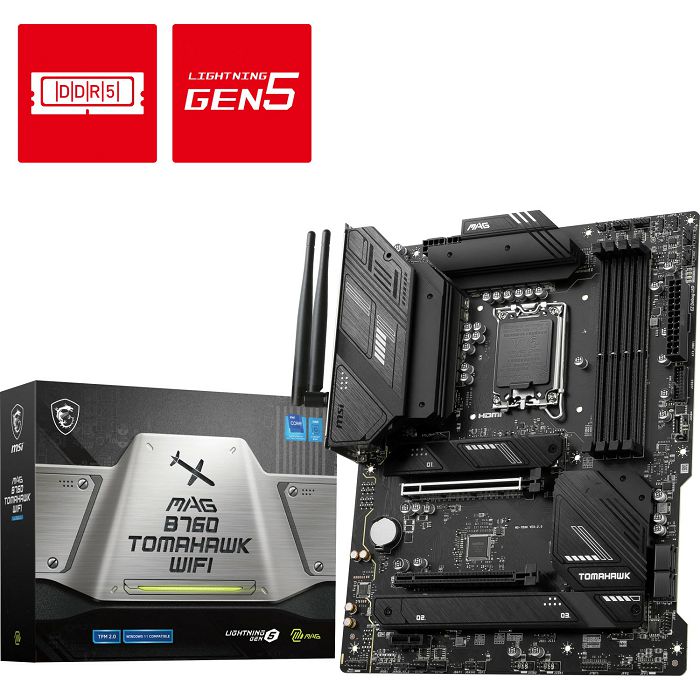

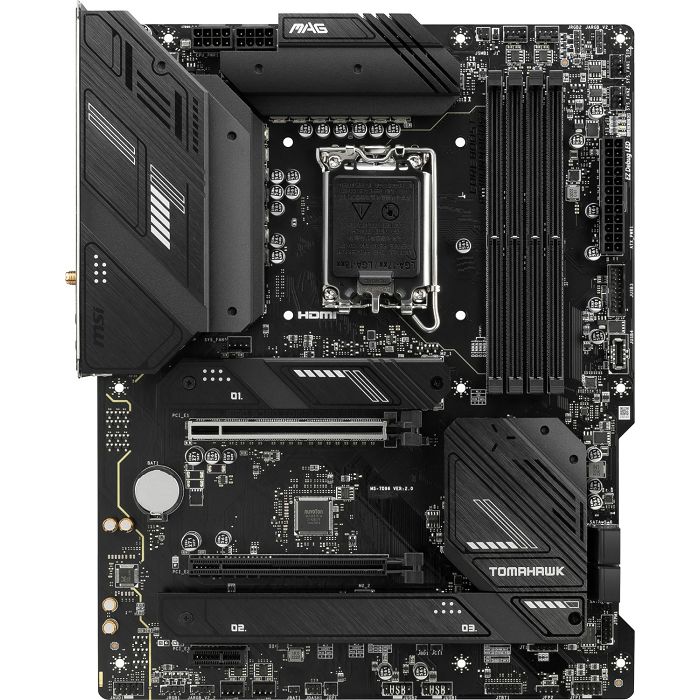

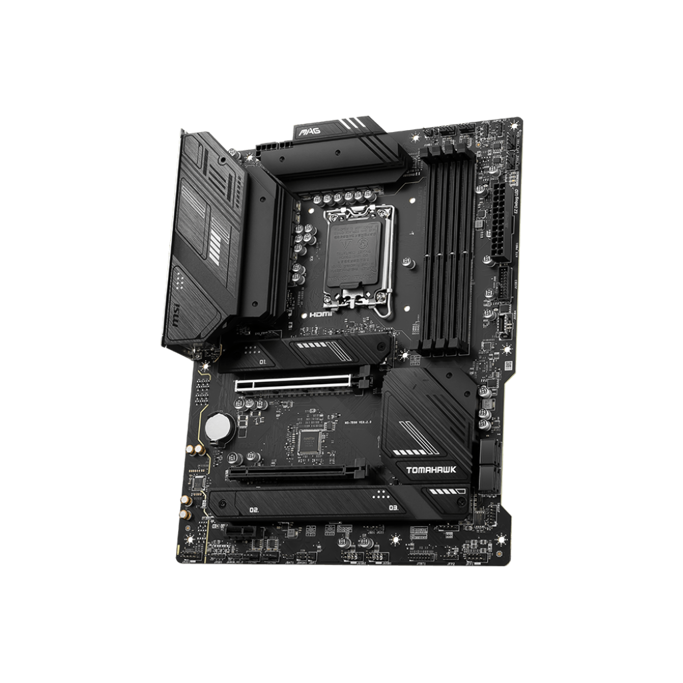

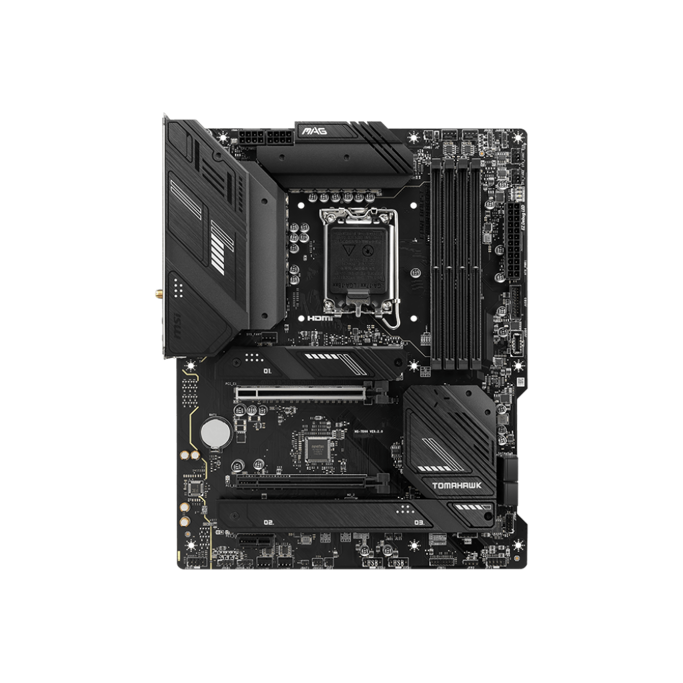

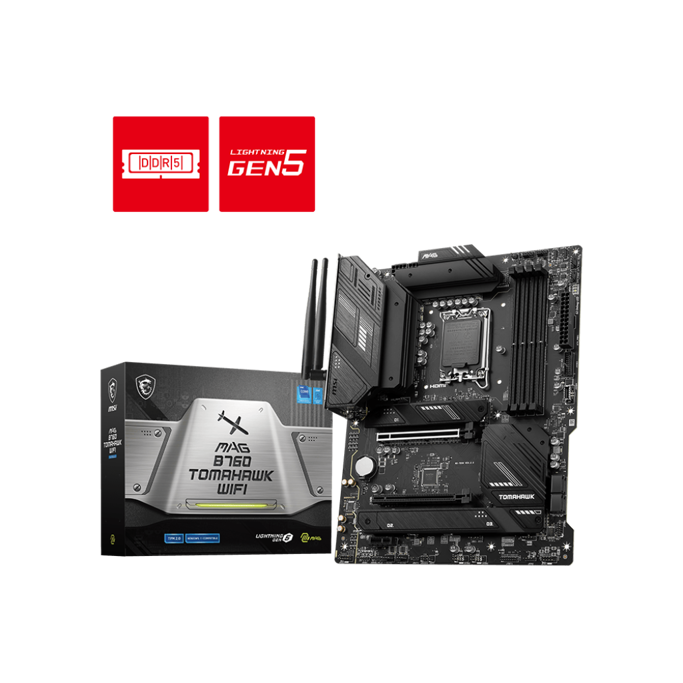

MSI B760 TOMAHAWK WIFI, DDR5, Intel B760, s.1700, 7D96-003R

shape factor
ATX
Socket
Intel 1700
chipset
Intel B760
CPU-Compatibility
Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM
4x DDR5 DIMM, dual PC5-56000U/DDR5-7000 (OC), max. 128GB (UDIMM)
Extension slots
1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 4.0 x4, 22110/2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4, 2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4/SATA, 2280/2260/2242), 1x M.2/E-Key (PCIe, 2230, occupied with WiFi+BT module)
external connectors
1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.2 (20Gb/s), 4x USB-A 3.1 (10Gb/s), 4x USB-A 2.0 (480Mb/s), 1x 2.5GBase-T (Realtek RTL8125BG), 5x jack, 1x toslink, 2x antenna connector (RP-SMA)
Internal connectors
1x USB-C 3.1 Key-A Header (10Gb/s), 1x USB 3.0 Header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (B760), 1x TPM-Header, 1x Thunderbolt-Header 15-Pin (16-1), 1x Chassis Intrusion-Header, 1x MSI Tuning controller Header 5-Pin
Header Cooling
1x CPU fan 4-Pin, 5x fan 4-Pin, 1x pump 4-Pin
Header Lighting
2x 4-Pin RGB (+12V/G/R/B, max. 3A), 2x 3-Pin ARGB (+5V/DATA/GND, max. 3A, MSI V2)
buttons/Switches
not available
Audio
7.1 (Realtek ALC897)
Graphics
iGPU
Wireless
Wi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2, Intel AX211), Bluetooth 5.3
RAID level
0/1/5/10 (B760)
Multi-GPU
not available
Power connections
1x 24-Pin ATX, 2x 8-Pin EPS12V
VRM
13 virtual phases (12+1), 7 real phases (6+1), PWM-Controller: RAA229132 (max. 20 phases)
MOSFETs CPU
12x 75A RAA220075
MOSFETs SoC
1x 75A RAA220075
Lighting
not available
BIOS
1x 32MB (256Mb)
Special features
audio+solid capacitors, Diagnostic LED (LED indicators), 3x M.2-passive cooler, I/O-shield integrated, onboard TPM 2.0 support (Intel PTT)
