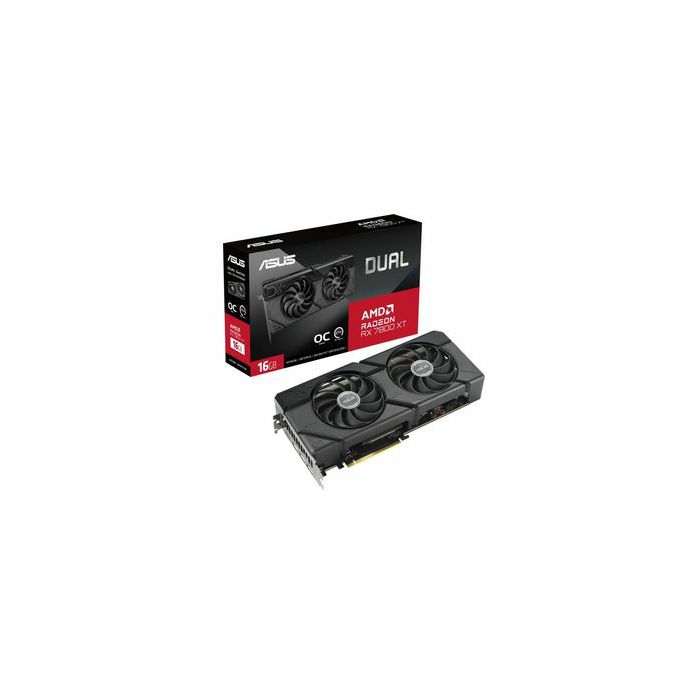

ASUS RX7800XT DUAL-RX7800XT-O16G, 90YV0JJ1-M0NA00

GPU AMD Radeon RX 7800 XT
Memory 16GB GDDR6, 256bit, 19.5Gbps, 2438MHz, 624GB/?s
clock Base unknown
clock Boost 2169-2475MHz (Standard-Profile), 2213-2520MHz (OC-Profile)
overclock +90MHz Boost (OC-Profile), +45MHz Boost (Standard-Profile), +89MHz Game (OC-Profile), +45MHz Game (Standard-Profile)

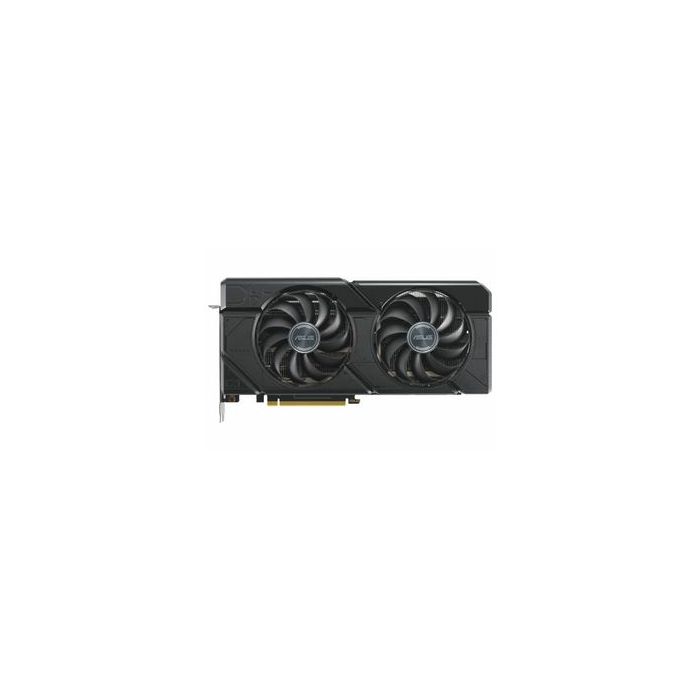

Cooling 2x Axial-fan (100mm) with 0dB-zero-fan-mode
TDP/TGP 263W (AMD)
Power connections 2x 8-Pin PCIe

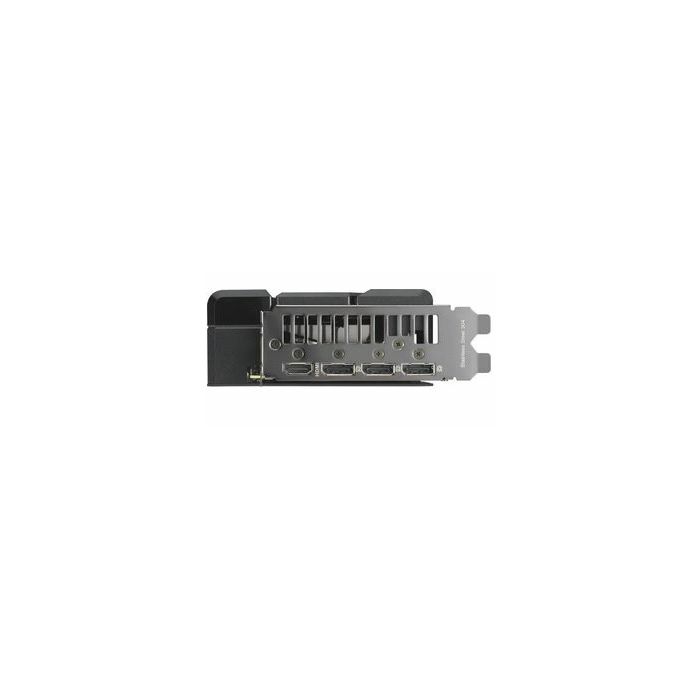

Connectors 1x HDMI 2.1, 3x DisplayPort 2.1 UHBR13.5
Interface PCIe 4.0 x16
Special features Taktprofile (Default Mode/?OC Mode), LED lighting (blue/?purple), Backplate, Graphics Cards-Mounting (ASUS TUF Graphics Card Holder)
total height Triple Slot (2.47 Slots)
Dimensions 279.9x133.9x49.3mm (LxWxH)
Type PCIe card (full height)
PCI slot bracket full height
Computing power 77.41 TFLOPS (FP16), 38.71 TFLOPS (FP32), 1.21 TFLOPS (FP64)
Chip-data
Chip-Architecture RDNA 3 (from 2022/?Q4)
Chip-title Navi 32 XT
Chip-Configuration 60CU (3840SP /? 240TMU /? 96ROP), 60 RT Cores, 4MB L2 cache, 64MB L3 cache
Chip-Manufacturing Process TSMC 5nm + TSMC 6nm
Chip size 346mm2, Multi-Chip module (4 MCM-Chiplets), 28.1 Mio. Transistoren
Chip-functions Raytracing, AMD Infinity cache (64MB), HDCP 2.3
API-support DirectX 12 Ultimate (12_2) /? Vulkan 1.3 /? OpenCL 2.2 /? OpenGL 4.6 /? Shader Model 6.7
Transcoding-Engine VCN 4.0, Info
encoding AV1, H.265, H.264
decoding AV1, H.265, H.264, VP9
