ASUS RX7800XT TUF-RX7800XT-O16G-GAMING, 90YV0JJ0-M0NA00

GPU AMD Radeon RX 7800 XT
Memory 16GB GDDR6, 256bit, 19.4Gbps, 2425MHz, 621GB/?s
clock Base unknown
clock Boost 2213-2520MHz (Standard-Profile), 2254-2565MHz (OC-Profile)
overclock +135MHz Boost (OC-Profile), +90MHz Boost (Standard-Profile), +130MHz Game (OC-Profile), +89MHz Game (Standard-Profile)

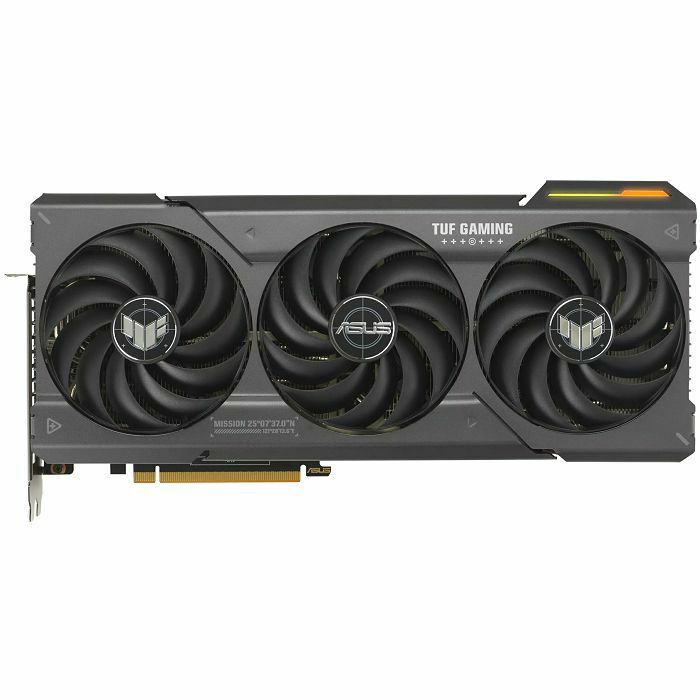

Cooling 3x Axial-fan (100mm) with 0dB-zero-fan-mode
TDP/TGP 263W (AMD)
Power connections 2x 8-Pin PCIe

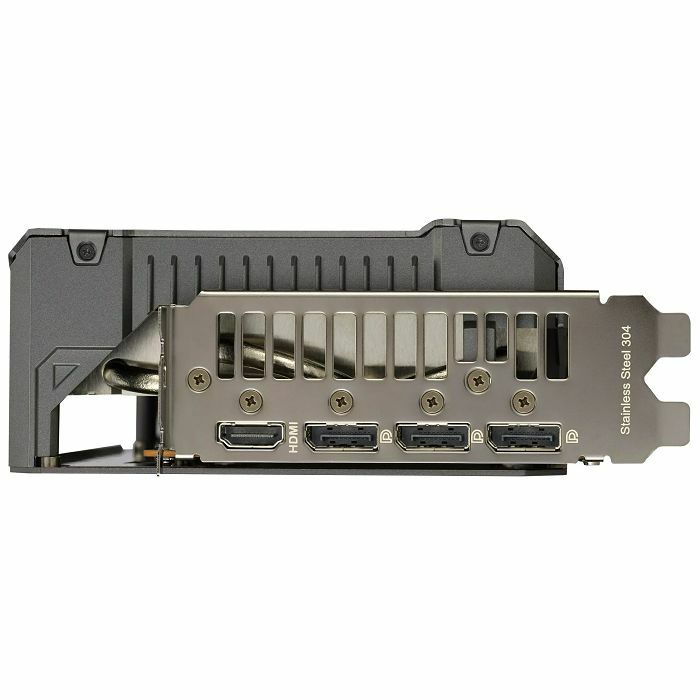

Connectors 1x HDMI 2.1, 3x DisplayPort 2.1
Interface PCIe 4.0 x16
Special features Taktprofile (Default Mode/?OC Mode), LED lighting (RGB), Backplate, Graphics Cards-Mounting (ASUS TUF Graphics Card Holder)
total height Triple Slot (2.96 Slots)
Dimensions 319.8x150.9x59.2mm (LxWxH)
Type PCIe card (full height)
PCI slot bracket full height
Computing power 78.8 TFLOPS (FP16), 39.4 TFLOPS (FP32), 1.23 TFLOPS (FP64)
Chip-data
Chip-Architecture RDNA 3 (from 2022/?Q4)
Chip-title Navi 32 XT
Chip-Configuration 60CU (3840 ALUs /? 240 TMUs /? 96 ROPs), 60 RT Cores, 4MB L2 cache, 64MB L3 cache
Chip-Manufacturing Process TSMC 5nm + TSMC 6nm
Chip size 346mm2, Multi-Chip module (4 MCM-Chiplets)
Chip-functions Raytracing, AMD Infinity cache (64MB), HDCP 2.3
API-support DirectX 12 Ultimate (12_2) /? Vulkan 1.3 /? OpenCL 2.2 /? OpenGL 4.6 /? Shader Model 6.7
Transcoding-Engine VCN 4.0, Info
encoding AV1, H.265, H.264
decoding AV1, H.265, H.264, VP9
