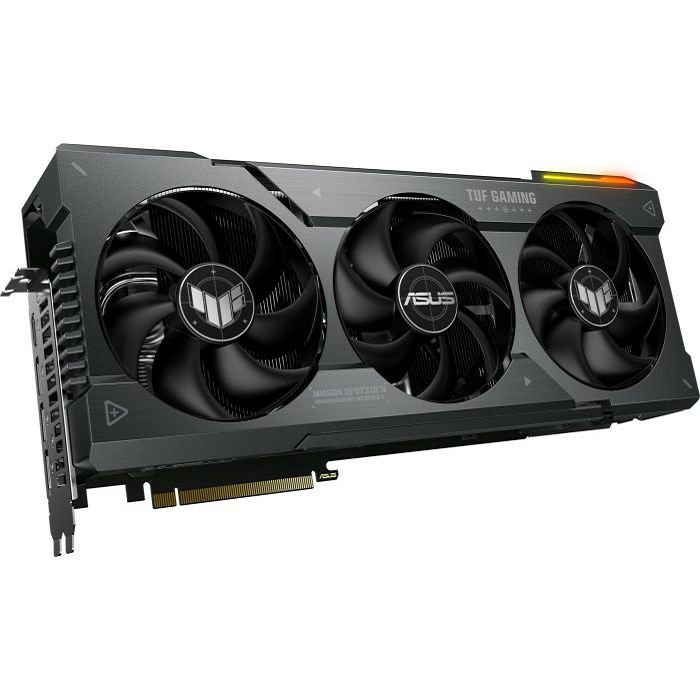

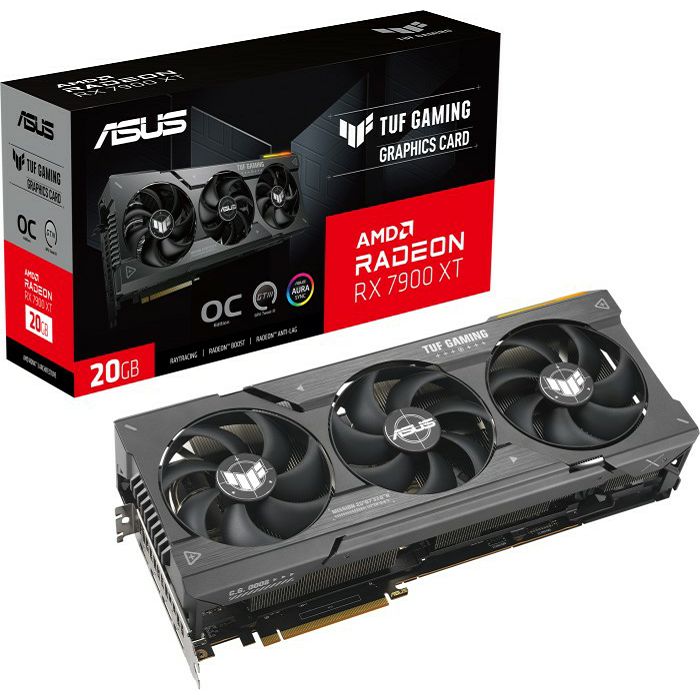

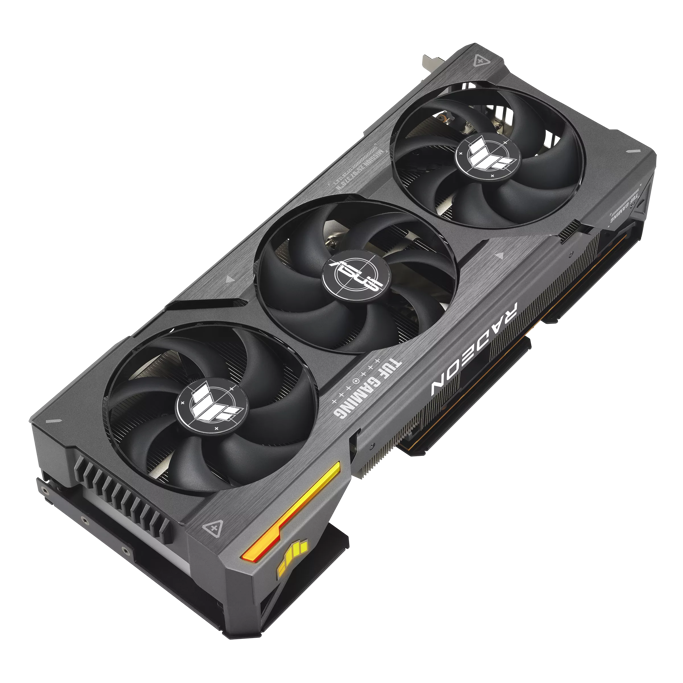

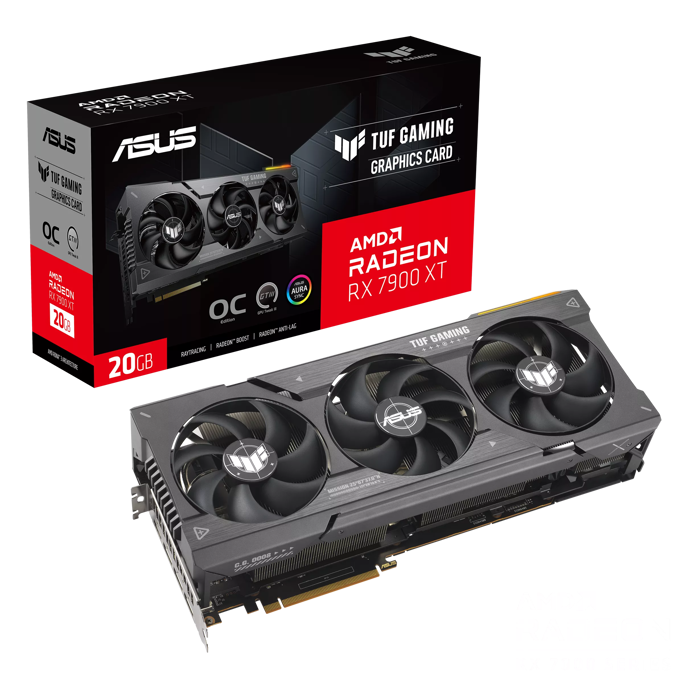

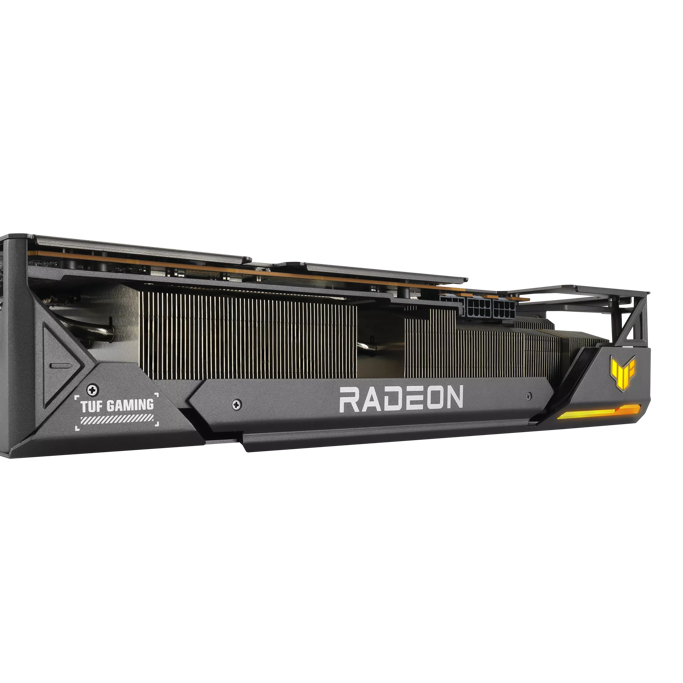

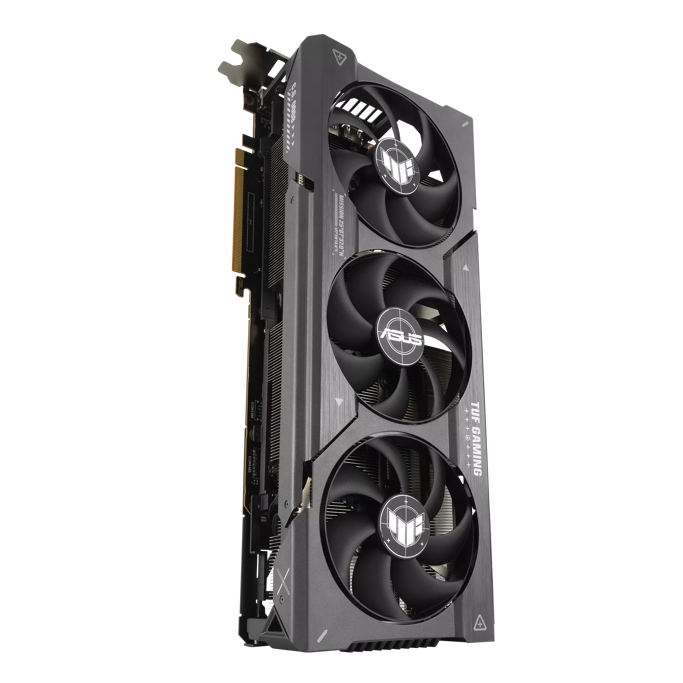

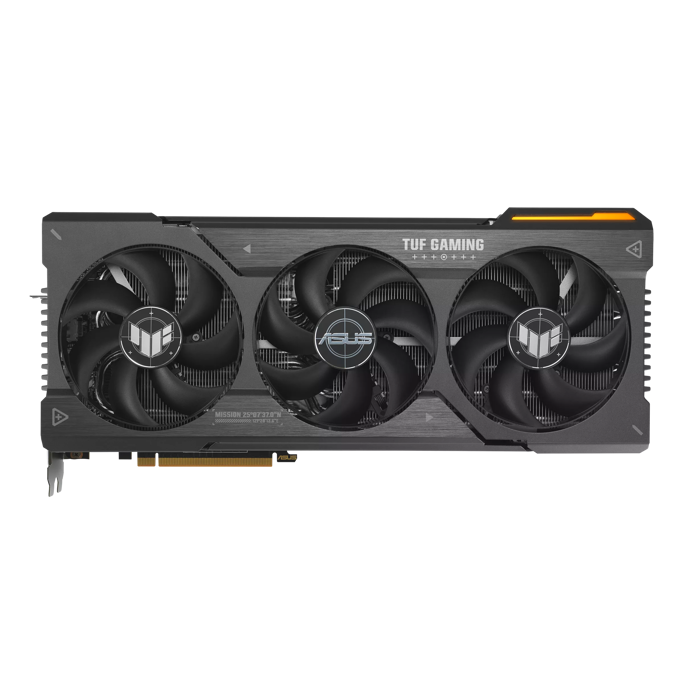

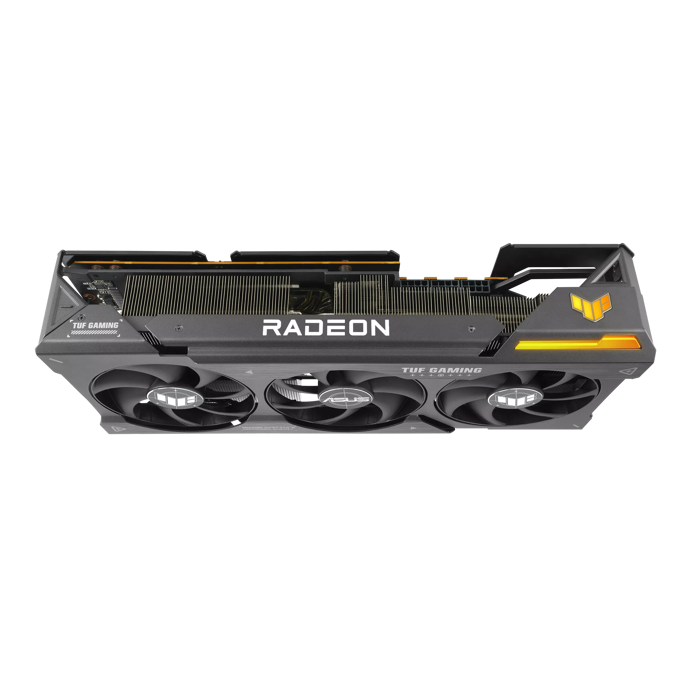

ASUS RX7900XT, TUF Gaming OC, TUF-RX7900XT-O20G-GAMING, 90YV0IV1-M0NA00

GPU AMD Radeon RX 7900 XT
Memory 20GB GDDR6, 320bit, 20Gbps, 2500MHz, 800GB/s
Overclocking +135MHz Boost (OC Profile), +100MHz Boost (Standard Profile), +175MHz Game (OC Profile), +130MHz Game (Default Profile)
Clock Boost 2130-2500MHz (standard profile), 2175-2535MHz (OC profile)
Takt Basis unknown
Cooling 3x axial fan (110mm) with 0dB zero fan mode
TDP/TGP 315W (AMD)
Electricity connections 3x 8-pin PCIe

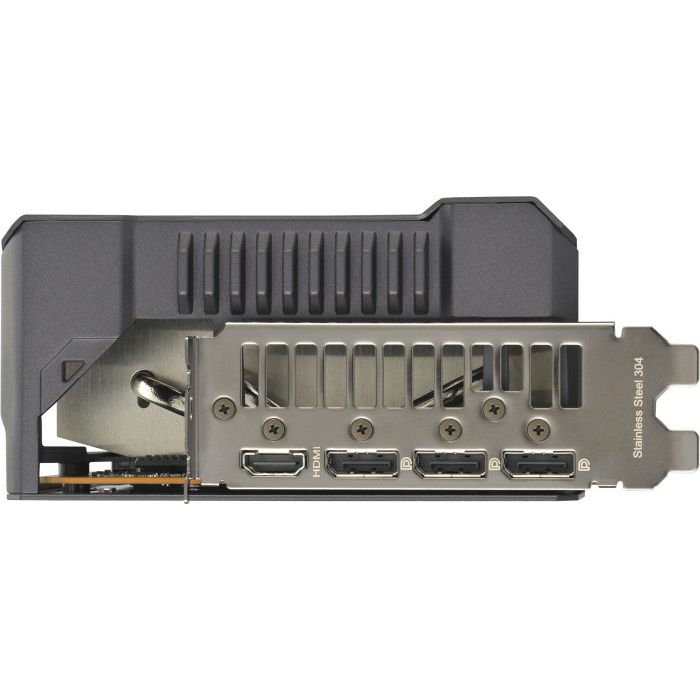

Interfaces 1x HDMI 2.1, 3x DisplayPort 2.1
Connection PCIe 4.0 x16

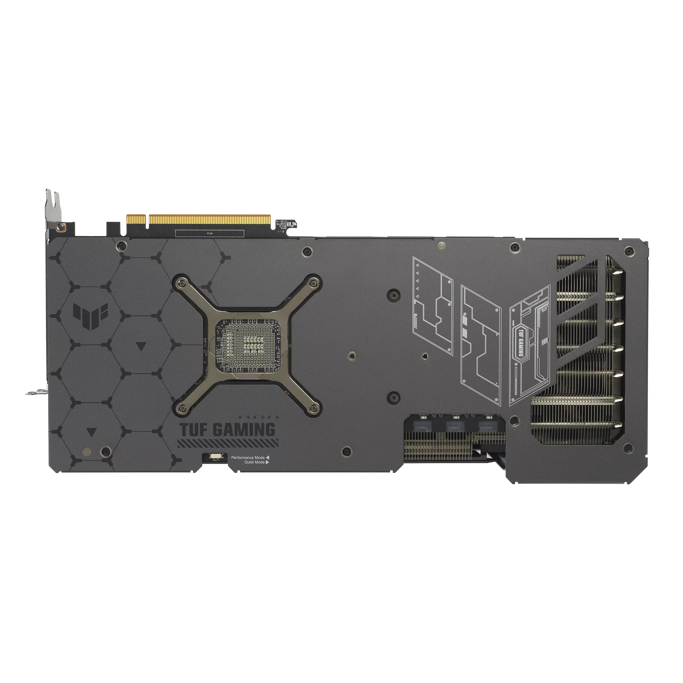

Particularities Clock profiles (Default Mode/OC Mode), Backplate, LED lighting (RGB), Graphics card holder (ASUS TUF Graphics Card Holder)
Overall depth Quad Slot (3.63 Slots)
Dimensions 352.9x158.2x72.6mm (LxWxH)
Construction PCIe card (full height)
Slot bracket full height
Computing power 109.03 TFLOPS (FP16), 54.51 TFLOPS (FP32), 3.41 TFLOPS (FP64)
Chip data
Chip Architecture RDNA 3 (from 2022/Q4)
Chip designation Navi 31 XT
Chip configuration 84CU (5376 ALUs / 336 TMUs / 192 ROPs), 84 RT cores, 6MB L2 cache, 80MB L3 cache
Chip manufacturing TSMC 5nm + TSMC 6nm
Chip size 496mm2, multi-chip module (5 MCM chiplets)
Chip Functions Raytracing, AMD Infinity Cache (80MB), HDCP 2.3
API support DirectX 12 Ultimate (12_2) / Vulkan 1.3 / OpenCL 2.1 / OpenGL 4.6 / Shader Model 6.7
Transcoding Engine VCN 4.0, Info
Encoding AV1, H.265, H.264
Decoding AV1, H.265, H.264, VP9
