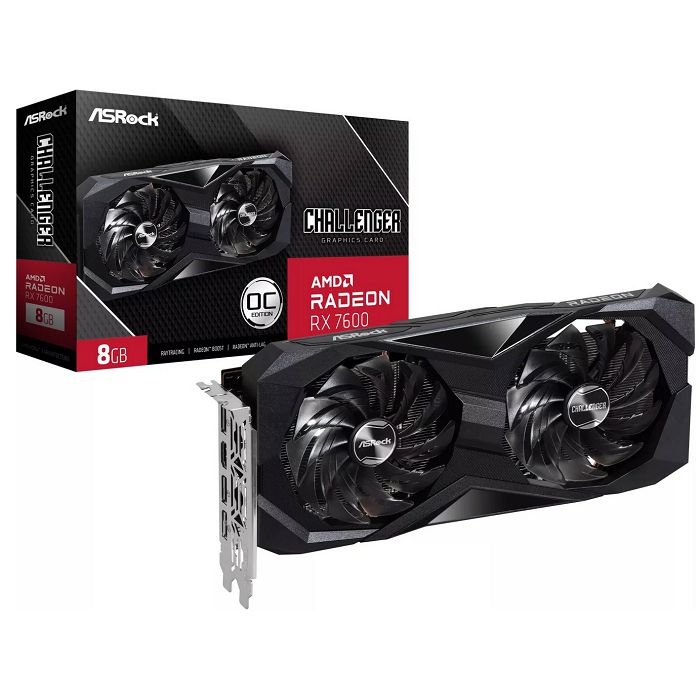

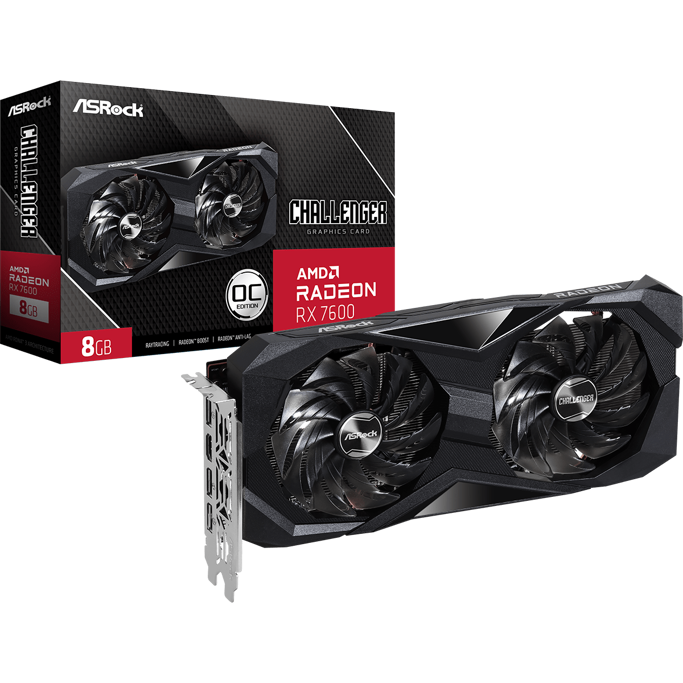

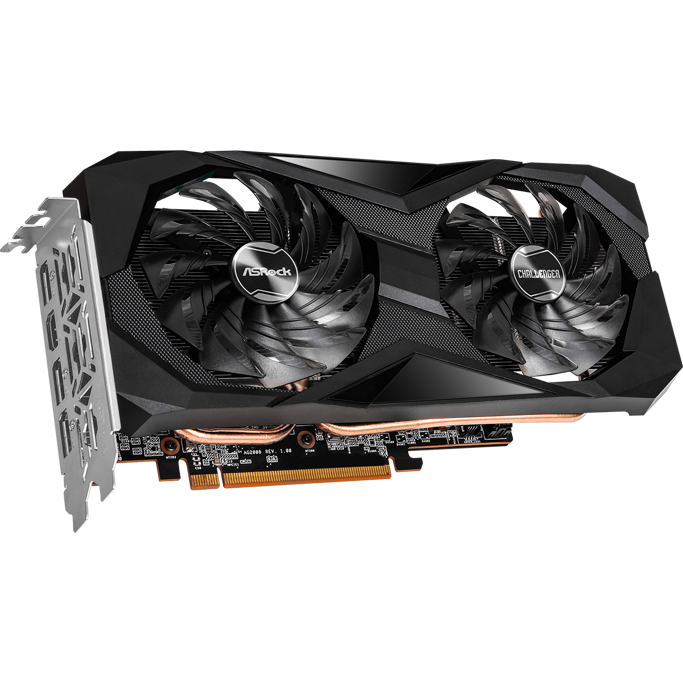

Asrock RX7600 Challenger OC, AMD Radeon, 8GB GDDR6, 90-GA41ZZ-00UANF

TDP/TGP 165W (AMD)
Electricity connections 1x 8-pin PCIe

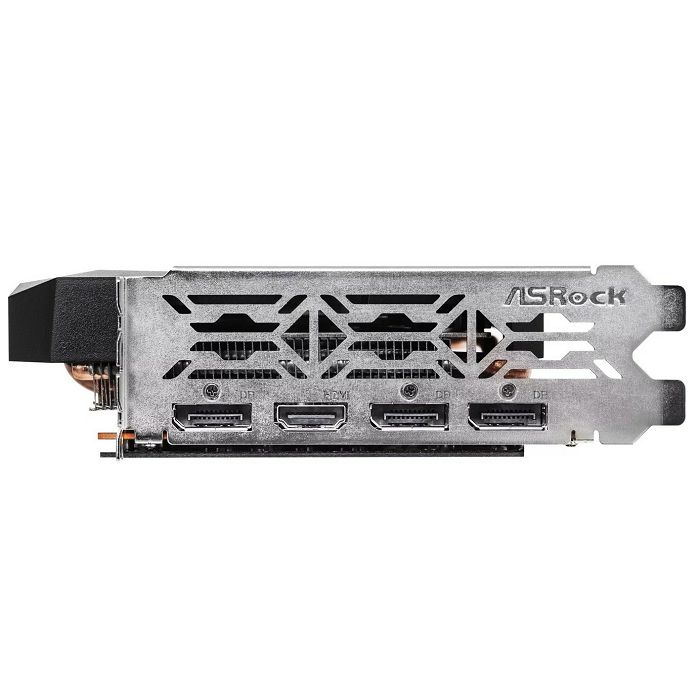

Interfaces 1x HDMI 2.1, 3x DisplayPort 2.1
Connection PCIe 4.0 x16 (x8)

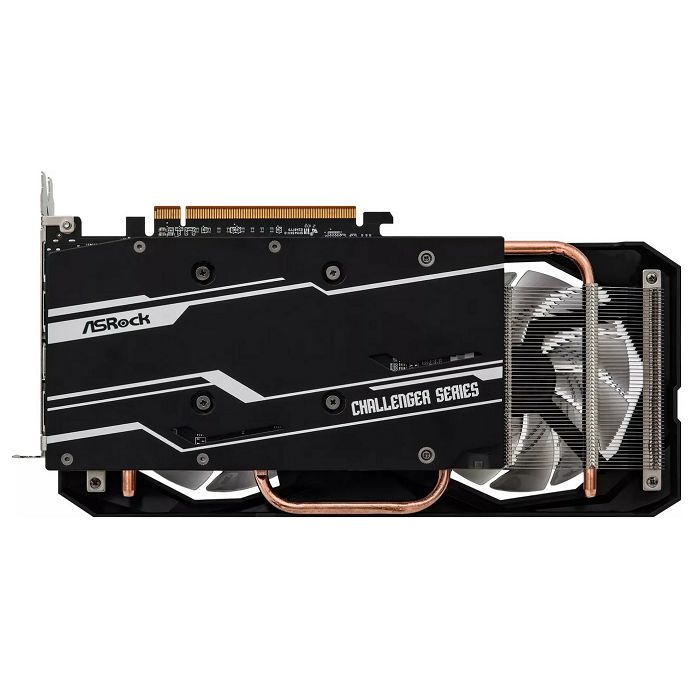

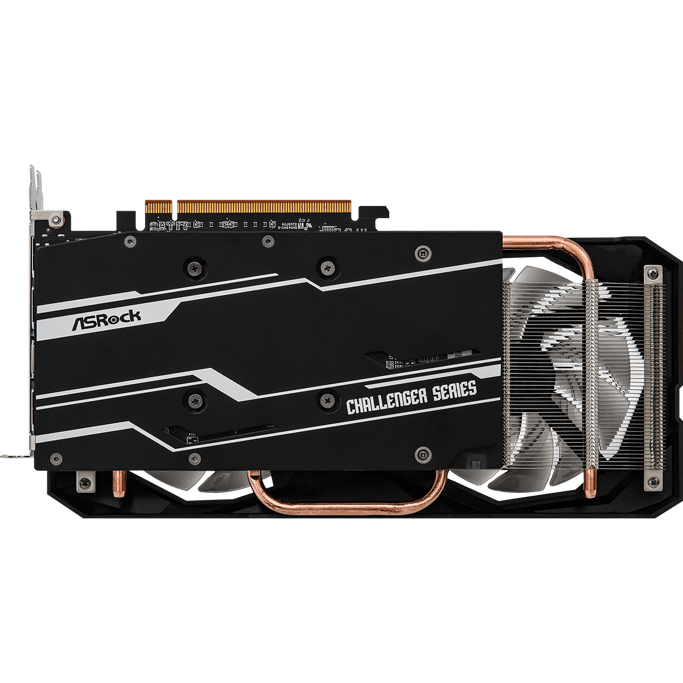

Particularities Backplate
Overall depth Dual Slot
Dimensions 269.2x131.8x40.3mm (LxWxH), weight: 640g
Construction PCIe card (full height)
Slot bracket full height
Computing power 44.15 TFLOPS (FP16), 22.08 TFLOPS (FP32), 1.38 TFLOPS (FP64)
Warranty two years (processing via dealers)
Chip data Chip Architecture
RDNA 3 (from 2022/Q4) Chip designation
Navi 33 XL Chip configuration
32CU (2048 ALUs / 128 TMUs / 64 ROPs), 32 RT cores, 6MB L2 cache, 32MB L3 cache
Chip manufacturing TSMC 6nm
Chip size 204mm2, monolithic
Chip Functions Raytracing, AMD Infinity Cache (32MB), HDCP 2.3
API support DirectX 12 Ultimate (12_2) / Vulkan 1.3 / OpenCL 2.1 / OpenGL 4.6 / Shader Model 6.7
Transcoding Engine VCN 4.0, Info
Encoding AV1, H.265, H.264
Decoding AV1, H.265, H.264, VP9
