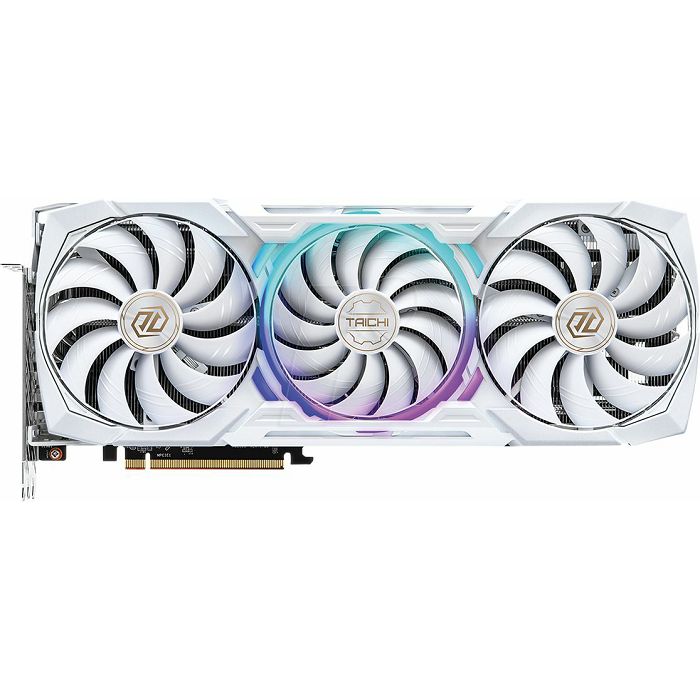

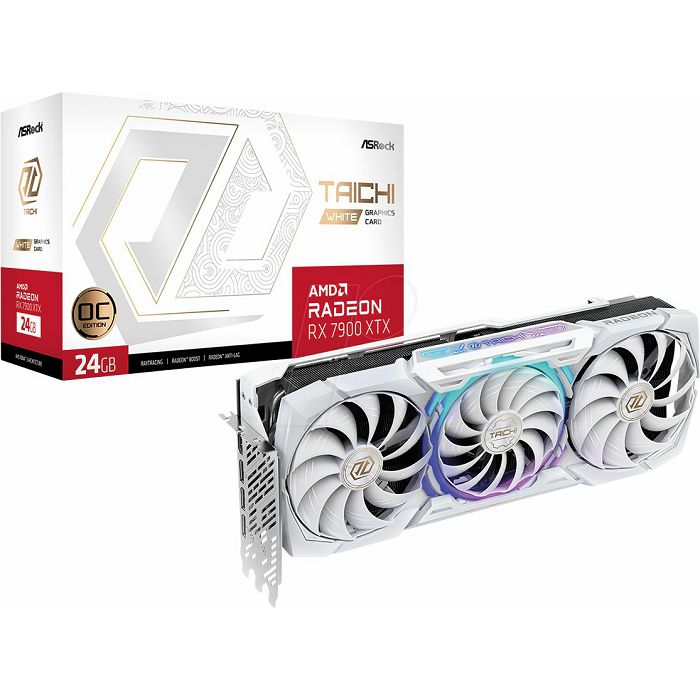

Asrock RX7900XTX Taichi White OC, TCW 24GB GDDR6, AMD Radeon, 90-GA4AZZ-00UANF

GPU
AMD Radeon RX 7900 XTX
Memory
24GB GDDR6, 384bit, 20Gbps, 2500MHz, 960GB/s
Overclocking
+180MHz Boost, +210MHz Game
Clock Boost
2510-2680MHz
Takt Basis
unknown
Cooling
3x axial fans (2x 110mm + 100mm, partially RGB illuminated) with 0dB zero fan mode
TDP/TGP
355W (AMD)
Electricity connections
3x 8-pin PCIe

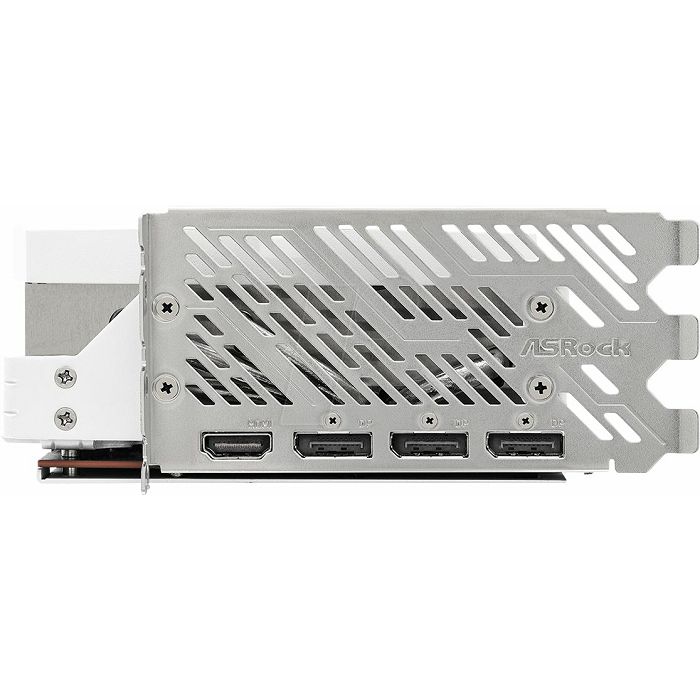

Interfaces
1x HDMI 2.1, 3x DisplayPort 2.1
Connection
PCIe 4.0 x16
Particularities
Backplate, LED lighting (RGB), RGB synchronization (3-pin ARGB), white coloring
Overall depth
Triple Slot
Dimensions
345x140x61mm (LxWxH)
Construction
PCIe card (full height)
Slot bracket
full height
Computing power
131.73 TFLOPS (FP16), 65.86 TFLOPS (FP32), 4.12 TFLOPS (FP64)
Chip data
Chip Architecture
RDNA 3 (from 2022/Q4)
Chip designation
Navi 31 XTX
Chip configuration
96CU (6144 ALUs / 384 TMUs / 192 ROPs), 96 RT cores, 6MB L2 cache, 96MB L3 cache
Chip manufacturing
TSMC 5nm + TSMC 6nm
Chip size
529mm2, multi-chip module (6 MCM chiplets), 57.7 billion transistors
Chip Functions
Raytracing, AMD Infinity Cache (96MB), HDCP 2.3
API support
DirectX 12 Ultimate (12_2) / Vulkan 1.3 / OpenCL 2.1 / OpenGL 4.6 / Shader Model 6.7
Transcoding Engine
VCN 4.0, Info
Encoding
AV1, H.265, H.264
Decoding
AV1, H.265, H.264, VP9
