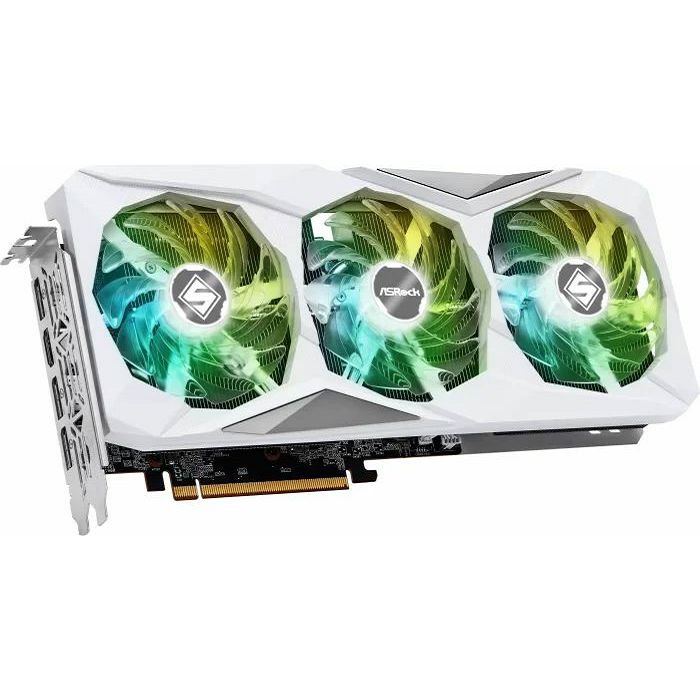

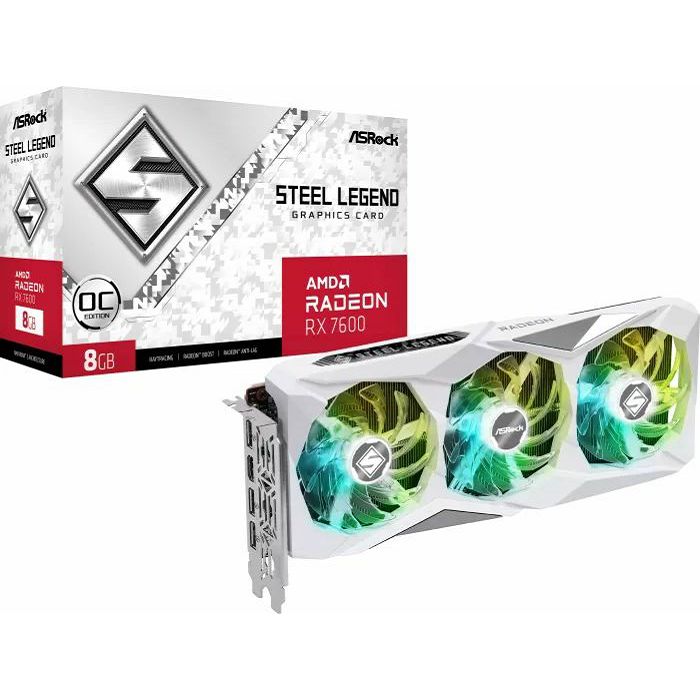

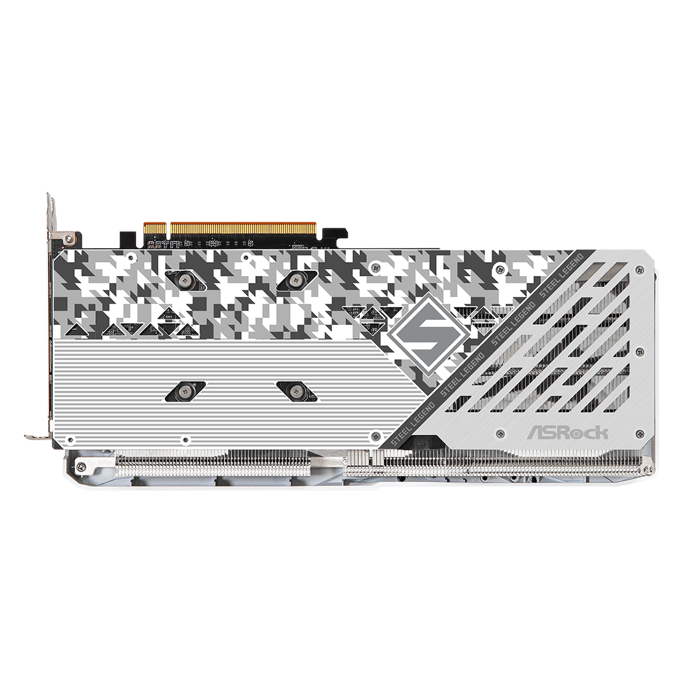

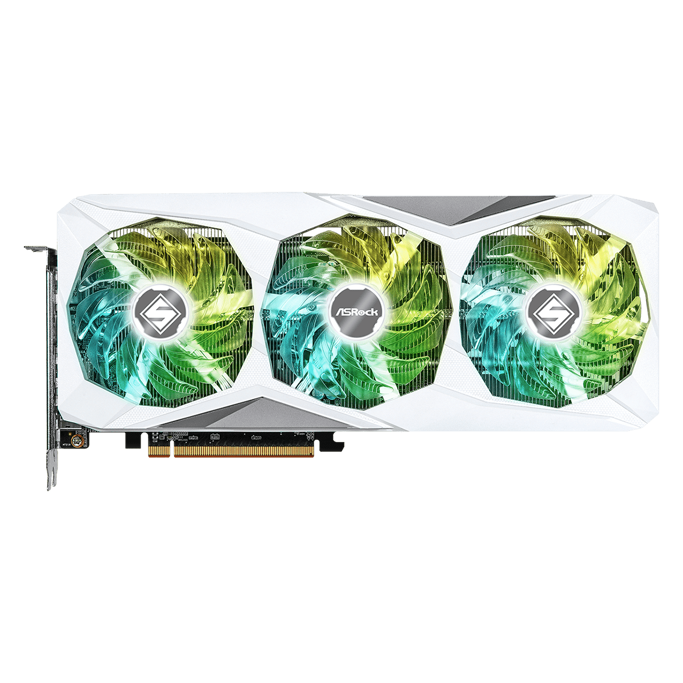

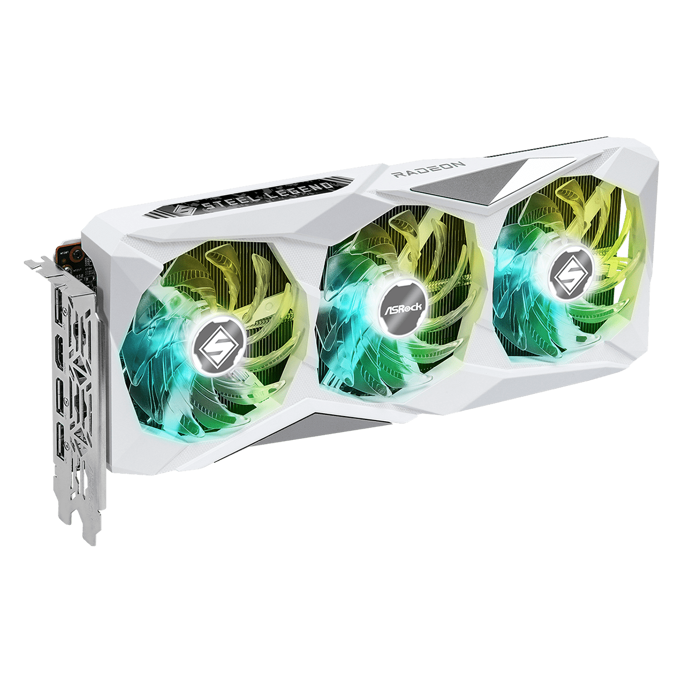

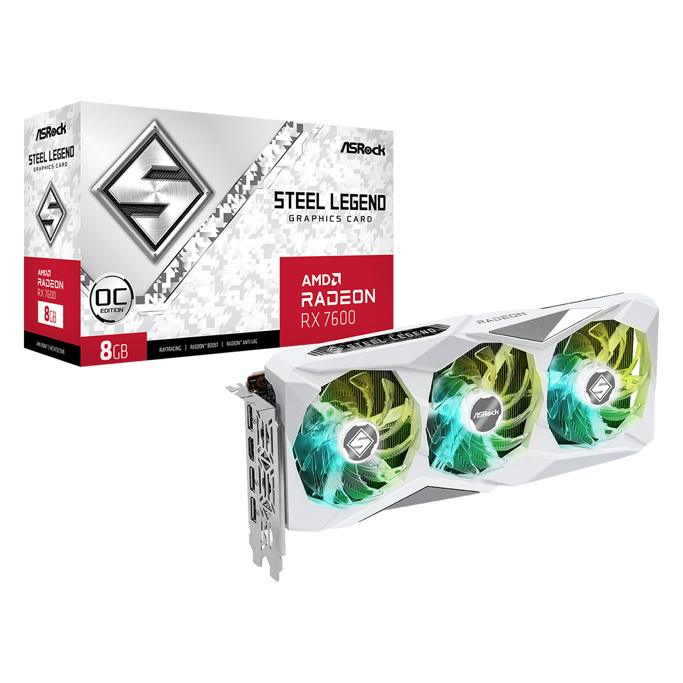

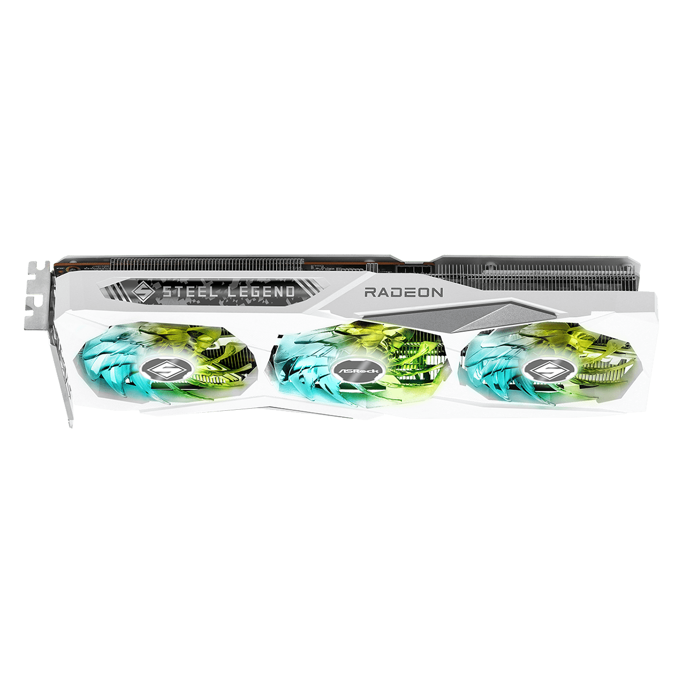

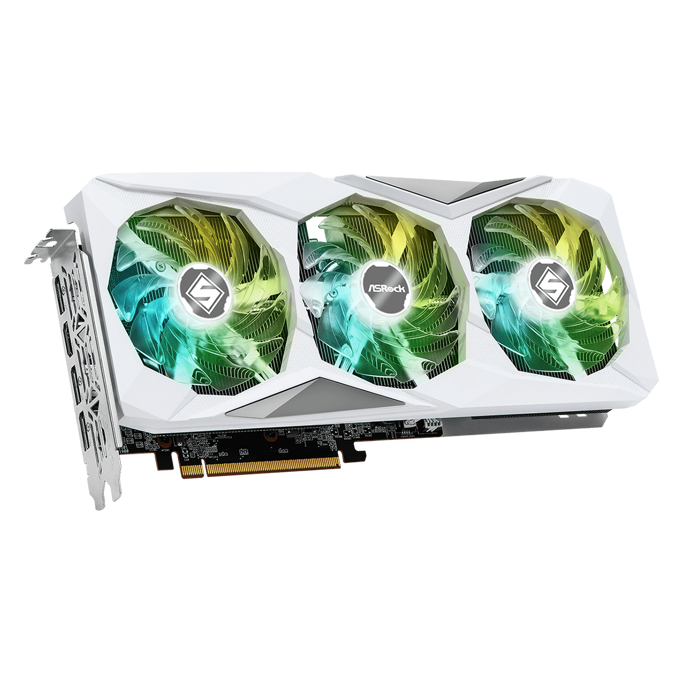

Asrock RX7600 Steel Legend 8GB OC, AMD, Radeon, 8GB GDDR6, 90-GA4DZZ-00UANF

GPU AMD Radeon RX 7600
Memory 8GB GDDR6, 128bit, 18Gbps, 2250MHz, 288GB/s
Clock Base 1720MHz
Clock Boost 2320-2725MHz
Overclocking +70MHz Boost, +70MHz Game
Cooling 3x axial fans (90mm) with 0dB zero-fan mode
TDP/TGP 165W (AMD)
Power connections 1x 8-pin PCIe
Connections 1x HDMI 2.1, 3x DisplayPort 2.1
Connection PCIe 4.0 x16 (x8)
Particularities LED lighting (RGB, fan RGB illuminated), backplate, white build compatible (white color scheme)
Overall depth Triple Slot (2.25 Slots)
Dimensions 303x131x45mm (LxWxH), Weight: 834g
Construction PCIe card (full height)
Slot bezel full height
Computing power 44.65 TFLOPS (FP16), 22.32 TFLOPS (FP32), 1.4 TFLOPS (FP64)
Chip Data
Chip Architecture RDNA 3 (from 2022/Q4)
Chip Designation Navi 33 XL
Chip Configuration 32CU (2048 ALUs / 128 TMUs / 64 ROPs), 32 RT Cores, 2MB L2 Cache, 32MB L3 Cache
Chip Manufacturing TSMC 6nm
Chip Size 204mm2, monolithic, 13.3 billion transistors
Chip Functions Ray tracing, AMD Infinity Cache (32MB), HDCP 2.3
API support DirectX 12 Ultimate (12_2) / Vulkan 1.3 / OpenCL 2.2 / OpenGL 4.6 / Shader Model 6.7
Transcoding Engine VCN 4.0, Info
Encoding AV1, H.265, H.264
Decoding AV1, H.265, H.264, VP9
