Asus Pro WS TRX50-Sage WIFI, AMD TRX50, sTR5, DDR5, 90MB1FZ0-M0EAY0

Shape factor E-ATX (SSI CEB), 305x280mm, 12"x11"
Socket AMD sTR5
chipset AMD TRX50
RAM 4x DDR5 DIMM, quad PC5-41600R/?DDR5-5200, max. 1TB (RDIMM-3DS)
Extension slots 3x PCIe 5.0 x16 (2x x16, 1x x8), 2x PCIe 4.0 x16 (1x x16, 1x x4), 2x M.2/?M-Key (PCIe 5.0 x4, 2280/?2260/?2242), 1x M.2/?M-Key (PCIe 4.0 x4, 2280), 1x M.2/?E-Key (PCIe, 2230, occupied with WiFi+BT module), 1x Slim SAS SFF-8654 (PCIe 4.0 x4)

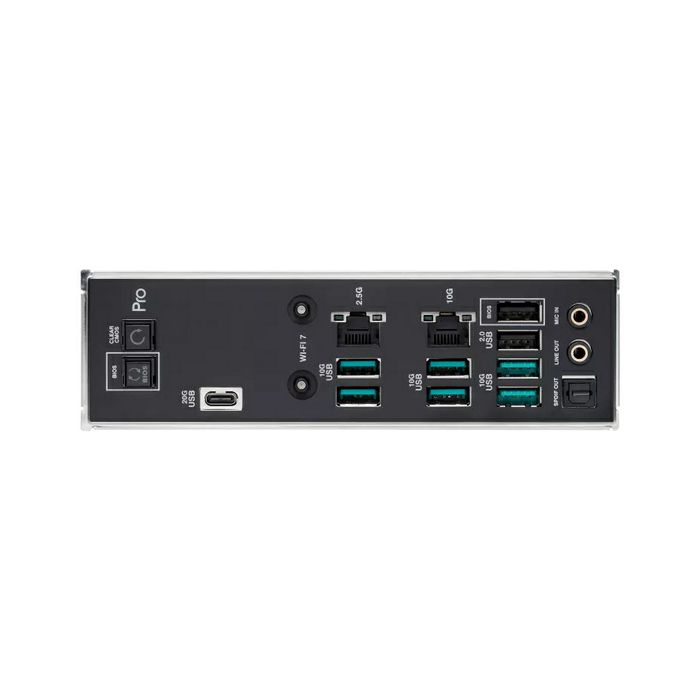

external connectors 1x USB-C 3.2 (20Gb/?s), 6x USB-A 3.1 (10Gb/?s), 2x USB-A 2.0 (480Mb/?s), 1x 10GBase-T (Marvell AQtion AQC113CS), 1x 2.5GBase-T (Intel I226-LM), 2x jack, 1x toslink, 2x antenna connector RP-SMA proprietary
Internal connectors 1x USB-C 3.2 Key-A Header (20Gb/?s, PD, max. 27W, QC4+), 1x USB 3.0 Header (5Gb/?s, 2x USB 3.0), 2x USB 2.0 header (480Mb/?s, 4x USB 2.0), 4x SATA 6Gb/s (TRX50), 1x serial, 1x TPM-Header, 1x USB4-Header 13-Pin (14-1), 1x Chassis Intrusion-Header, 1x BMC-Header
Header Cooling 2x CPU fan 4-Pin, 6x fan, 1x pump 4-Pin, 1x Thermal-sensor
Header Lighting not available
buttons/Switches Power-Button (internal), Retry-Button (internal), FlexKey-Button (internal), SafeBoot-Button (internal), SlowMode switch (internal), VRM-Test switch (internal), clear-CMOS-Button (external), USB BIOS Flashback (external)
Audio 7.1 (Realtek ALC1220)
Graphics not available
Wireless Wi-Fi 7 (WLAN 802.11a/?b/?g/?n/?ac/?ax/?be, 2x2), Bluetooth 5.4
RAID level 0/?1/?10 (TRX50)
Power connections 2x 24-Pin ATX, 2x 8-Pin EPS12V, 2x 8-Pin PCIe-In, 1x 8-Pin PCIe-Out, 1x 6-Pin PCIe-Out
VRM 36 real CPU-phases (2x 18)
Lighting not available
BIOS 1x 32MB (256Mb)
Special features audio+solid capacitors, Diagnostic LED (segment indication), Diagnostic LED (LED indicators), 3x M.2-passive cooler, I/?O-shield integrated, ECC-support, onboard TPM 2.0 support (AMD fTPM, additional Manufacturer link pay attention)
