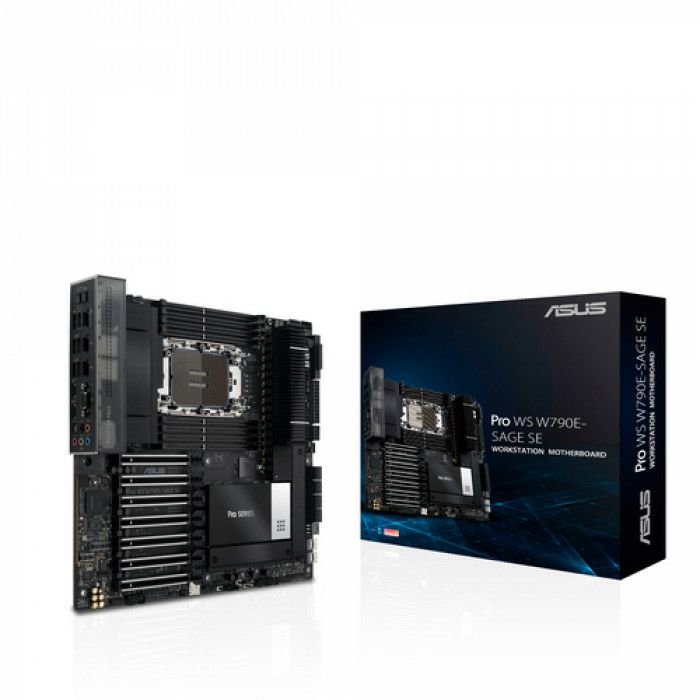

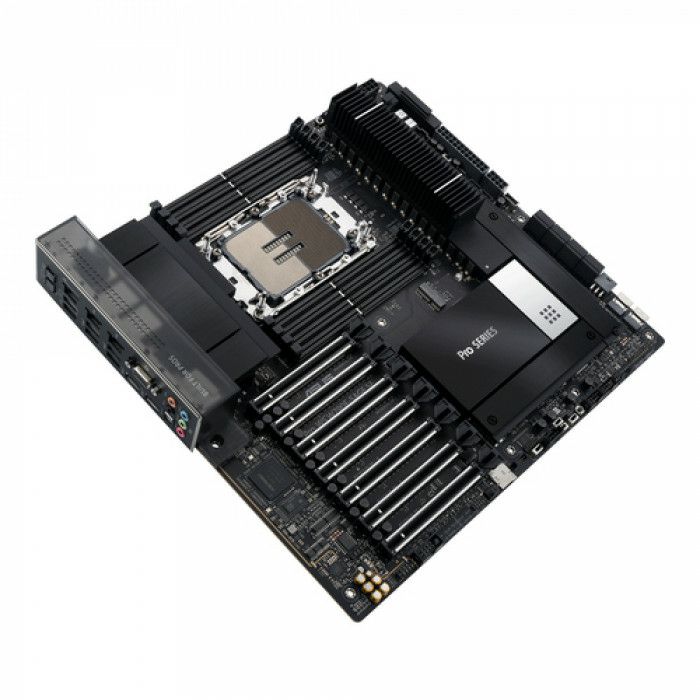

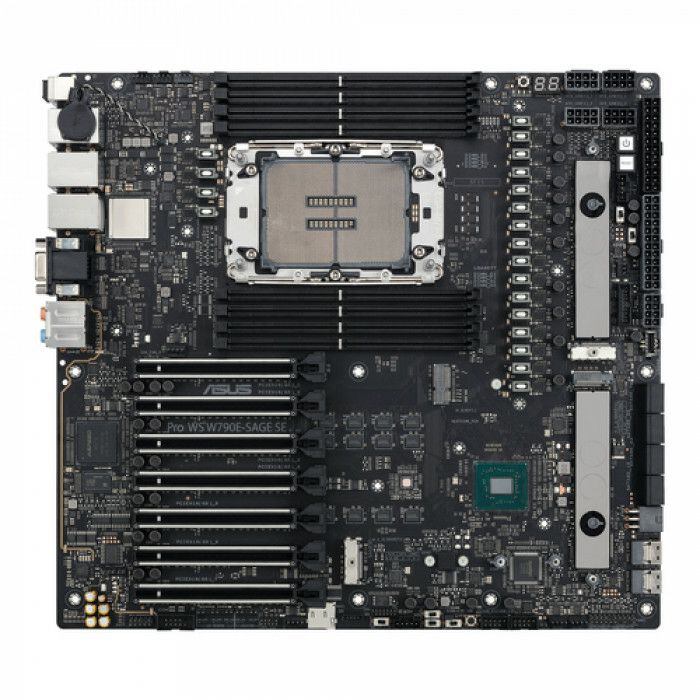

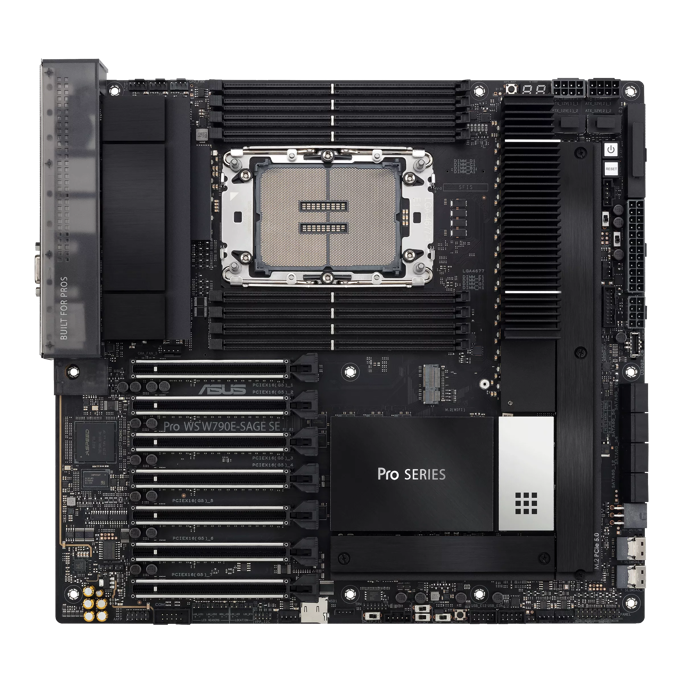

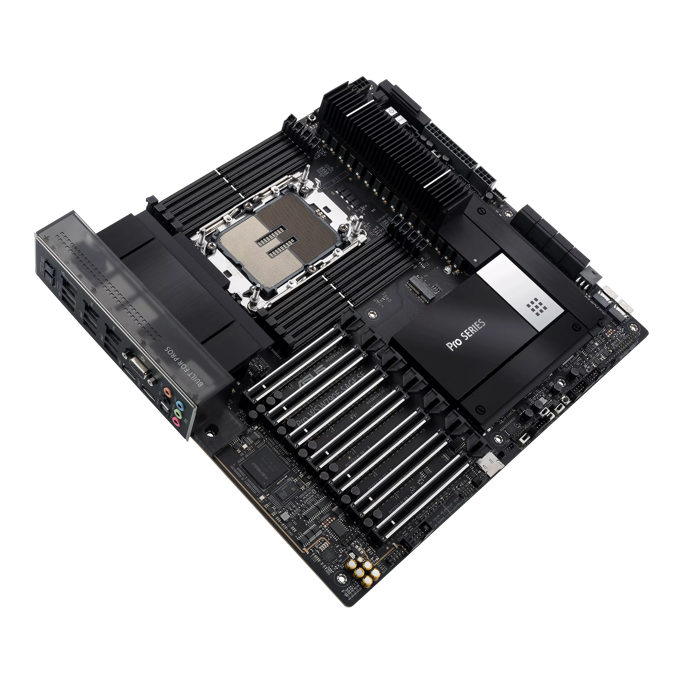

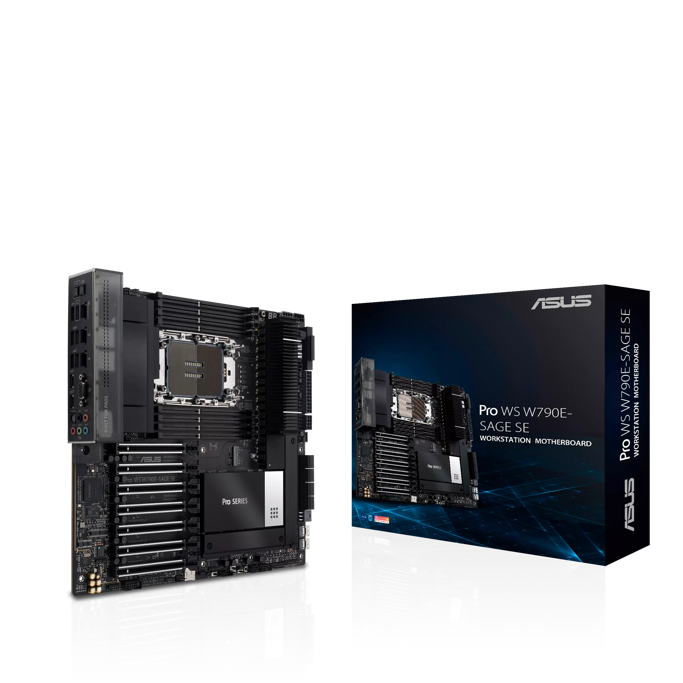

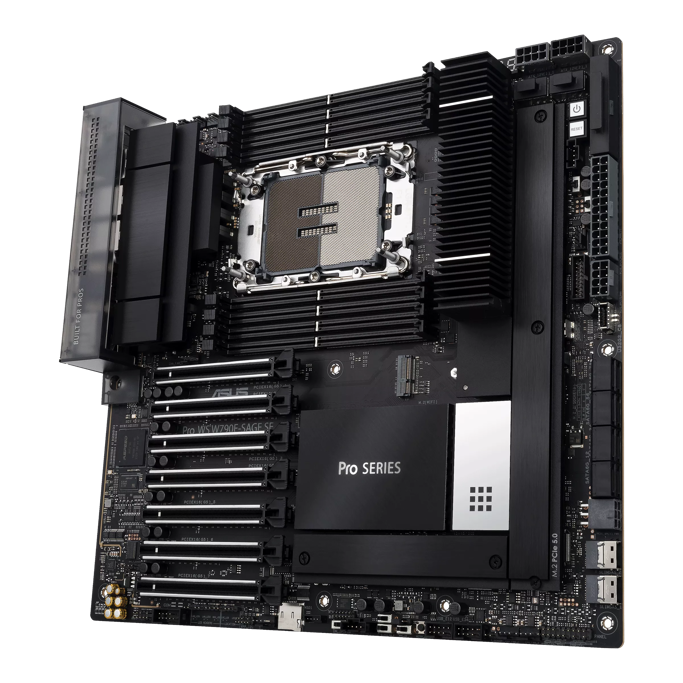

ASUS PRO WS W790E-SAGE SE, LGA4677, DDR5, EEB, 90MB1C20-M0EAY0

shape factor
E-ATX (SSI EEB), 305x330mm, 12"x13"
Socket
Intel 4677
chipset
Intel W790
RAM
8x DDR5 DIMM, octa PC5-54400R/?DDR5-6800 (OC), max. 2TB (RDIMM)
Extension slots
7x PCIe 5.0 x16 (6x x16, 1x x8), 3x M.2/?M-Key (PCIe 5.0 x4, 22110/?2280/?2260/?2242), 2x Slim SAS SFF-8654 4i (PCIe 4.0 x4), 1x M.2/?E-Key (Intel CNVi, 2230)

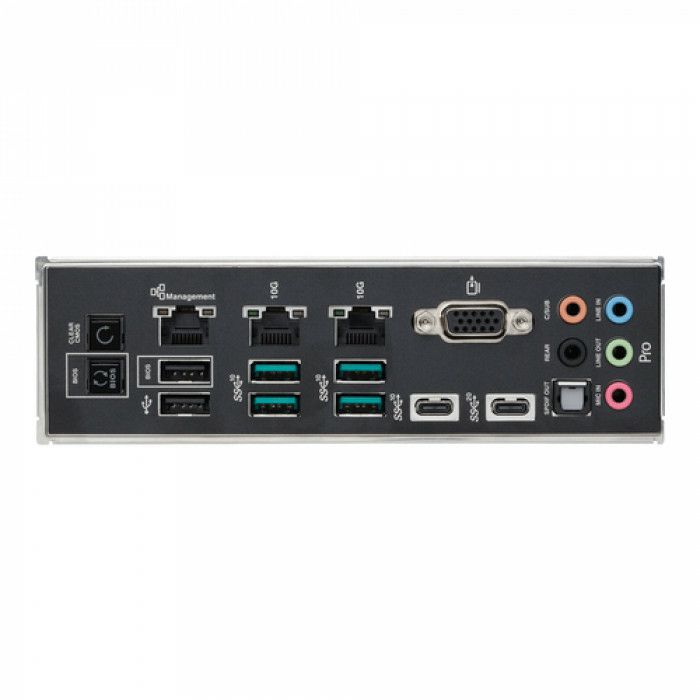

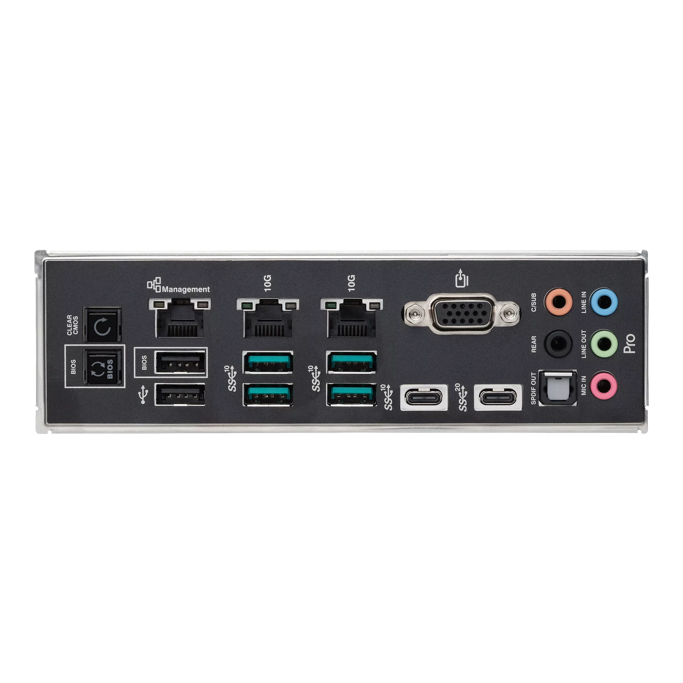

external connect
1x VGA (AST2600), 1x USB-C 3.2 (20Gb/?s, W790), 1x USB-C 3.1 (10Gb/?s, W790), 4x USB-A 3.1 (10Gb/?s, W790), 2x USB-A 2.0 (480Mb/?s), 2x 10GBase-T (Intel X710-AT2), 1x Gb LAN (Realtek) 5x jack, 1x toslink
Internal connectors
1x USB-C 3.2 Key-A Header (20Gb/?s, W790), 1x USB 3.0 Header (5Gb/?s, 2x USB 3.0), 2x USB 2.0 header (480Mb/?s, 4x USB 2.0), 8x SATA 6Gb/s (W790), 1x serial, 1x TPM-Header, 1x VROC-Header, 1x VGA-Header, 1x I2C-Header, 2x SMBus-Header, 1x Location Button Header, 2x LAN-LED-Header, 1x card reader (microSD), 1x front panel Location LED Header, 1x Message LED header, 1x BMC_T_SENSOR Header, 1x BMC LED, 1x Location LED
Header Cooling
2x CPU fan 4-Pin, 5x fan 4-Pin, 1x pump 4-Pin, 1x Thermal-sensor
Header Lighting
not available
buttons/Switches
USB BIOS Flashback (external), clear-CMOS-Button (external), Power-Button (internal), Retry-Button (internal), SafeBoot-Button (internal), FlexKey-Button (internal), IPMI switch (internal), VGA switch (internal), BMC switch (internal), 2x PSU switch (internal), BMC-LAN-Fixed-IP switch (internal)
Audio
7.1 (Realtek ALC1220)
Graphics
ASPEED AST2600 - onboard
Wireless
not available
RAID level
0/?1/?5/?10 (W790)
Multi-GPU
not available
Power connections
2x 24-Pin ATX, 4x 8-Pin EPS12V, 1x 8-Pin PCIe, 1x 6-Pin PCIe
VRM
15 virtual phases (14+1)
Lighting
not available
BIOS
1x 64MB (512Mb)
Special features
audio+solid capacitors, ECC-support, IPMI, Diagnostic LED (segment indication), Diagnostic LED (LED indicators), 3x M.2-passive cooler, I/?O-shield integrated, onboard TPM 2.0 support (Intel PTT), Remote Management with compatible CPU (Intel vPro)
