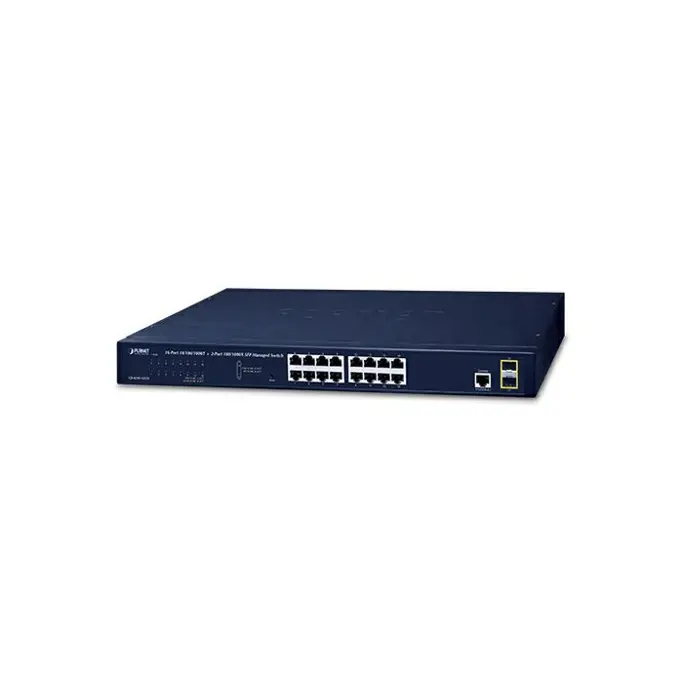

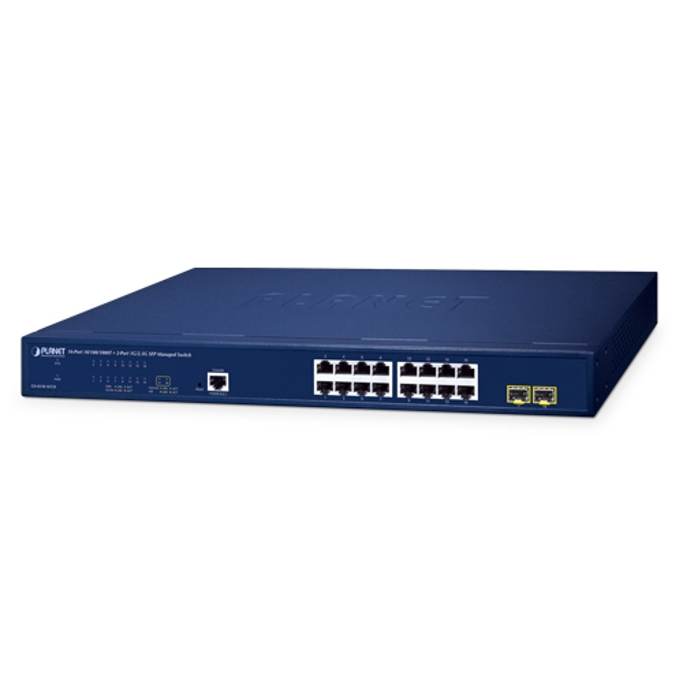

Planet GS-4210-16T2S 16-Port Layer 2 Managed Gigabit Ethernet Switch W/2 SFP Interfaces, PLT-GS-4210-16T2S

Hardware Specifications
Hardware Version 2
Copper Ports 16 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP/mini-GBIC Slots 2 100/1000BASE-X SFP interfaces, supporting 100/1000Mbps dual mode
Console 1 x RS232-to-RJ45 serial port (115200, 8, N, 1)
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
Power Requirements 100~240V AC, 50/60Hz, 0.8A (max.)
Power Consumption/Dissipation Max. 10.4 watts/35 BTU
Dimensions (W x D x H) 445 x 207 x 45 mm (1U height)
Weight 2kg
ESD Protection Yes
Enclosure Metal
LED System:
Power (Green)
10/100/1000T RJ45 Interfaces (Port 1 to Port 16):
1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange)
100/1000Mbps SFP Interfaces (Port 17 to Port 18):
1000 LNK/ACT (Green), 100 LNK/ACT (Orange)
Switching
Switch Architecture Store-and-Forward
Switch Fabric 36Gbps/non-blocking
Switch Throughput@64 bytes 26.7Mpps @64 bytes
MAC Address Table 8K entries
Shared Data Buffer 4.1 megabits
Flow Control IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame 9216 bytes
Layer 2 Functions
Port Mirroring TX/RX/both
Many-to-1 monitor
VLAN 802.1Q tagged-based VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
802.1ad Q-in-Q tunneling (VLAN stacking)
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP
Management VLAN
Link Aggregation IEEE 802.3ad LACP and static trunk
Supports 8 groups of 8-port trunk
Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
STP BPDU Guard, BPDU Filtering and BPDU Forwarding
IGMP Snooping IPv4 IGMP (v2/v3) snooping
IGMP querier
Up to 256 multicast groups
MLD Snooping IPv6 MLD (v1/v2) snooping, up to 256 multicast groups
QoS 8 mapping IDs to 8 level priority queues
Port number
802.1p priority
DSCP/IP precedence of IPv4/IPv6 packets
Traffic classification based, strict priority and WRR
Ingress/Egress Rate Limit per port bandwidth control
Ring Supports ERPS, and complies with ITU-T G.8032
Security Functions
Access Control List IPv4/IPv6 IP-based ACL/MAC-based ACL
Port Security IEEE 802.1X – Port-based authentication
Built-in RADIUS client to co-operate with RADIUS server
RADIUS/TACACS+ user access authentication
MAC Security IP-MAC port binding
MAC filter
Static MAC address
Enhanced Security DHCP Snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard
Management Functions
Basic Management Interfaces RS232 to RJ45 Console
Web browser
Telnet
SNMP v1, v2c
Secure Management Interfaces SSHv2, TLS v1.2, SNMPv3
System Management Firmware upgrade by HTTP/TFTP protocol through Ethernet network
LLDP protocol
SNTP
PLANET Smart Discovery Utility
PLANET NMS System/CloudViewer
Event Management Remote/Local Syslog
System log
SNMP MIBs RFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 2737 Entity MIB (Version 2)
RFC 2819 RMON (1, 2, 3, 9)
RFC 2863 Interface Group MIB
RFC 3635 Ethernet-like MIB
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN Tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
ITU G.8032 ERPS Ring
