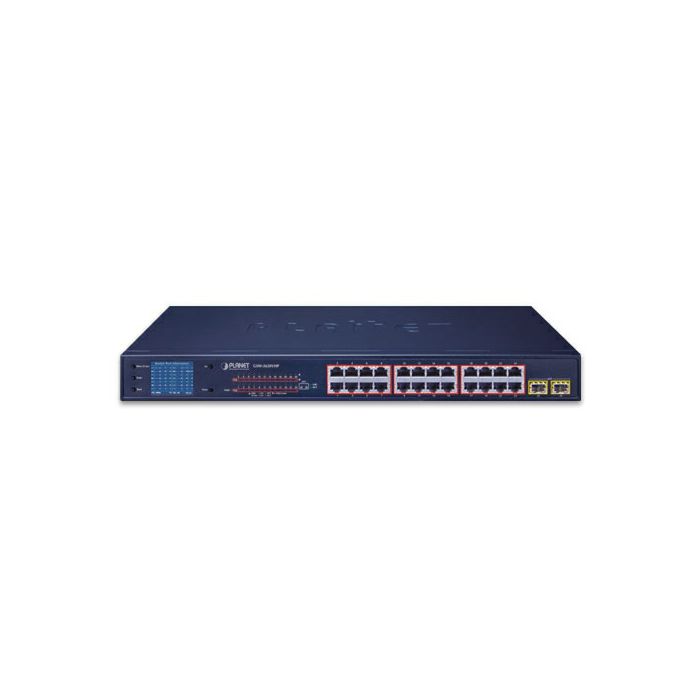

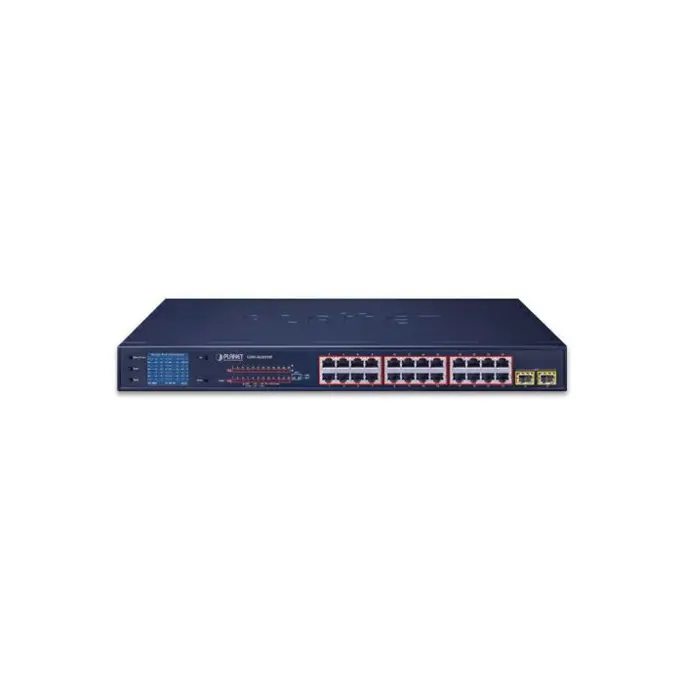

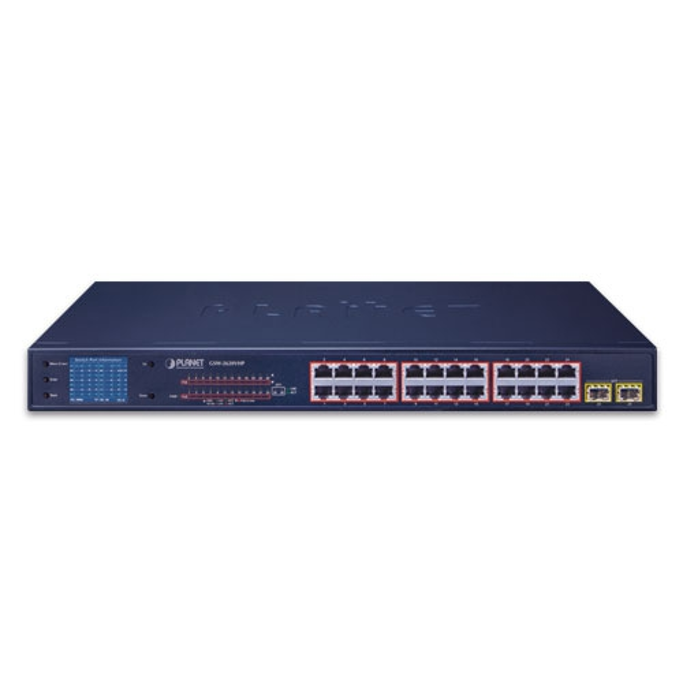

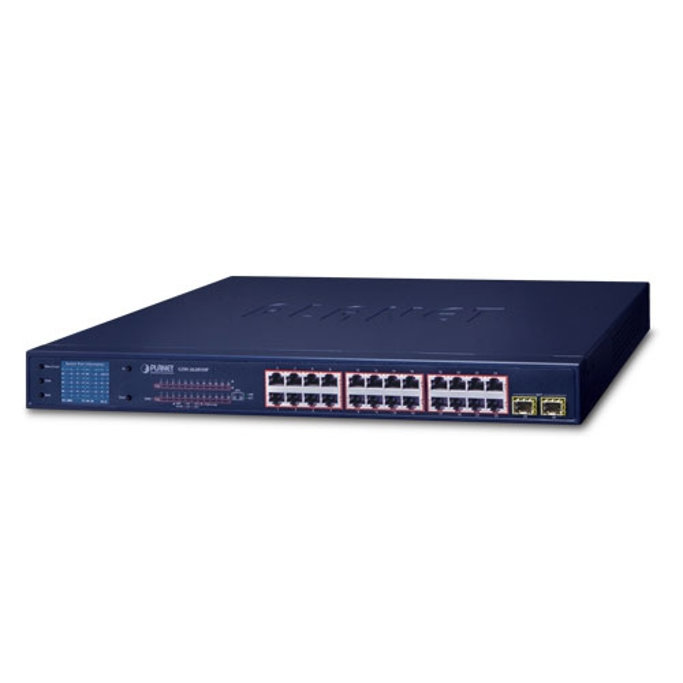

Planet GSW-2620VHP 24-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Desktop Switch, PLT-GSW-2620VHP

Hardware Specifications
802.3af/802.3at PoE Injector Port 24
10/100/1000BASE-T MDI/MDIX Ports 24
1000BASE-X SFP/mini-GBIC Slots 2
Switch Architecture Store-and-Forward
Switch Fabric 52Gbps/non-blocking
Switch Throughput@64 bytes 38.7Mpps@64 bytes
MAC Address Table 8K entries
Maximum Frame Size 9216 bytes
Flow Control IEEE 802.3x pause frame for full -duplex; back pressure for half -duplex
LED Indicators System:
Power (Green)

10/100/1000BASE-T RJ45 Interfaces:
10/100Mbps LNK/ACT (Red)
1000Mbps LNK/ACT (Green)
PoE-in-Use (Amber)

1000BASE-X SFP Interfaces:
LNK/ACT (Green)
LCD Monitor (W x D) 40.6 x 30.5 mm, 2-inch
Buttom Menu, Enter, Back, Up and Down
Dimensions (W x D x H) 440 x 233 x 44 mm (1U height)
Enclosure Metal
Weight 3.5kg

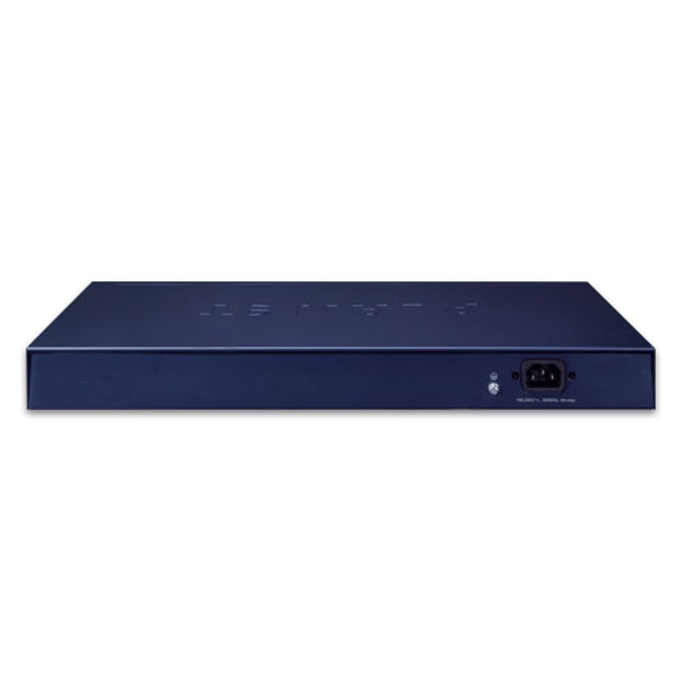

Power Requirements 100~240V AC, 50/60Hz, 5A max.
Power Consumption/Dissipation Max. 330watts/1132 BTU
Thermal Fan 3
ESD Protection Contact discharge of ±6KV DC
Air discharge of ±8KV DC
Surge Protection ±6KV
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type End-span
PoE Power Output Per port 53V-54V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
Per port 53V-54V DC, 600mA. max. 30 watts (IEEE 802.3at)
Power Pin Assignment 1/2 (+), 3/6 (-)
PoE Power Budget 300 watts
Max. Number of Class 2 PDs 24
Max. Number of Class 3 PDs 23
Max. Number of Class 4 PDs 11
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3x Flow control and back pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy Efficient Ethernet (EEE)
Environment
Operating Temperature: -10 ~ 60 degrees C
Relative Humidity: 10 ~ 90% (non-condensing)
* Temperature: < 40 degrees C; Humidity: < 90%
Temperature: > 40 degrees C; Humidity: < 50%
Storage Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 90% (non-condensing)
