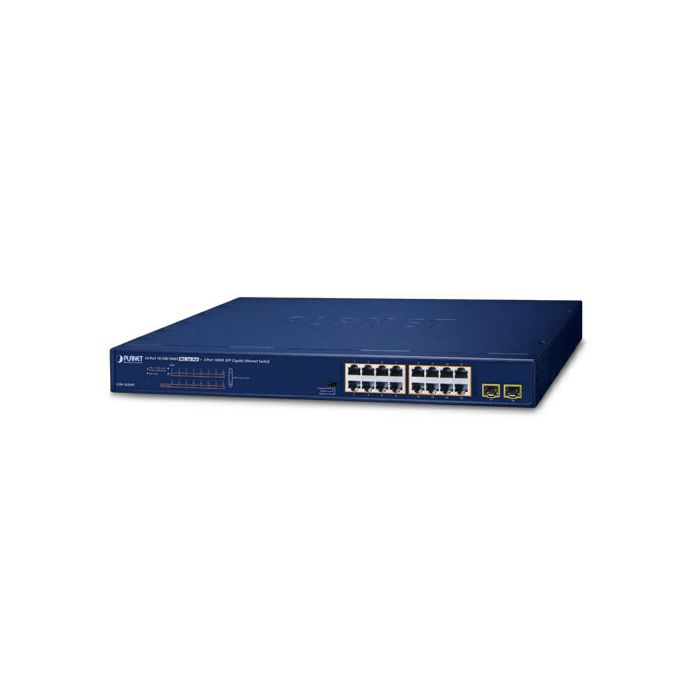

Planet GSW-1820HP 16-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Gigabit Ethernet Switch, PLT-GSW-1820HP

Hardware Specifications
10/100/1000BASE-T Copper Ports 16 auto-MDI/MDI-X ports
802.3af/802.3at PoE+ Injector Port 16
1000BASE-X SFP/mini-GBIC Slots 2
DIP Switch Selectable operation mode
- Standard
- VLAN
- Extend
Dimensions (W x D x H) 440 x 208 x 44 mm (1U height)
Enclosure Metal
Weight 2.55kg
Power Requirements 100~240V AC, 50/60Hz,3A max.
Power Consumption/Dissipation Max. 275 watts/938 BTU
Thermal Fan 2
Protection 6KV surge protection
8KV ESD protection
LED Indicators System:
Power (Green)
10/100/1000T RJ45 Interfaces
1000 LNK / ACT (Green), 10/100 LNK/ACT (Amber), PoE (Amber)
1000X SFP Interfaces
1000 LNK / ACT (Green)
Switching
Switch Architecture Store-and-Forward
Switch Fabric 36Gbps/non-blocking
Switch Throughput@64bytes 26.8Mpps
MAC Address Table 8K entries
Jumbo Frame 9216 bytes
Flow Control IEEE 802.3x pause frame for full duplex; back pressure for half duplex
Power over Ethernet
PoE Standard IEEE 802.3at Power over Ethernet Plus/PSE
Backward compatible with IEEE 802.3af Power over Ethernet
PoE Power Supply Type End-span: 1/2 (+), 3/6 (-)
PoE Power Output Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at)
PoE Power Budget 240 watts
Number of PDs, 7 watts 16
Number of PDs, 15.4 watts 15
Number of PDs, 30 watts 8
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3x flow control and back pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy-Efficient Ethernet
Environment
Operating Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
