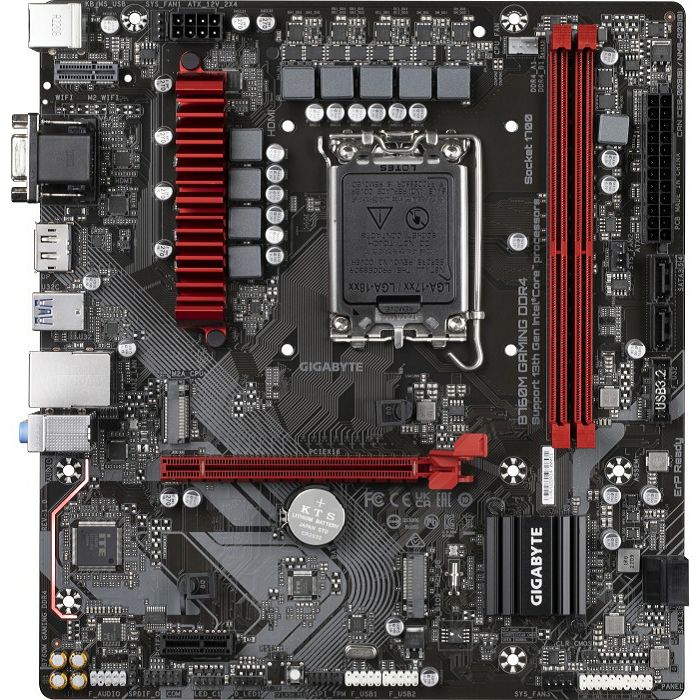

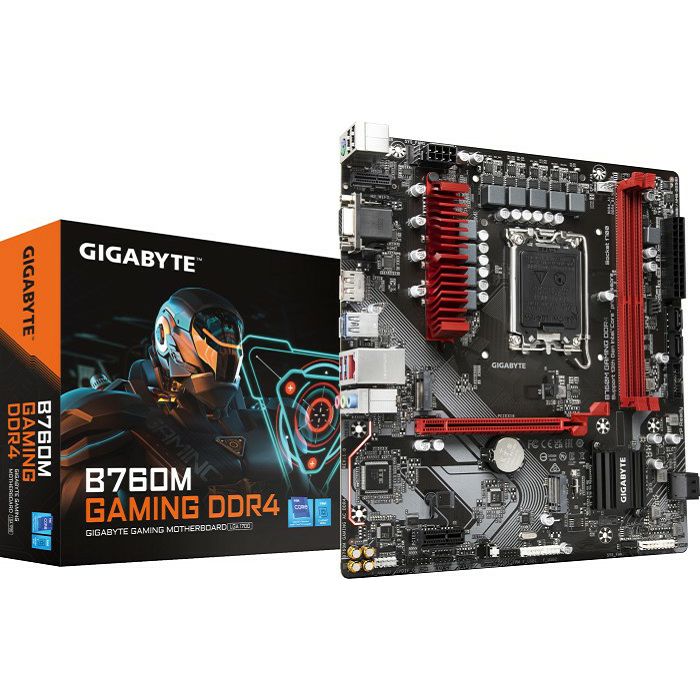

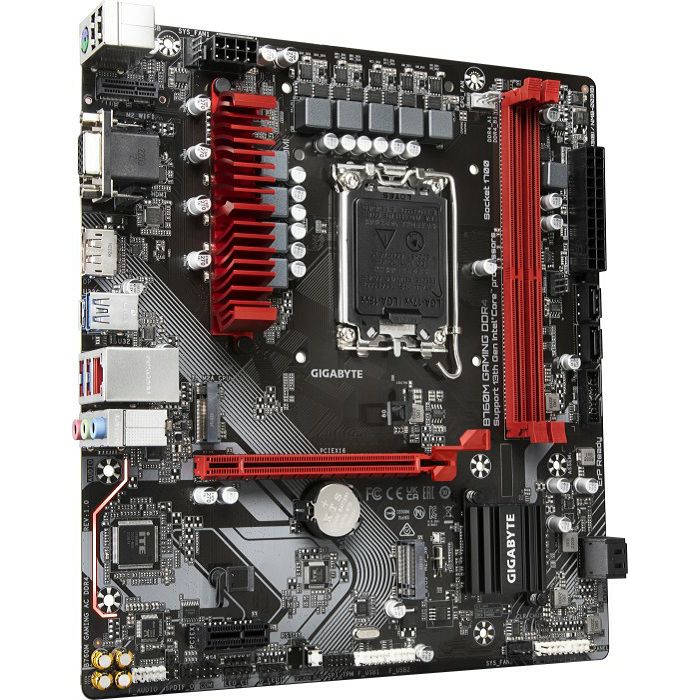

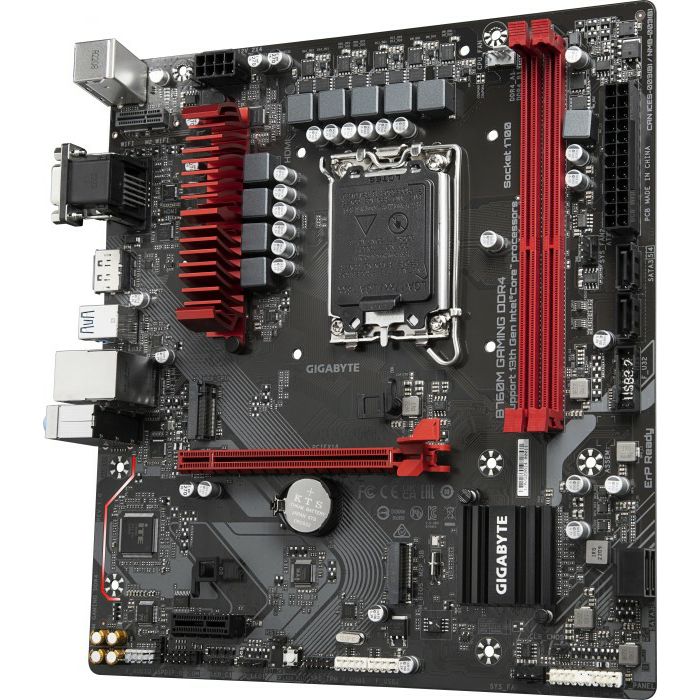

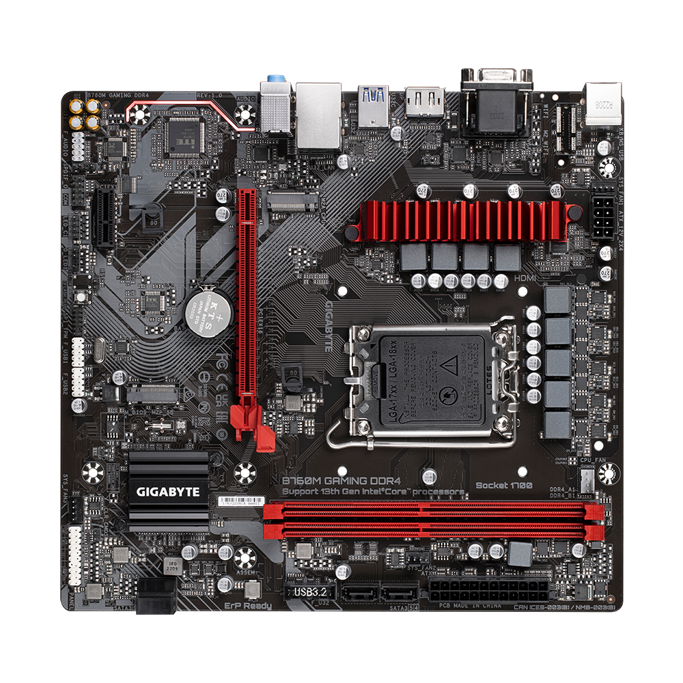

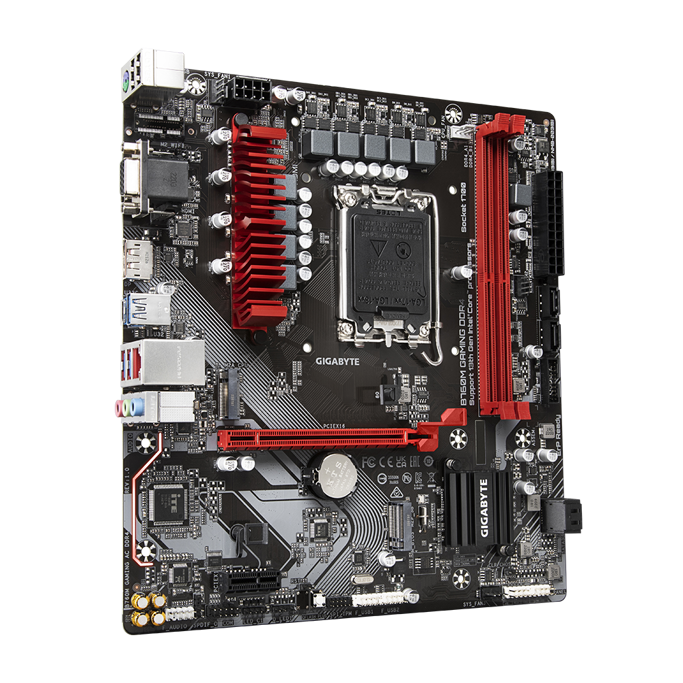

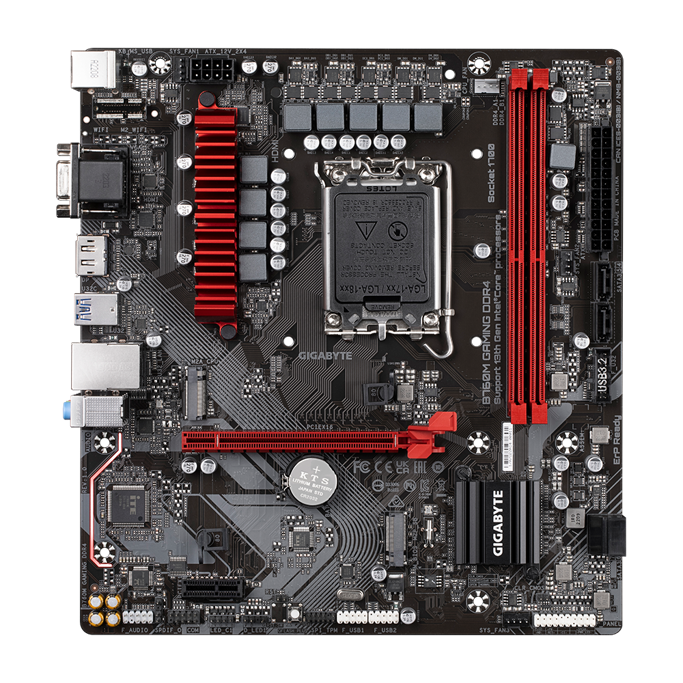

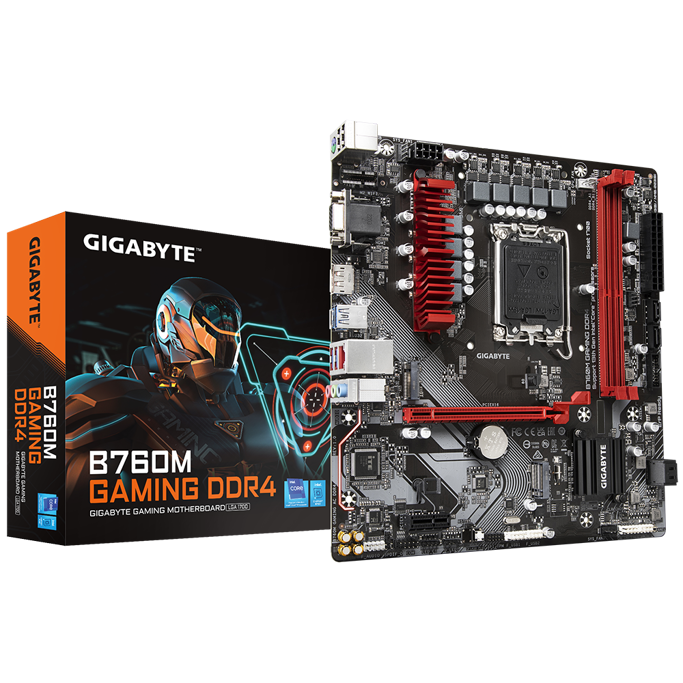

Gigabyte B760M GAMING DDR4, Intel B760, s.1700

shape factor
µATX
Socket
Intel 1700
chipset
Intel B760
CPU-Compatibility
Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM
2x DDR4 DIMM, dual PC4-42666U/?DDR4-5333 (OC), max. 64GB (UDIMM)
Extension slots
1x PCIe 4.0 x16, 1x PCIe 3.0 x1, 2x M.2/?M-Key (PCIe 4.0 x4, 2280), 1x M.2/?E-Key (Intel CNVi, 2230)
external connectors

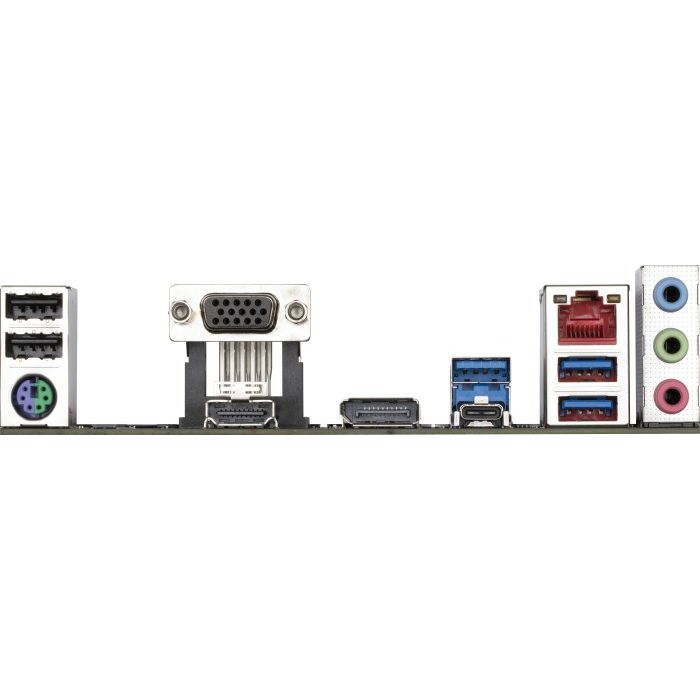

1x VGA (iGPU), 1x HDMI 2.0 (iGPU), 1x DisplayPort 1.2 (iGPU), 1x USB-C 3.0 (5Gb/?s), 3x USB-A 3.0 (5Gb/?s), 2x USB-A 2.0 (480Mb/?s), 1x 2.5GBase-T (Realtek RTL8125BG), 3x jack, 1x PS/?2 Combo
Internal connectors
1x USB 3.0 Header (5Gb/?s, 2x USB 3.0), 2x USB 2.0 header (480Mb/?s, 4x USB 2.0), 4x SATA 6Gb/s (B760), 1x serial, 1x TPM-Header, 1x S/?PDIF-Header
Header Cooling
1x CPU fan 4-Pin, 3x fan 4-Pin
Header Lighting
1x 4-Pin RGB (+12V/?G/?R/?B, max. 2A), 1x 3-Pin ARGB (+5V/?DATA/?GND, max. 5A)
buttons/Switches
USB BIOS Flashback/?Q-Flash Plus (internal)
Audio
7.1 (Realtek ALC897)
Graphics
iGPU
Wireless
not available
RAID level
0/?1/?5/?10 (B760)
Multi-GPU
not available
Power connections
1x 24-Pin ATX, 1x 8-Pin EPS12V
VRM
8 virtual phases (6+2), 8 real phases (6+2), PWM-Controller: NCP81530R (max. 10 phases)
MOSFETs CPU
6x 46A 4C10N/?12x 4C06N
MOSFETs SoC
2x 46A 4C10N/?4x 4C06N
Lighting
not available
BIOS
1x 16MB (128Mb)
Special features
audio+solid capacitors, onboard TPM 2.0 support (Intel PTT)
