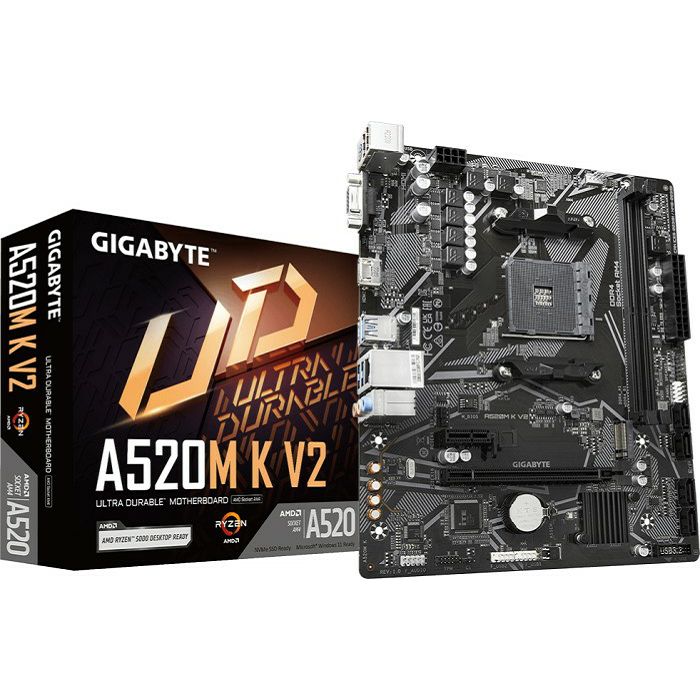

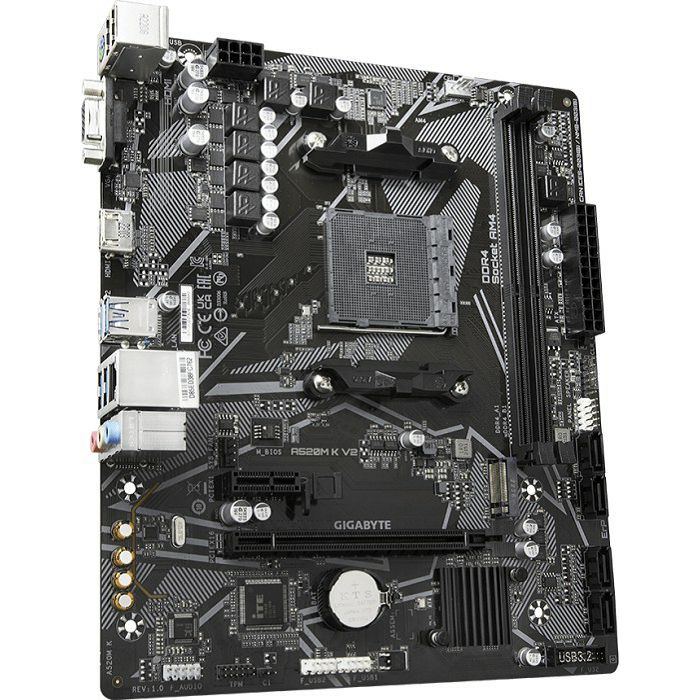

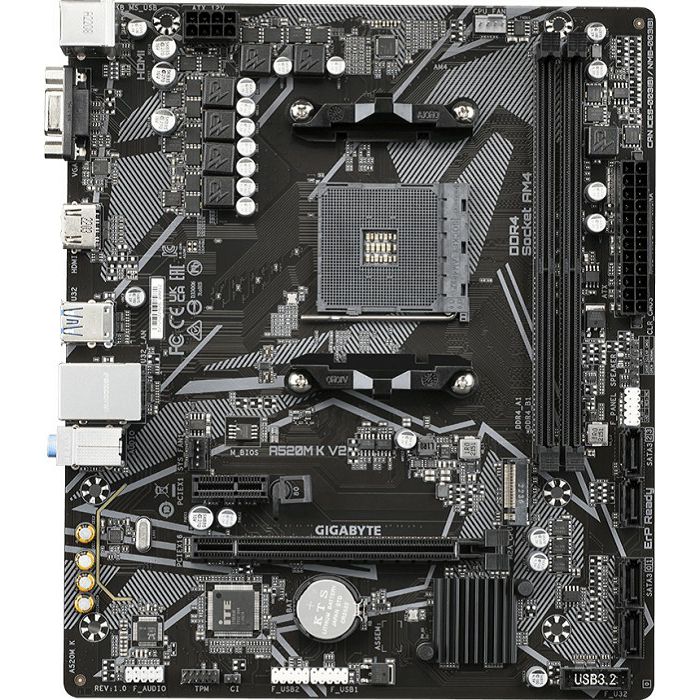

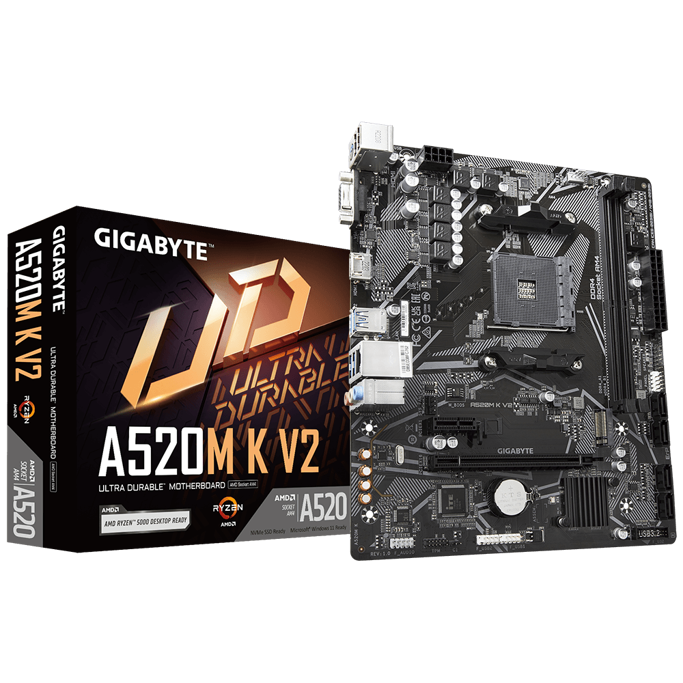

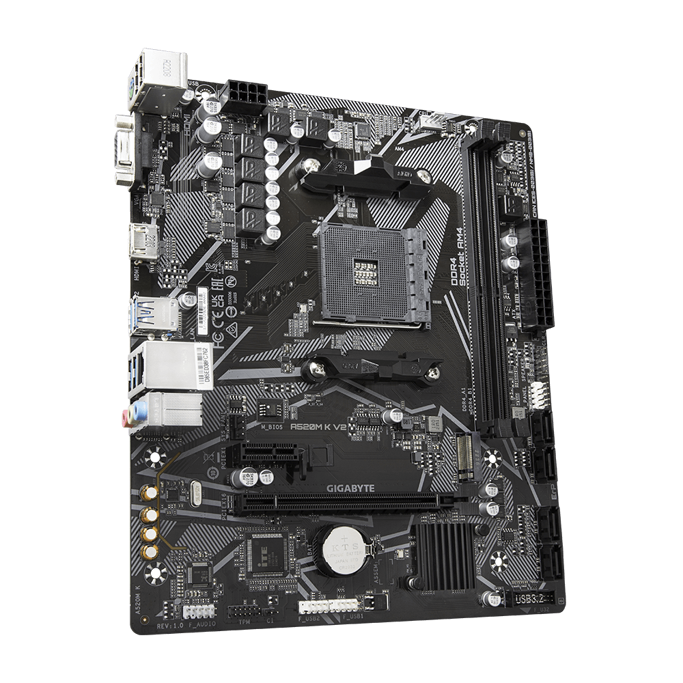

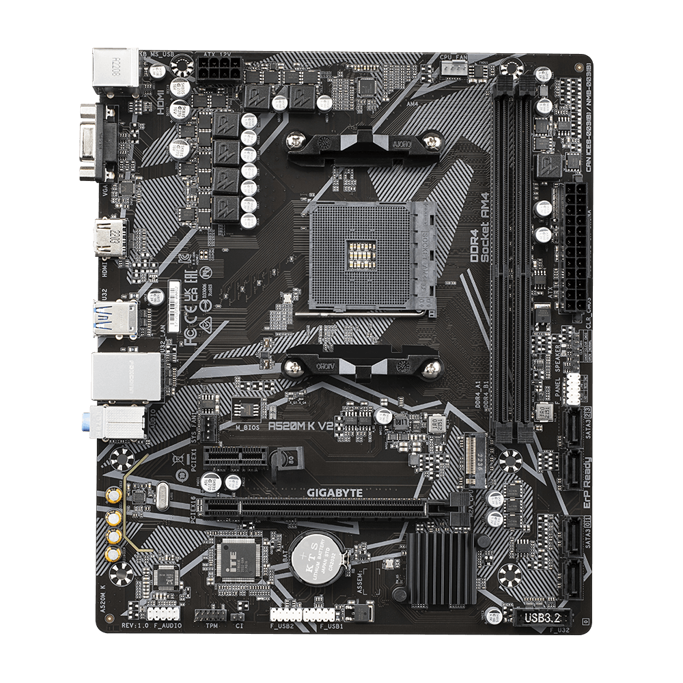

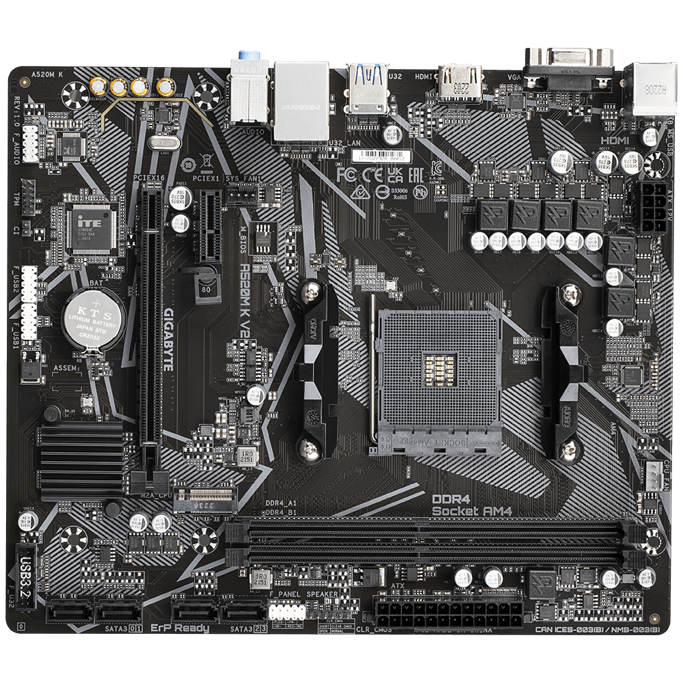

Gigabyte A520M-K V2, AMD A520, AM4

shape factor
µATX
Socket
AMD AM4
chipset
AMD A520
CPU-Compatibility
Ryzen 5000G, Ryzen 5000, Ryzen 4000G, Ryzen 3000, without TDP limitation (Manufacturer-list)
RAM
2x DDR4 DIMM, dual PC4-40800U/?DDR4-5100 (OC), max. 64GB (UDIMM)
Extension slots
1x PCIe 3.0 x16, 1x PCIe 3.0 x1, 1x M.2/?M-Key (PCIe 3.0 x4/?SATA, 2280)

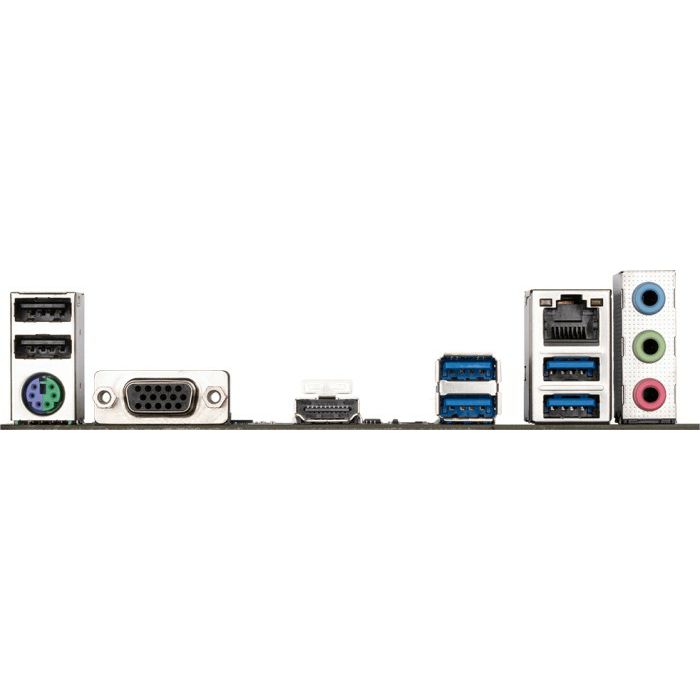

external connectors
1x VGA (iGPU), 1x HDMI 2.1 (iGPU), 4x USB-A 3.0 (5Gb/?s), 2x USB-A 2.0 (480Mb/?s), 1x Gb LAN (Realtek RTL8118AS), 3x jack, 1x PS/?2 Combo
Internal connectors
1x USB 3.0 Header (5Gb/?s, 2x USB 3.0), 2x USB 2.0 header (480Mb/?s, 4x USB 2.0), 4x SATA 6Gb/s (A520), 1x TPM-Header, 1x Speaker-Header, 1x Chassis Intrusion-Header
Header Cooling
1x CPU fan 4-Pin, 1x fan 4-Pin
Header Lighting
not available
buttons/Switches
not available
Audio
7.1 (Realtek ALC887)
Graphics
iGPU
Wireless
not available
RAID level
0/?1/?10 (A520)
Multi-GPU
not available
Power connections
1x 24-Pin ATX, 1x 8-Pin EPS12V
Lighting
not available
BIOS
1x 16MB (128Mb)
Special features
audio+solid capacitors, ECC-support, onboard TPM 2.0 support (AMD fTPM)
