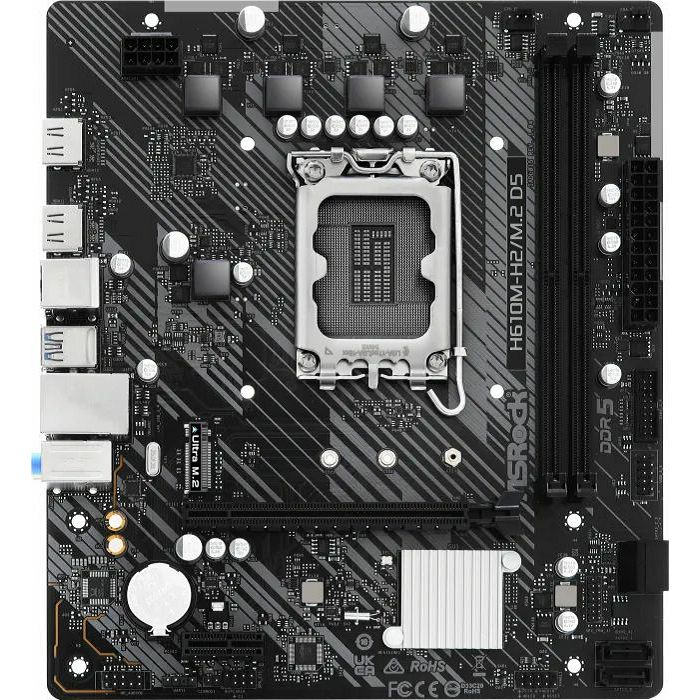

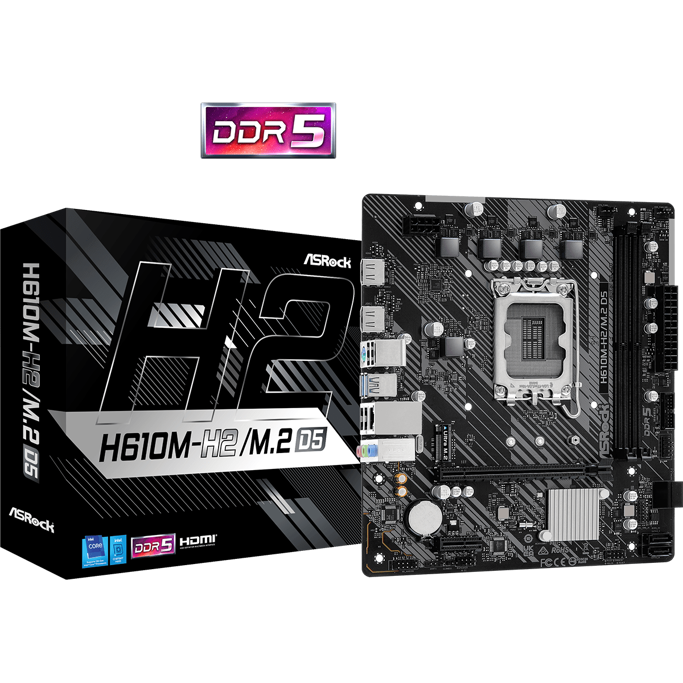

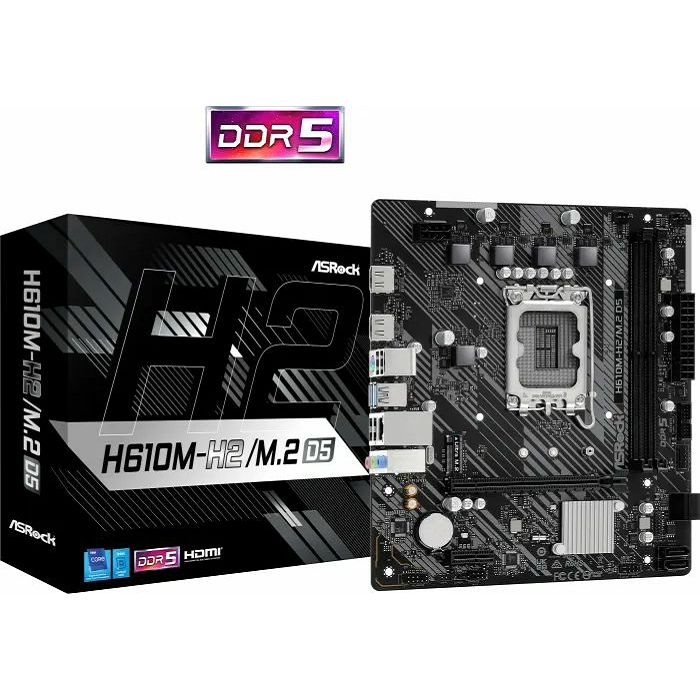

Asrock H610M-H2/M.2 D5, DDR5, s1700, 90-MXBML0-A0UAYZ

Form factor
µATX
Plinth
Intel 1700
Chipset
Intel H610
CPU Compatibility
Core i-14000, Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM
2x DDR5 DIMM, dual PC5-44800U/DDR5-5600, max. 64GB (UDIMM)
Expansion Slots
1x PCIe 4.0 x16, 1x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 3.0 x4, 2280/2260/2242)
External connections

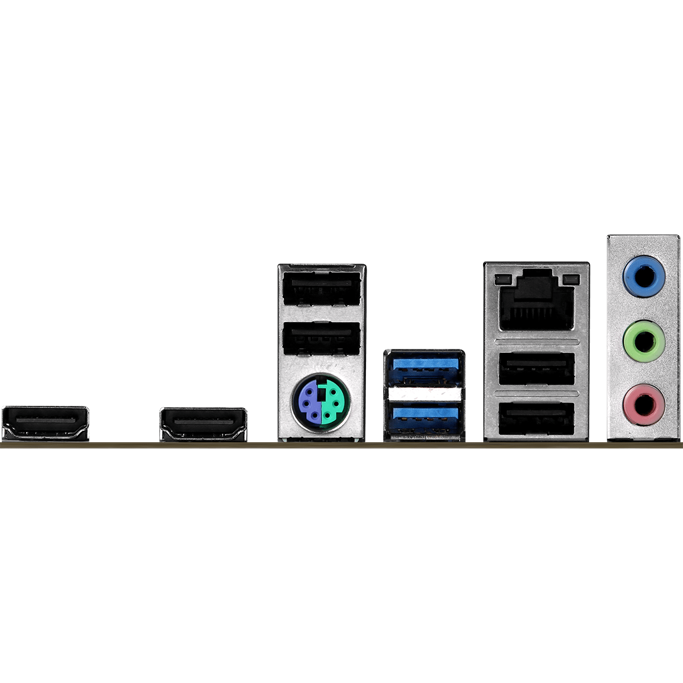

2x HDMI 2.1 (iGPU), 2x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 1x Gb LAN (Realtek RTL8111H), 3x jack, 1x PS/2 combo
Internal connections
1x USB 3.0 header (5Gb/s, 2x USB 3.0), 1x USB 2.0 header (480Mb/s, 2x USB 2.0), 4x SATA 6Gb/s (H610), 1x TPM header, 1x speaker header, 1x chassis intrusion header
Header Cooling
1x CPU fan 4-pin, 1x fan/pump 4-pin
Header Lighting
N/A
Buttons/Switches
N/A
Audio
7.1 (Realtek ALC897)
Graphic
iGPU
Wireless
N/A
RAID Level
N/A
Multi-GPU
N/A
Power connections
1x 24-pin ATX, 1x 8-pin EPS12V
VRM
4 virtual phases (3+1)
Lighting
N/A
BIOS
1x 16MB (128Mb)
Particularities
Audio+solid capacitors, onboard TPM 2.0 support (Intel PTT), white build compatible (PCB primary black)
