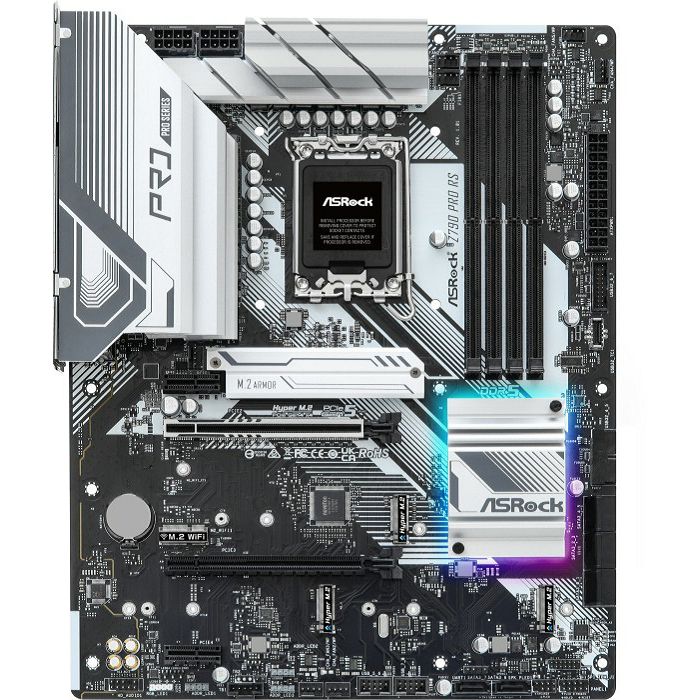

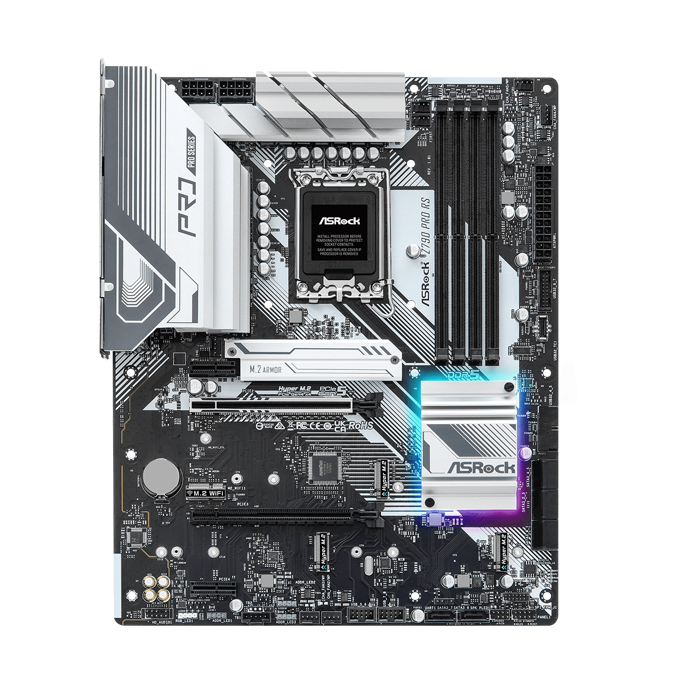

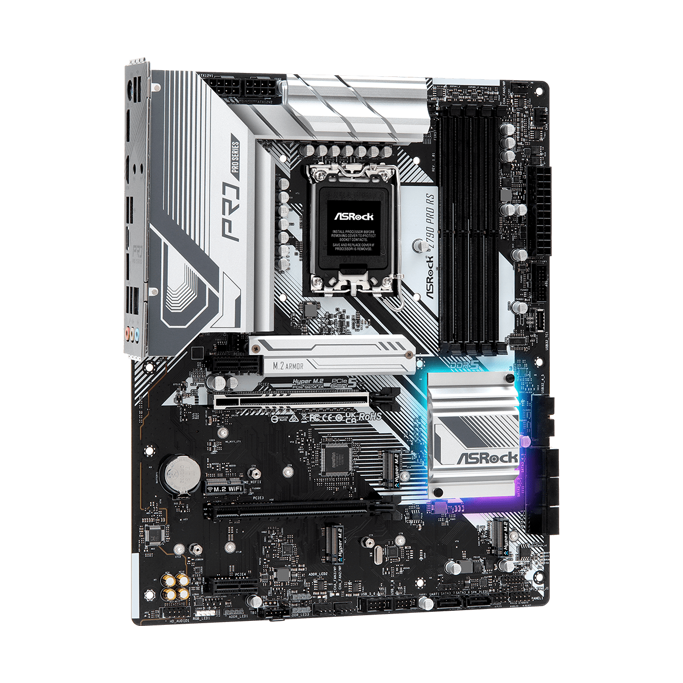

ASRock Z790 PRO RS, DDR5, s1700, 90-MXBK40-A0UAYZ

shape factor
ATX
Socket
Intel 1700
chipset
Intel Z790
CPU-Compatibility
Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM
4x DDR5 DIMM, dual PC5-54400U/?DDR5-6800 (OC), max. 128GB (UDIMM)
Extension slots
1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 2x PCIe 3.0 x1, 4x M.2/?M-Key (PCIe 4.0 x4, 2280/?2260), 1x M.2/?E-Key (PCIe/?Intel CNVi, 2230)

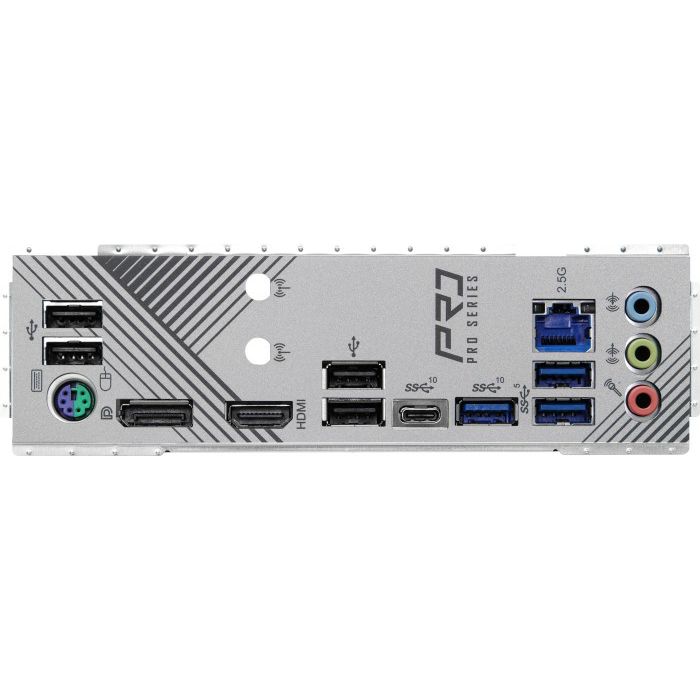

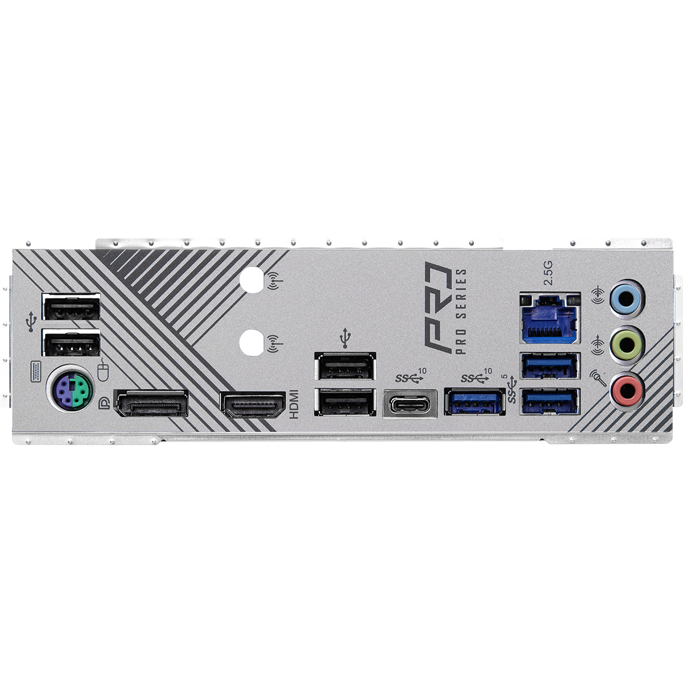

external connectors
1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.1 (10Gb/?s), 1x USB-A 3.1 (10Gb/?s), 2x USB-A 3.0 (5Gb/?s), 4x USB-A 2.0 (480Mb/?s), 1x 2.5GBase-T (Realtek RTL8125BG), 3x jack, 1x PS/?2 Combo
Internal connectors
1x USB-C 3.2 Key-A Header (20Gb/?s), 2x USB 3.0 Header (5Gb/?s, 4x USB 3.0), 2x USB 2.0 header (480Mb/?s, 4x USB 2.0), 8x SATA 6Gb/s (Z790), 1x eDP-Header, 1x TPM-Header, 1x Thunderbolt-Header 5-Pin, 1x Speaker-Header
Header Cooling
1x CPU fan 4-Pin, 1x CPU fan/?pump 4-Pin, 5x fan/?pump 4-Pin
Header Lighting
1x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 3x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A)
buttons/Switches
not available
Audio
7.1 (Realtek ALC897)
Graphics
iGPU
Wireless
not available
RAID level
0/?1/?5/?10 (Z790)
Multi-GPU
AMD 2-Way-CrossFireX (x16/?x4)
Power connections
1x 24-Pin ATX, 2x 8-Pin EPS12V
VRM
15 virtual phases (14+1)
MOSFETs CPU
14x 50A
MOSFETs SoC
1x 50A
Lighting
RGB, 1 zone (chipset cooler)
BIOS
1x 16MB (128Mb)
Special features
audio+solid capacitors, Diagnostic LED (LED indicators), 1x M.2-passive cooler, I/?O-shield integrated, onboard TPM 2.0 support (Intel PTT)
