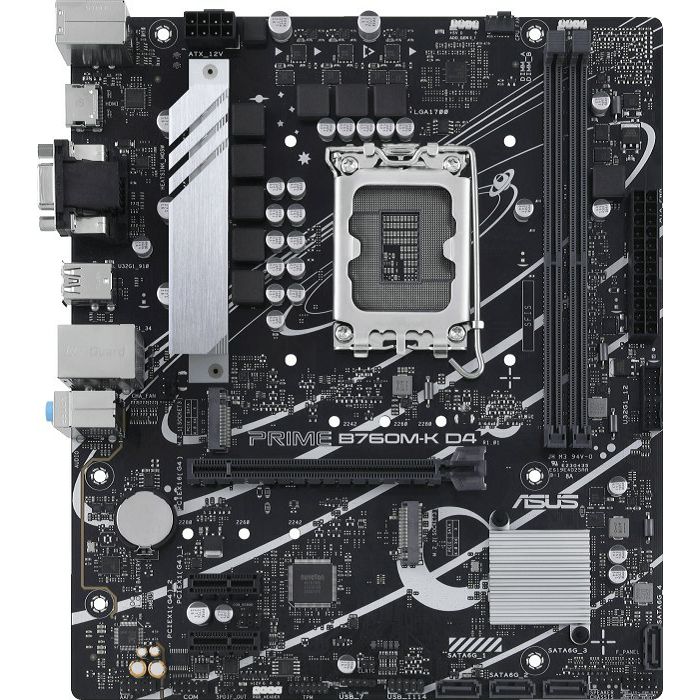

ASUS Prime B760M-K D4, DDR4, s1700, 90MB1DS0-M0EAY0

Form factor µATX
Plinth Intel 1700
Chipset Intel B760
CPU Compatibility Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM 2x DDR4 DIMM, dual PC4-42666U/DDR4-5333 (OC), max 64GB (UDIMM)
Expansion slots 1x PCIe 4.0 x16, 2x PCIe 4.0 x1, 2x M.2/M-Key (PCIe 4.0 x4, 2280/2260/2242)
External connections 1x VGA (iGPU), 1x HDMI 2.1 (iGPU), 4x USB-A 3.0 (5Gb/s), 2x USB-A 2.0 (480Mb/s), 1x 2.5GBase-T (Realtek), 3x jack, 1x PS/2 combo
Internal connections 1x USB 3.0 header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 3x USB 2.0), 4x SATA 6Gb/s (B760), 1x serial, 1x TPM header, 1x S/PDIF header, 1x speaker header, 1x COM debug header
Header Cooling 1x CPU fan 4-pin, 2x fan 4-pin
Header Lighting 1x 4-pin RGB (+12V/G/R/B, max. 3A), 2x 3-pin ARGB (+5V/DATA/GND, max. 3A, ASUS Gen2)
Buttons/Switches N/A
Audio 7.1 (Realtek ALC897)
Graphic iGPU
Wireless N/A
RAID Levels 0/1/5/10 (B760)
Multi-GPU N/A
Electrical connections 1x 24-pin ATX, 1x 8-pin EPS12V
VRM 7 virtual phases (6+1), 7 real phases (6+1), PWM controller: RT3628AE (max. 9 phases)
MOSFETs CPU 6x
MOSFETs SoC 1x/2x
Lighting N/A
BIOS 1x 16MB (128Mb)
Particularities Audio+solid capacitors, Onboard TPM 2.0 support (Intel PTT)
