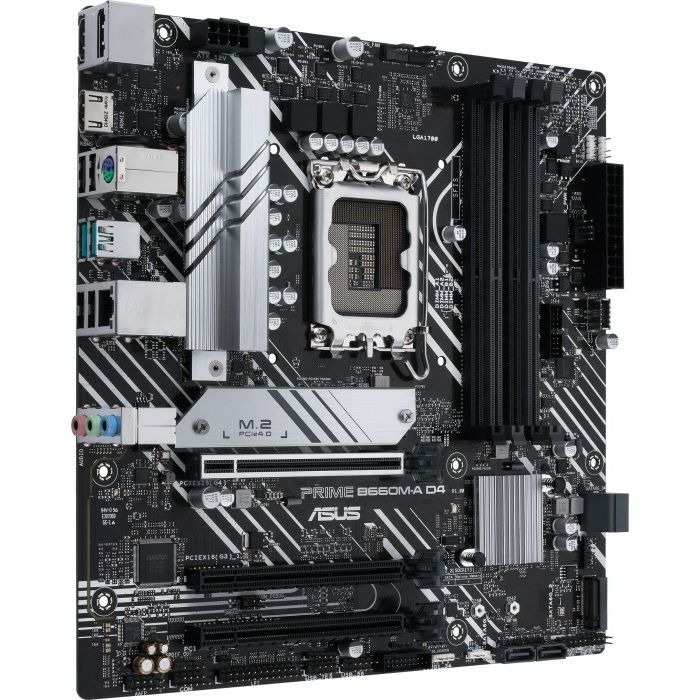

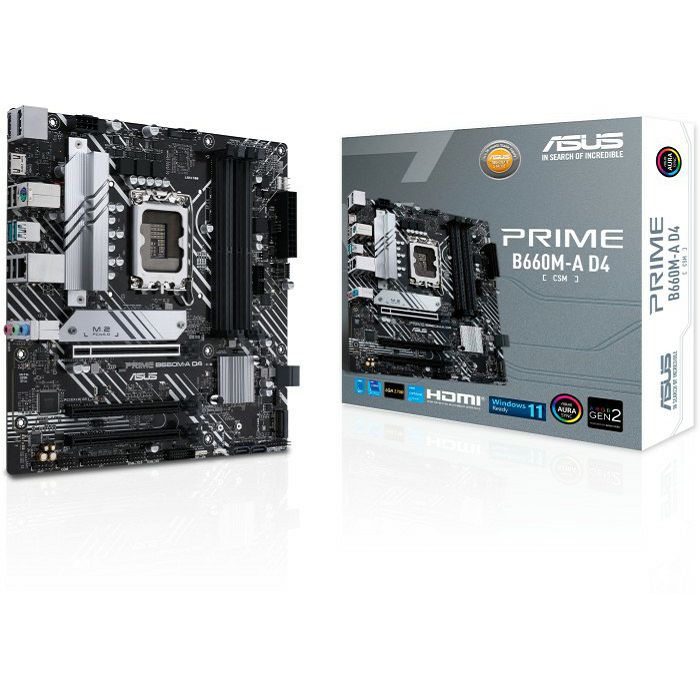

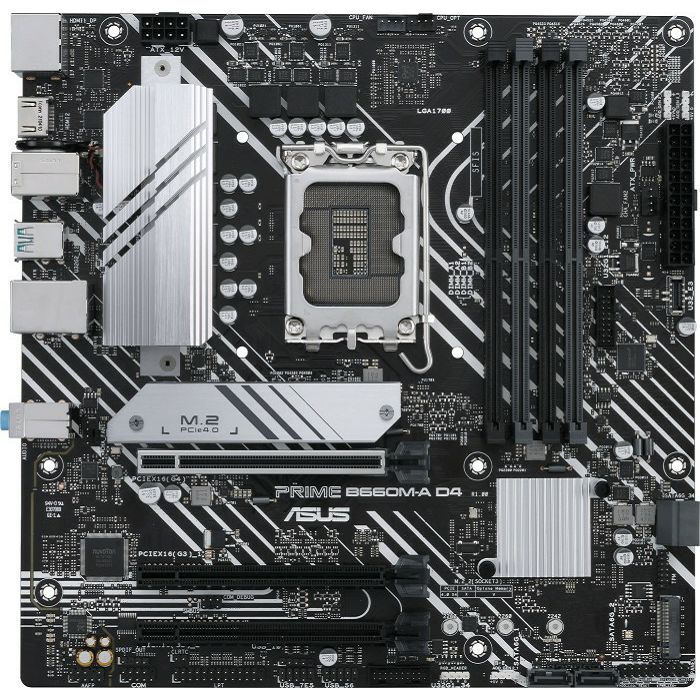

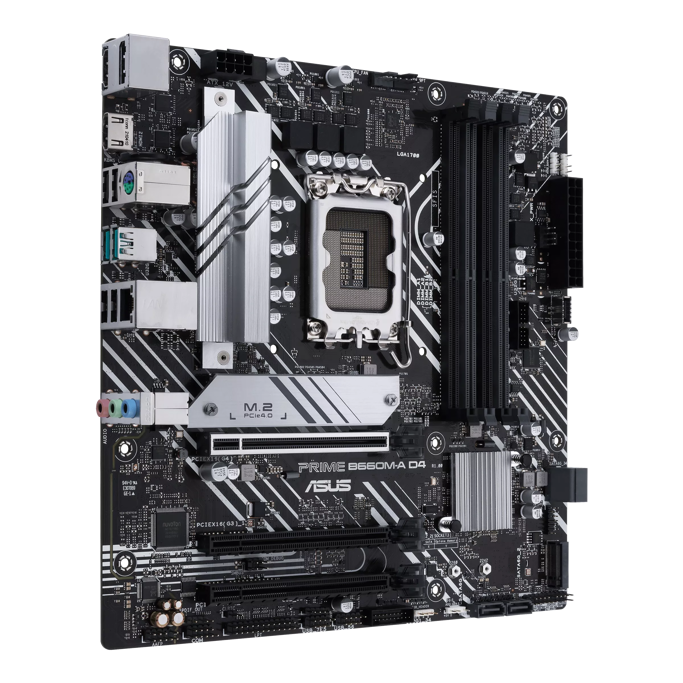

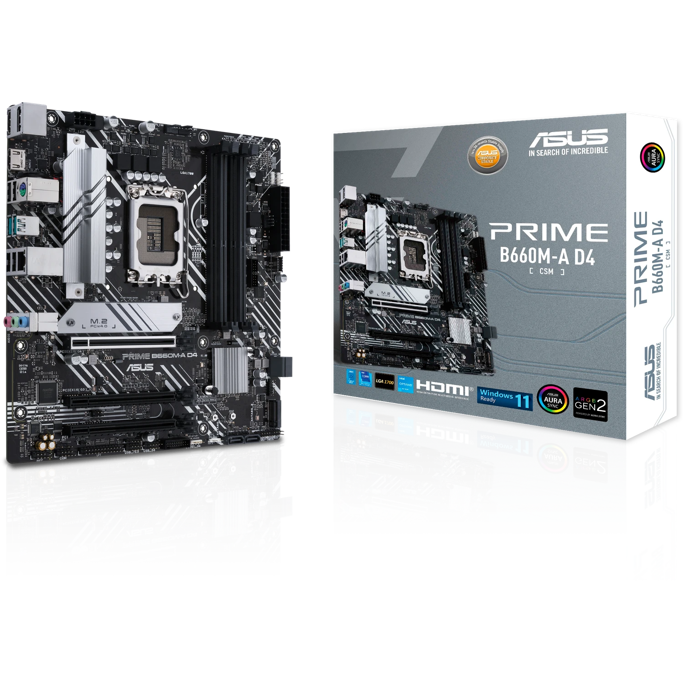

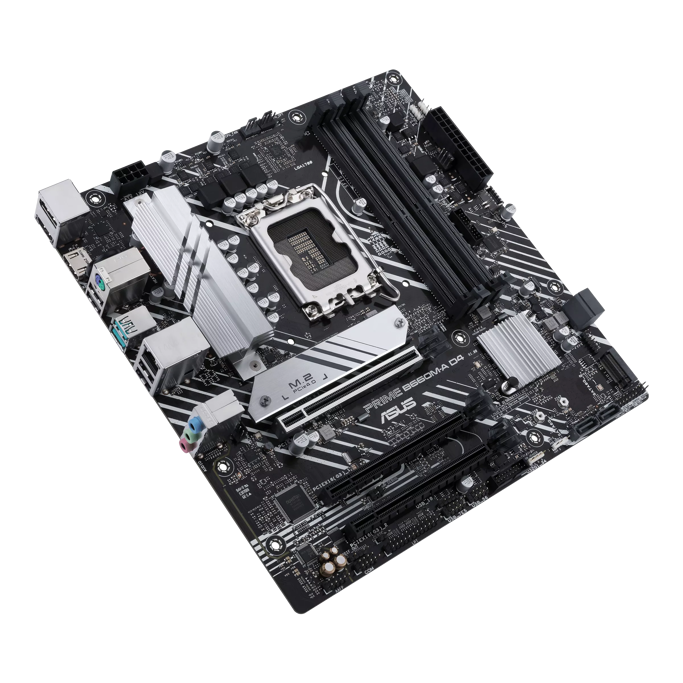

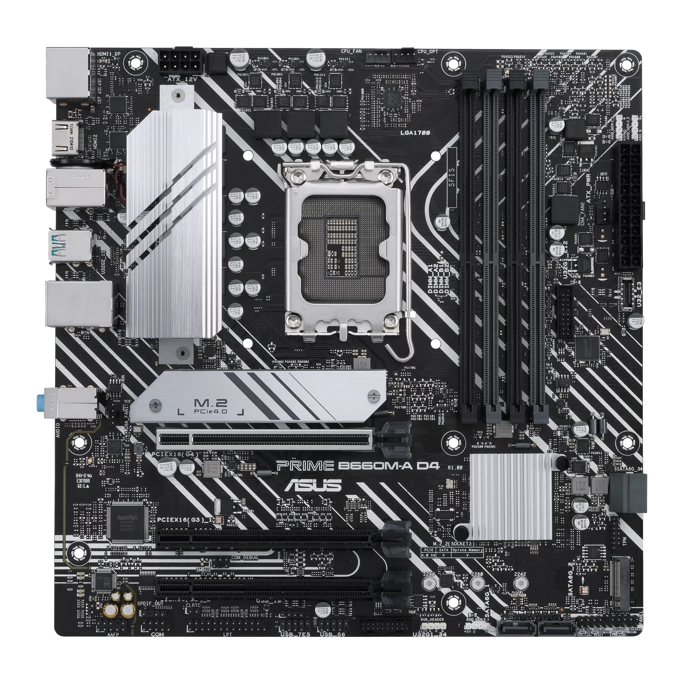

ASUS Prime B660M-A D4-CSM, DDR4, Intel s1700, 90MB19K0-M1EAYC

shape factor µATX
Socket Intel 1700
chipset Intel B660
CPU-Compatibility Core i-14000, Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM 4x DDR4 DIMM, dual PC4-42666U/?DDR4-5333 (OC), max. 128GB (UDIMM)
Extension slots 1x PCIe 4.0 x16, 2x PCIe 3.0 x16 (1x x4, 1x x1), 2x M.2/?M-Key (PCIe 4.0 x4, 2280/?2260/?2242)

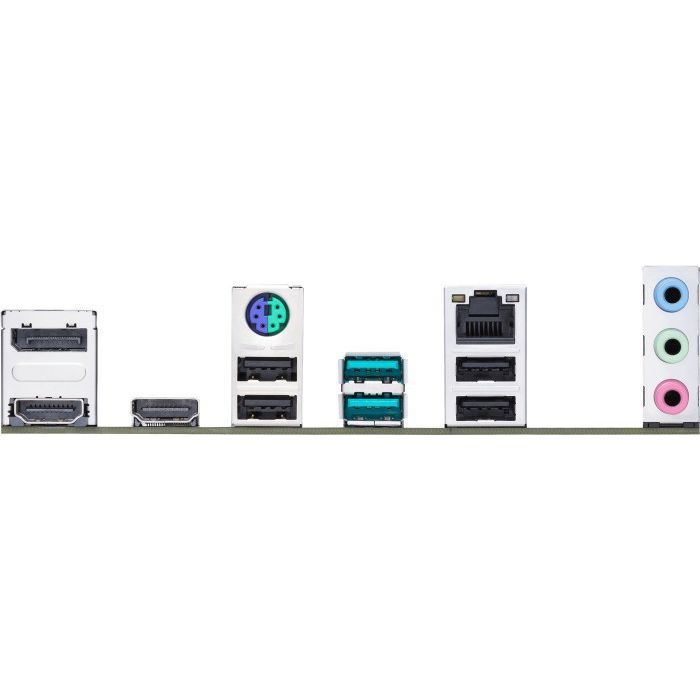

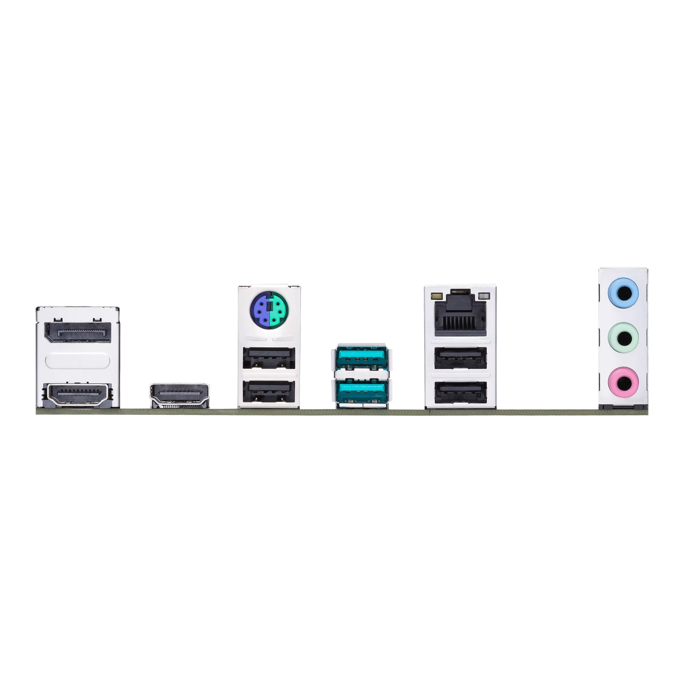

external connectors 2x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 2x USB-A 3.1 (10Gb/?s, B660), 4x USB-A 2.0 (480Mb/?s), 1x Gb LAN (Intel I219-V), 3x jack, 1x PS/?2 Combo
Internal connectors 1x USB-C 3.0 Key-A Header (5Gb/?s, B660), 2x USB 3.0 Header (5Gb/?s, 4x USB 3.0, B660), 3x USB 2.0 header (480Mb/?s, 5x USB 2.0), 4x SATA 6Gb/s (B660), 1x serial, 1x parallel, 1x TPM-Header, 1x S/?PDIF-Header, 1x Chassis Intrusion-Header, 1x COM Debug-Header
Header Cooling 2x CPU fan 4-Pin, 2x fan 4-Pin
Header Lighting 1x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 3x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A, ASUS Gen2)
buttons/Switches not available
Audio 7.1 (Realtek ALC897)
Graphics iGPU
Wireless not available
RAID level 0/?1/?5/?10 (B660)
Multi-GPU not available
Power connections 1x 24-Pin ATX, 1x 8-Pin EPS12V
VRM 7 virtual phases (6+1), 7 real phases (6+1), PWM-Controller: ASP2100 (RT3628AE, max. 9 phases)
MOSFETs CPU (VCORE) 6x 58A SiRA14BDP/?12x SiRA12BDP
MOSFETs SoC (VCCGT) 1x 58A SiRA14BDP/?2x SiRA12BDP
Lighting not available
BIOS 1x 16MB (128Mb)
Special features audio+solid capacitors, 1x M.2-passive cooler, onboard TPM 2.0 support (Intel PTT)
