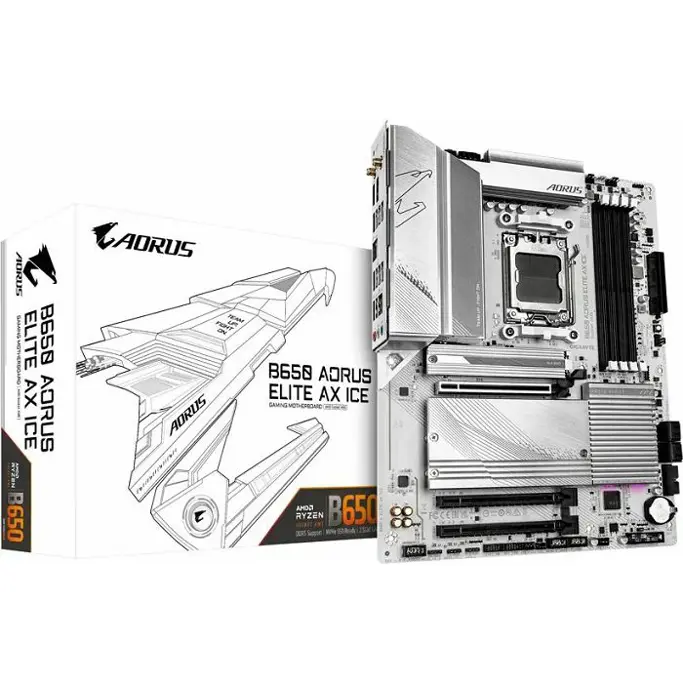

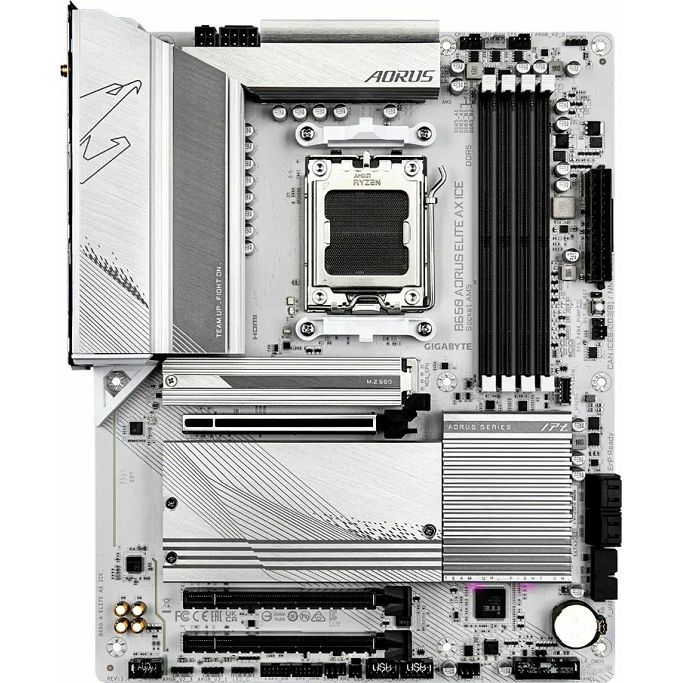

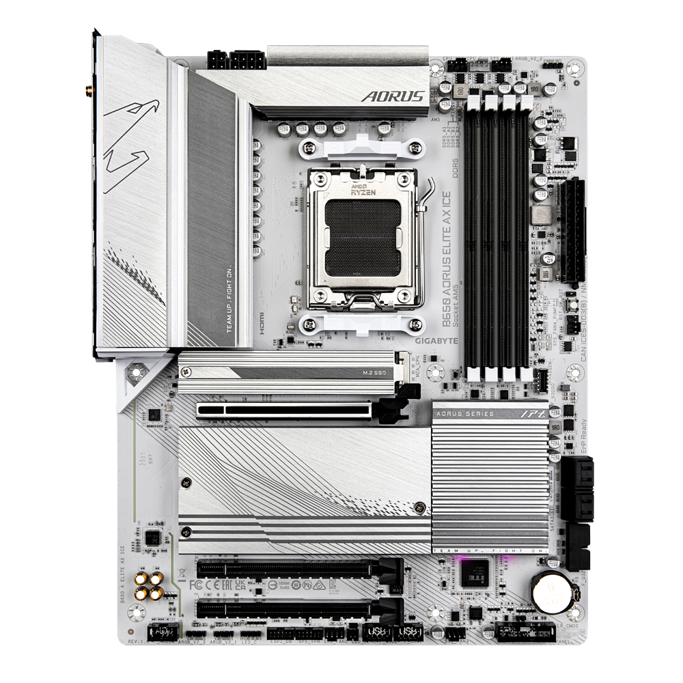

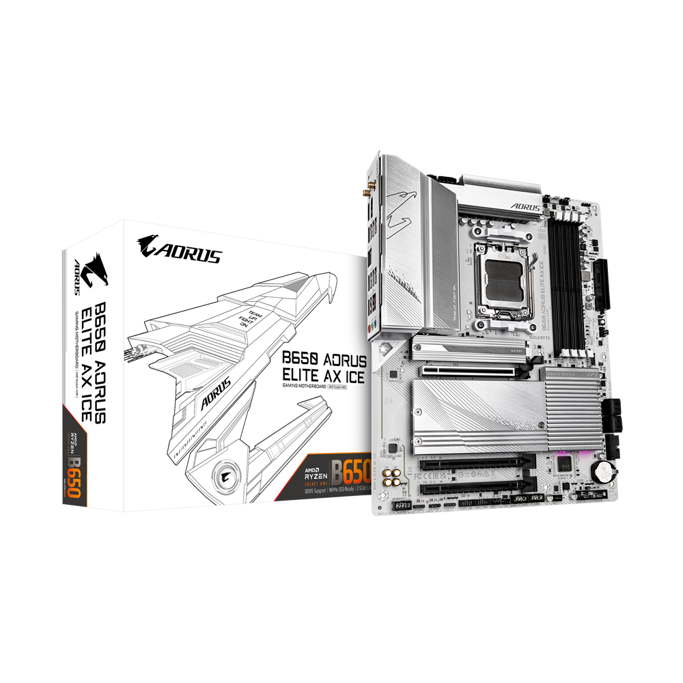

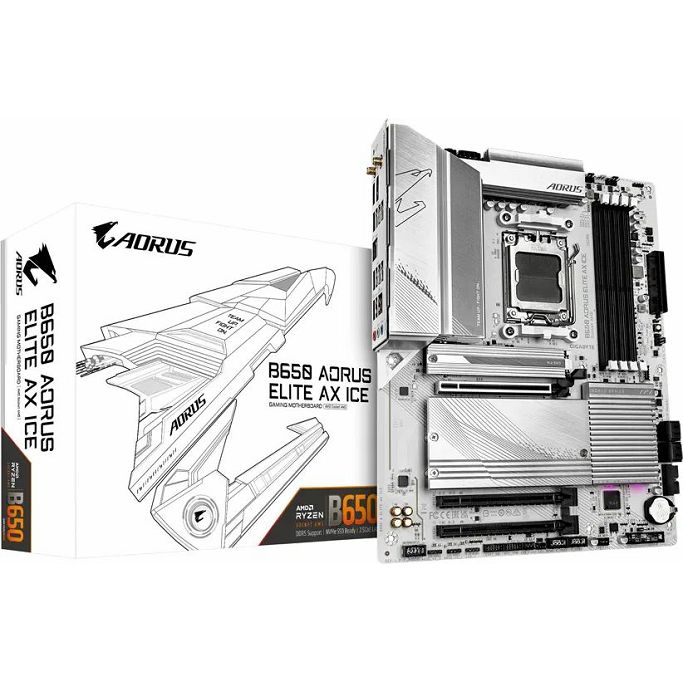

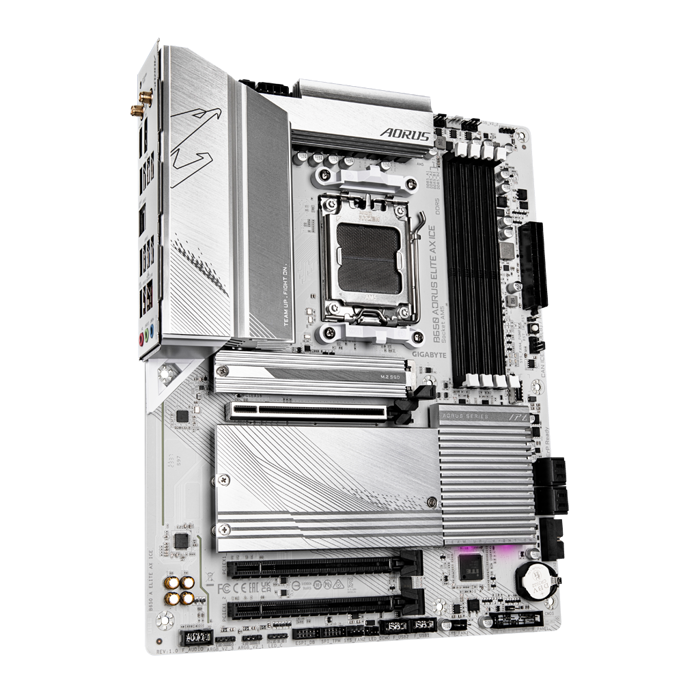

Gigabyte B650 Aorus Elite AX ICE, 12+2+2 VRM, WiFi, AMD B650 chipset, AM5, DDR5

Form factor ATX
Plinth
AMD AM5
Chipset AMD B650
CPU Compatibility Ryzen 8000G, Ryzen 7000, no TDP limitation (list of manufacturers))
RAM 4x DDR5 DIMM, dual PC5-64000U/DDR5-8000 (OC), max. 192GB (UDIMM)
Expansion Slots 1x PCIe 4.0 x16, 2x PCIe 3.0 x16 (x1), 1x M.2/M-Key (PCIe 5.0 x4, 25110/2280), 2x M.2/M-Key (PCIe 4.0 x4, 25110/2280), 1x M.2/E-Key (PCIe, 2230, assigned to WiFi+BT module)

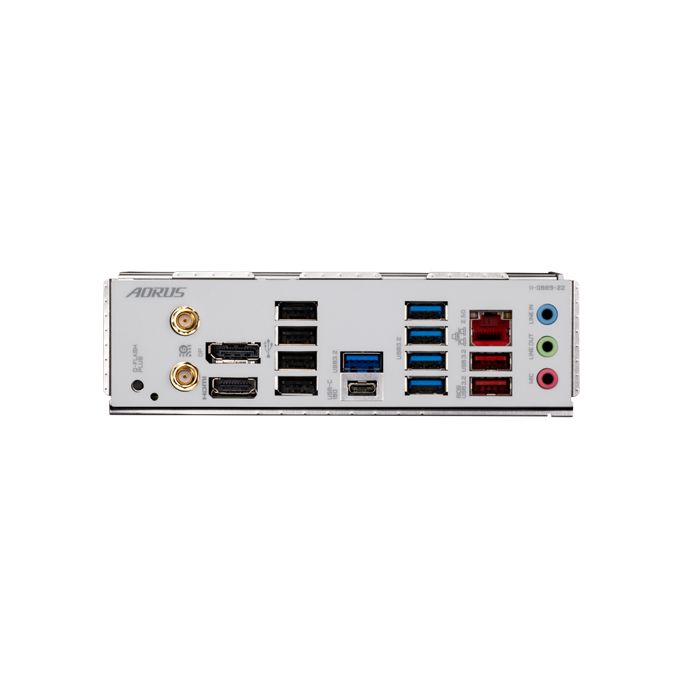

External connections 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.1 (10Gb/s), 2x USB-A 3.1 (10Gb/s), 5x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 1x 2.5GBase-T (Realtek), 3x jack, 2x antenna connector RP-SMA
Internal connections 1x USB-C 3.2 Key-A header (20Gb/s), 1x USB 3.0 header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (B650), 1x TPM header
Header Cooling 1x CPU Fan 4-Pin, 1x CPU Fan/Pump 4-Pin, 3x Fan 4-Pin, 1x Fan/Pump 4-Pin
Header Lighting 3x 3-Pin ARGB (+5V/DATA/GND, max. 5A), 1x 4-Pin RGB (+12V/G/R/B, max. 2A)
Buttons/Switches Reset button (internal), USB BIOS Flashback/Q-Flash Plus (external)
Audio 7.1 (Realtek ALC897)
Graphic iGPU
Wireless Wi-Fi 6E (Wi-Fi 802.11a/b/g/n/ac/ax, 2x2, Realtek RTL8852CE), Bluetooth 5.3
RAID Level 0/1/10 (B650)
Power connections 1x 24-pin ATX, 1x 8-pin EPS12V, 1x 4-pin ATX12V
VRM 12 virtual phases (12+2+2), 9 real phases (7+2), PWM controller: XDPE192C3B (max. 12 phases)
MOSFETs CPU (VCORE) 12x 60A NCP303160
MOSFETs SoC (VCCGT) 2x 60A NCP303160
MOSFETs AUX (VCCAUX) 2x
Lighting RGB, 1 Zone (Chipset Cooler)
BIOS 1x 32MB (256Mb)
Particularities Audio+solid capacitors, Diagnostic LED (LED indicators), 3x M.2 passive coolers, integrated I/O panel, Onboard TPM 2.0 support (AMD fTPM), White Build compatible (PCB white)
