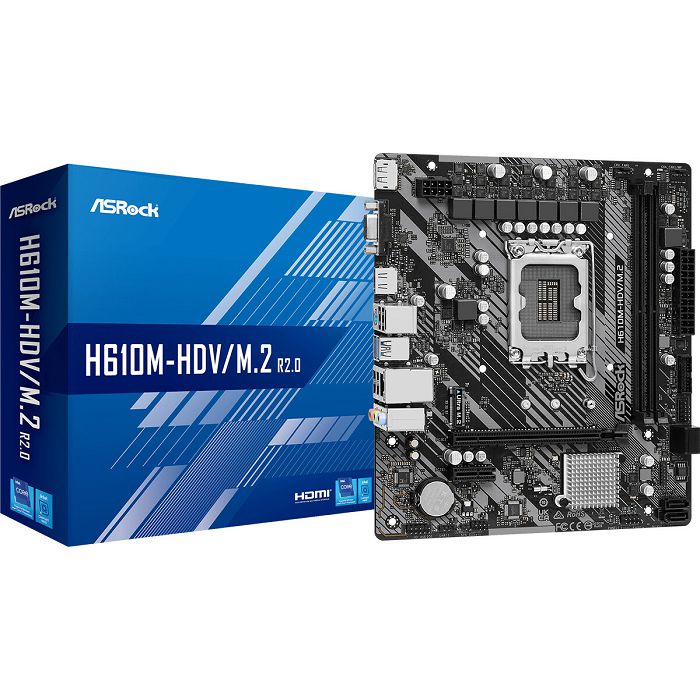

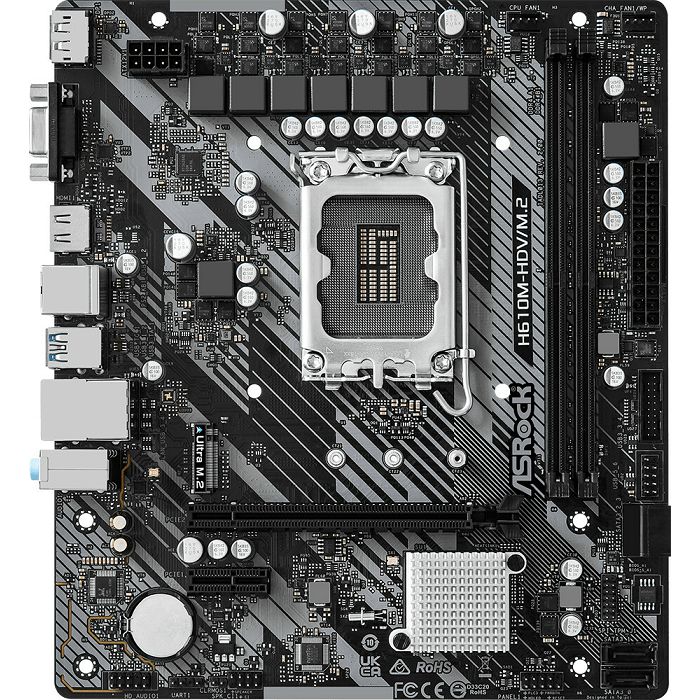

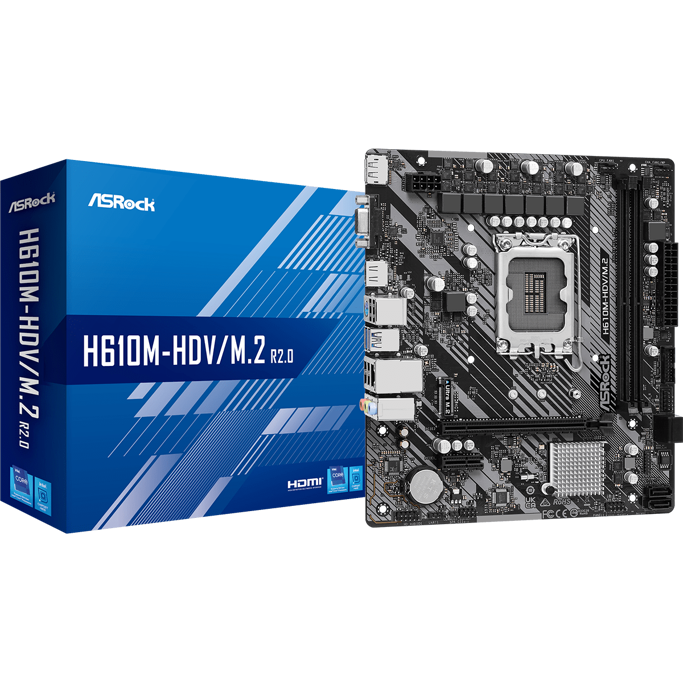

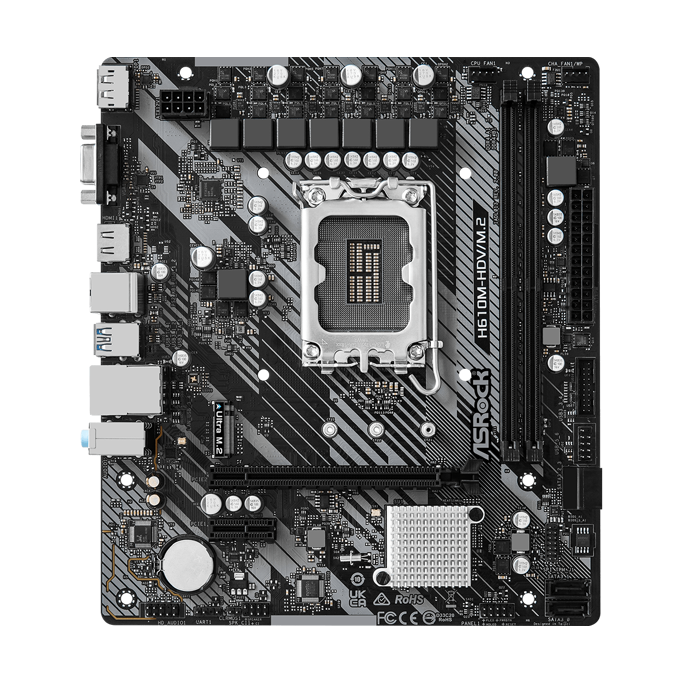

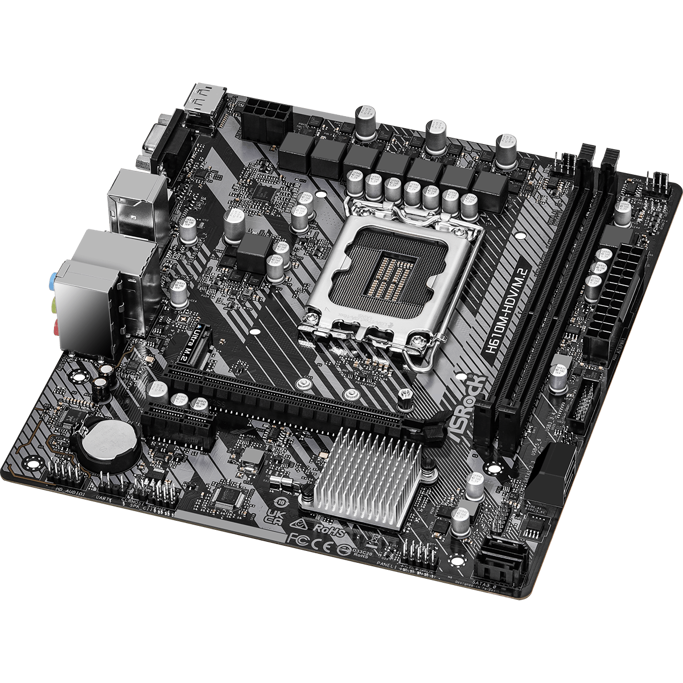

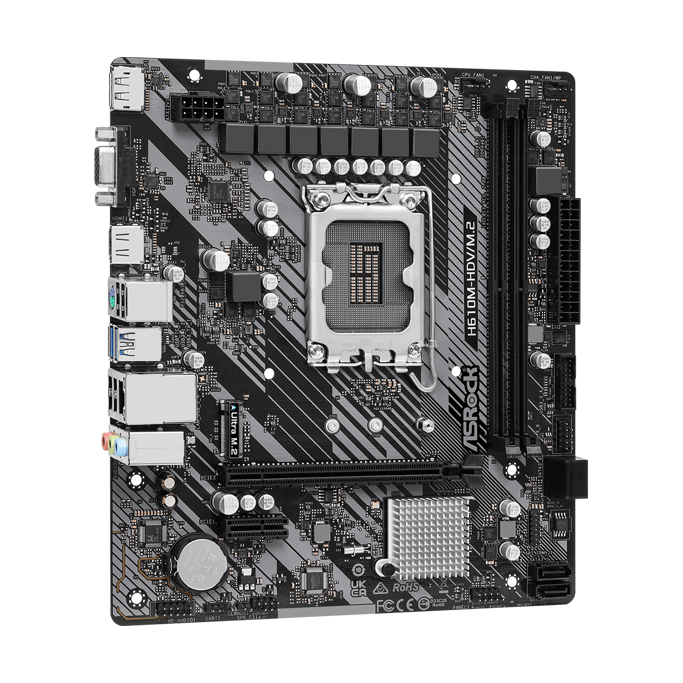

Asrock H610M-HDV/M.2 R2.0, DDR4, s1700, 90-MXBJH0-A0UAYZ

Shape factor µATX
Socket Intel 1700
chipset Intel H610
CPU-Compatibility Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM 2x DDR4 DIMM, dual PC4-25600U/DDR4-3200, max. 64GB (UDIMM)
Extension slots 1x PCIe 4.0 x16, 1x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 3.0 x4, 2280/2260/2242)

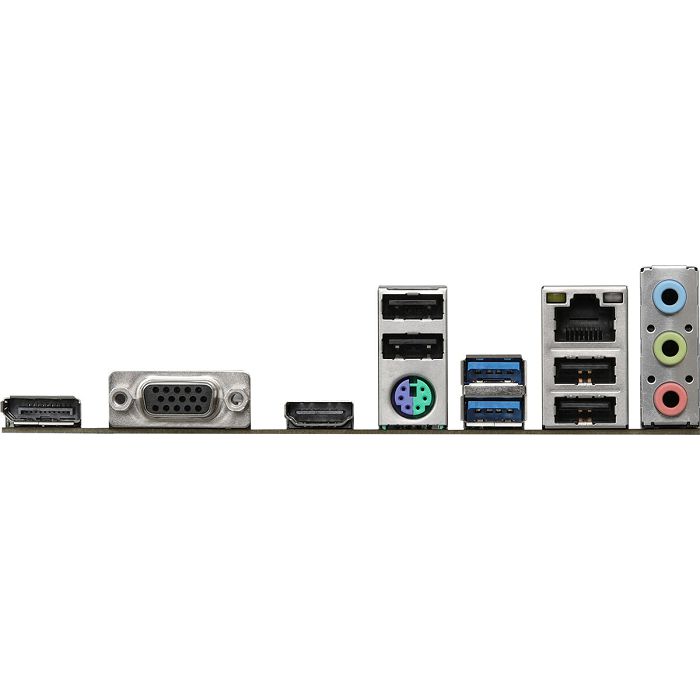

external connectors 1x VGA (iGPU), 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 2x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 1x Gb LAN (Realtek RTL8111H), 3x jack, 1x PS/2 Combo
Internal connectors 1x USB 3.0 Header (5Gb/s, 2x USB 3.0), 1x USB 2.0 header (480Mb/s, 2x USB 2.0), 4x SATA 6Gb/s (H610), 1x serial, 1x TPM-Header, 1x Speaker-Header, 1x Chassis Intrusion-Header
Header Cooling 1x CPU fan 4-Pin, 1x CPU fan/pump 4-Pin
Header Lighting not available
buttons/Switches not available
Audio 7.1 (Realtek ALC897)
Graphics iGPU
Wireless not available
RAID level not available
Multi-GPU not available
Power connections 1x 24-Pin ATX, 1x 8-Pin EPS12V
VRM 7 virtual phases (6+1), 7 real phases (6+1), PWM-Controller: RT3628AE (max. 9 phases)
MOSFETs CPU (VCORE) 6x 48A SM4508/12x SM4373
MOSFETs SoC (VCCGT) 1x 48A SM4508/2x SM4373
Lighting not available
BIOS 1x 16MB (128Mb)
Special features audio+solid capacitors, onboard TPM 2.0 support (Intel PTT)
