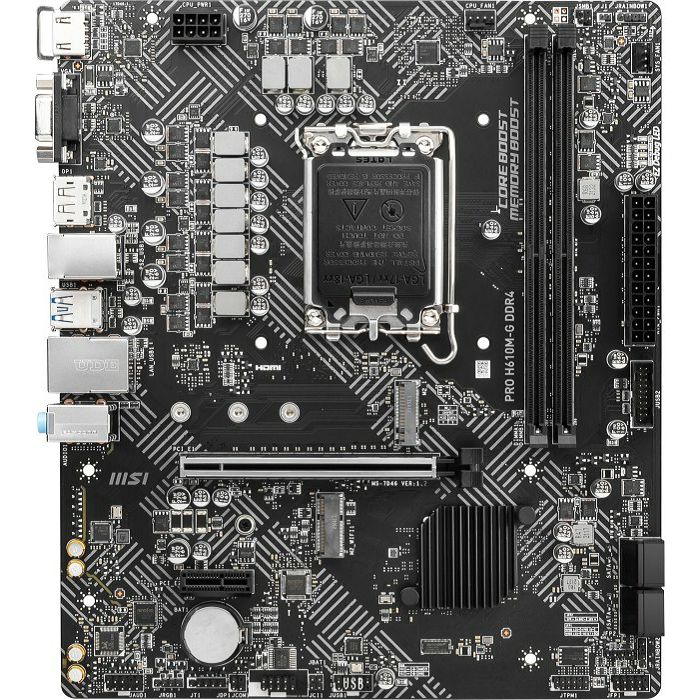

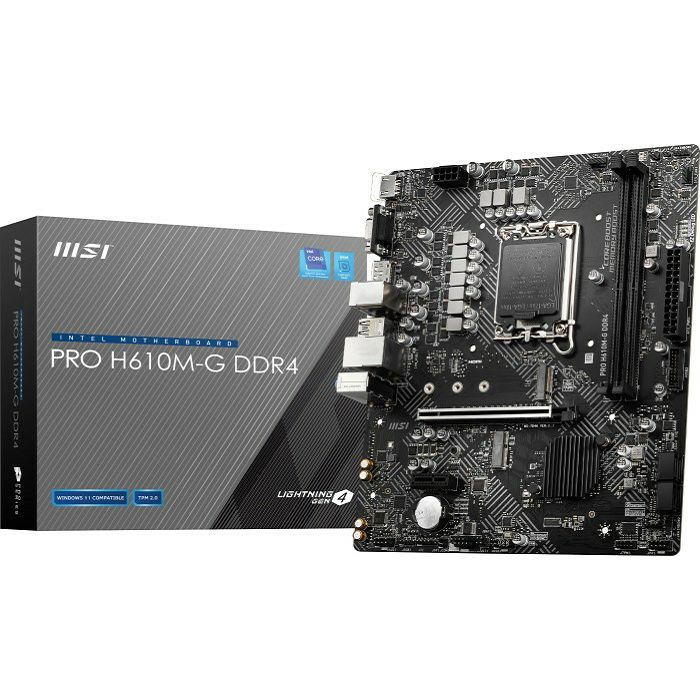

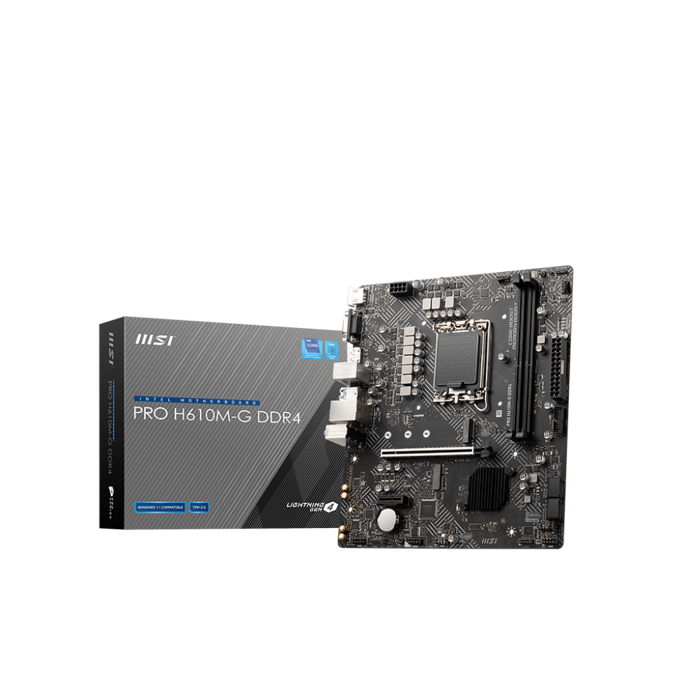

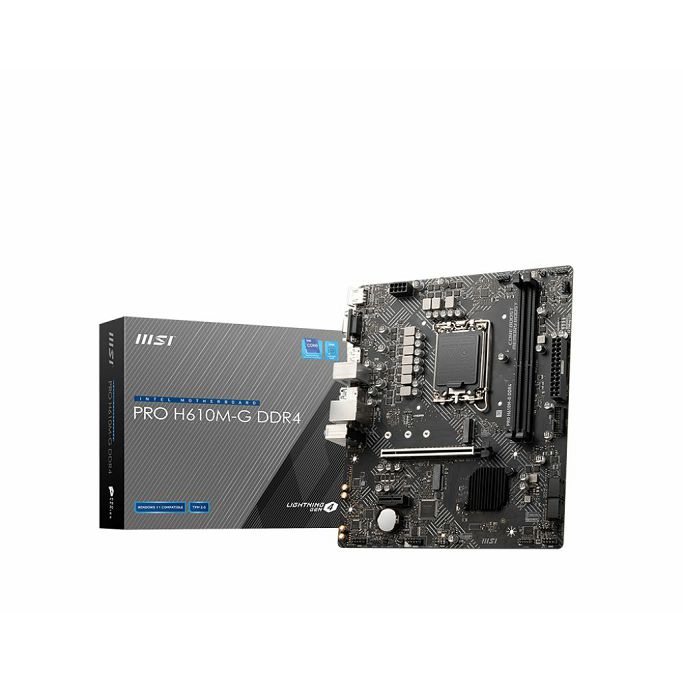

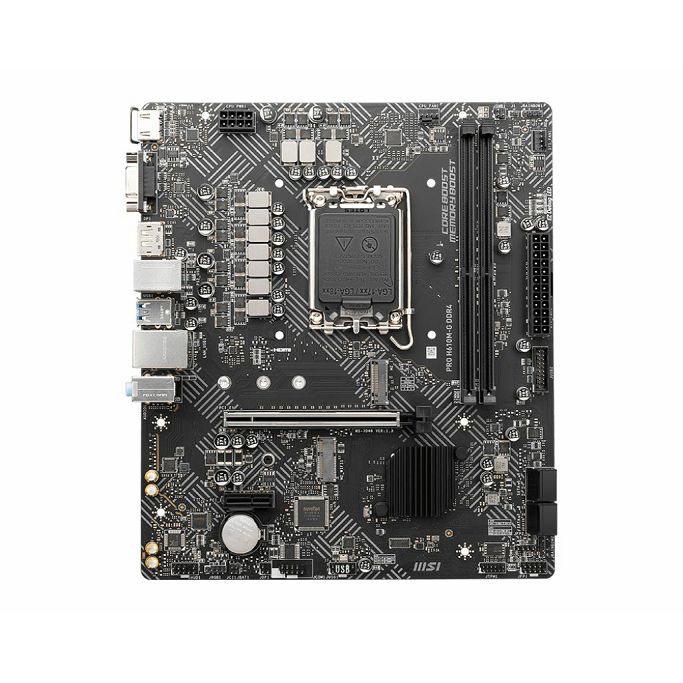

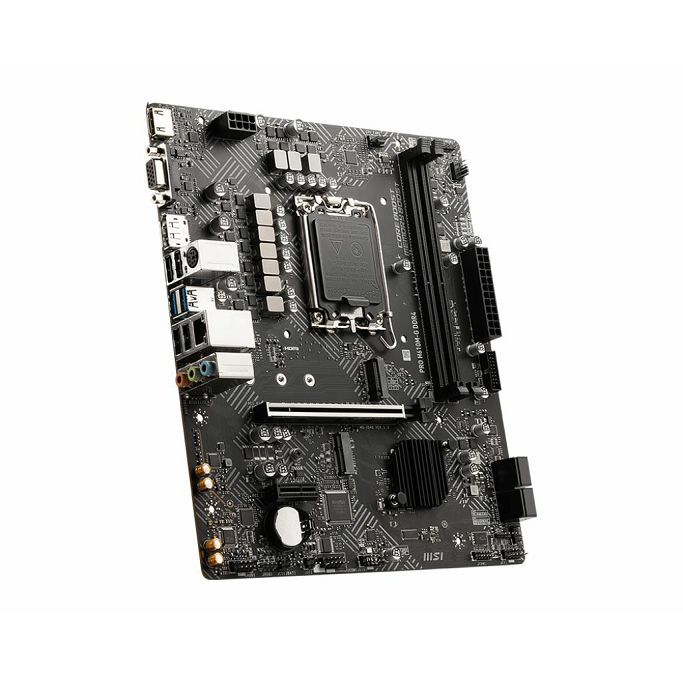

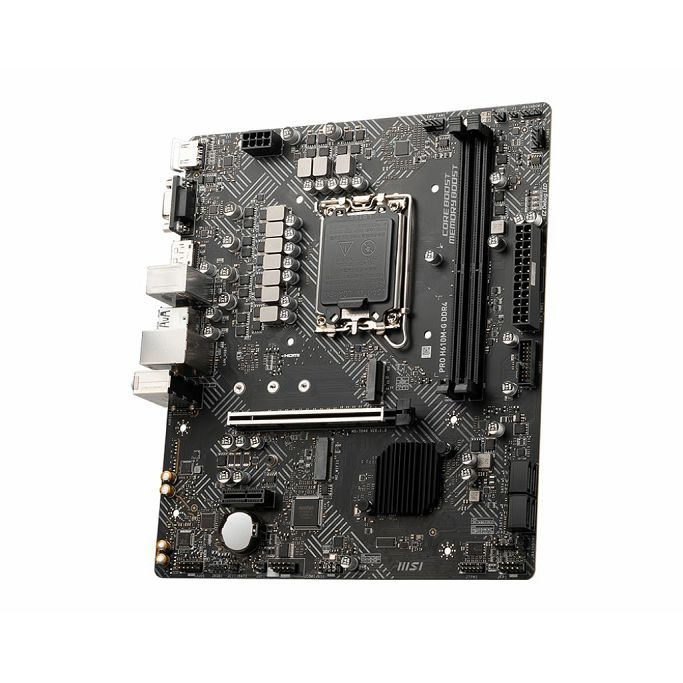

MSI PRO H610M-G, DDR4, s1700, 7D46-009R

Shape factor µATX
Socket Intel 1700
chipset Intel H610
CPU-Compatibility Core i-12000, Pentium Gold G7000, Celeron G6000
RAM 2x DDR4 DIMM, dual PC4-25600U/DDR4-3200, max. 64GB (UDIMM)
Extension slots 1x PCIe 4.0 x16, 1x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 3.0 x4/SATA, 2280/2260/2242), 1x M.2/E-Key (PCIe/Intel CNVi, 2230)

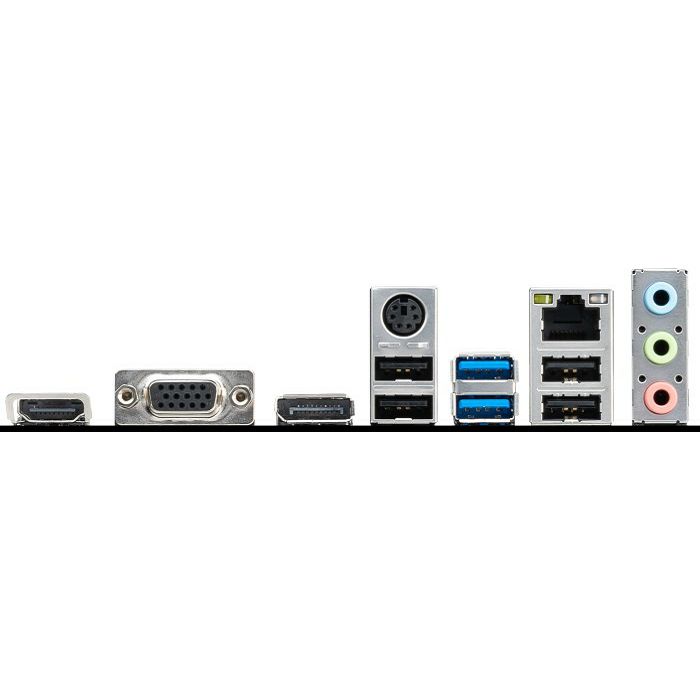

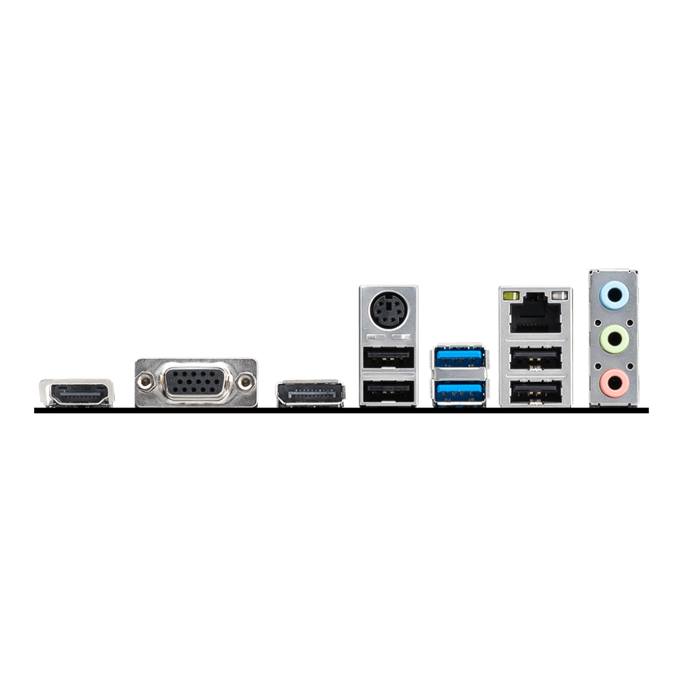

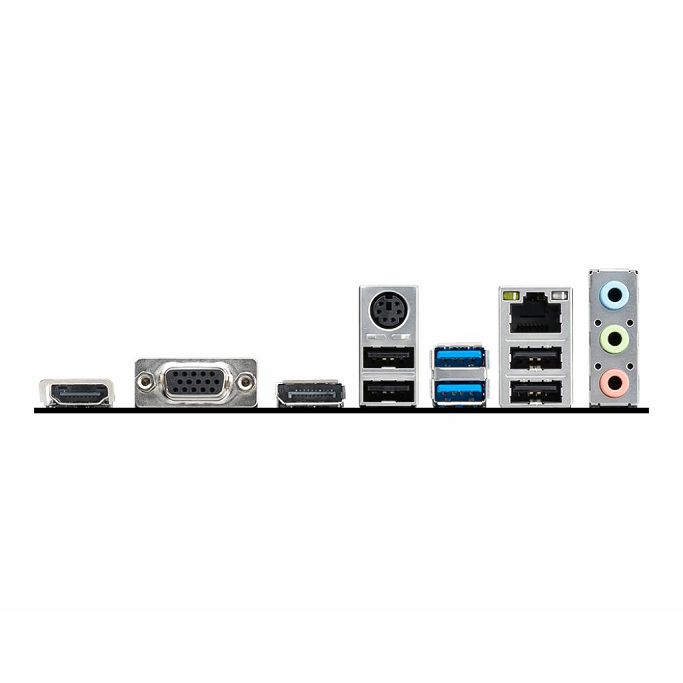

external connectors 1x VGA (iGPU), 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 2x USB-A 3.0 (5Gb/s, H610), 4x USB-A 2.0 (480Mb/s, via Hub GL850G), 1x Gb LAN (Intel I219-V), 3x jack, 1x PS/2 Combo
Internal connectors 1x USB 3.0 Header (5Gb/s, 2x USB 3.0, H610), 1x USB 2.0 header (480Mb/s, 2x USB 2.0), 4x SATA 6Gb/s (H610), 1x serial, 1x TPM-Header, 1x Chassis Intrusion-Header, 1x MSI Tuning controller Header 5-Pin
Header Cooling 1x CPU fan 4-Pin, 1x fan 4-Pin
Header Lighting 1x 4-Pin RGB (+12V/G/R/B, max. 3A), 2x 3-Pin ARGB (+5V/DATA/GND, max. 3A)
buttons/Switches not available
Audio 7.1 (Realtek ALC892)
Graphics iGPU
Wireless not available
RAID level not available
Multi-GPU not available
Power connections 1x 24-Pin ATX, 1x 8-Pin EPS12V
VRM 9 virtual phases (8+1), 5 real phases (4+1), PWM-Controller: RT3628AE (max. 9 phases)
MOSFETs CPU 8x 55A SM4337/SM4503
MOSFETs SoC 2x 55A SM4337/SM4503
Lighting not available
BIOS 1x 32MB (256Mb)
Special features audio+solid capacitors, Diagnostic LED (LED indicators), onboard TPM 2.0 support (Intel PTT)
