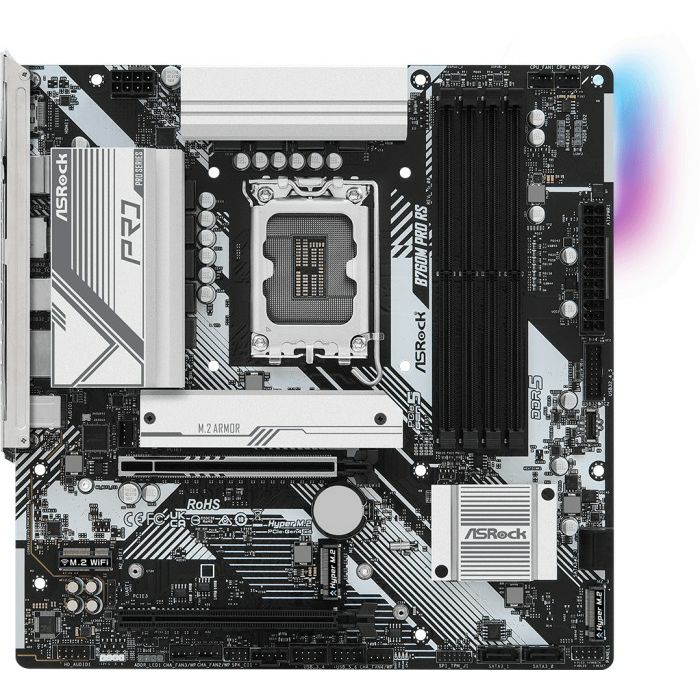

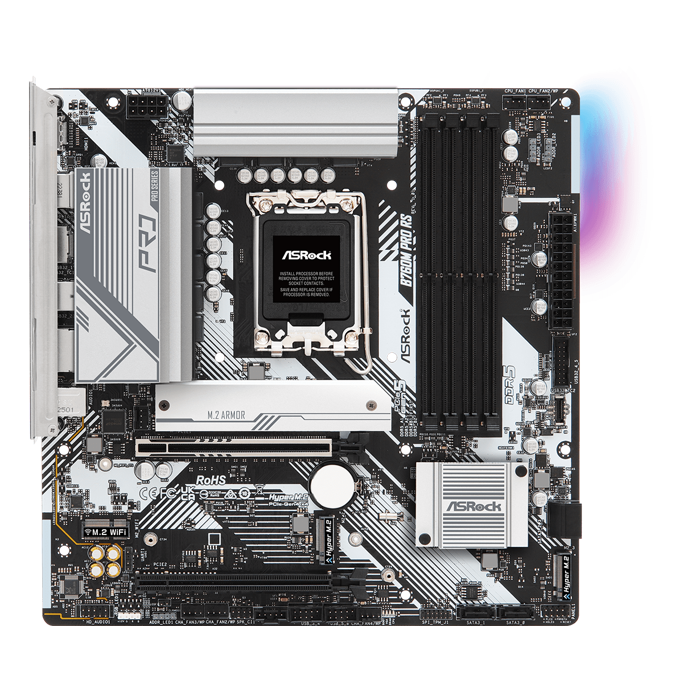

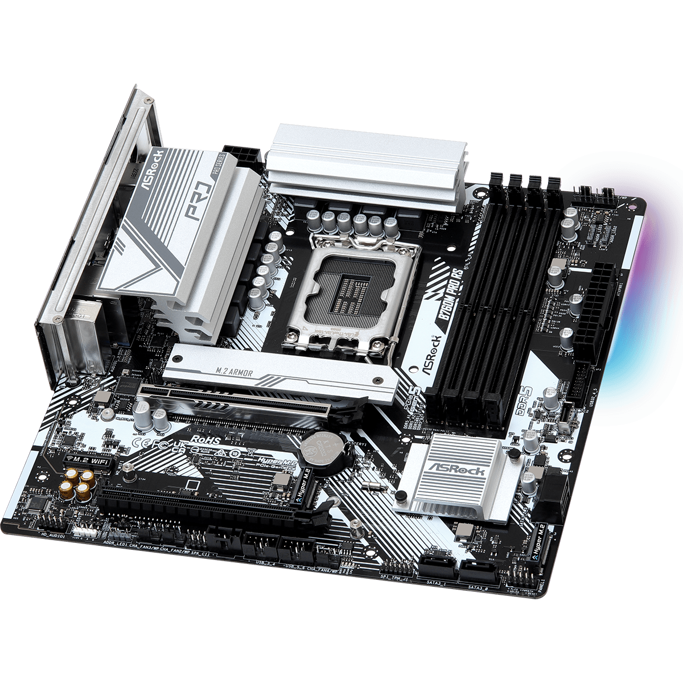

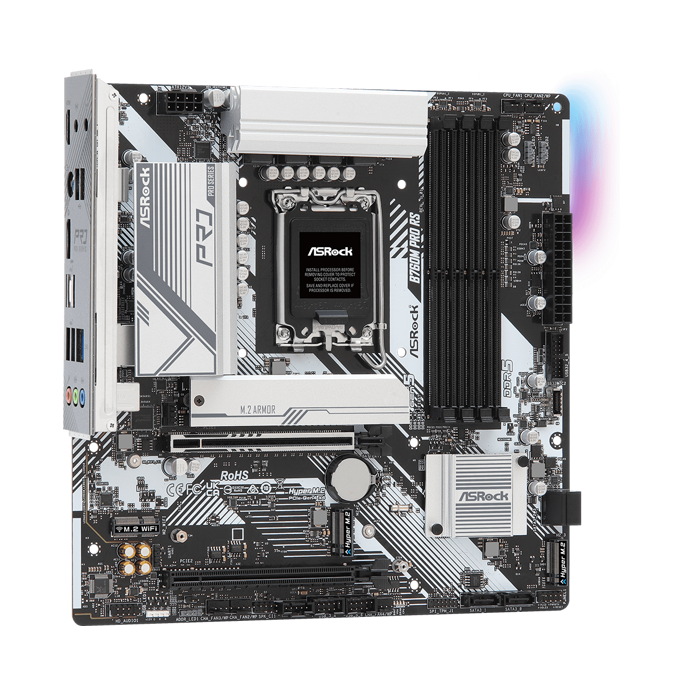

Asrock B760M PRO RS, DDR5, Intel B760, s.1700, 90-MXBLH0-A0UAYZ

Form factor µATX
Plinth Intel 1700
Chipset Intel B760
CPU Compatibility Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM 4x DDR5 DIMM, dual PC5-57600U/DDR5-7200 (OC), max. 128GB (UDIMM)
Expansion slots 1x PCIe 5.0 x16, 1x PCIe 3.0 x16 (x4), 1x M.2/M-Key (PCIe 4.0 x4, 2280/2260/2242), 2x M.2/M-Key (PCIe 4.0 x4, 2280), 1x M.2/E-Key (PCIe/Intel CNVi, 2230)

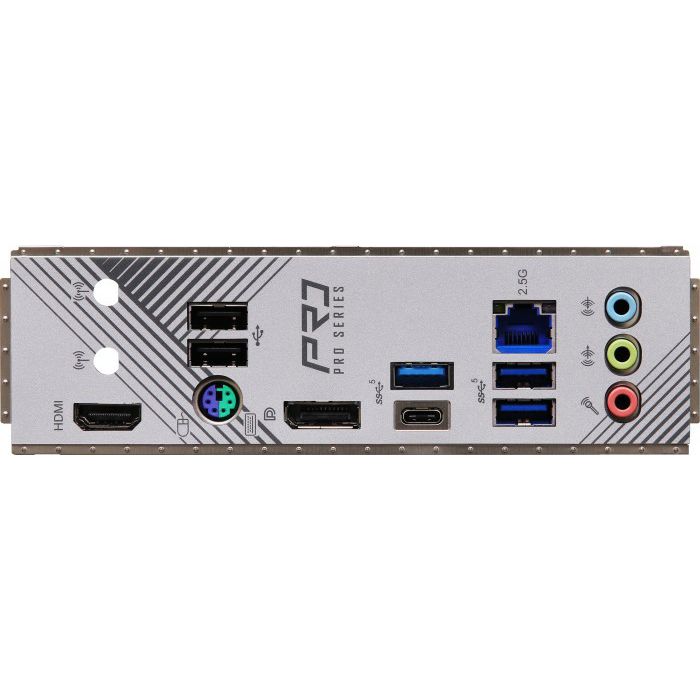

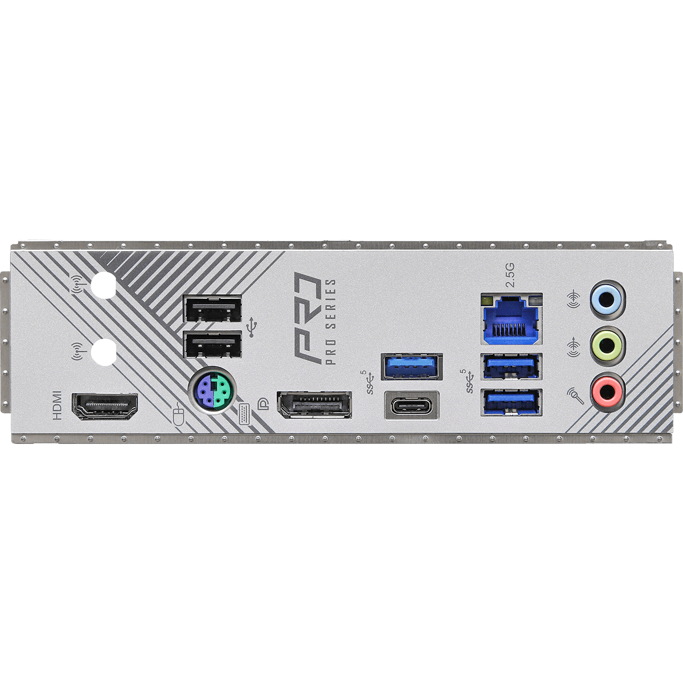

External connections 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.0 (5Gb/s), 3x USB-A 3.0 (5Gb/s), 2x USB-A 2.0 (480Mb/s), 1x 2.5GBase-T (Realtek RTL8125BG), 3x jack, 1x PS/2 combo, 2x mounting hole for antenna connection (RP-SMA)
Internal connections 1x USB-C 3.0 Key-A header (5Gb/s), 1x USB 3.0 header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (B760), 1x TPM header, 1x Thunderbolt header 5-pin, 1x speaker header, 1x chassis intrusion header
Header Cooling 1x CPU fan 4-pin, 1x CPU fan/pump 4-pin, 4x fan/pump 4-pin
Header Lighting 1x 4-pin RGB (+12V/G/R/B, max. 3A), 3x 3-pin ARGB (+5V/DATA/GND, max. 3A)
Buttons/Switches N/A
Audio 7.1 (Realtek ALC897)
Graphic iGPU
Wireless N/A
RAID Level 0/1/5/10 (B760)
Multi-GPU AMD 2-Way-CrossFireX (x16/x4)
Electricity connections 1x 24-pin ATX, 1x 8-pin EPS12V
VRM 8 virtual phases (7+1), 8 real phases (7+1), PWM controller: RT3628AE (max. 9 phases)
MOSFETs CPU 7x 50A SiC654
MOSFETs SoC 1x 50A SiC654
Lighting RGB, 1 zone (side right)
BIOS 1x 16MB (128Mb)
Particularities Audio+solid capacitors, Diagnostic LED (LED indicators), 1x M.2 passive cooler, Onboard TPM 2.0 support (Intel PTT)
