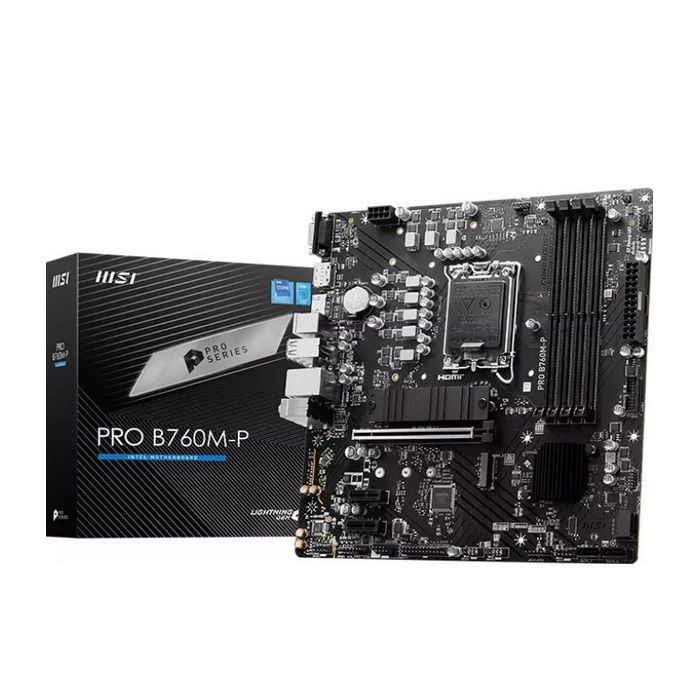

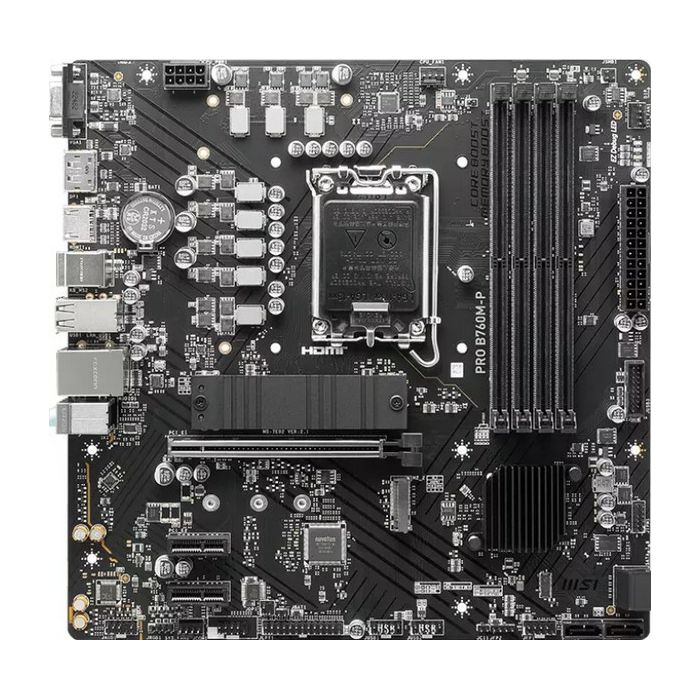

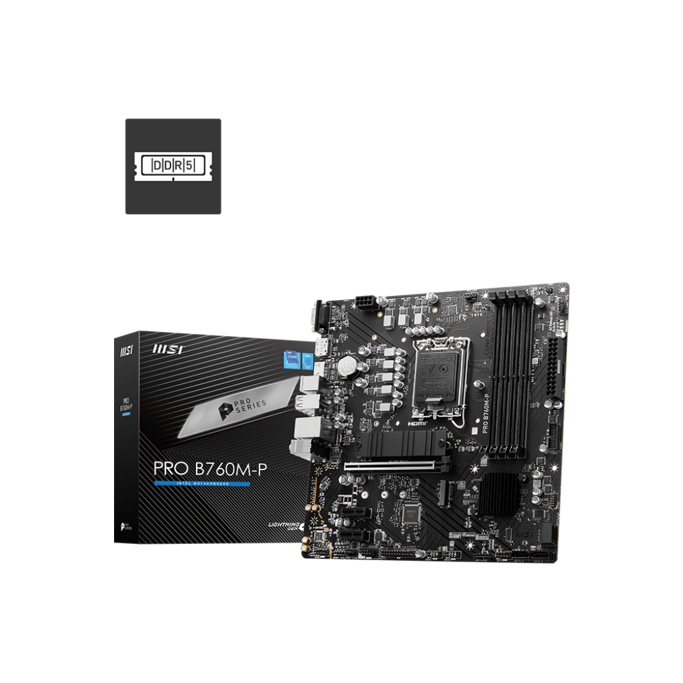

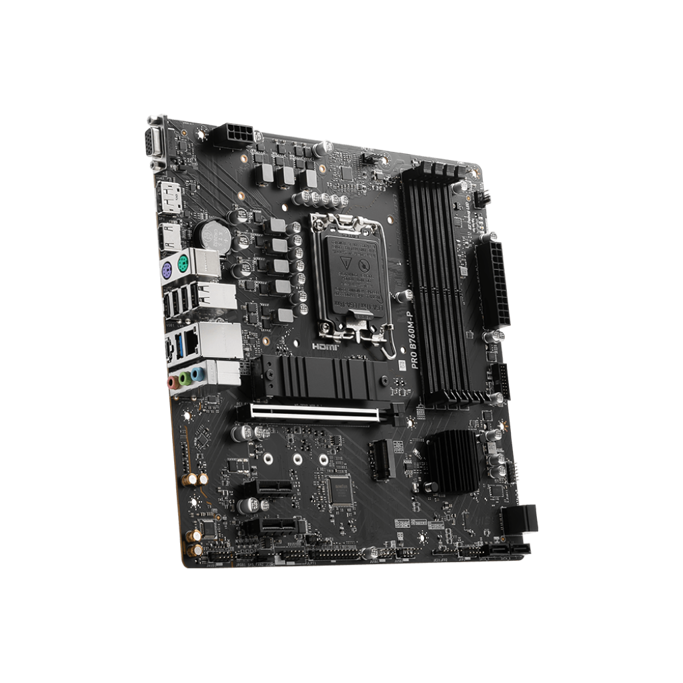

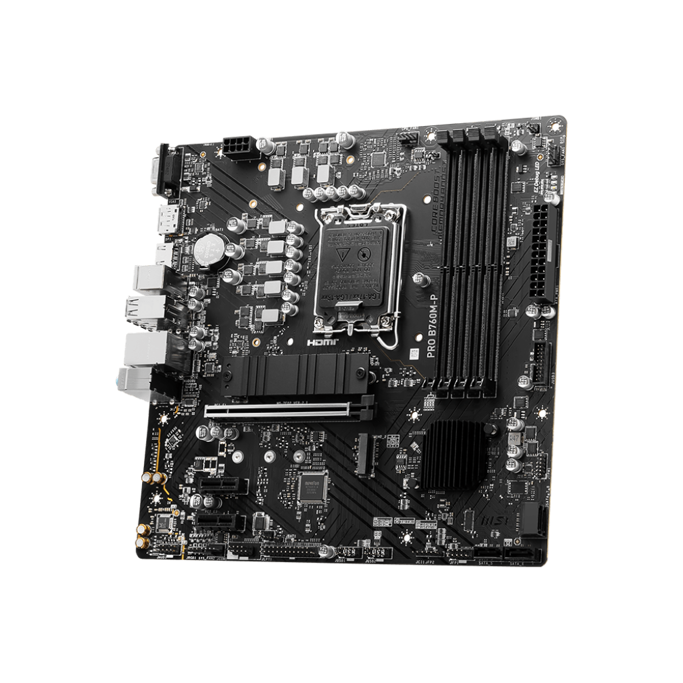

MSI PRO B760M-P, DDR5, Intel B760, s.1700, 7E02-009R

Form factor µATX
Plinth Intel 1700
Chipset Intel B760
CPU Compatibility Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM 4x DDR5 DIMM, dual PC5-54400U/DDR5-6800 (OC), max. 128GB (UDIMM)
Expansion slots 1x PCIe 4.0 x16, 2x PCIe 4.0 x1, 1x M.2/M-Key (PCIe 4.0 x4, 2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4/SATA, 2280/2260/2242)

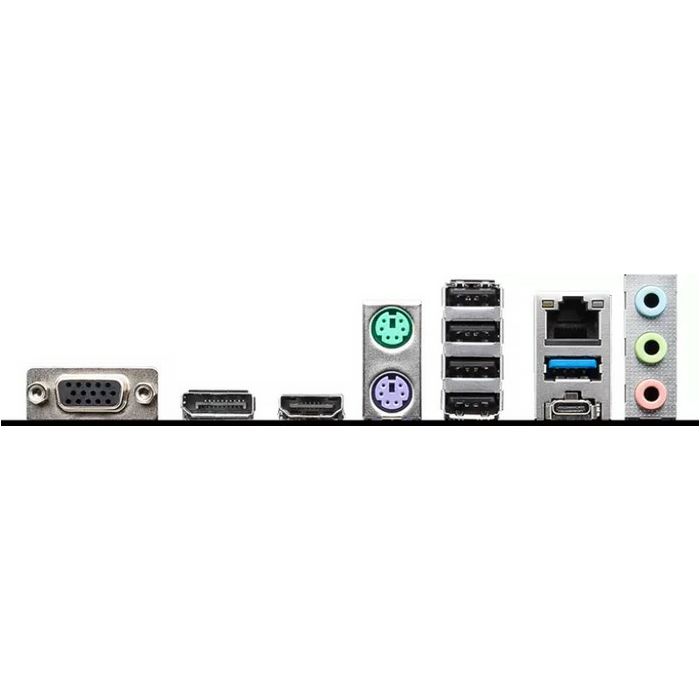

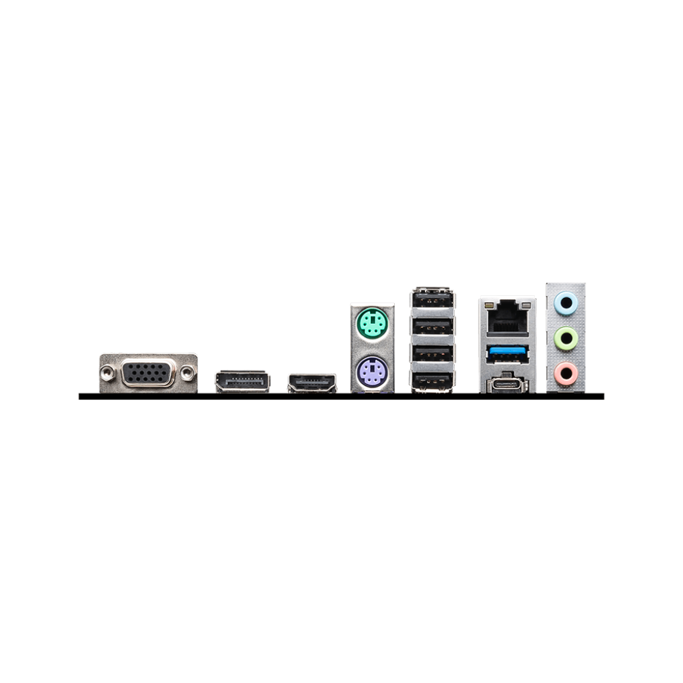

External connections 1x VGA (iGPU), 1x HDMI 1.4 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.1 (10Gb/s), 1x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 1x Gb LAN (Realtek RTL8111H), 3x jack, 1x PS/2 keyboard, 1x PS/2 mouse
Internal connections 1x USB 3.0 header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (B760), 1x serial, 1x parallel, 1x TPM header, 1x chassis intrusion header
Header Cooling 1x CPU fan 4-pin, 2x fan 4-pin
Header Lighting 1x 4-pin RGB (+12V/G/R/B, max. 3A)
Buttons/Switches N/A
Audio 7.1 (Realtek ALC897)
Graphic iGPU
Wireless N/A
RAID Level 0/1/5/10 (B760)
Multi-GPU N/A
Electricity connections 1x 24-pin ATX, 1x 8-pin EPS12V
VRM 7 virtual phases (6+1), 4 real phases (3+1), PWM controller: RT3628AE (max. 9 phases)
MOSFETs CPU 6x 55A SM4337/SM4503
MOSFETs SoC 2x 55A SM4337/SM4503
Lighting N/A
BIOS 1x 32MB (256Mb)
Particularities Audio+solid capacitors, Diagnostic LED (LED indicators), 1x M.2 passive cooler, Onboard TPM 2.0 support (Intel PTT)
