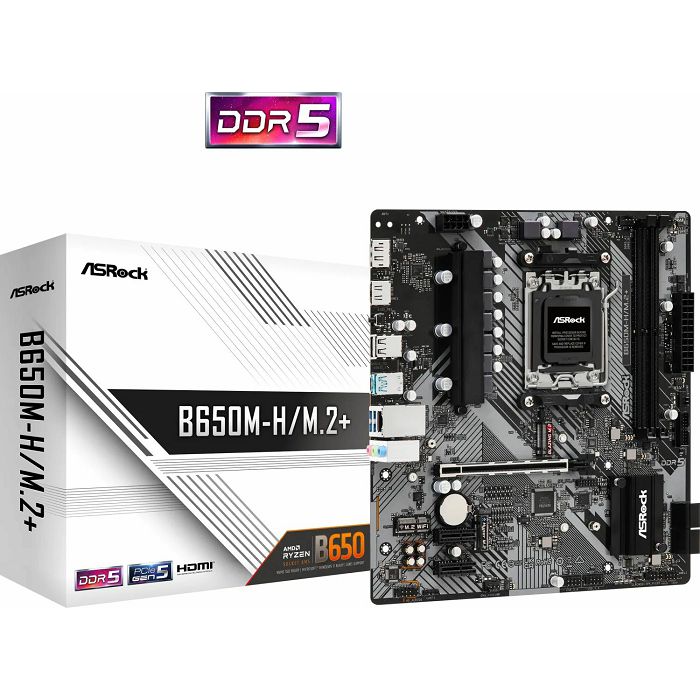

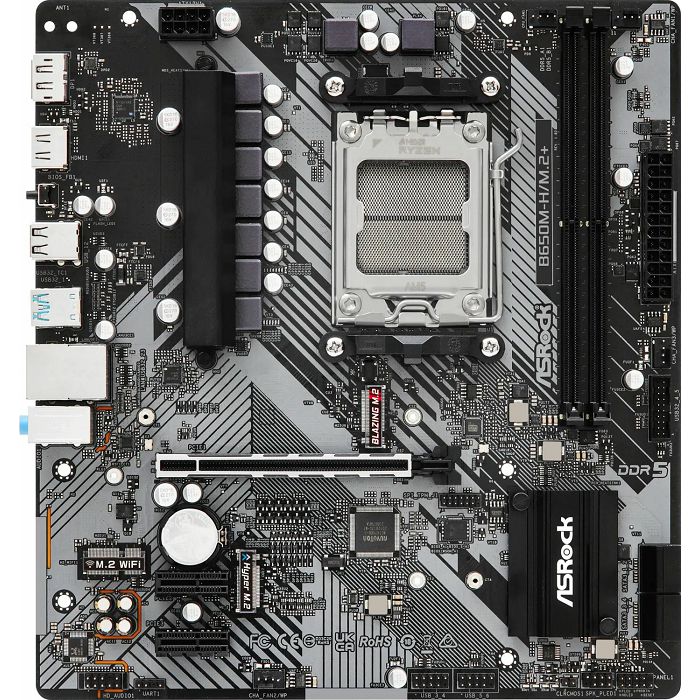

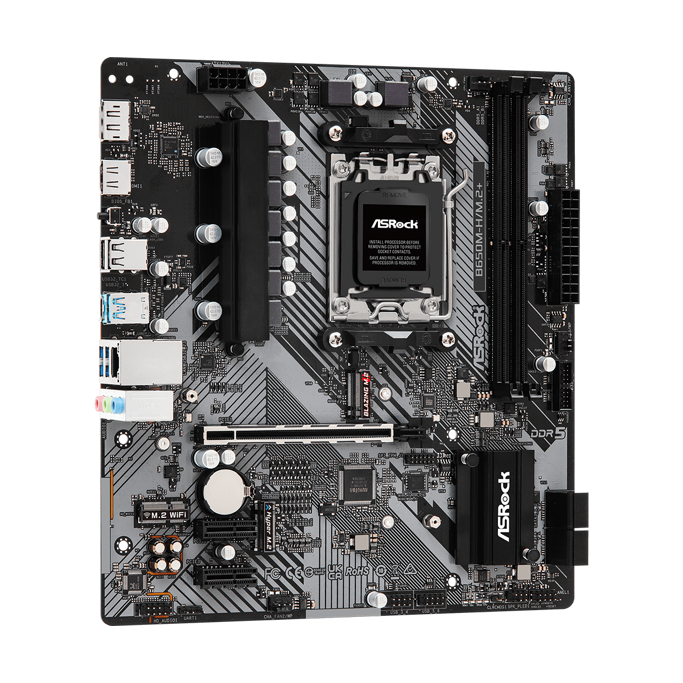

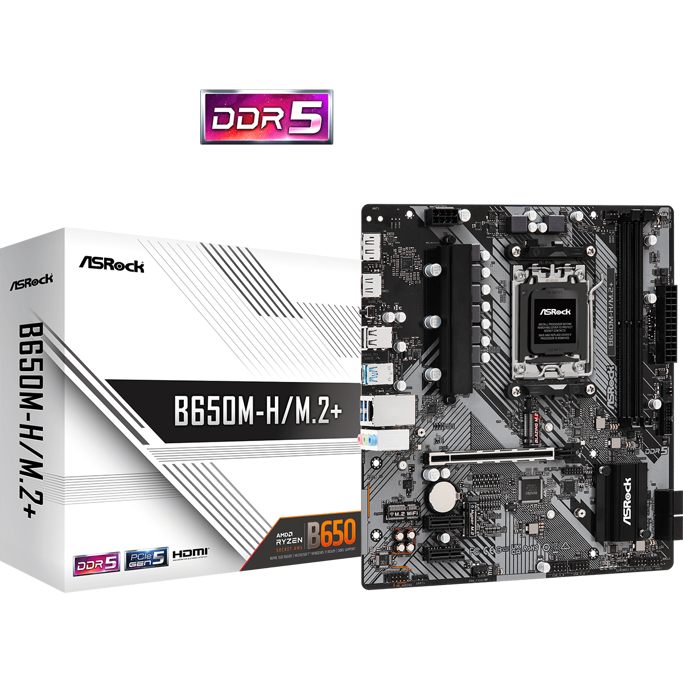

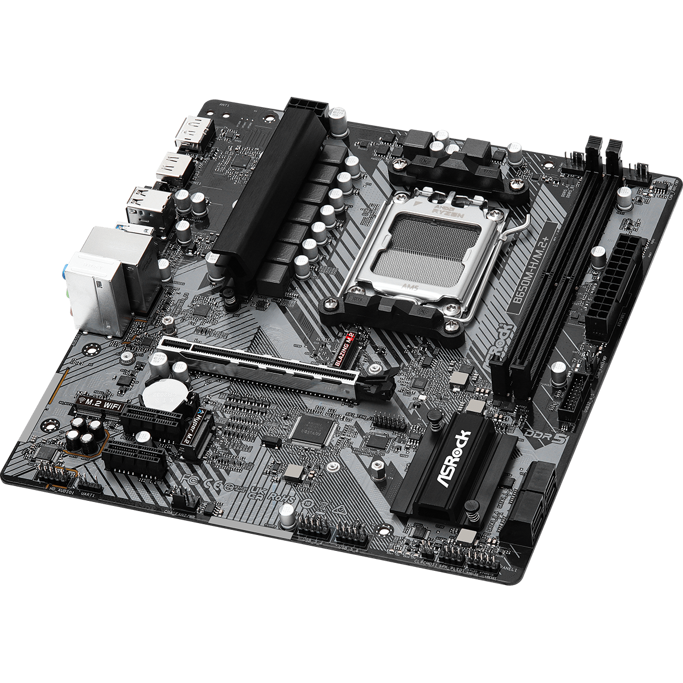

Asrock B650M-H/M.2+, AMD B650, AM5, DDR5, 90-MXBMS0-A0UAYZ

Form factor µATX
Plinth AMD AM5
Chipset AMD B650
CPU Compatibility Ryzen 7000, TDP-Limit: 120W (120W))
RAM 2x DDR5 DIMM, dual PC5-57600U/DDR5-7200 (OC), max. 96GB (UDIMM)
Expansion Slots 1x PCIe 4.0 x16, 2x PCIe 4.0 x1, 1x M.2/M-Key (PCIe 5.0 x4, 2280), 1x M.2/M-Key (PCIe 4.0 x4, 2280/2260), 1x M.2/E-Key (PCIe, 2230)
External connections 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.0 (5Gb/s), 3x USB-A 3.0 (5Gb/s), 2x USB-A 2.0 (480Mb/s), 1x Gb LAN (Realtek RTL8111H), 3x jack, 2x mounting hole for antenna connector RP-SMA
Internal connections 1x USB 3.0 header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (B650), 1x TPM header, 1x speaker header
Header Cooling 1x CPU fan 4-pin, 3x fan/pump 4-pin
Header Lighting N/A
Buttons/Switches USB BIOS Flashback (external)
Audio 7.1 (Realtek ALC897)
Graphic iGPU
Wireless N/A
RAID Level 0/1/10 (B650)
Multi-GPU N/A
Power connections 1x 24-pin ATX, 1x 8-pin EPS12V
VRM 7 virtual phases (6+1), 4 real phases (3+1), PWM controller: RT3674AE (max. 5 phases)
MOSFETs CPU (VCORE) 6x 50A SiC634
MOSFETs SoC (VCCGT) 2x 50A DEC3908X/DEC3906X
Lighting N/A
BIOS 1x 32MB (256Mb)
Particularities Audio+solid capacitors, onboard TPM 2.0 support (AMD fTPM)
