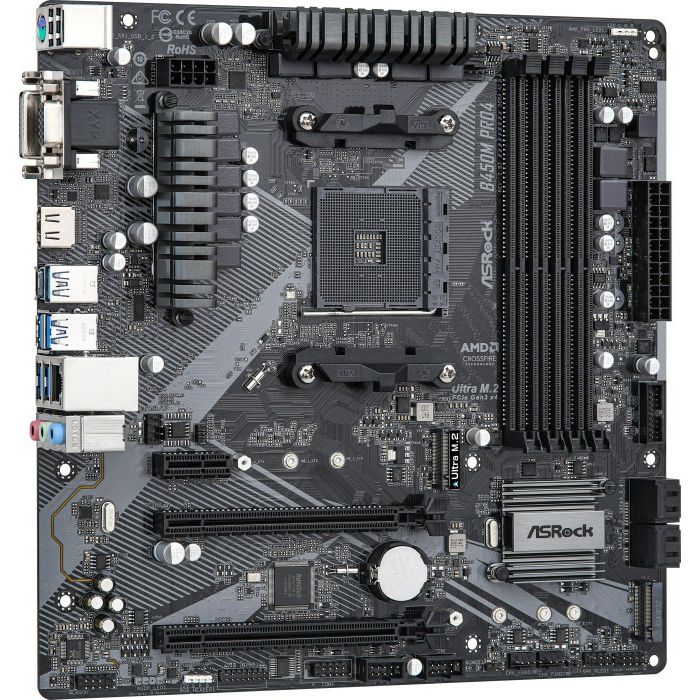

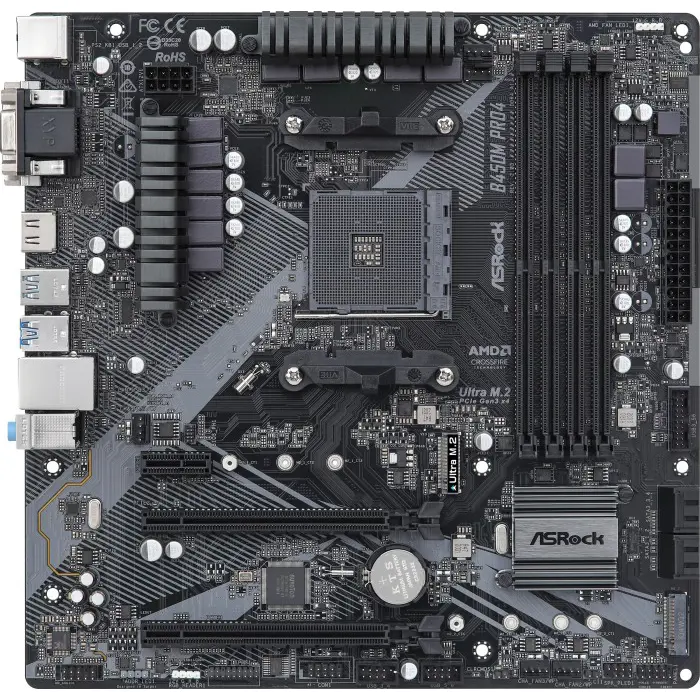

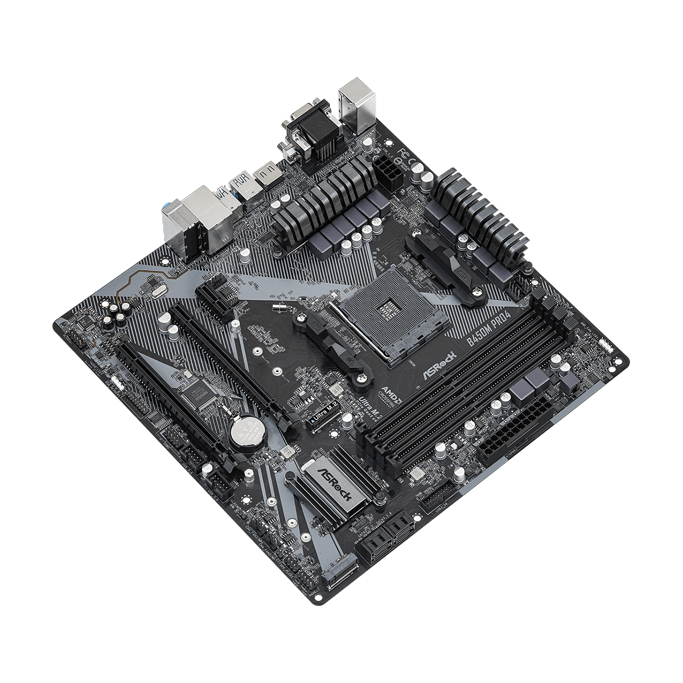

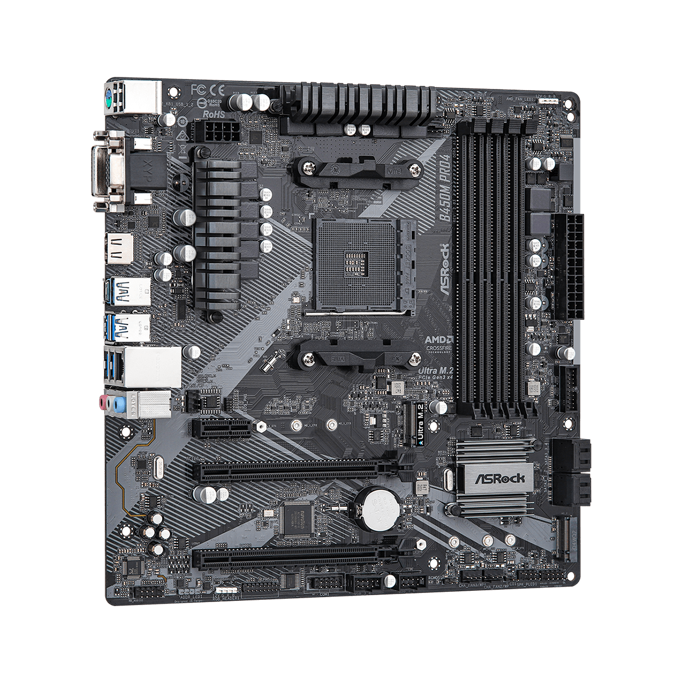

Asrock B450M-PRO4 R2.0, µATX, AM4, 90-MXBEG0-A0UAYZ

Shape factor µATX
Socket AMD AM4
chipset AMD B450
CPU-Compatibility Ryzen 5000G, Ryzen 5000, Ryzen 4000G, Ryzen 3000, Ryzen 3000G, Ryzen 2000, Ryzen 2000G, Ryzen 1000, Athlon 3000G, Athlon 200G, without TDP limitation (Manufacturer-list)
VRM 10 virtual phases
RAM 4x DDR4 DIMM, dual PC4-25600U/?DDR4-3200 (OC), max. 128GB (UDIMM)
Extension slots 1x PCIe 3.0 x16, 1x PCIe 2.0 x16 (x4), 1x PCIe 2.0 x1, 1x M.2/?M-Key (PCIe 3.0 x4, 2280/?2260/?2242), 1x M.2/?M-Key (SATA, 2280/?2260/?2242/?2230)

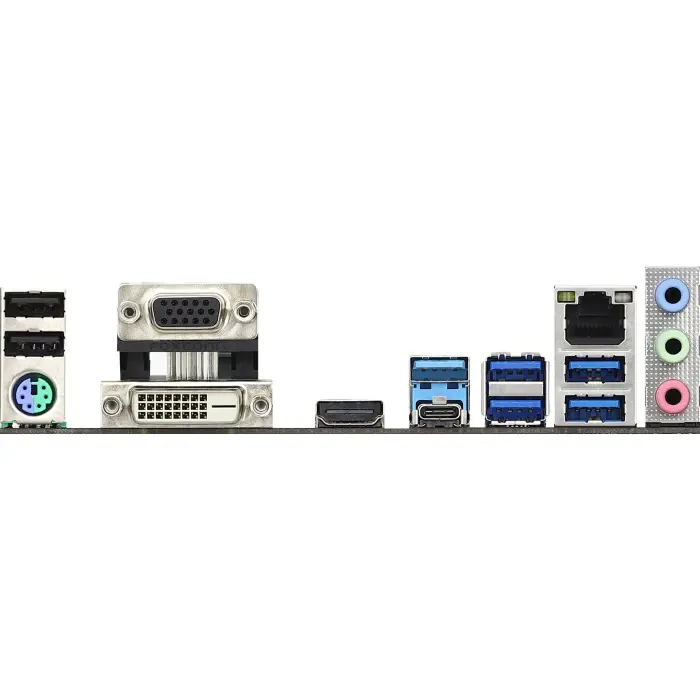

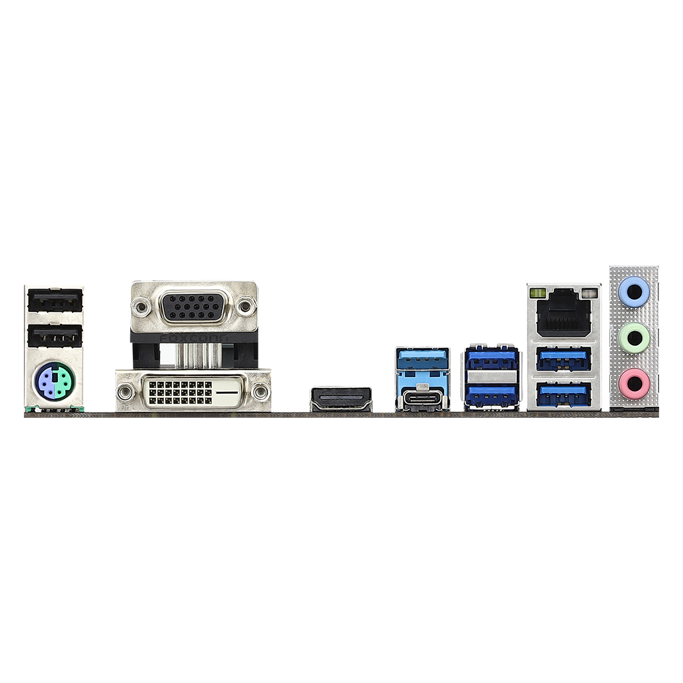

external connectors 1x VGA (iGPU), 1x DVI-D (iGPU), 1x HDMI 1.4 (iGPU), 1x USB-C 3.1 (10Gb/?s, B450), 1x USB-A 3.1 (10Gb/?s, B450), 4x USB-A 3.0 (5Gb/?s), 2x USB-A 2.0 (480Mb/?s), 1x Gb LAN (Realtek RTL8111H), 3x jack, 1x PS/?2 Combo
Internal connectors 1x USB 3.0 Header (5Gb/?s, 2x USB 3.0), 2x USB 2.0 header (480Mb/?s, 4x USB 2.0), 4x SATA 6Gb/s (B450), 1x serial, 1x TPM-Header, 1x Speaker-Header, 1x Chassis Intrusion-Header
Header Cooling 1x CPU fan 4-Pin, 1x CPU fan/?pump 4-Pin, 3x fan/?pump 4-Pin
Header Lighting 2x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 1x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A)
buttons/Switches not available
Audio 7.1 (Realtek ALC892/?ALC897)
Graphics iGPU
Wireless not available
RAID level 0/?1/?10 (B450)
Multi-GPU AMD 2-Way-CrossFireX (x16/?x4)
Power connections 1x 24-Pin ATX, 1x 8-Pin EPS12V
Lighting not available
BIOS 1x 16MB (128Mb)
Special features audio+solid capacitors, ECC-support
