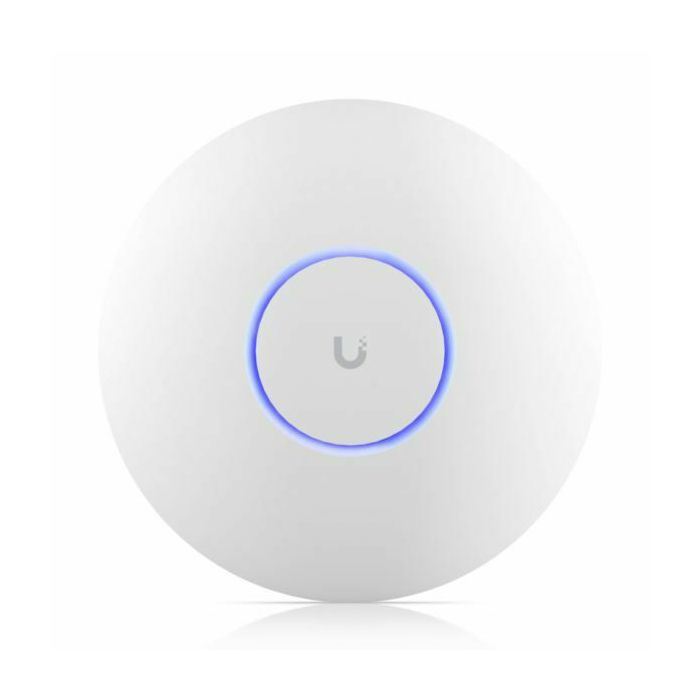

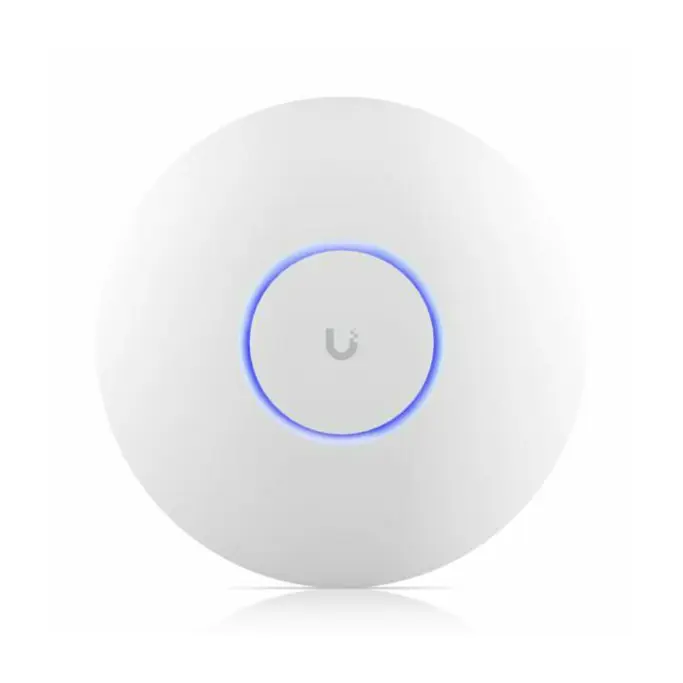

Ubiquiti WiFi 7 tri-band (2.4Ghz, 5Ghz, 6Ghz) access point, U7-Pro

Ubiquiti U7 Pro is a new tri-band access point. It connects to the network using a regular LAN port with speeds up to 2.5 Gbps. The wireless frequencies are 2.4 GHz with a speed of 688 Mbps, 5 GHz with a speed of 2880 Mbps, and the 6 GHz band with a speed of 5760 Mbps. The access point is powered by PoE+ protocol, and its maximum power consumption is 21 W. It provides Internet connectivity for more than 300 devices at the same time.

Key Features
High speed up to 5760 Mbps in the 6 GHz band
Power over PoE+
Connectivity for more than 300 devices simultaneously

Package Contents
Device
Wall/ceiling mounting kit

Technical parameters
Wireless features
Wireless frequency:2.4 + 5 + 6 GHz (triple band)
WiFi standards:802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ax, 802.11be
MU-MIMO:Yes
Transmission speed - 5GHz [Mb/s]:2880
Transmission speed - 2.4GHz [Mb/s]:688
Transmission speed - 6GHz [Mb/s]:5760
Tx power 2.4GHz [dBm]:22
Tx power 5GHz [dBm]:26
Tx power 6GHz [dBm]:23
Security:WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
2.4GHz MIMO:2 x 2
5GHz MIMO:2 x 2
6GHz MIMO:2 x 2
Type of antenna:Built-in
Internal antennas:6
Connectors and Interfaces
LAN speed:(1) 100/1000/2500Mbps
Gigabit LAN:Yes

Power
Power over Ethernet:802.3at+
Max. power consumption [W]:21

Physical characteristics
Purpose:Indoor
Buttons:Reset
Operating temperature [°C]:-30 up to 60
Weight [g]:680
Width [mm]:206
Height [mm]:46
Depth [mm]:206

Software
Operating mode:Access Point
