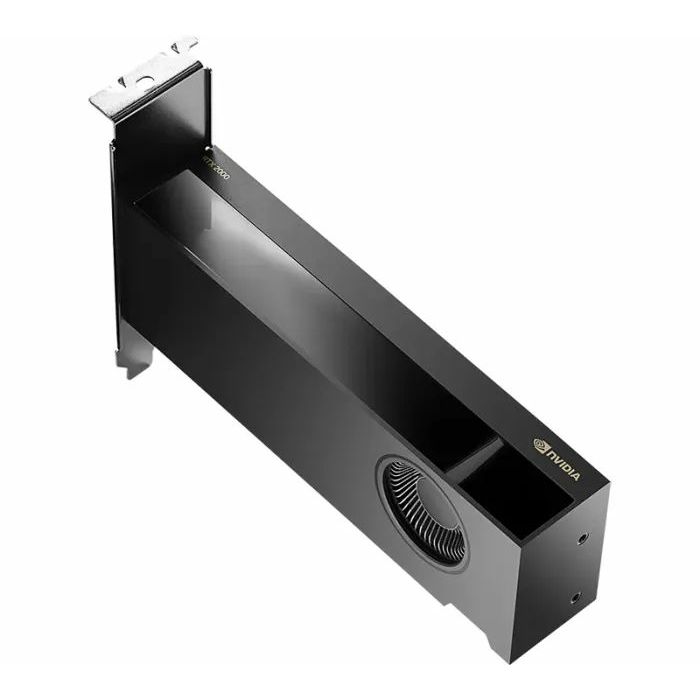

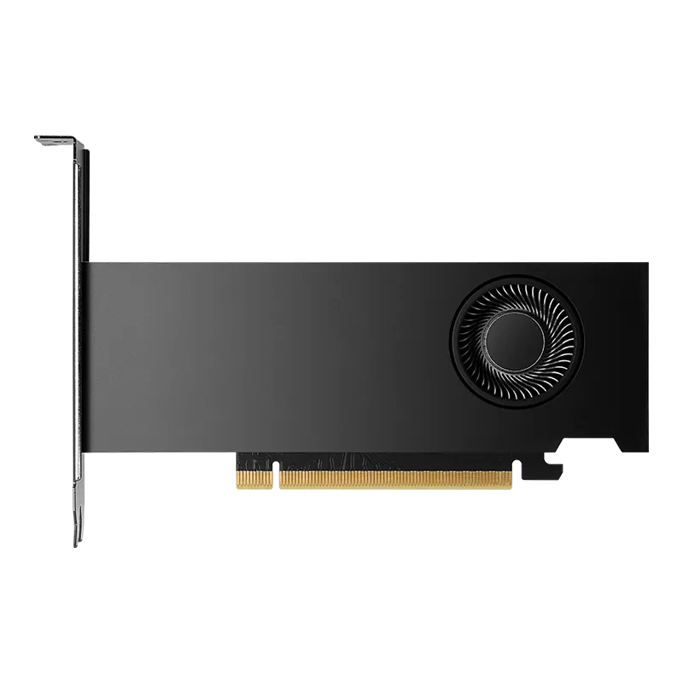

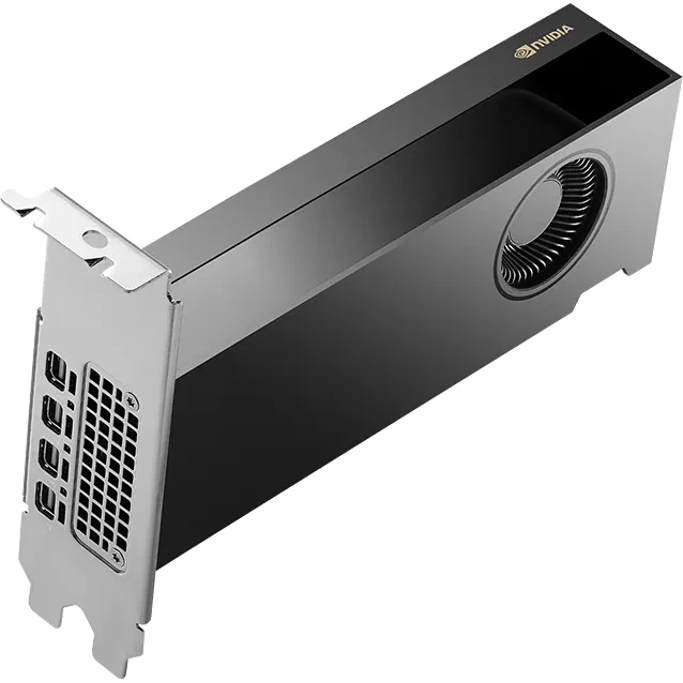

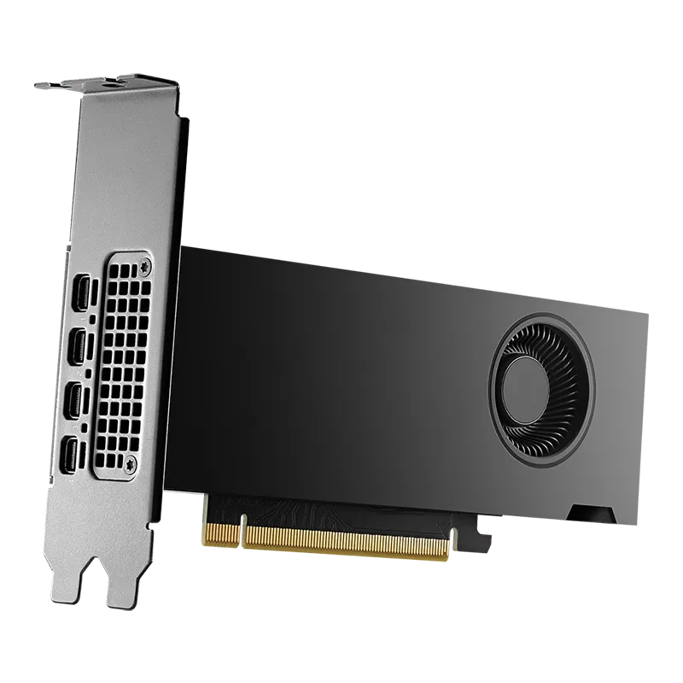

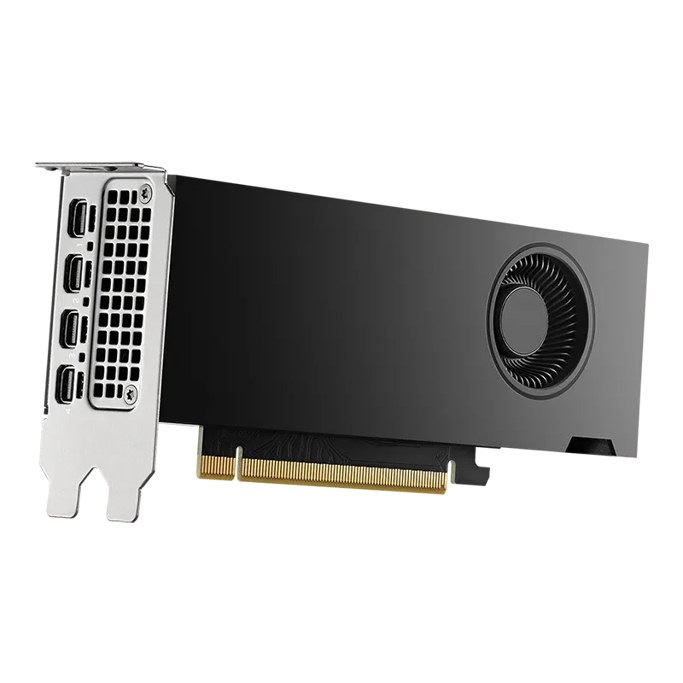

PNY RTX 2000 ADA gen., 16GB GDDR6 ECC, PCIe 4.0 x8, 4x mDP 1.4a, VCNRTX2000ADA-SB

GPU NVIDIA RTX 4000 Ada Generation
Memory 20GB GDDR6 with ECC mode, 160bit, 18Gbps, 2250MHz, 360GB/s
Clock Base 720MHz
Clock Boost 2175MHz
Overclocking -
Cooling 1x Radial Fan (55mm)
TDP/TGP 130W (NVIDIA)
Power connections 1x 16-pin PCIe 5.0
Connections 4x DisplayPort 1.4a
Connection PCIe 4.0 x16
Particularities NVIDIA Reference Design, Backplate
Overall depth Single Slot
Dimensions 241.3x111.76mm (LxW), Weight: 528g
Construction PCIe card (full height)
Slot bezel full height
Computing power 26.73 TFLOPS (FP16), 26.73 TFLOPS (FP32), 0.42 TFLOPS (FP64)
Chip Data
Chip Architecture Ada Lovelace (from 2022/Q3)
Chip Designation AD104
Chip Configuration 48SM (6144SP / 192TMU / 80ROP), 48 RT Cores, 192 Tensor Cores, 48MB L2 cache
Chip Manufacturing TSMC 5nm "NVIDIA 4N"
Chip Size 295mm2, monolithic, 35.8 billion transistors
Chip Functions Ray tracing (3rd Gen NVIDIA RTX), NVIDIA Tensor (4th Gen), 10bit Color Channel Depth, HDCP 2.3
API support DirectX 12 Ultimate (12_2) / CUDA 8.9 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.7
Transcoding Engine 2x NVENC (8th Gen, max. sessions: unrestricted), 2x NVDEC (5th Gen), Info
Encoding AV1, H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
Decoding AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264, VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
