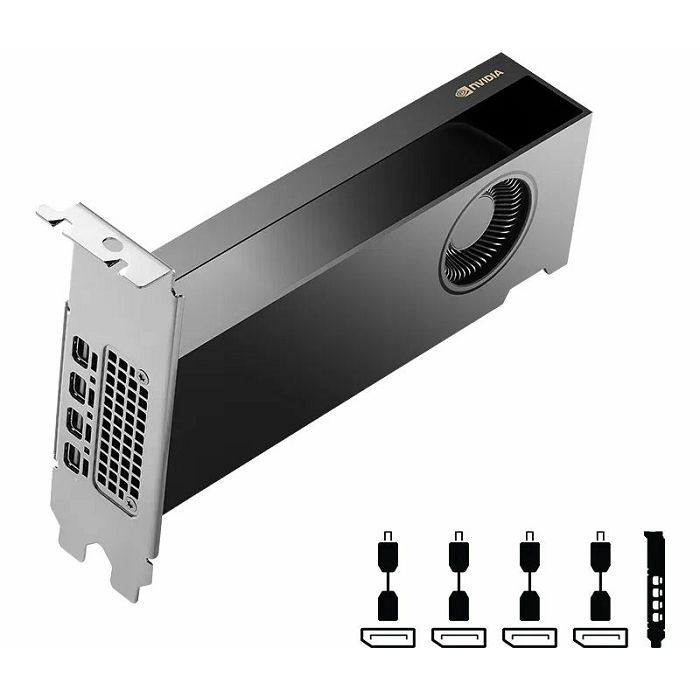

PNY RTX 2000 ADA gen., 16GB GDDR6 ECC, PCIe 4.0 x8, 4x mDP 1.4a, VCNRTX2000ADA-SB

GPU NVIDIA RTX 2000 Ada Generation
Memory 16GB GDDR6 with ECC mode, 128bit, 14Gbps, 1750MHz, 224GB/s
Clock Base 1635MHz
Clock Boost 2115MHz
Overclocking -
Cooling 1x Radial Fan (40mm)
TDP/TGP 70W (NVIDIA)
Connections 4x Mini DisplayPort 1.4a
Particularities NVIDIA Reference Design, 4x mDP-DP Adapters
Overall depth Dual Slot
Dimensions 167.64x68.58mm (LxW)
Construction PCIe card (low profile)
Slot bezel full height + low profile (scope of delivery)
Computing power 11.91 TFLOPS (FP16), 11.91 TFLOPS (FP32), 0.19 TFLOPS (FP64)
Chip Data
Chip Architecture Ada Lovelace (from 2022/Q3)
Chip Designation AD107
Chip Configuration 22SM (2816SP / 88TMU / 48ROP), 22 RT Cores, 88 Tensor Cores, 12MB L2 cache
Chip Manufacturing TSMC 5nm "NVIDIA 4N"
Chip Size 159mm2, monolithic, 18.9 billion transistors
Chip Functions Ray tracing (3rd Gen NVIDIA RTX), NVIDIA Tensor (4th Gen), HDCP 2.3
API support DirectX 12 Ultimate (12_2) / CUDA 8.9 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.7
Transcoding Engine 1x NVENC (8th Gen, max. sessions: unrestricted), 1x NVDEC (5th Gen), Info
Encoding AV1, H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
Decoding AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264, VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1
Multi-GPU connectivity -
Introduction (Series) 12.02.2024, RRP: 649 USD (NVIDIA)
Graphic NVIDIA RTX 2000 Ada Generation - 16GB GDDR6 - Desktop
