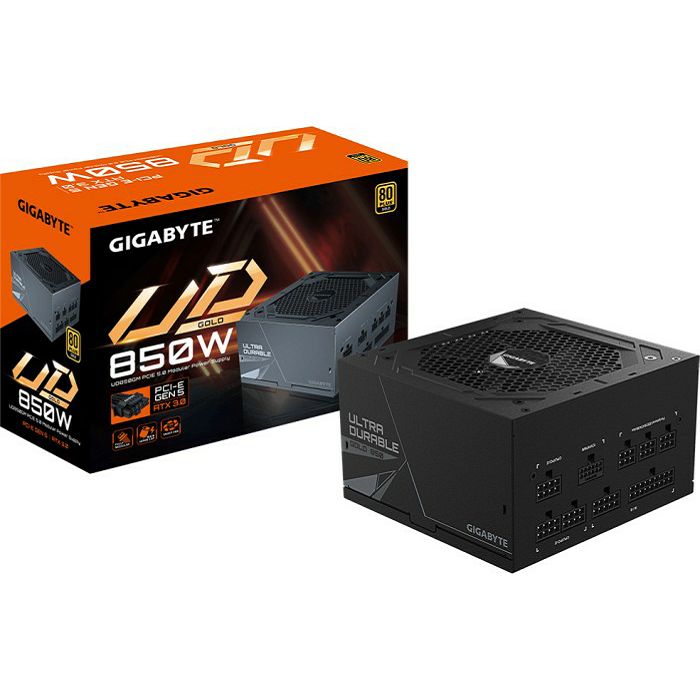

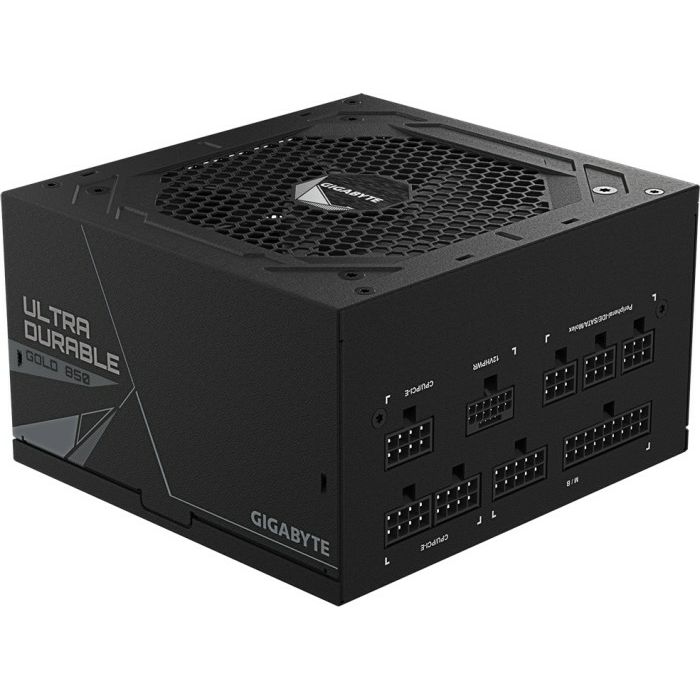

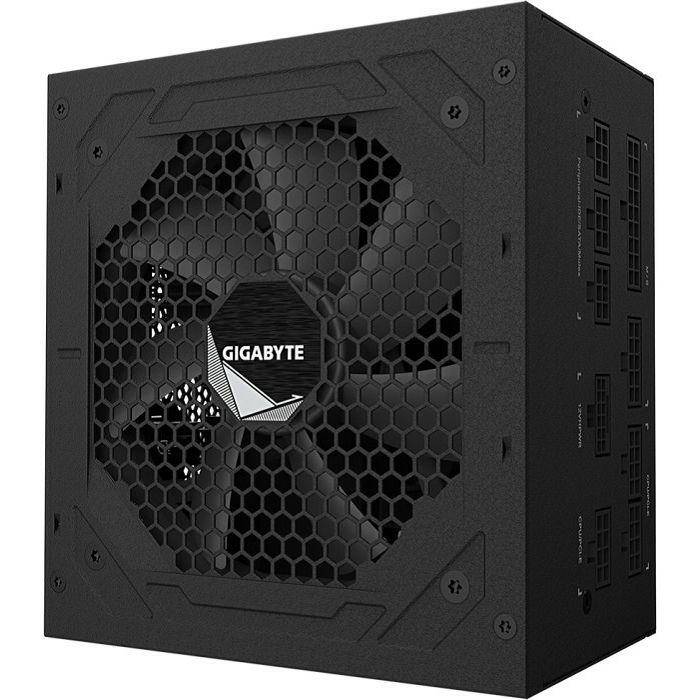

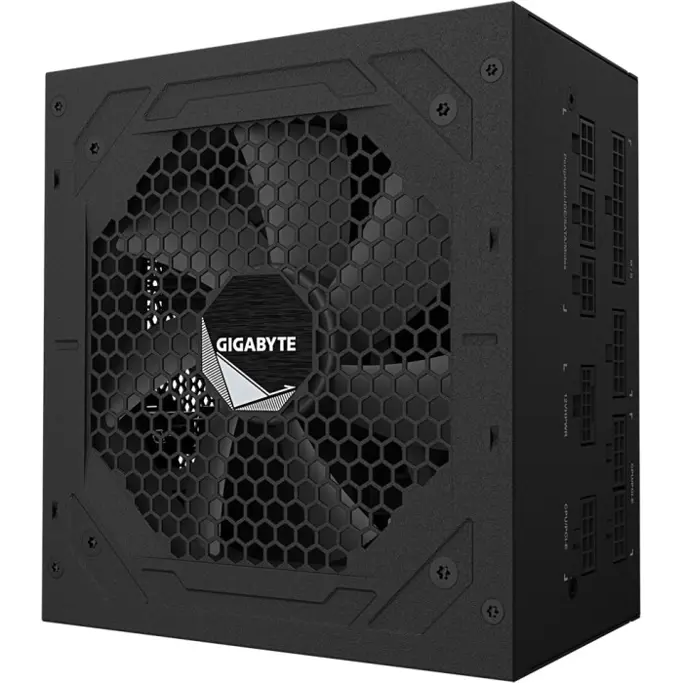

Napajanje Gigabyte 850W GP-UD850GM PG5, Full modular, 80 PLUS Gold, GP-UD850GM PG5

Power Device Type Power Supply
Power Device Location Plug-in-module
Input Voltage AC 100-240 V
Input Frequency 50/60 Hz
Rated Input Current 12 A
Maximum Output Power 850 W
Circuit Protection Over Voltage
Undervoltage
Over Temperature
Over Current
Short Circuit Protection
Over Power
Modular Power Supply Yes
Power Adapter and Power Supply Features Active PFC
80 Plus Certification 80 Plus Gold
Efficiency 90%
Currents
+3.3V 20 A (52.5 W)
+5V 20 A (52.5 W)
+12V 70.8 A (850 W)
-12V 0.3 A (3.6 W)
+5VSB 3 A (15 W)
Output Connectors
20+4-pin Main Connector 1
4/8-pin +12V Power Connector 2
4-pin Peripheral Power Connector 3
4-pin Floppy Drive Connector 1
S-ATA Connector 8
6/8-pin PCI Express Connector 4
16-pin PCI Express 5.0 Connector 1
System Fans
Fans Installed Quantity 1
Fan Diameter 120 mm
Environment
Mean Time Between Failures 100000 hr
Miscellaneous
External Colour Black
Material Metal
Included Accessories Quick Start Guide
Dimensions & Weight Device
Depth (mm) 150 mm
Height (mm) 86 mm
Width (mm) 140 mm
Logistic
Pack Weight Brutto (kg) 1 kg
Pack Weight Netto (kg) 0.8 kg
Pieces in pack 1
Box Weight Brutto (kg) 1 kg
Retail Packaging Net Weight Carton 0.1 kg
Retail Packaging Net Weight Plastic 0.1 kg
Packs in Box 1
Package Type Retail
