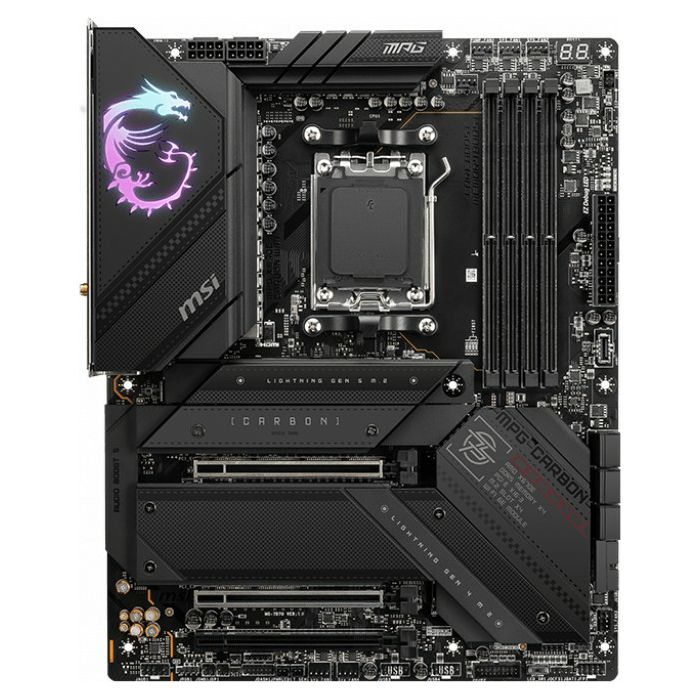

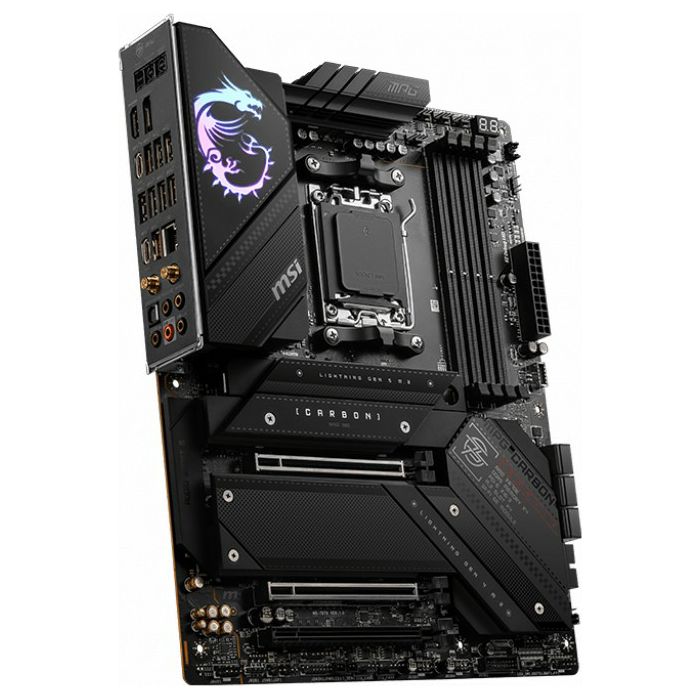

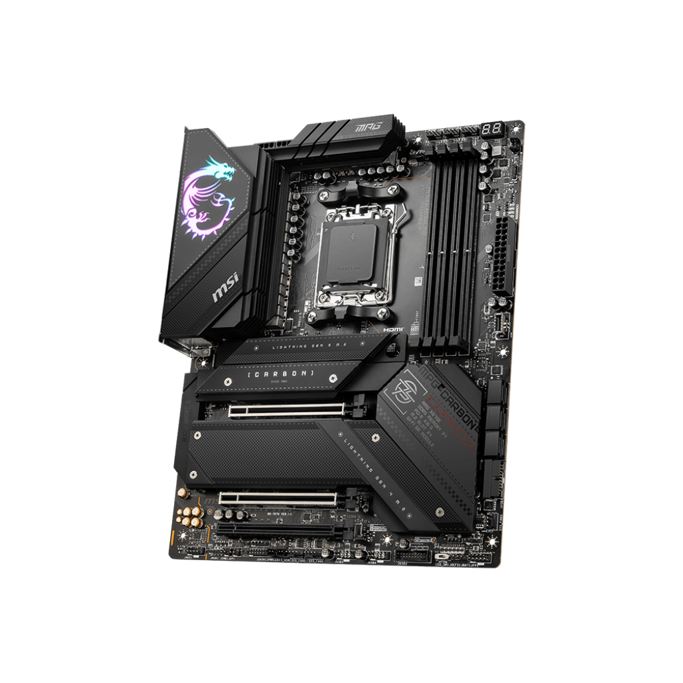

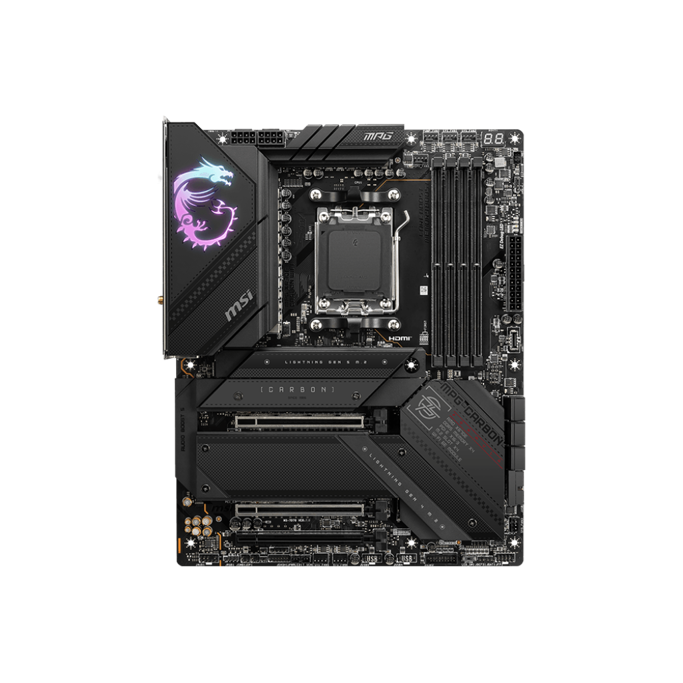

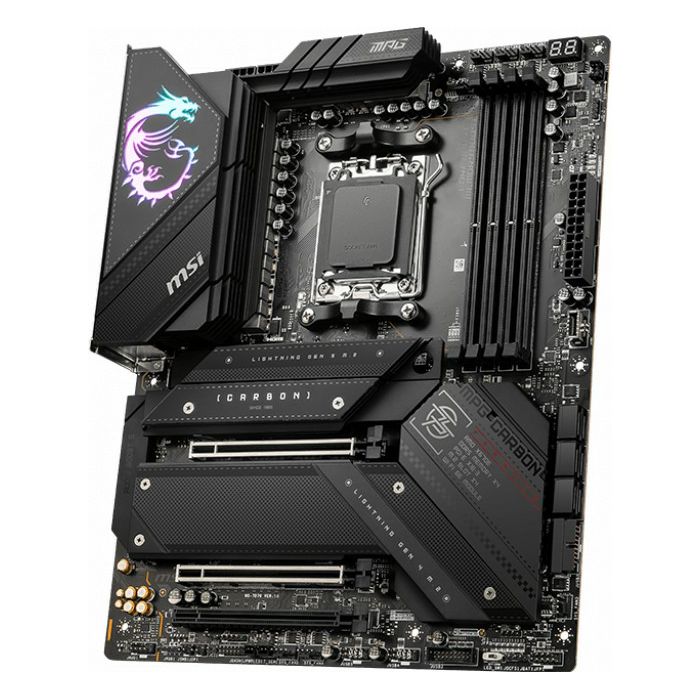

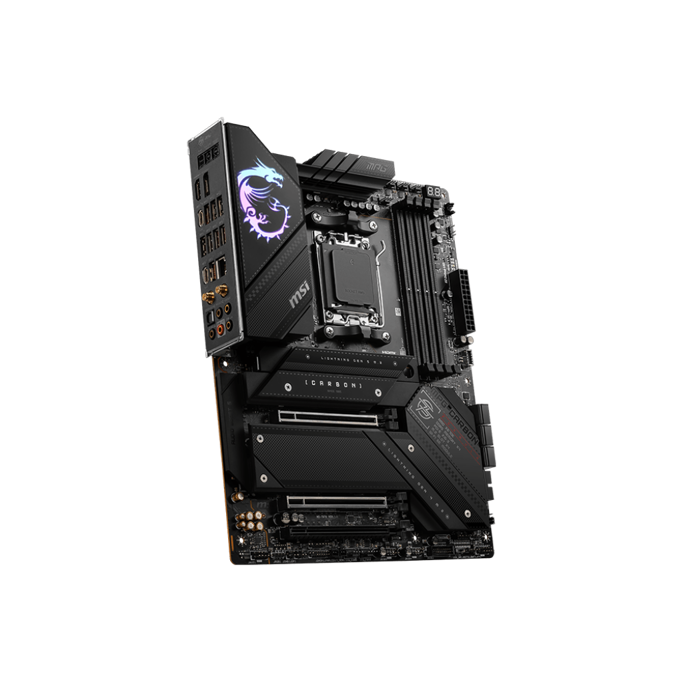

MSI MPG X670E Carbon WiFi, DDR5, AM5, 7D70-001R

shape factor
ATX
Socket
AMD AM5
chipset
AMD X670E
CPU-Compatibility
Ryzen 7000
RAM
4x DDR5 DIMM
Extension slots
2x PCIe 5.0 x16 (1x x16, 1x x8), 1x PCIe 4.0 x16 (x4), 1x M.2/?M-Key (PCIe 5.0 x4, 2280/?2260), 2x M.2/?M-Key (PCIe 4.0 x4, 2280/?2260), 1x M.2/?M-Key (PCIe 4.0 x4, 22110/?2280/?2260)

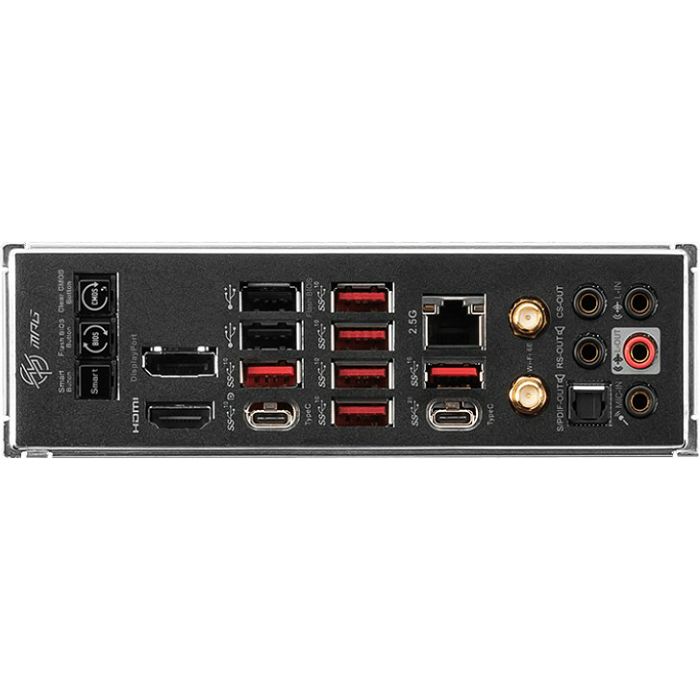

external connectors
1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.2 (20Gb/?s), 1x USB-C 3.1 with DisplayPort 1.4 (10Gb/?s), 6x USB-A 3.1 (10Gb/?s), 2x USB-A 2.0 (480Mb/?s), 1x 2.5GBase-T (Realtek RTL8125BG), 5x jack, 1x toslink
Internal connectors
1x USB-C 3.1 Key-A Header (10Gb/?s), 2x USB 3.0 Header (5Gb/?s, 4x USB 3.0), 2x USB 2.0 header (480Mb/?s, 4x USB 2.0), 6x SATA 6Gb/s (X670E), 1x Chassis Intrusion-Header, 1x MSI Tuning controller Header 5-Pin
Header Cooling
1x CPU fan 4-Pin, 5x fan 4-Pin, 1x pump 4-Pin, 1x Thermal-sensor
Header Lighting
1x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 2x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A)
buttons/Switches
clear-CMOS-Button (external), USB BIOS Flashback (external), Smart Button (external)
Audio
7.1 (Realtek ALC4080)
Graphics
iGPU
Wireless
Wi-Fi 6E (WLAN 802.11a/?b/?g/?n/?ac/?ax, 2x2, AMD RZ608/?MediaTek MT7921K), Bluetooth 5.2
RAID level
0/?1/?10 (X670E)
Power connections
1x 24-Pin ATX, 2x 8-Pin EPS12V
Lighting
RGB, 1 zone (I/?O cover)
Special features
audio+solid capacitors, Diagnostic LED (segment indication), Diagnostic LED (LED indicators), I/?O-shield integrated, ECC-support, 4x M.2-passive cooler, onboard TPM 2.0 support (AMD fTPM)
