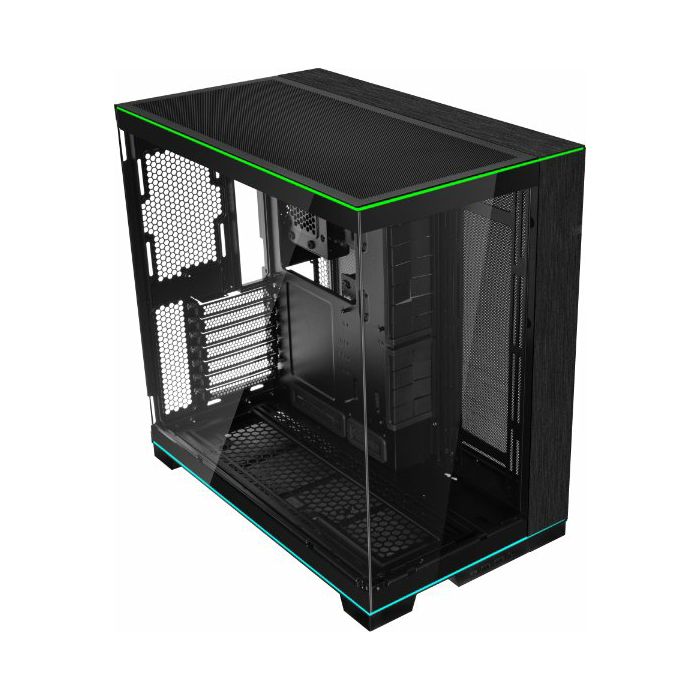

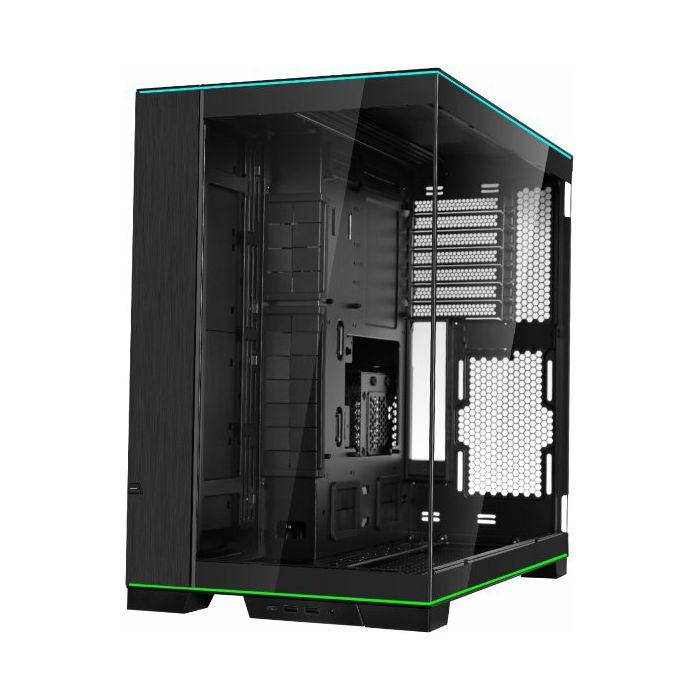

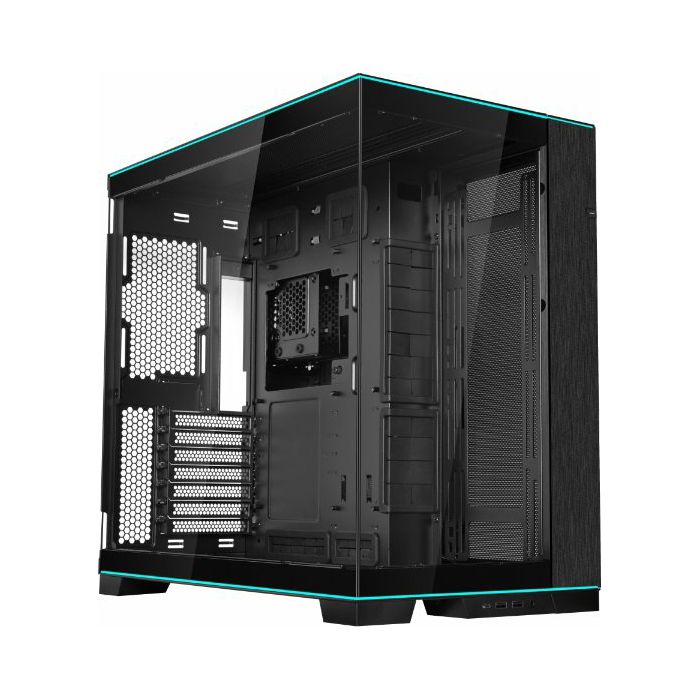

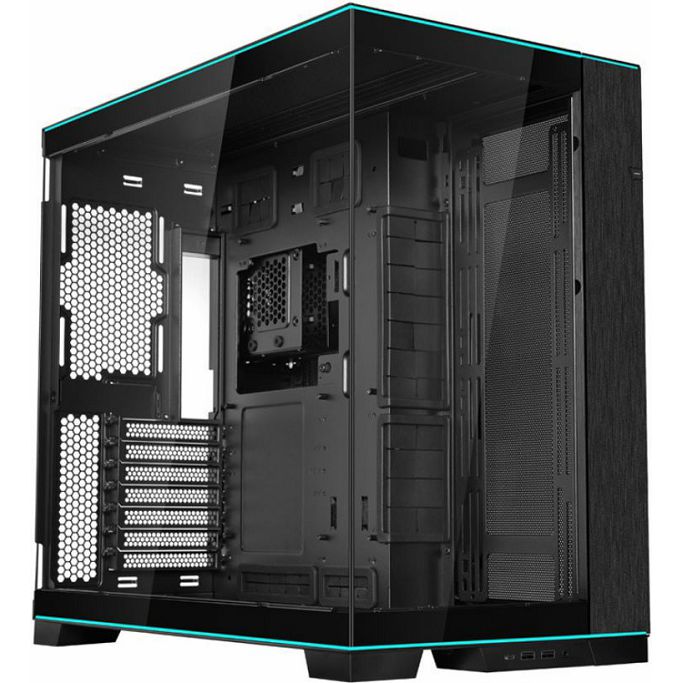

Lian Li Midi Tower O11 Dynamic Evo, RGB, glass window, Black, O11DERGBX, 4718466014153

external
not available
Internal
2x 2.5"/3.5" (transverse, HDD cage), 2x 2.5", 2x 3.5" (instead of other fan 3x 120/140mm) or Variante2: 2x 2.5"/3.5" (transverse, HDD cage), 2x 2.5", 4x 2.5" (instead of other fan 3x 120/?140mm)
Connectors
1x USB-C 3.1 (10Gb/?s, 20-Pin Key-A Header), 2x USB-A 3.0 (5Gb/?s), 1x 3.5mm jack (Line-In/?Out)
PCI-slots
7
Fan(s) (front)
not available
Fan(s) (rear)
1x 120mm (optional)
Fans (left)
3x 120mm (optional, instead of 2x 3.5"/4x 2.5") or 3x 140mm (optional, instead of 2x 3.5"/4x 2.5") at enclosure configuration Reverse Mode
Fans right
3x 120mm (optional, instead of 2x 3.5"/4x 2.5") or 3x 140mm (optional, instead of 2x 3.5"/4x 2.5") at enclosure configuration normal Mode
Fan(s) (top)
3x 120mm (optional) or 3x 140mm (optional)
Fan(s) (bottom)
3x 120mm (optional) or 3x 140mm (optional)
radiator sizes
not available front, 360/420mm top, 280/360mm left (only at Reverse Mode, instead of 2x 3.5"/4x 2.5"), 280/360mm right (only at normal Mode, instead of 2x 3.5"/4x 2.5"), 360mm bottom
Motherboard
to ATX (280mm wide)
Supported motherboards
Mini-ITX (6.7"x6.7")/µATX (9.6"x9.6")/ATX (12"x9.6")/E-ATX (12"x11.02")
Power supply
ATX (max. 220mm deep)
Power supply position
bottom (vertical)
CPU Coolers
max. 167mm height
Graphics Cards
max. 455.7mm
Colour
black, inside black
Lighting
integrated LED control, integrated RGB-LED lighting
Dimensions (WxHxD)
290x471x478mm
Capacity
65.29l
Weight
16.00kg
Type
Midi-Tower
front
closed, glass
above
partially closed, Mesh, mainly fan grill
below
partially closed, mainly fan grill, dust filter outdoor
left
closed, glass
right
partially closed, Mesh, mainly fan grill
aft
partially closed, fan grill right top, PCI slots bottom (7x horizontal)
front I/O position
Housing side: modular (front/?left/?right), Height: bottom, position: modular
Motherboard-Alignment
motherboard-alignment modular: to left or to right; Connectors: connectors rear
Special features
aluminum housing, Cable Management, dust filter, graphics card vertical mountable (optional), I/?O-panel-position optional modular, side panel window made out of glass, Mehrkammerdesign
note to E-ATX
Mainboard and case manufacturers refer to different dimensions as E-ATX. E-ATX/SSI EEB mainboard dimensions of 305x330mm respectively 12"x13" are not supported.
