Be quiet! Midi Tower Shadow Base 800 DX White, glass window, noise-insulated, BGW62

external
not available
Internal
2x 3.5" (transverse, HDD cage), 4x 2.5", 4x 2.5" (optional), 2x 3.5" (optional)
front I/O
1x USB-C 3.1 (10Gb/?s, 20-Pin Key-A Header), 2x USB-A 3.0 (5Gb/?s), 1x headphone, 1x microphone
PCI-slots
7

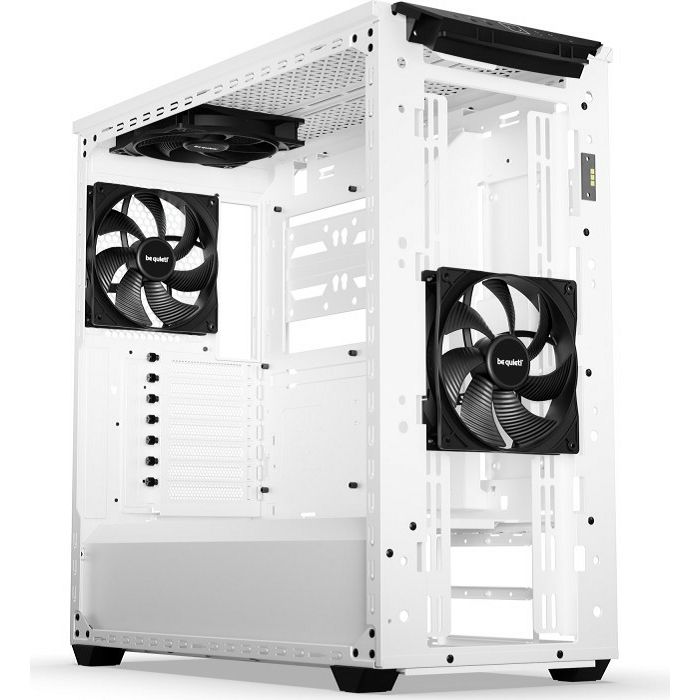

Fan(s) (front)
1x 140mm, 1200rpm, 0.96mmH2O, 97.5m3/?h, 21.9dB(A) or 3x 140mm (optional)
Fan(s) (rear)
1x 140mm, 1200rpm, 0.96mmH2O, 97.5m3/?h, 21.9dB(A)
Fans (left)
not available
Fans right
not available
Fan(s) (top)
1x 140mm, 1200rpm, 0.96mmH2O, 97.5m3/?h, 21.9dB(A) or 3x 140mm (optional)
Fan(s) (bottom)
1x 140mm (optional)
Fans (other)
not available
radiator sizes
120/?140/?240/?280/?360/?420mm front, 120/?140/?240/?280/?360/?420mm top, 120mm rear
Motherboard
to ATX (E-ATX with unknown dimensions possible)
Supported motherboards
Mini-ITX (6.7"x6.7")/µATX (9.6"x9.6")/ATX (12"x9.6")/?E-ATX (unknown dimensions)
Power supply
ATX (max. 250mm deep)
Power supply position
bottom
CPU Coolers
max. 180mm height
Graphics Cards
max. 430mm
Colour
white, inside white
Lighting
RGB-Header 3-Pin ARGB (+5V/?DATA/?GND), integrated LED control, integrated RGB-LED lighting
Dimensions (WxHxD)
247x522x550mm
Capacity
70.91l
Weight
11.70kg
Type
Midi-Tower
front
Mesh, dust filter inside
above
partially closed, mainly fan grill, dust filter outdoor
below
partially closed, mainly fan grill, dust filter outdoor
left
closed, glass
right
closed, insulation mat inside
aft
partially closed, fan grill right top, PCI slots (modular, 7x horizontal or 7x vertical)

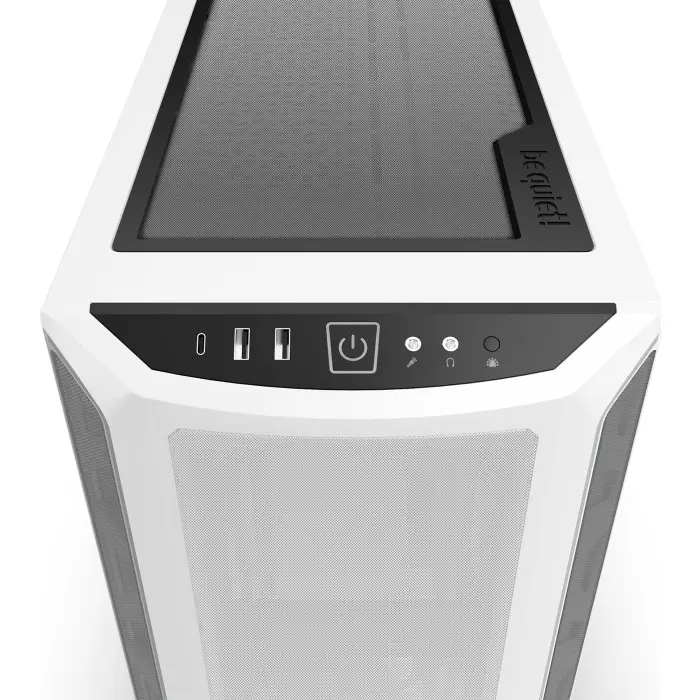

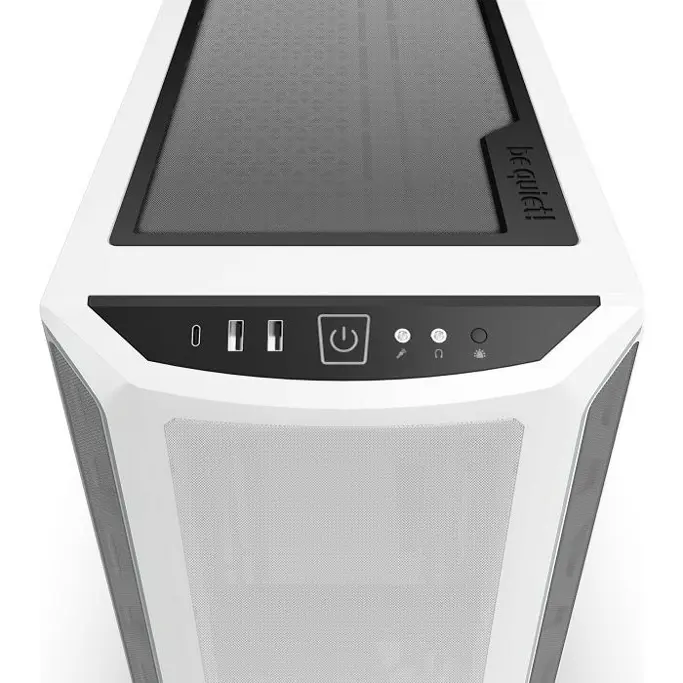

front I/O position
Housing side: top, Height: front, position: centered
Motherboard-Alignment
motherboard-Alignment: to left
Special features
Cable Management, dust filter, PCI-slots vertical mountable, side panel window made out of glass, noise-insulated
Note
Mainboard and case manufacturers refer to different dimensions as E-ATX. This manufacturer does not specify supported E-ATX dimensions. E-ATX/SSI EEB mainboard dimensions of 305x330mm respectively 12"x13" may not be supported.
