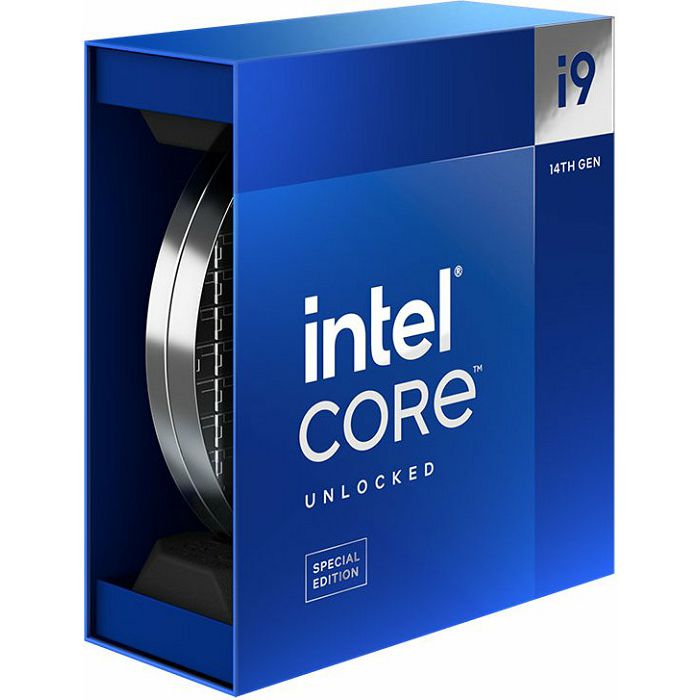

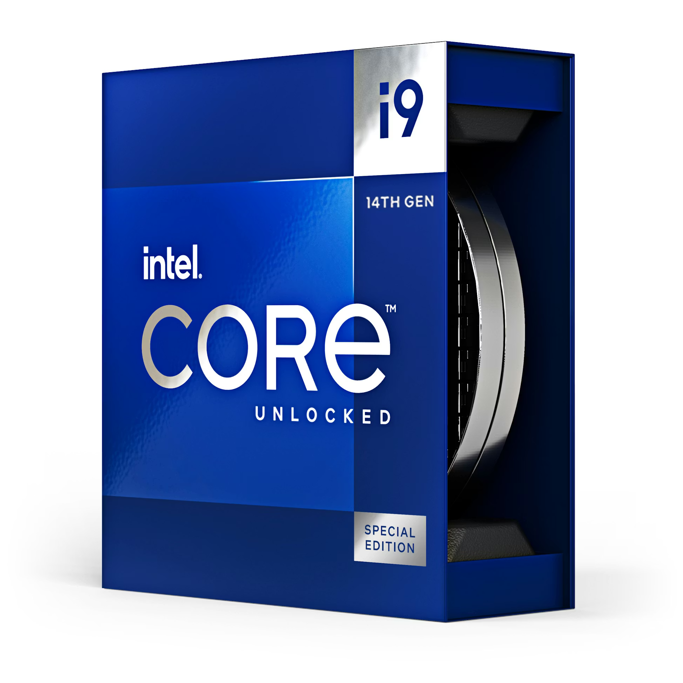

Intel Core i9-14900KS 3.2GHz LGA1700, Special Edition, boxed without cooler, BX8071514900KS

Cores 24 (8C+16C)
Threads 32 (16+16)
Turbo Clock 6.20GHz (Thermal Velocity Boost), 5.90GHz (Turbo Boost Max 3.0), 5.70GHz (P-Core), 4.50GHz (E-Core)
Base Clock 3.20GHz (P-Core), 2.40GHz (E-Core)
TDP 150W (Processor Base Power), 253W (Maximum Turbo Power)
Graphic yes (Intel UHD Graphics 770)
Plinth Intel 1700 (LGA1700)
Chipset Suitability B660, B760, H610, H610E, H670, H770, Q670, Q670E, R680E, W680, Z690, Z790
Code name Raptor Lake-S
Architecture Raptor Cove (P-Core) + Gracemont (E-Core)
Manufacturing Intel 7
L2 Cache 32MB (8x 2MB + 16x 1MB)
L3 Cache 36MB
Memory Controllers Dual Channel DDR4/DDR5, max. 192GB
Storage Compatibility DDR4-3200 (PC4-25600, 51.2GB/s), DDR5-5600 (PC5-44800, 89.6GB/s)
ECC support yes
SMT yes (P-Core, Intel Hyper-Threading)
Remote maintenance no
Free Multiplier yes
CPU Functions AES-NI, AVX, AVX2, Boot Guard, CET, DL Boost, EIST, GNA 3.0, Idle States, Instruction Set 64bit (Intel 64), Intel Adaptive Boost Technology, ISM, MBEC, OS Guard, Secure Key, Speed Shift, SSE4.1, SSE4.2, Thermal Monitoring, Thread Director, TVB, VMD, VT-d, VT-x, VT-x EPT, XD Bit
System Suitability 1 Socket (1S)
PCIe Lanes 16x PCIe 5.0, 4x PCIe 4.0
Chipset Interface DMI 4.0, 16GT/s (PCIe 4.0 x8)
iGPU Model Intel UHD Graphics 770
iGPU Clock 0.30-1.65GHz
iGPU Units 2Xe/32EU/256SP
iGPU Architecture Xe-LP / Gen 12.2, codenamed "Raptor Lake GT1"
iGPU Interface DP 1.4a (7680x4320@60Hz), eDP 1.4b (5120x3200@120Hz), HDMI 2.1 (4096x2160@60Hz)
iGPU Features 4x Display Support, 2x Codec Engines / Video Decode Boxes, Intel Clear Video HD, Intel Quick Sync Video, AV1 decode, H.265 encode/decode, VP9 encode/decode, HDCP 2.3, DirectX 12, OpenGL 4.5, OpenCL 3.0, Vulkan 1.0
iGPU processing power 0.87 TFLOPS (FP32)
Scope of delivery without CPU cooler
Introduction 2024/Q1 (14.3.2024)
Segment Desktop (Mainstream)
Stepping B0, Spec Code: SRN7R
Temperature max. 100°C (Tjunction)
