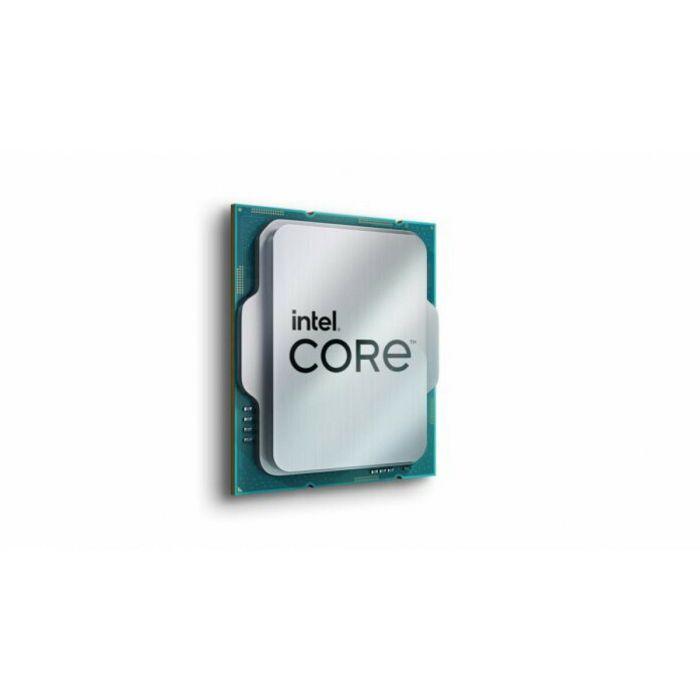

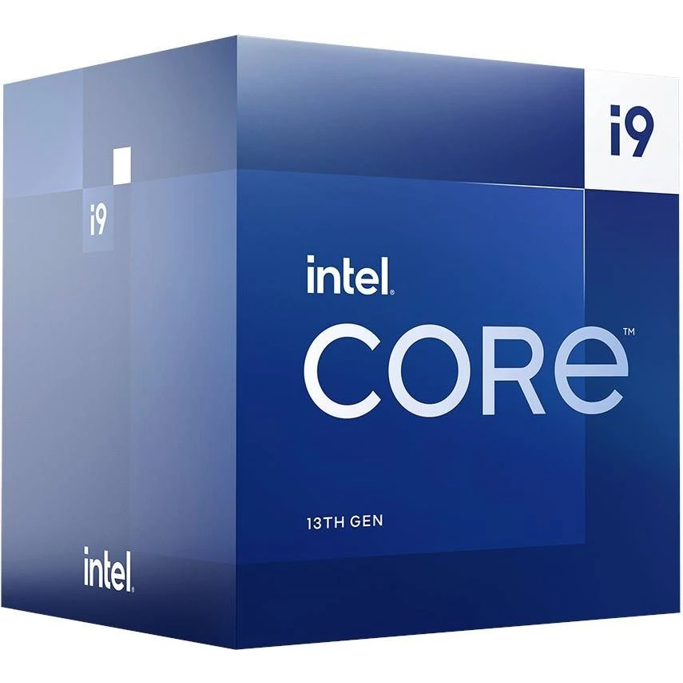

Intel Core i9-13900 2.0GHz (5.60GHz Turbo) LGA1700, boxed, BX8071513900

Cores 24 (8+16)
Threads 32 (16+16)
Turbo clock 5.60GHz
Base clock 2.00GHz (P-Core), 1.50GHz (E-Core)
TDP 65W, cTDP: 65-219W
Graphic yes (Intel UHD Graphics 770)
Plinth Intel 1700 (LGA1700), "Socket V"
Chipset Compatibility B660, B760, H610, H670, H770, W680, Z690, Z790
Code name Raptor Lake-S
Architecture Raptor Cove (P-Core), Gracemont (E-Core)
Manufacturing Intel 7
L2 cache 32MB (8x 2MB + 16x 1MB)
L3 cache 36MB
Storage Controllers Dual Channel DDR5-5600 (PC5-44800), DDR4-3200 (PC4-25600), 89.6GB/s, 128GB max
ECC support yes
SMT yes (Intel Hyper-Threading)
Remote maintenance yes (Intel vPro)
Free multiplier no
System suitability 1 socket (1S)
PCIe lanes 16x PCIe 5.0, 4x PCIe 4.0
Chipset Interface DMI 4.0, 16GT/s (PCIe 4.0 x8)
iGPU Model Intel UHD Graphics 770
iGPU Appliances 32EU/256 shaders
iGPU architecture Gen 12.2, codenamed "Raptor Lake GT1"
iGPU interface DP 1.4a (7680x4320@60Hz), eDP 1.4b (5120x3200@120Hz), HDMI 2.1 (4096x2160@60Hz)
iGPU Features 4x Display Support, 2x Multi-Format Codec Engine, Intel Clear Video HD, Intel Quick Sync Video, AV1 decode, H.265 encode/decode, VP9 encode/decode, HDCP 2.3, DirectX 12.1, OpenGL 4.5, OpenCL 3.0, Vulkan 1.0
Scope of delivery with CPU cooler (Intel Laminar RH1)
Introduction 2023/Q1 (3.1.2023)
Segment Desktop (Mainstream)
Stepping B0
Temperature max. 100°C (Tjunction)
Heatspreader contact means Metal/soldered
