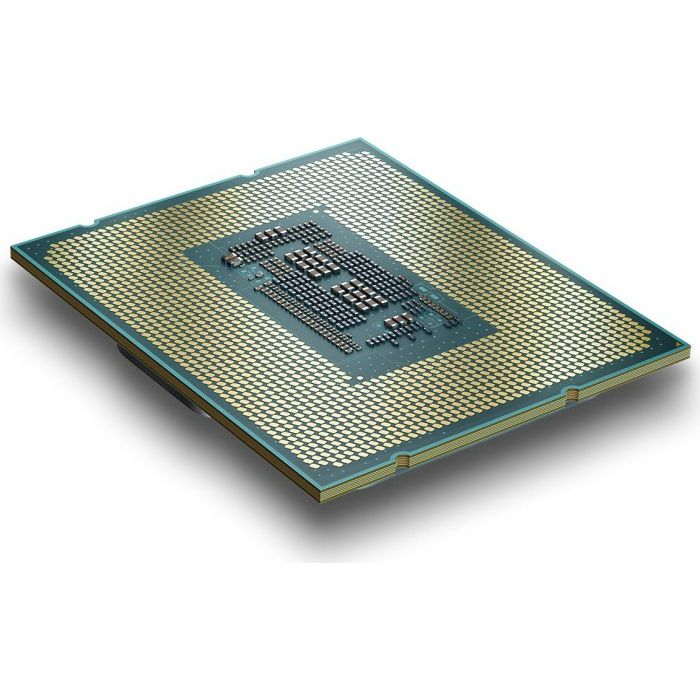

Intel Core i7-14700KF 3.4GHz LGA1700, boxed without cooler, BX8071514700KF

Cores 20 (8C+12C)
Threads 28 (16+12)
Turbo Clock 5.60GHz (Turbo Boost Max 3.0), 5.50GHz (P-Core), 4.30GHz (E-Core)
Base Clock 3.40GHz (P-Core), 2.50GHz (E-Core)
TDP 125W (Processor Base Power), 253W (Maximum Turbo Power)
Graphic no
Plinth Intel 1700 (LGA1700), "Socket V"
Chipset Suitability B660, B760, H610, H670, H770, W680, Z690, Z790
Code name Raptor Lake-S
Architecture Raptor Cove (P-Core) + Gracemont (E-Core)
Manufacturing Intel 7
L2 Cache 28MB (8x 2MB + 12x 1MB)
L3 Cache 33MB
Memory Controllers Dual Channel DDR5-5600 (PC5-44800), DDR4-3200 (PC4-25600), 89.6GB/s, max. 192GB
ECC support no
SMT yes (P-Core, Intel Hyper-Threading)
Remote maintenance no
Free Multiplier yes
CPU Functions AES-NI, AVX, AVX2, Boot Guard, CET, DL Boost, EIST, GNA 3.0, Idle States, Instruction Set 64bit (Intel 64), ISM, MBEC, OS Guard, Secure Key, Speed Shift, SSE4.1, SSE4.2, Thermal Monitoring, Thread Director, VMD, VT-d, VT-x, VT-x EPT, XD Bit
System Suitability 1 Socket (1S)
PCIe Lanes 16x PCIe 5.0, 4x PCIe 4.0
Chipset Interface DMI 4.0, 16GT/s (PCIe 4.0 x8)
Scope of delivery without CPU cooler
Introduction 2023/Q4 (16.10.2023)
Segment Desktop (Mainstream)
Stepping B0, Spec Code: SRN3Y
Temperature max. 100°C (Tjunction)
Heatspreader Contact Agent Metal/Soldered
