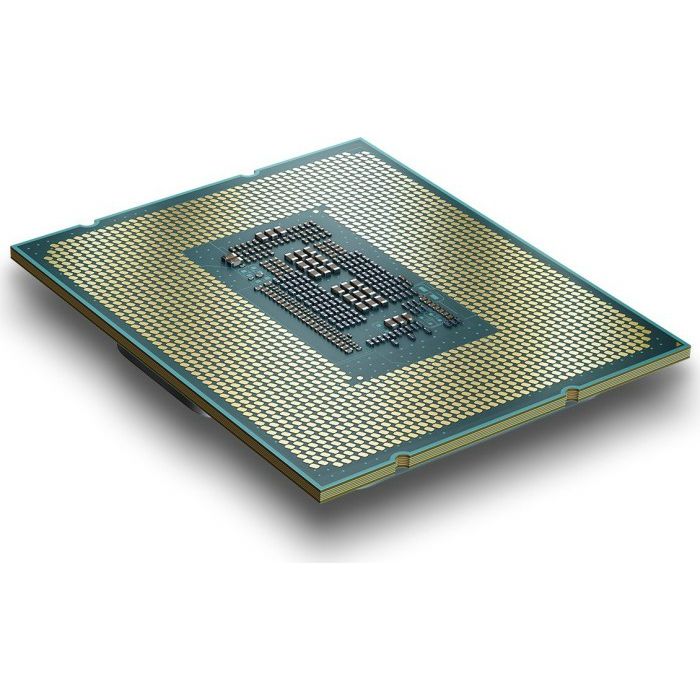

Intel Core i7-14700K 3.4GHz LGA1700, boxed without cooler, BX8071514700K

Cores 20 (8C+12C)
Threads 28 (16+12)
Turbo Clock 5.60GHz (Turbo Boost Max 3.0), 5.50GHz (P-Core), 4.30GHz (E-Core)
Base Clock 3.40GHz (P-Core), 2.50GHz (E-Core)
TDP 125W (Processor Base Power), 253W (Maximum Turbo Power)
Graphic yes (Intel UHD Graphics 770)
Plinth Intel 1700 (LGA1700), "Socket V"
Chipset Suitability B660, B760, H610, H670, H770, W680, Z690, Z790
Code name Raptor Lake-S
Architecture Raptor Cove (P-Core) + Gracemont (E-Core)
Manufacturing Intel 7
L2 Cache 28MB (8x 2MB + 12x 1MB)
L3 Cache 33MB
Memory Controllers Dual Channel DDR5-5600 (PC5-44800), DDR4-3200 (PC4-25600), 89.6GB/s, max. 192GB
ECC support yes
SMT yes (P-Core, Intel Hyper-Threading)
Remote maintenance yes (Intel vPro Essentials, Intel vPro Enterprise)
Free Multiplier yes
CPU Functions AES-NI, AMT, AVX, AVX2, Boot Guard, CET, DL Boost, EIST, GNA 3.0, Hardware Shield, Idle States, Instruction Set 64bit (Intel 64), ISM, MBEC, One-Click Recovery, OS Guard, RPE, Secure Key, SIPP, Speed Shift, SSE4.1, SSE4.2, TDT, Thermal Monitoring, Thread Director, Total Memory Encryption - Multi Key, TXT, VMD, VT-d, VT-rp, VT-x, VT-x EPT, XD Bit
System Suitability 1 Socket (1S)
PCIe Lanes 16x PCIe 5.0, 4x PCIe 4.0
Chipset Interface DMI 4.0, 16GT/s (PCIe 4.0 x8)
iGPU Model Intel UHD Graphics 770
iGPU Clock 0.30-1.60GHz
iGPU Units 32EU / 256 Shader
iGPU Architecture Gen 12.2, codenamed "Raptor Lake GT1"
iGPU Interface DP 1.4a (7680x4320@60Hz), eDP 1.4b (5120x3200@120Hz), HDMI 2.1 (4096x2160@60Hz)
iGPU Features 4x Display Support, 2x Multi-Format Codec Engine, Intel Clear Video HD, Intel Quick Sync Video, AV1 decode, H.265 encode/decode, VP9 encode/decode, HDCP 2.3, DirectX 12, OpenGL 4.5, OpenCL 3.0, Vulkan 1.0
iGPU processing power 0.8192 TFLOPS (FP32)
Scope of delivery without CPU cooler
Introduction 2023/Q4 (16.10.2023)
Segment Desktop (Mainstream)
Stepping B0, Spec Code: SRN3X
Temperature max. 100°C (Tjunction)
Heatspreader Contact Agent Metal/Soldered
