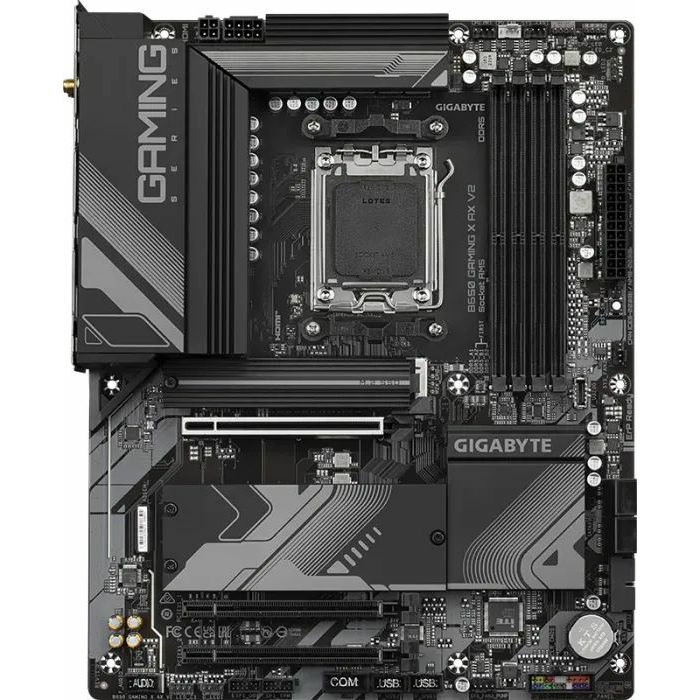

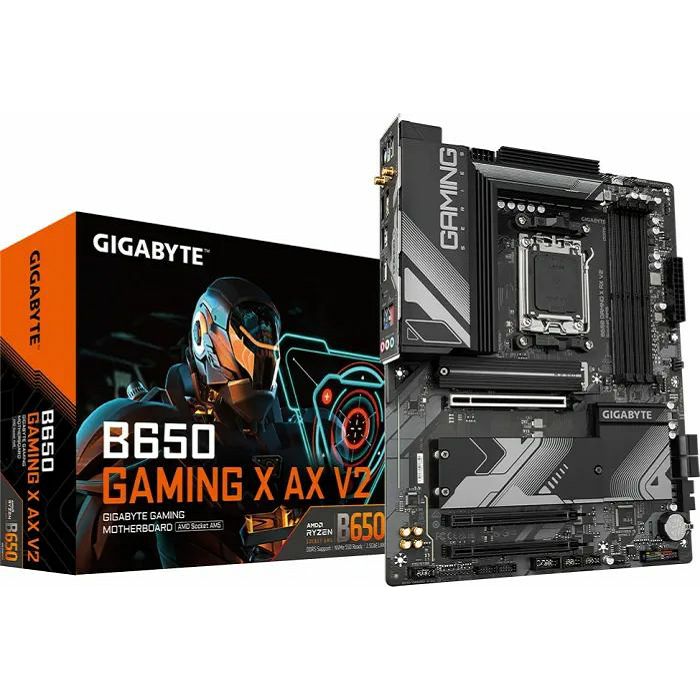

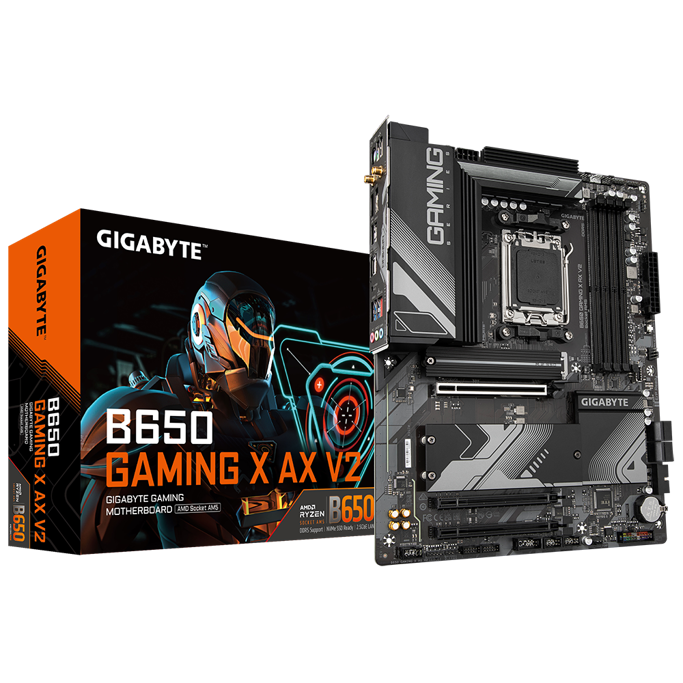

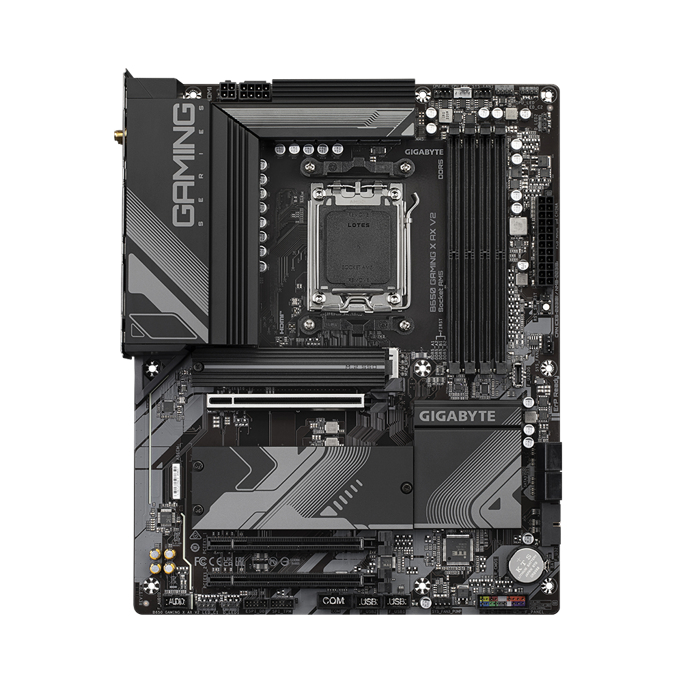

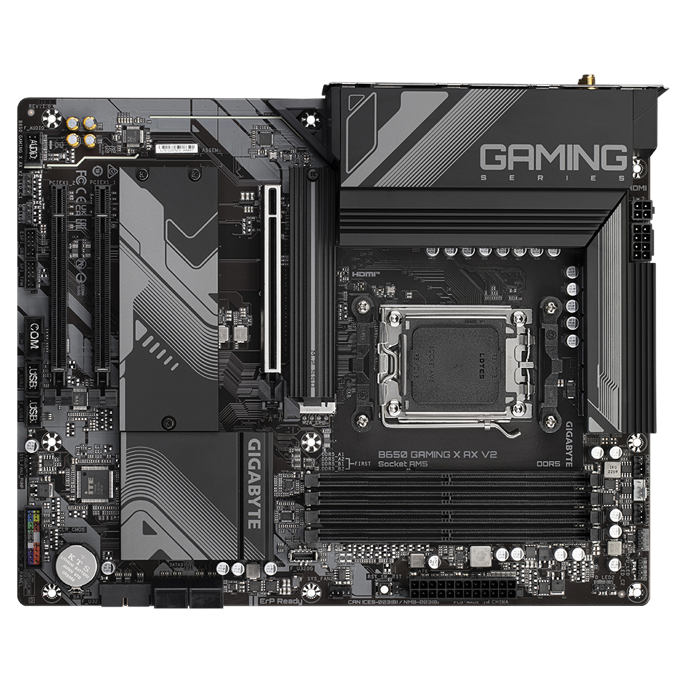

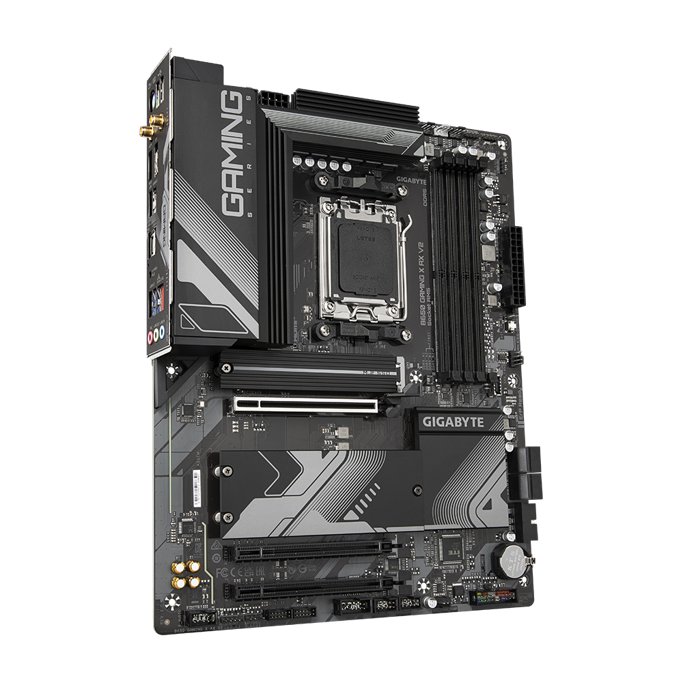

Gigabyte B650 Gaming X AX V2, WiFi, AMD B650 chipset, 60A Smart, 8+2+2 VRM, AM5, DDR5

Form factor ATX
Plinth AMD AM5
Chipset AMD B650
CPU Compatibility Ryzen 8000G, Ryzen 7000, no TDP limitation (list of manufacturers))
RAM 4x DDR5 DIMM, dual PC5-64000U/DDR5-8000 (OC), max. 192GB (UDIMM)
Expansion Slots 1x PCIe 4.0 x16, 2x PCIe 3.0 x16 (x1), 1x M.2/M-Key (PCIe 5.0 x4, 25110/2580), 2x M.2/M-Key (PCIe 4.0 x4, 25110/2580), 1x M.2/E-Key (PCIe, 2230, assigned to WiFi+BT module)

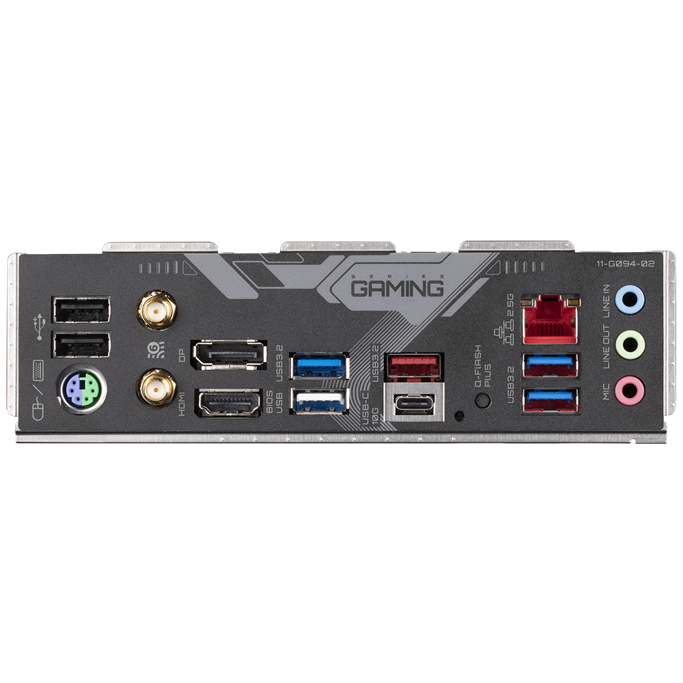

External connections 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.1 (10Gb/s), 1x USB-A 3.1 (10Gb/s), 3x USB-A 3.0 (5Gb/s), 3x USB-A 2.0 (480Mb/s), 1x 2.5GBase-T (Realtek), 3x jack, 1x PS/2 combo, 2x antenna connector RP-SMA
Internal connections 1x USB-C 3.2 Key-A header (20Gb/s), 1x USB 3.0 header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (B650), 1x serial, 1x TPM header
Header Cooling 1x CPU fan 4-pin, 1x CPU fan/pump 4-pin, 2x fan 4-pin, 1x fan/pump 4-pin
Header Lighting 2x 3-Pin ARGB (+5V/DATA/GND, max. 5A), 3x 4-Pin RGB (+12V/G/R/B, max. 2A)
Buttons/Switches Reset button (internal), USB BIOS Flashback/Q-Flash Plus (external)
Audio 7.1 (Realtek ALC897)
Graphic iGPU
Wireless Wi-Fi 6E (Wi-Fi 802.11a/b/g/n/ac/ax, 2x2, Realtek RTL8852CE), Bluetooth 5.3
RAID Level 0/1/10 (B650)
Power connections 1x 24-pin ATX, 1x 8-pin EPS12V, 1x 4-pin ATX12V
VRM 10 virtual phases (8+2+2), 10 real phases (8+2), PWM controller: XDPE192C3B (max. 12 phases)
MOSFETs CPU (VCORE) 8x 60A NCP303160
MOSFETs SoC (VCCGT) 2x 60A NCP303160
Lighting N/A
BIOS 1x 32MB (256Mb)
Particularities Audio+solid capacitors, Diagnostic LED (LED indicators), 3x M.2 passive coolers, integrated I/O panel, onboard TPM 2.0 support (AMD fTPM)
