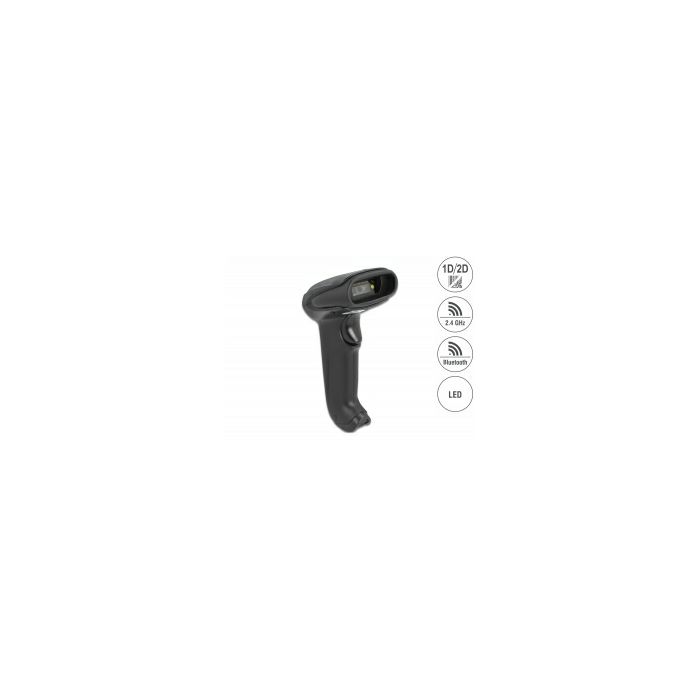

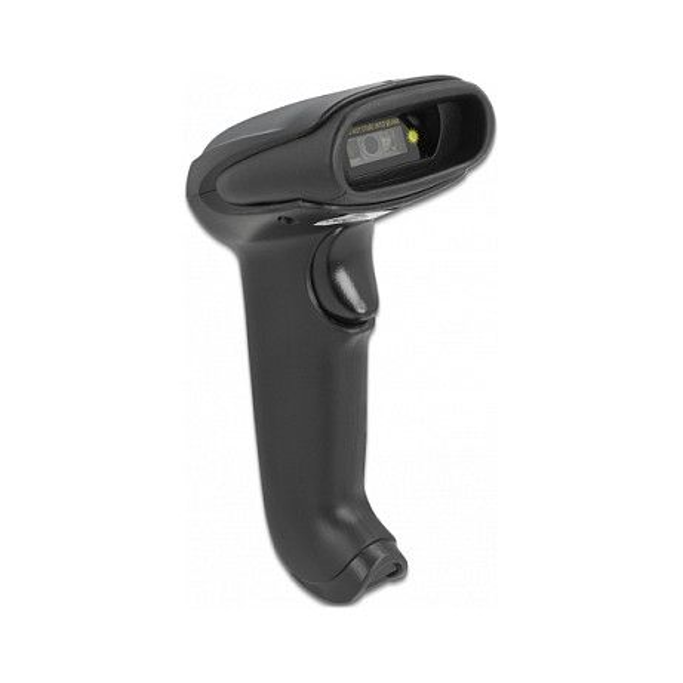

Delock Bar kod čitač, 1D/2D, for 2.4 GHz, Bluetooth or USB, 90562

Description
This barcode scanner by Delock can be wirelessly connected to a PC, laptop or directly to a mobile phone or tablet. All common 1D and 2D barcode types can be precisely captured even at long distances. Additionally, the scanner recognizes barcodes displayed on displays and monitors.

Automatic adaptation to ambient brightness
The scanner automatically adapts to the ambient brightness and captures up to 30 scans per second under optimal lighting conditions.
In low ambient brightness, the barcode is illuminated by an additional white LED and can therefore also be used in poor lighting conditions.

Transmission via Bluetooth, USB or 2.4 GHz
The data transfer of the scanned barcodes is done either via Bluetooth directly with the Bluetooth capable output device or via the 2.4 GHz frequency band using the included USB dongle. Alternatively, the scanner can be connected to the computer with the included USB cable.

Note: Not suitable for Swiss QR Codes.

Specification
Connector: 1 x USB 2.0 Type-B female
Decoding chip: ARM Cortex 32 Bit
Rechargeable battery: Li-Polymer battery 1800 mAh
Resolution: 752 x 480
Trigger: scan button
Reading distance: ca. 60 mm to 300 mm
Reading accuracy: 5 mil
Range: up to 10 m
Internal memory: 16 MB
Light colour: visible LED red
Compensation light: LED white
Sensor: linear CMOS image sensor
Scan rate: up to 30 scans per second
Scan angle: 55°
Surrounding brightness: max. 100000 Lux
Input voltage: 5 V
Current consumption:
Operation: max. 100 mA
Standby: max. 30 mA
Operating temperature: 0 °C ~ 50 °C
Storage temperature: -10 °C ~ 50 °C
Relative humidity: 20 - 85 % (non condensing)
Colour: black
Weight: ca. 190 g
Dimensions (LxWxH): ca. 170 x 90 x 70 mm
Cable length without connectors: ca. 1.5 m
Bluetooth standard V 4.0
2.4 GHz
Scancodes:
Codabar
Code 128
Code 39
Interleaved 2 of 5
EAN-8 / EAN-13
ISBN - 13
Data Matrix
Micro QR
PDF417
QR Code


System requirements
Android 9.0 or above
iPad Pro (2018)
Mac OS 10.15.6 or above
Bluetooth standard 4.0 or above
Windows 8.1/8.1-64/10/10-64/11
PC or laptop with a free USB Type-A port for dongle


Package content
Barcode scanner
USB 2.4 GHz dongle
USB charging cable
User manual
