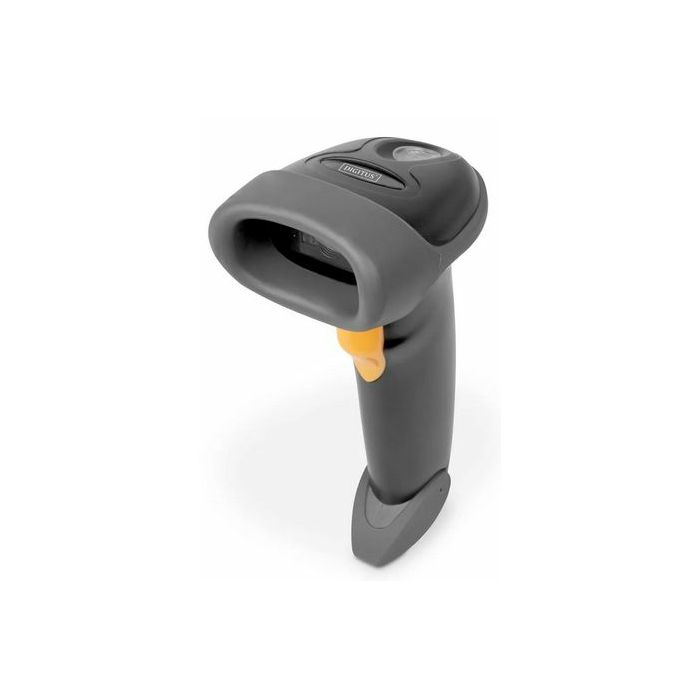

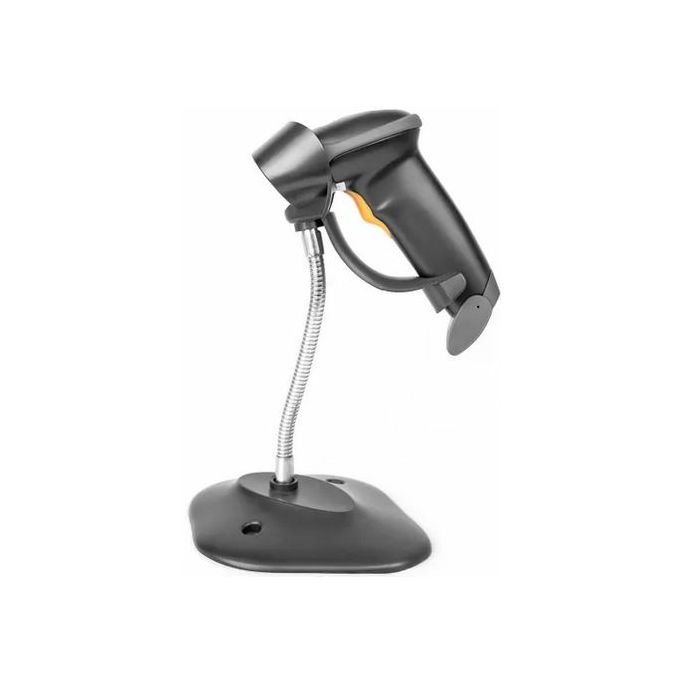

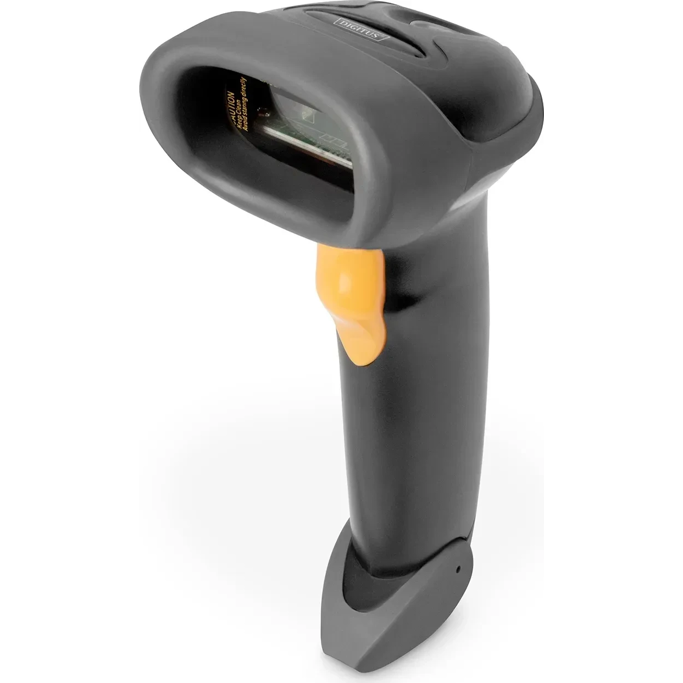

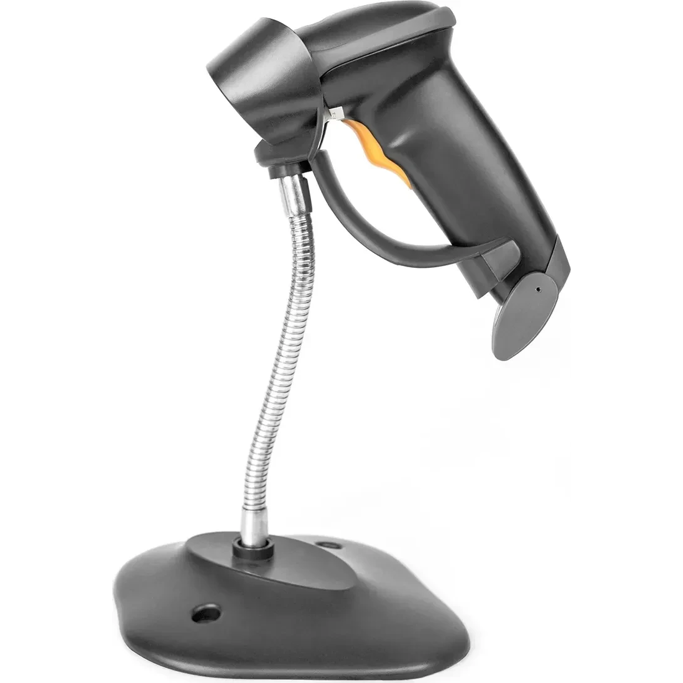

DIGITUS DA-81002 2D Barcode, ručni skener, QR-Code

DIGITUS® Model DA-81002
Support OS: Windows, Android, 10S, Linux
Interface Support USB
Cable length 2 meters
Electrical parameter DC 3.3-5V, 120mA, idle 1µA
Scanning type Area imaging
Sensor CMOS array sensor
CPU ARM 32-bit Cortex
Light source LED (CMOS)
Trigger Mode Handheld / Continuous / Auto-Induction
Auto-Induction interval time 1 second
Trigger/ Auto-Induction switching time For 2D scanner, needs to scan the setting barcode on user manual to transfer from auto induction mode to trigger mode.
Indication Buzzer & Indicator lamp
Printing Contract ?25%
Decoding speed 200 scans/sec
Resolution 1D: ?5mil
2D: ?10mil
Bit error rate 1/5 million, 1/20 million
Scanning width 10cm
Depth of field EAN-13: 4.0-20.0cm (13mil)
Code128: 4.5 – 25.0cm (15mil)
QR Code: 4.0- 18cm (15mil)
Scanning angle roll angel 360', inclination t 60', deflection t 60'
Anti-inference Direct indoor light source
Decoding capability 1D: GS1 Data Bar, G51-128, ISSN, MSI, Industrial 2 of 5, JAN-8, JAN-13, EAN-128, Code 32, IATA, ITF, ITF-14, Matrix 2 of 5, ITF-6, Rss limited, Rss Expanded, Deutsche 12, Industrial 25, Code 128, Codabar, UPC, CODA BAR, Code 39, Code 93, BIGCODE, EAN 8, EAN 13 2D: PDF417, QR code, Data matrix.
Housing Material ABS+PC
Working times of button 500,000 times
IP grade IP54
Working Temperature 0°F-120°F/-20°C- 50°C
Storage Temperature -40’F-1607/-40t- 70’C
Relative Humidity 5%-95%(Non-condensing)
Weight 110g
Dimensions 16.5 x 6.3 x 8.7cm
