ASUS Z790 Prime Z790-P WiFi, DDR5, Intel, s1700, 90MB1CJ0-M0EAY0

Form factor ATX
Plinth Intel 1700
Chipset Intel Z790
CPU Compatibility Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM 4x DDR5 DIMM, dual PC5-57600U/DDR5-7200 (OC), max 192GB (UDIMM)
Expansion slots 1x PCIe 5.0 x16, 3x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x1, 1x M.2/M-Key (PCIe 4.0 x4, 22110/2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4, 2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4/SATA, 22110/2280/2260/2242), 1x M.2/E-Key (PCIe/Intel CNVi, 2230, occupied with WiFi+BT module)

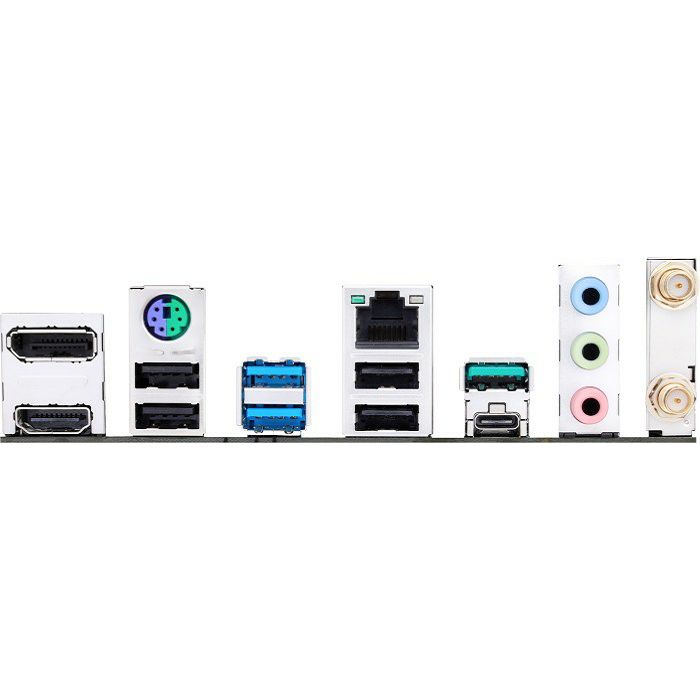

External connections 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.2 (20Gb/s), 1x USB-A 3.1 (10Gb/s), 2x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 1x 2.5GBase-T (Realtek), 3x jack, 1x PS/2 combo, 2x antenna connector (RP-SMA)
Internal connections 1x USB-C 3.1 Key-A header (10Gb/s), 2x USB 3.0 header (5Gb/s, 4x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (Z790), 1x serial, 1x TPM header, 1x Thunderbolt header 13-pin (14-1), 1x S/PDIF header
Header Cooling 2x CPU fan 4-pin, 3x fan 4-pin, 1x AIO pump 4-pin
Header Lighting 2x 4-pin RGB (+12V/G/R/B, max. 3A), 3x 3-pin ARGB (+5V/DATA/GND, max. 3A, ASUS Gen2)
Buttons/Switches N/A
Audio 7.1 (Realtek)
Graphic iGPU
Wireless Wi-Fi 6 (WLAN 802.11a/b/g/n/ac/ax, 2x2), Bluetooth 5.2
RAID Levels 0/1/5/10 (Z790)
Multi-GPU N/A
Electrical connections 1x 24-pin ATX, 1x 8-pin EPS12V, 1x 4-pin ATX12V
VRM 15 virtual phases (14+1)
Lighting N/A
BIOS 1x 24MB (192Mb)
Particularities Audio+solid capacitors, 1x M.2 passive cooler, onboard TPM 2.0 support (Intel PTT)
