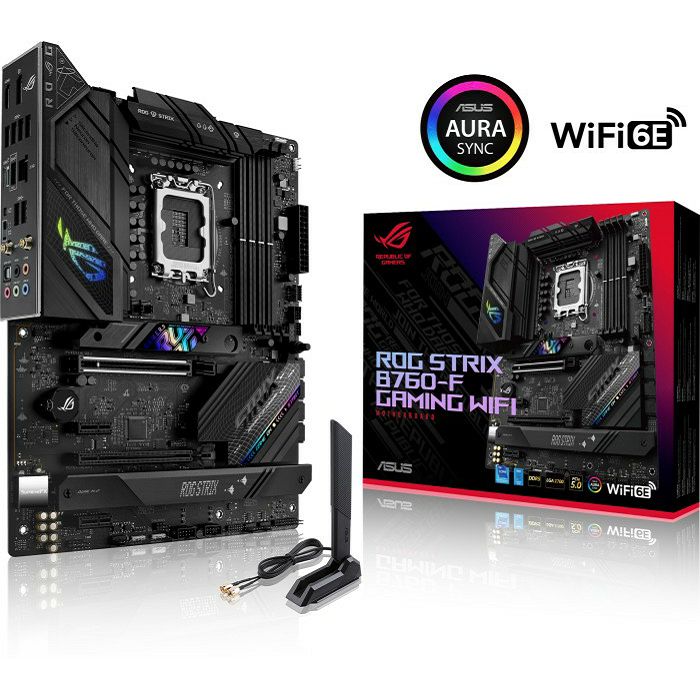

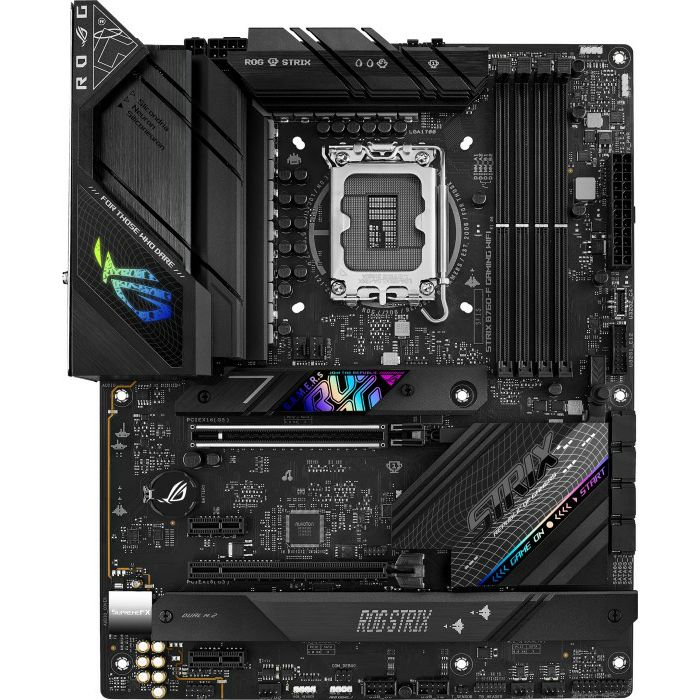

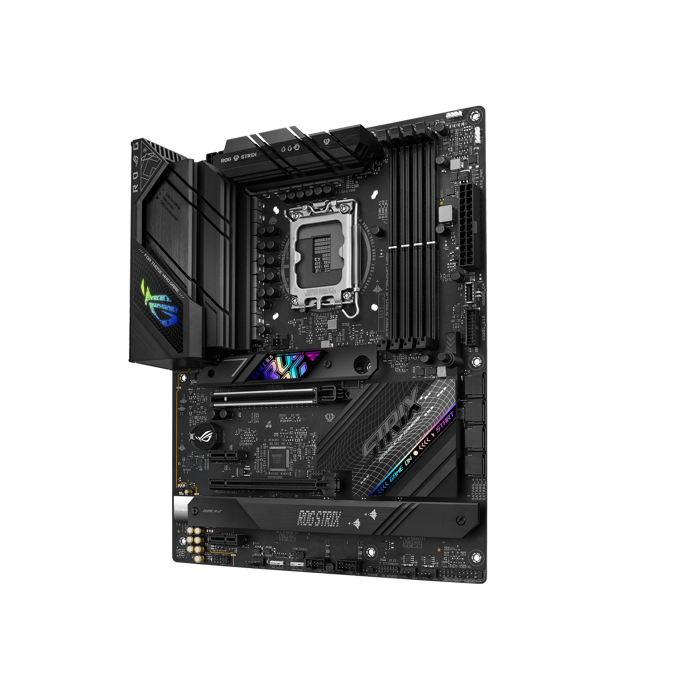

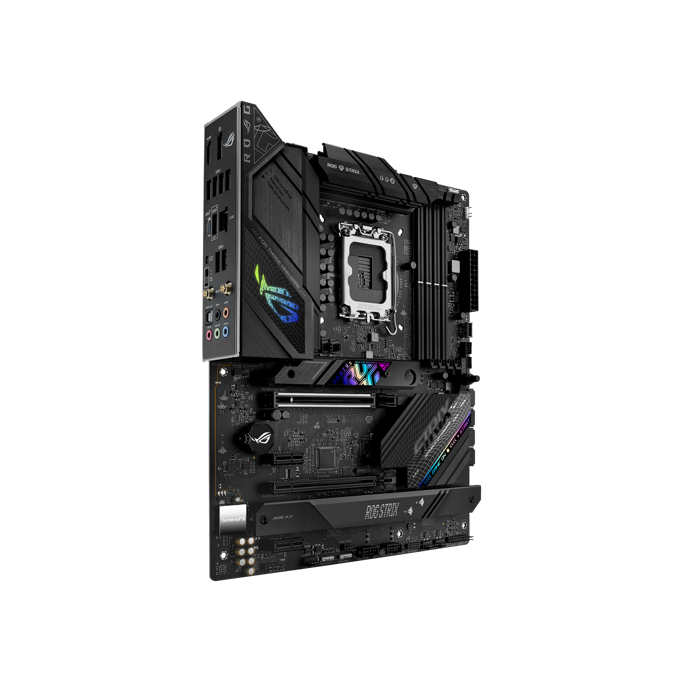

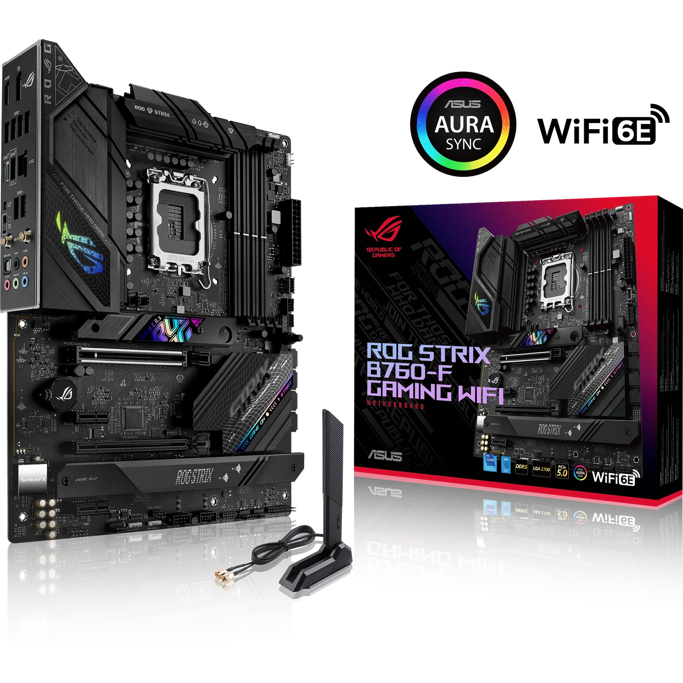

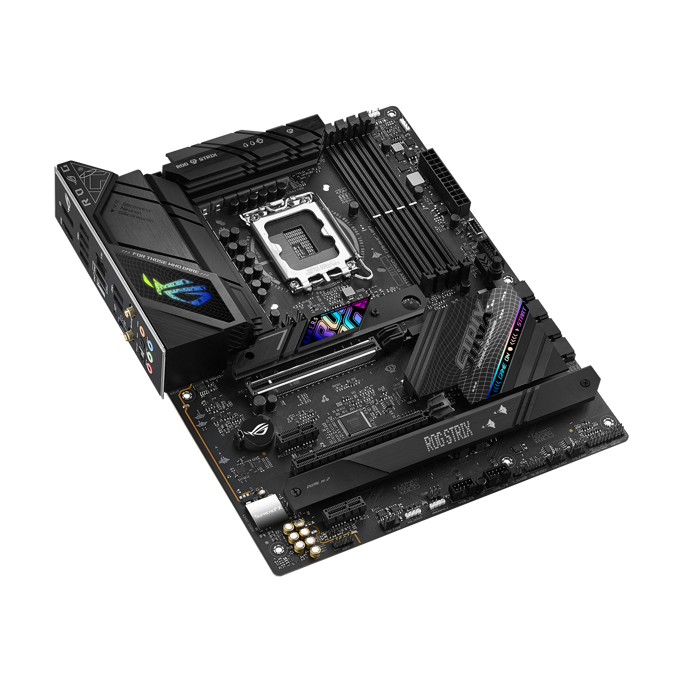

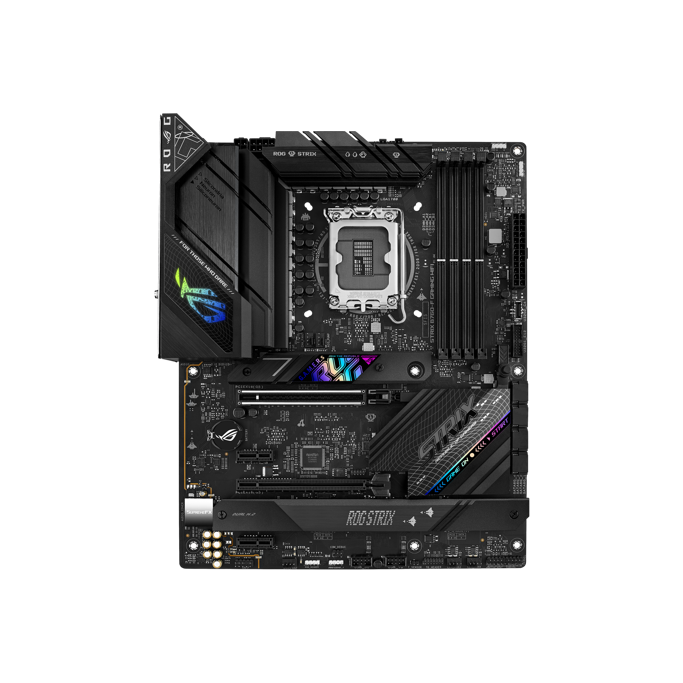

ASUS ROG Strix B760-F Gaming WIFI, DDR5, s1700, 90MB1CT0-M0EAY0, 90MB1CT0-M1EAY0

Form factor ATX
Plinth Intel 1700
Chipset Intel B760
CPU Compatibility Core i-13000, Core i-12000, Pentium Gold G7000, Celeron G6000
RAM 4x DDR5 DIMM, dual PC5-62400U/DDR5-7800 (OC), max 128GB (UDIMM)
Expansion slots 1x PCIe 5.0 x16, 1x PCIe 3.0 x16 (x4), 2x PCIe 3.0 x1, 2x M.2/M-Key (PCIe 4.0 x4, 2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 x4, 22110/2280/2260/2242), 1x M.2/E-Key (Intel CNVi, 2230, occupied with WiFi+BT module)

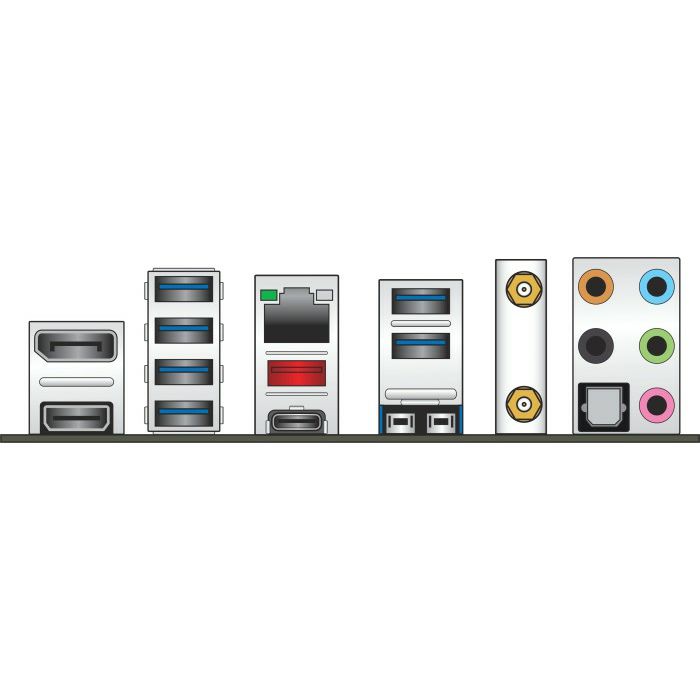

External connections 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.2 (20Gb/s), 1x USB-A 3.1 (10Gb/s), 6x USB-A 3.0 (5Gb/s), 1x 2.5GBase-T (Intel I226-V), 5x jack, 1x Toslink, 2x antenna connector (RP-SMA)
Internal connections 1x USB-C 3.1 Key-A header (10Gb/s), 1x USB 3.0 header (5Gb/s, 2x USB 3.0), 2x USB 2.0 header (480Mb/s, 4x USB 2.0), 4x SATA 6Gb/s (B760), 1x Thunderbolt header 13-pin (14-1), 1x chassis intrusion header, 1x COM debug header
Header Cooling 2x CPU fan 4-pin, 4x fan 4-pin, 1x AIO pump 4-pin, 1x thermal sensor
Header Lighting 1x 4-pin RGB (+12V/G/R/B, max. 3A), 3x 3-pin ARGB (+5V/DATA/GND, max. 3A, ASUS Gen2)
Buttons/Switches Clear-CMOS-Button (external), USB BIOS Flashback (external)
Audio 7.1 (Realtek ALC4080/ASUS SupremeFX), AMP (Savitech SV3H712), DTS Sound Unbound
Graphic iGPU
Wireless Wi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2), Bluetooth 5.3
RAID Levels 0/1/5/10 (B760)
Multi-GPU N/A
Electrical connections 1x 24-pin ATX, 1x 8-pin EPS12V, 1x 4-pin ATX12V
VRM 17 virtual phases (16+1), 9 real phases (8+1), PWM controller: ASP2100R (RT3628AE, max. 9 phases)
MOSFETs CPU 16x 60A SiC623
MOSFETs SoC 1x 60A SiC623
Lighting RGB, 1 zone (I/O coverage)
BIOS 1x 32MB (256Mb)
Particularities Audio+solid cap
