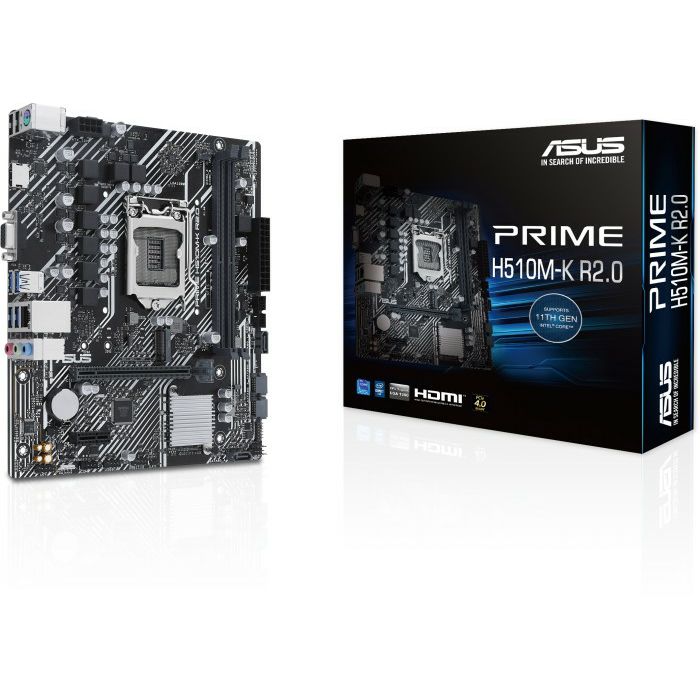

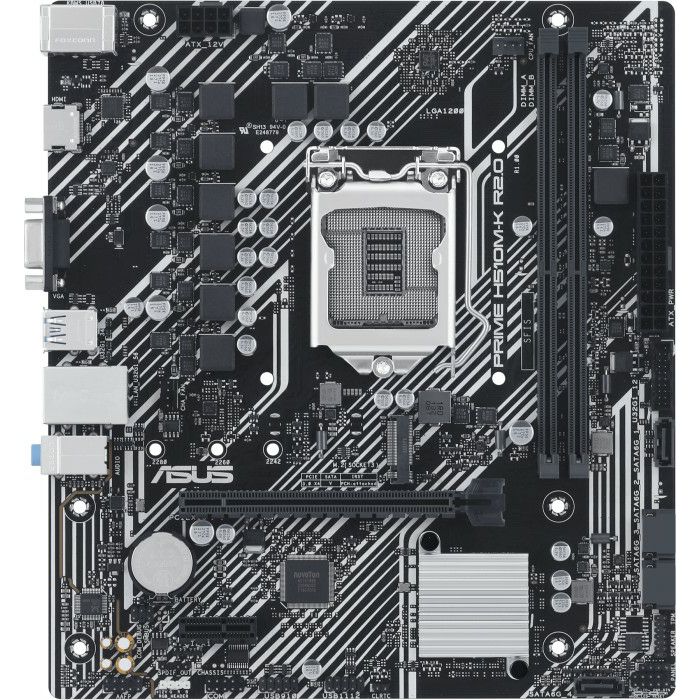

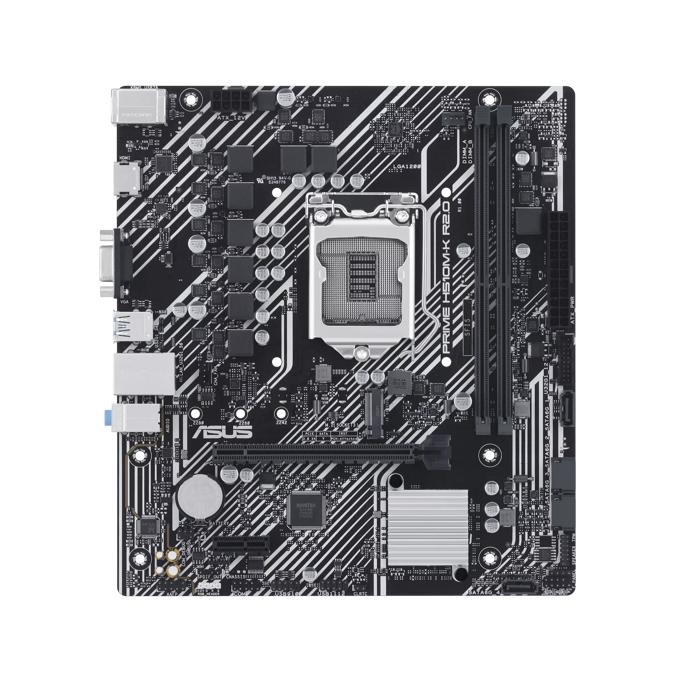

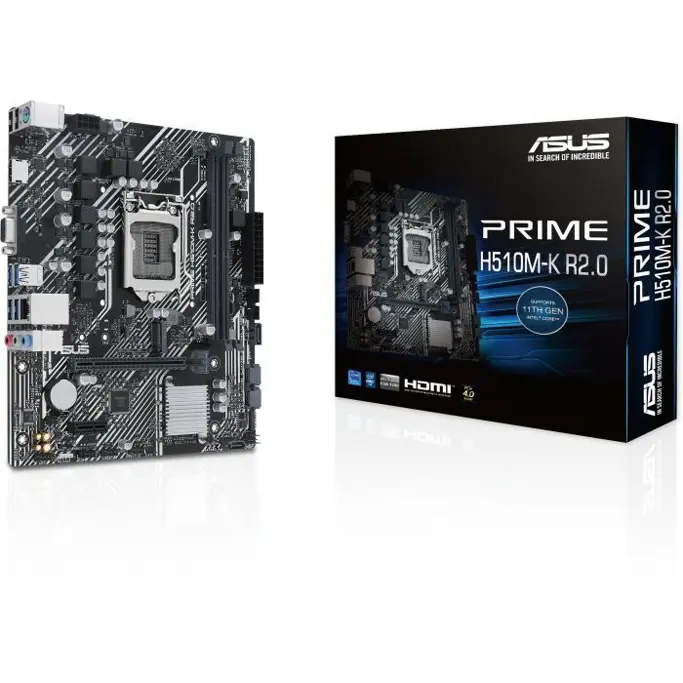

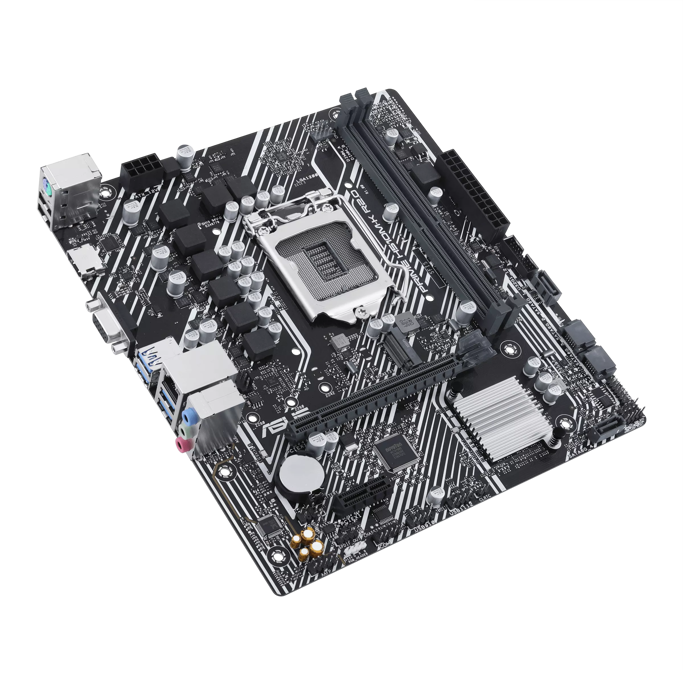

ASUS Prime H510M-K R2.0, s.1200, M.2, VGA, HDMI, 90MB1E80-M0EAY0

shape factor µATX
Socket Intel 1200
chipset Intel H470
CPU-Compatibility Core i-11000, Core i-10000, Pentium Gold G6000, Celeron G5000
RAM 2x DDR4 DIMM, dual PC4-25600U/?DDR4-3200, max. 64GB (UDIMM)
Extension slots 1x PCIe 4.0 x16, 1x PCIe 3.0 x1, 1x M.2/?M-Key (PCIe 3.0 x4/?SATA, 2280/?2260/?2242)

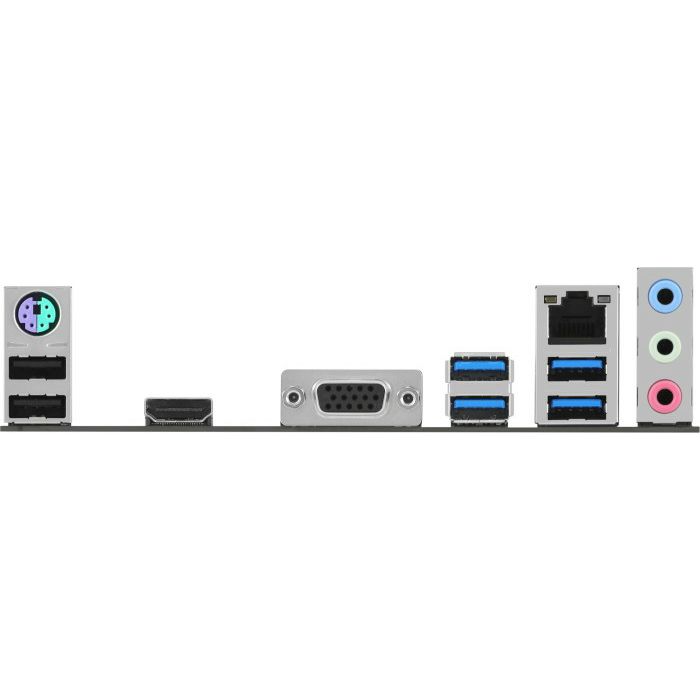

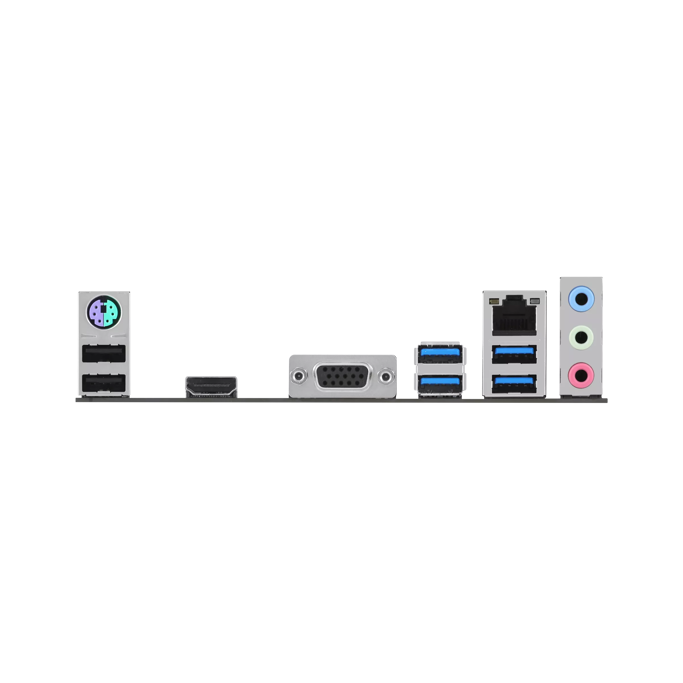

external connectors 1x VGA (iGPU), 1x HDMI 2.0b (iGPU), 4x USB-A 3.0 (5Gb/?s), 2x USB-A 2.0 (480Mb/?s), 1x Gb LAN (Realtek), 3x jack, 1x PS/?2 Combo
Internal connectors 1x USB 3.0 Header (5Gb/?s, 2x USB 3.0), 2x USB 2.0 header (480Mb/?s, 4x USB 2.0), 4x SATA 6Gb/s (H470), 1x serial, 1x S/?PDIF-Header, 1x TPM-Header, 1x Speaker-Header, 1x COM Debug-Header
Header Cooling 1x CPU fan 4-Pin, 1x fan 4-Pin
Header Lighting 1x 4-Pin RGB (+12V/?G/?R/?B, max. 3A)
buttons/Switches not available
Audio 7.1 (Realtek ALC897)
Graphics iGPU
Wireless not available
RAID level 0/?1/?5/?10 (H470)
Multi-GPU not available
Power connections 1x 24-Pin ATX, 1x 8-Pin EPS12V
VRM 7 virtual phases (6+1), 7 real phases (6+1), PWM-Controller: ASP1900B (NCP81610, max. 8 phases)
MOSFETs CPU 6x 58A SiRA14DP/?SiRA12DP
MOSFETs SoC 1x 58A SiRA14DP/?2x SiRA12DP
Lighting not available
BIOS 1x 16MB (128Mb)
Special features audio+solid capacitors, onboard TPM 2.0 support (Intel PTT, additional Manufacturer link pay attention)
